| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_107T01_9000001684_11491cztM0_level2.evt | modeM0/AS1A04_107T01_9000001684_11491cztM0_level2_quad_clean.evt |
| Size (bytes) | 615,925,440 | 100,503,360 |
| Size | 587.4 MB | 95.8 MB |
| Events in quadrant A | 7,353,819 | 619,304 |
| Events in quadrant B | 4,011,292 | 684,651 |
| Events in quadrant C | 2,802,612 | 675,996 |
| Events in quadrant D | 4,081,721 | 646,174 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26048 | 2 |
| B | 0 | 15804 | 1 |
| C | 0 | 12231 | 1 |
| D | 0 | 15948 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5975 | 1400 | 23.430962% |
| B | 5975 | 253 | 4.234310% |
| C | 5975 | 17 | 0.284519% |
| D | 5975 | 190 | 3.179916% |

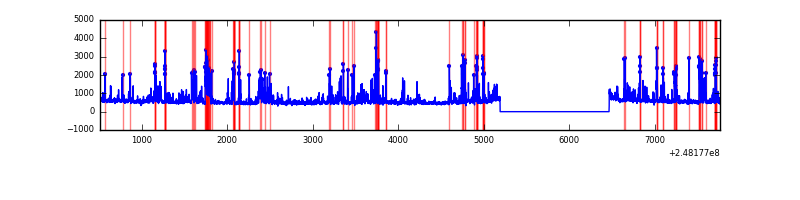

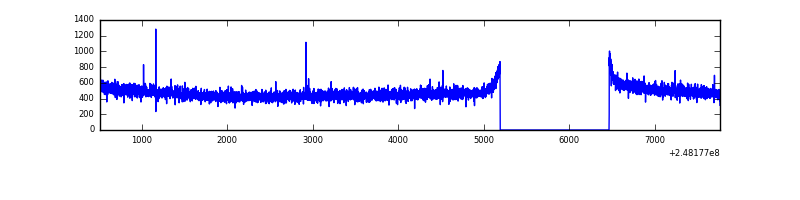

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7251 | 5977 | 894 | 894 | 12.33% | 14.96% |  |
| B | 7251 | 5977 | 127 | 127 | 1.75% | 2.12% |  |
| C | 7251 | 5977 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7251 | 5976 | 138 | 138 | 1.90% | 2.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 4598874 | 33771.68 | 683 | 672 | 136.2 |
| A | 9 | 143 | 28201 | 202.19 | 683 | 672 | 136.2 |
| A | 1 | 162 | 24656 | 176.15 | 683 | 672 | 136.2 |
| B | 4 | 239 | 887118 | 6401.21 | 738 | 723 | 138.5 |
| B | 11 | 51 | 157447 | 1131.8 | 738 | 723 | 138.5 |
| B | 0 | 214 | 51133 | 364.04 | 738 | 723 | 138.5 |
| C | 13 | 61 | 5200 | 27.06 | 718 | 724 | 165.4 |
| C | 14 | 67 | 2738 | 12.18 | 718 | 724 | 165.4 |
| C | 12 | 4 | 2259 | 9.28 | 718 | 724 | 165.4 |
| D | 1 | 52 | 862163 | 5024.36 | 721 | 704 | 171.5 |
| D | 13 | 152 | 129472 | 751.02 | 721 | 704 | 171.5 |
| D | 2 | 120 | 114464 | 663.49 | 721 | 704 | 171.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

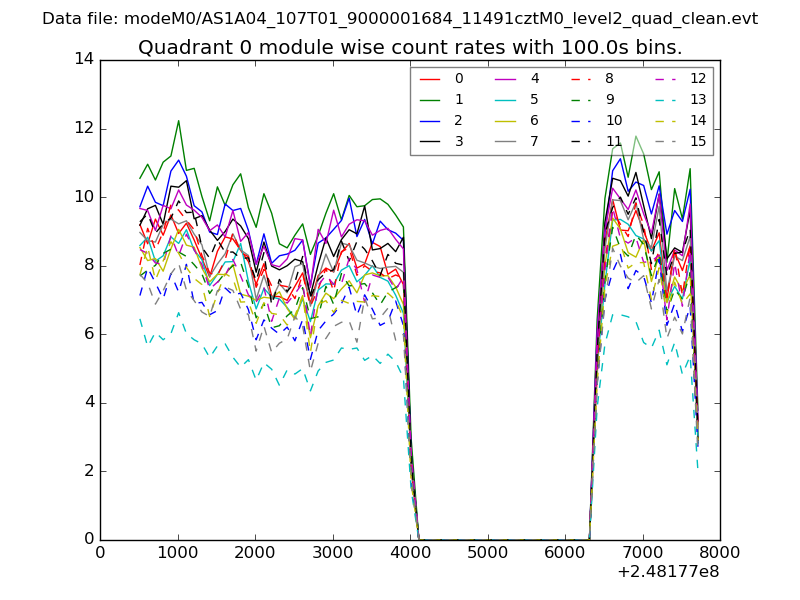

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

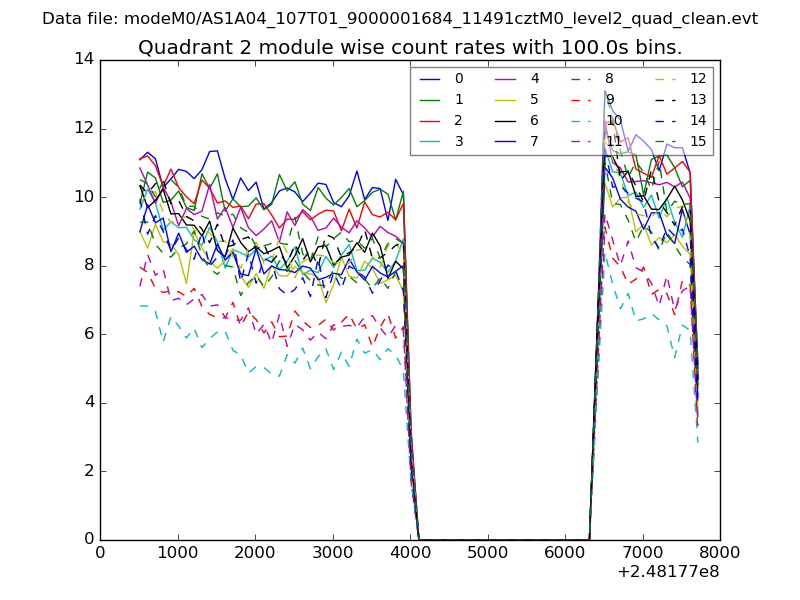

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

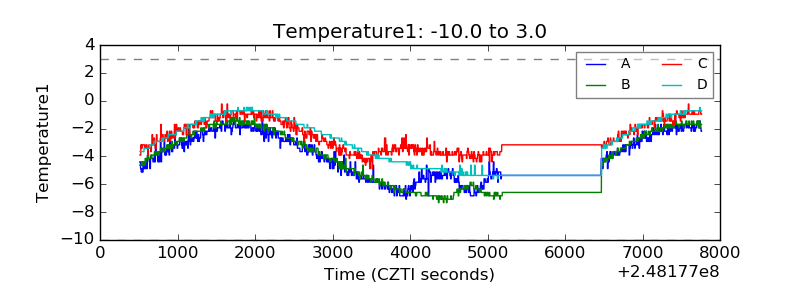

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

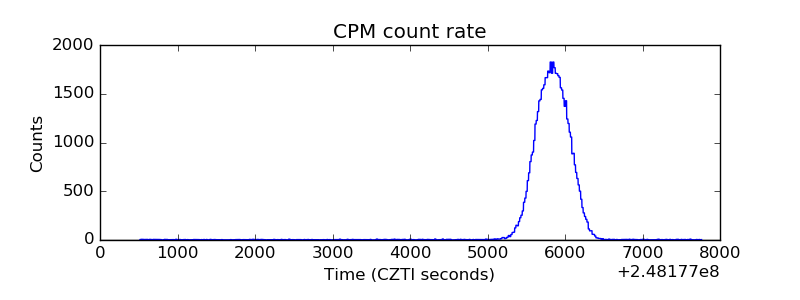

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

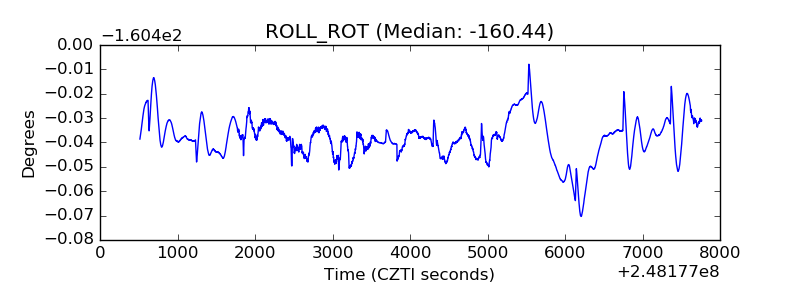

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

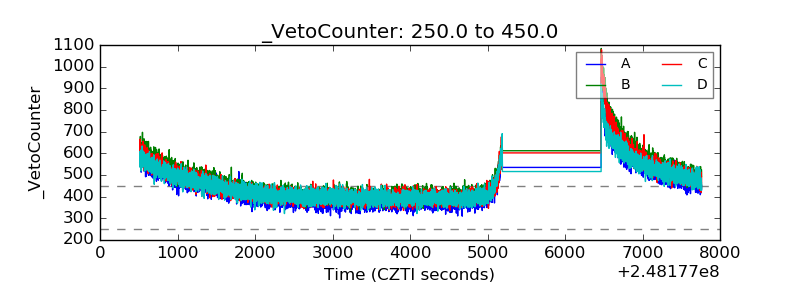

| Veto Counter |  |
