| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T05_9000001686_11504cztM0_level2.evt | modeM0/AS1A04_021T05_9000001686_11504cztM0_level2_quad_clean.evt |
| Size (bytes) | 646,413,120 | 69,474,240 |
| Size | 616.5 MB | 66.3 MB |
| Events in quadrant A | 7,660,761 | 378,479 |
| Events in quadrant B | 4,256,980 | 415,585 |
| Events in quadrant C | 3,087,442 | 441,452 |
| Events in quadrant D | 4,128,218 | 410,537 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27266 | 3 |
| B | 0 | 16847 | 2 |
| C | 0 | 13459 | 2 |
| D | 0 | 16650 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6550 | 1345 | 20.534351% |
| B | 6550 | 258 | 3.938931% |
| C | 6550 | 49 | 0.748092% |
| D | 6550 | 214 | 3.267176% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7661 | 6552 | 903 | 903 | 11.79% | 13.78% |  |
| B | 7661 | 6552 | 103 | 103 | 1.34% | 1.57% |  |
| C | 7661 | 6552 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7661 | 6552 | 125 | 125 | 1.63% | 1.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 4556158 | 29739.55 | 758 | 744 | 153.2 |
| A | 15 | 223 | 33685 | 215.05 | 758 | 744 | 153.2 |
| A | 1 | 162 | 30389 | 193.53 | 758 | 744 | 153.2 |
| B | 4 | 239 | 637620 | 4178.06 | 808 | 789 | 152.4 |
| B | 3 | 64 | 224050 | 1464.75 | 808 | 789 | 152.4 |
| B | 11 | 51 | 131475 | 857.39 | 808 | 789 | 152.4 |
| C | 13 | 61 | 5804 | 27.33 | 791 | 800 | 183.1 |
| C | 12 | 4 | 4142 | 18.25 | 791 | 800 | 183.1 |
| C | 14 | 234 | 1907 | 6.05 | 791 | 800 | 183.1 |
| D | 1 | 52 | 907089 | 4840.83 | 784 | 763 | 187.2 |
| D | 2 | 120 | 90801 | 480.91 | 784 | 763 | 187.2 |
| D | 6 | 219 | 55216 | 290.84 | 784 | 763 | 187.2 |

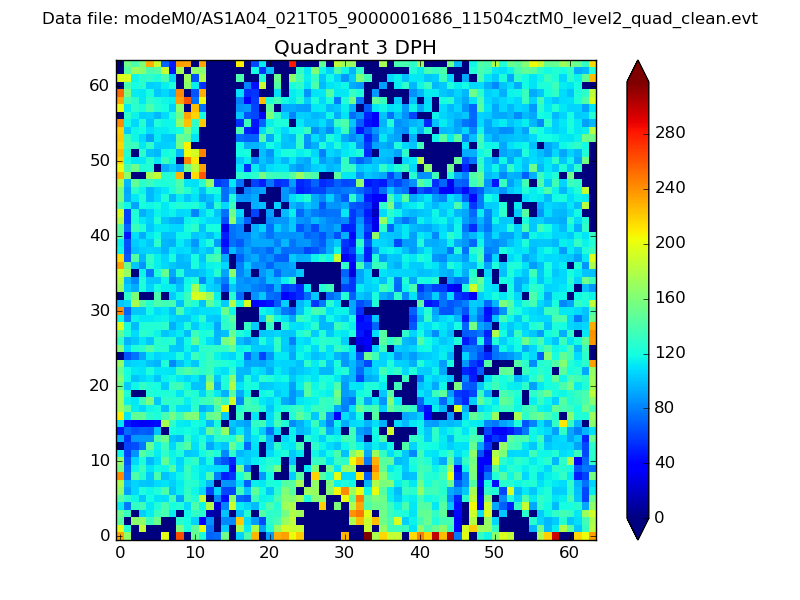

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

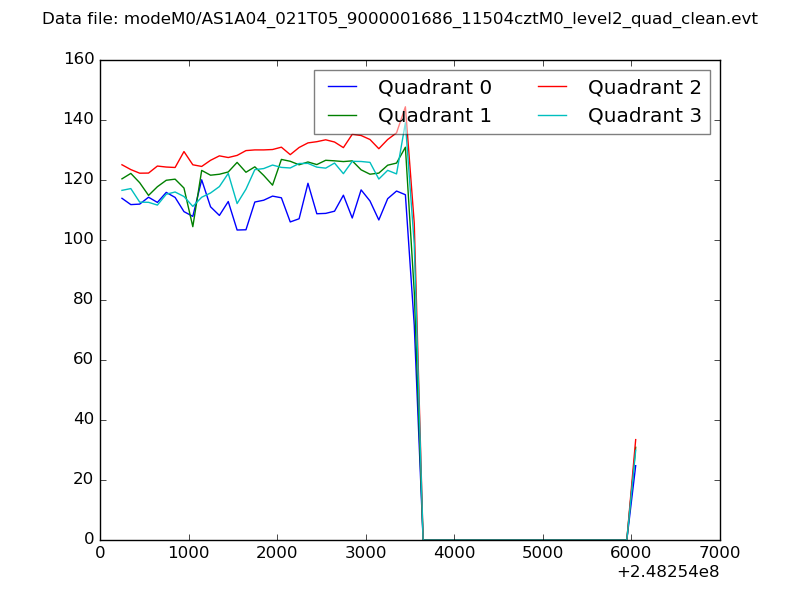

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

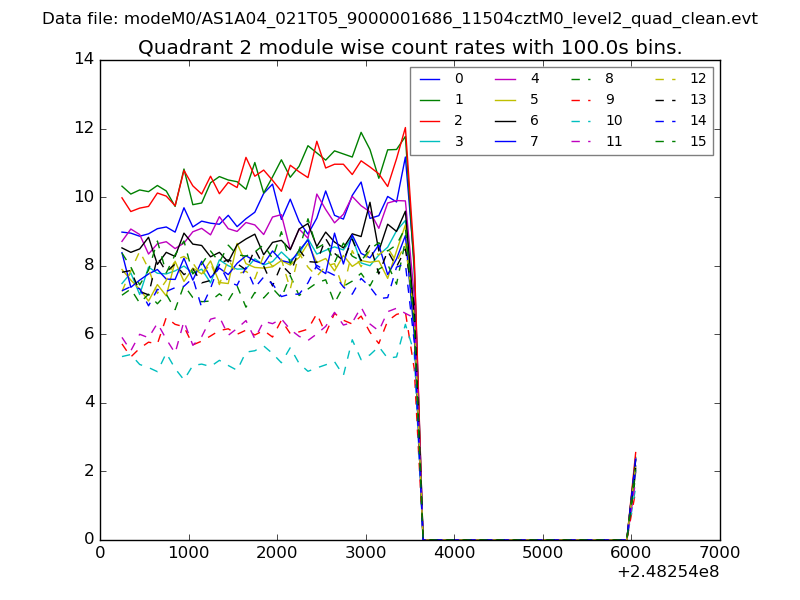

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

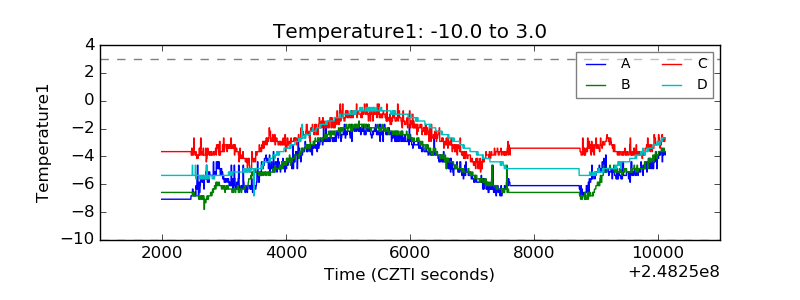

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

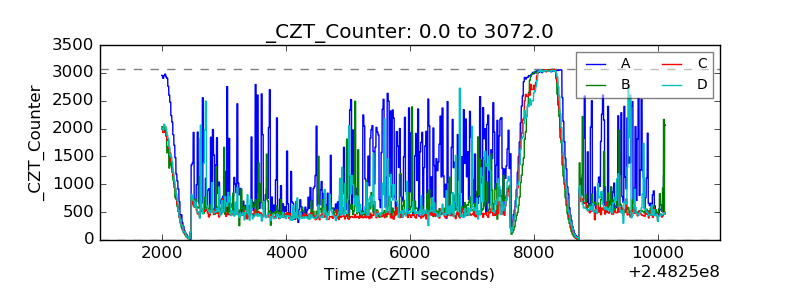

| CZT Counter |  |

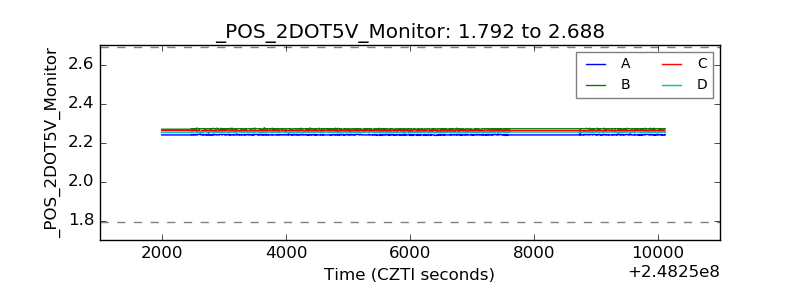

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

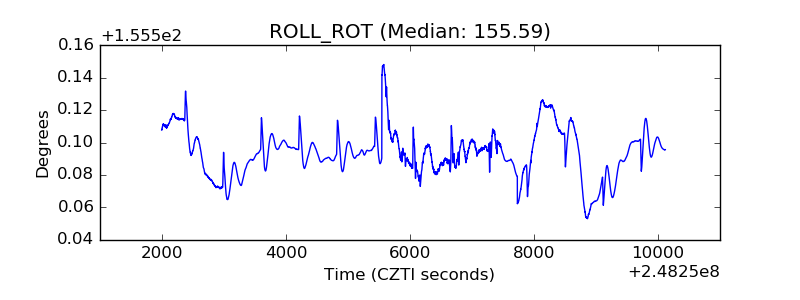

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
