| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T06_9000001688_11509cztM0_level2.evt | modeM0/AS1A04_021T06_9000001688_11509cztM0_level2_quad_clean.evt |
| Size (bytes) | 425,067,840 | 53,326,080 |
| Size | 405.4 MB | 50.9 MB |
| Events in quadrant A | 4,514,572 | 303,302 |
| Events in quadrant B | 2,946,839 | 324,277 |
| Events in quadrant C | 2,082,136 | 349,441 |
| Events in quadrant D | 3,026,520 | 323,301 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16489 | 2 |
| B | 0 | 11652 | 1 |
| C | 0 | 9220 | 1 |
| D | 0 | 12014 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4459 | 681 | 15.272483% |
| B | 4459 | 214 | 4.799282% |
| C | 4459 | 50 | 1.121328% |
| D | 4459 | 197 | 4.418031% |

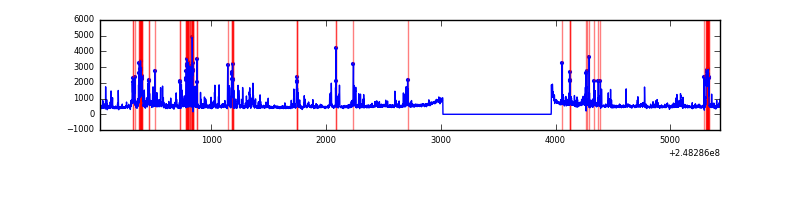

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5405 | 4461 | 399 | 399 | 7.38% | 8.94% |  |
| B | 5405 | 4461 | 90 | 90 | 1.67% | 2.02% |  |
| C | 5405 | 4461 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5405 | 4461 | 99 | 99 | 1.83% | 2.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1051132 | 10127.25 | 510 | 500 | 103.7 |
| A | 14 | 238 | 1041766 | 10036.96 | 510 | 500 | 103.7 |
| A | 15 | 223 | 252136 | 2425.57 | 510 | 500 | 103.7 |
| B | 4 | 239 | 356376 | 3490.42 | 530 | 518 | 102.0 |
| B | 3 | 64 | 312395 | 3059.04 | 530 | 518 | 102.0 |
| B | 11 | 51 | 114943 | 1122.33 | 530 | 518 | 102.0 |
| C | 12 | 4 | 5693 | 41.21 | 532 | 536 | 125.1 |
| C | 13 | 61 | 3866 | 26.61 | 532 | 536 | 125.1 |
| C | 3 | 202 | 1288 | 6.01 | 532 | 536 | 125.1 |
| D | 1 | 52 | 304107 | 2412.62 | 519 | 504 | 125.8 |
| D | 8 | 195 | 172811 | 1369.26 | 519 | 504 | 125.8 |
| D | 10 | 199 | 142215 | 1126.12 | 519 | 504 | 125.8 |

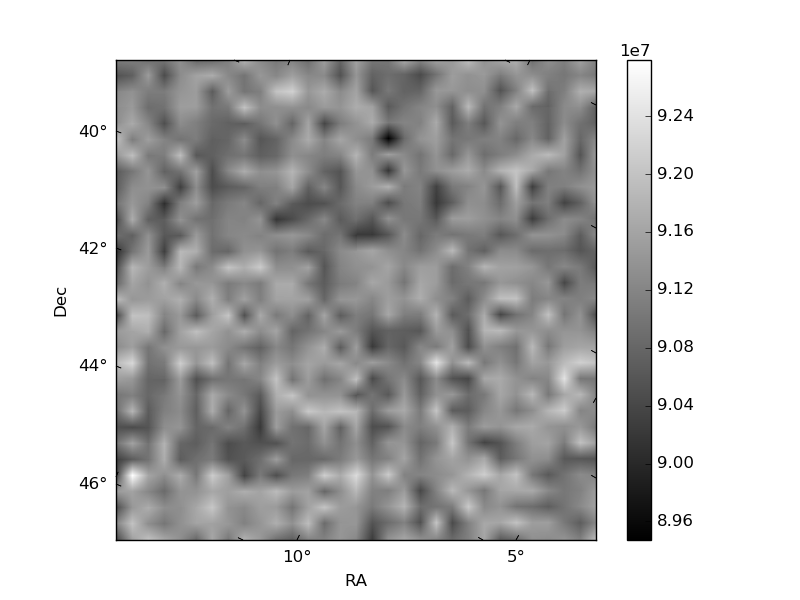

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

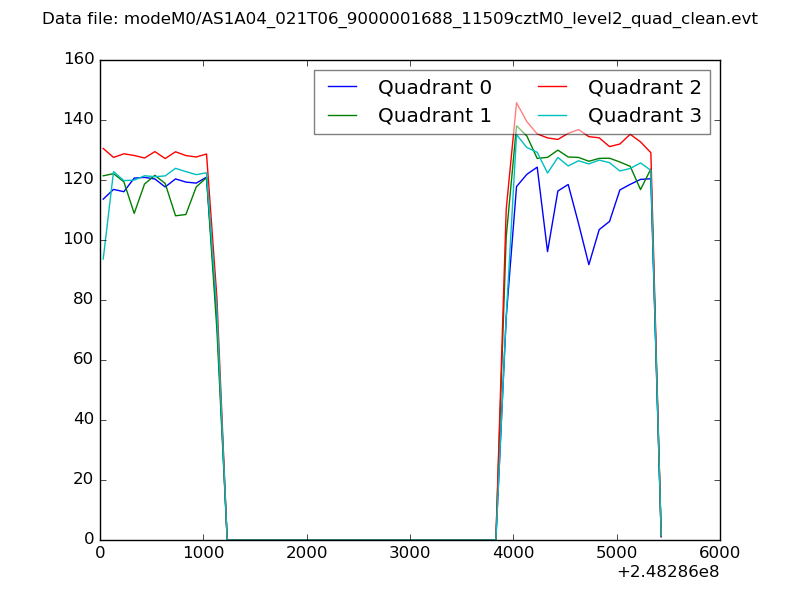

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

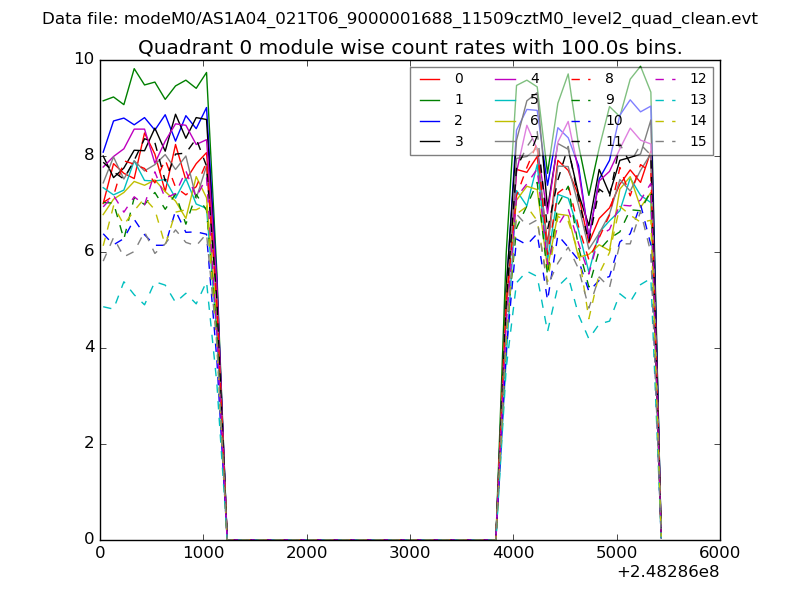

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

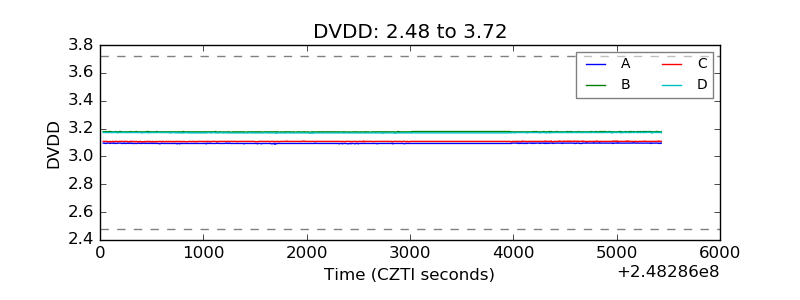

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

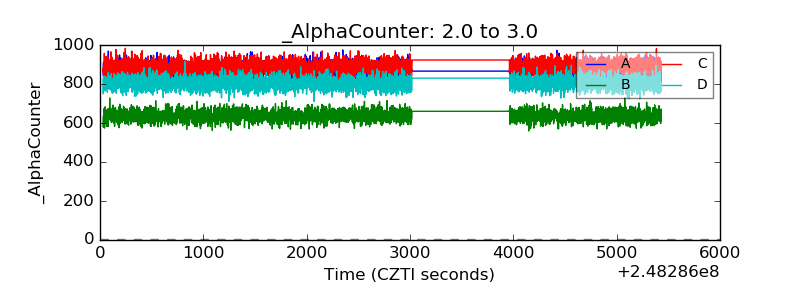

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

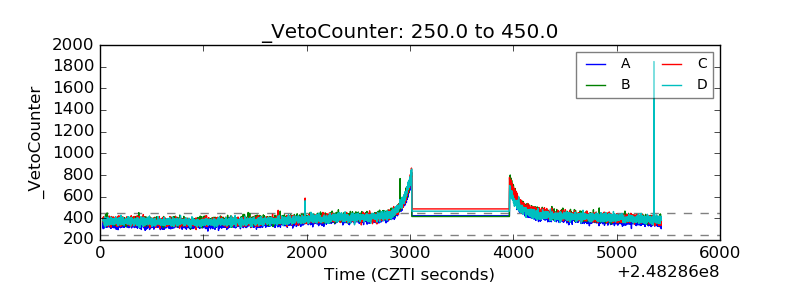

| Veto Counter |  |
