| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T06_9000001688_11510cztM0_level2.evt | modeM0/AS1A04_021T06_9000001688_11510cztM0_level2_quad_clean.evt |
| Size (bytes) | 645,554,880 | 93,798,720 |
| Size | 615.6 MB | 89.5 MB |
| Events in quadrant A | 7,447,240 | 550,399 |
| Events in quadrant B | 4,374,920 | 587,285 |
| Events in quadrant C | 3,163,079 | 630,611 |
| Events in quadrant D | 4,097,525 | 590,037 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26940 | 2 |
| B | 0 | 17419 | 1 |
| C | 0 | 14195 | 1 |
| D | 0 | 16806 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6911 | 1130 | 16.350745% |
| B | 6911 | 222 | 3.212270% |
| C | 6911 | 37 | 0.535378% |
| D | 6911 | 170 | 2.459847% |

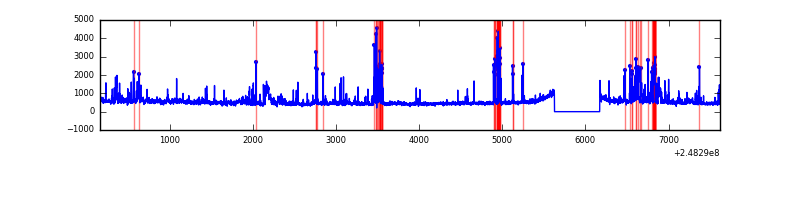

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7457 | 6913 | 755 | 755 | 10.12% | 10.92% |  |
| B | 7457 | 6913 | 87 | 87 | 1.17% | 1.26% |  |
| C | 7457 | 6913 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7457 | 6913 | 86 | 86 | 1.15% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 3176535 | 20111.04 | 774 | 758 | 157.9 |
| A | 14 | 238 | 971125 | 6144.98 | 774 | 758 | 157.9 |
| A | 15 | 223 | 101552 | 638.29 | 774 | 758 | 157.9 |
| B | 4 | 239 | 441907 | 2841.24 | 812 | 794 | 155.3 |
| B | 3 | 64 | 411912 | 2648.04 | 812 | 794 | 155.3 |
| B | 11 | 51 | 192374 | 1233.98 | 812 | 794 | 155.3 |
| C | 13 | 61 | 5923 | 26.89 | 811 | 816 | 189.9 |
| C | 3 | 202 | 1984 | 6.15 | 811 | 816 | 189.9 |
| C | -1 | -1 | -1 | -1.0 | 811 | 816 | 189.9 |
| D | 1 | 52 | 301689 | 1551.87 | 806 | 784 | 193.9 |
| D | 2 | 120 | 202102 | 1038.27 | 806 | 784 | 193.9 |
| D | 8 | 195 | 170151 | 873.48 | 806 | 784 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

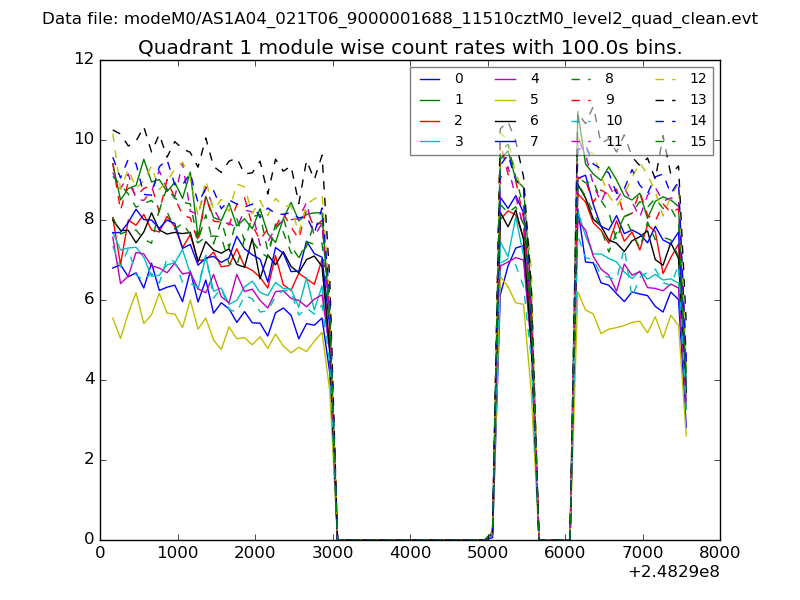

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

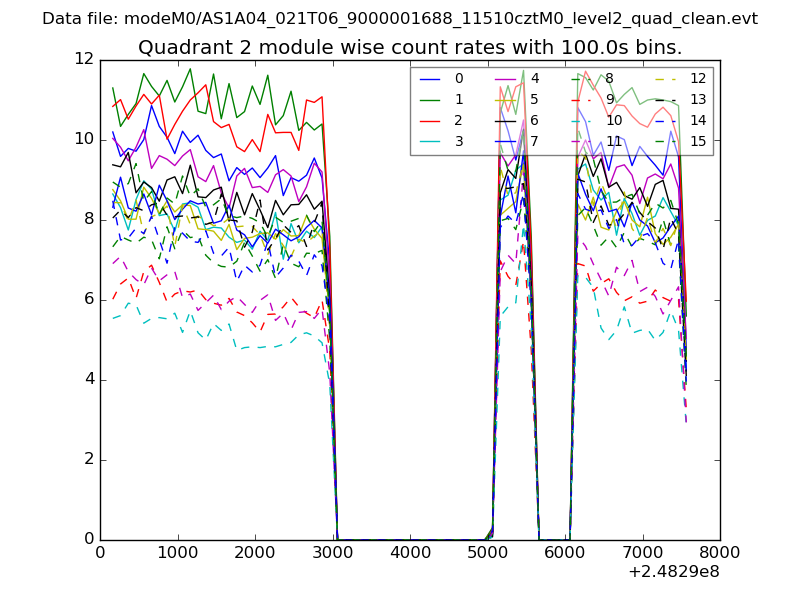

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

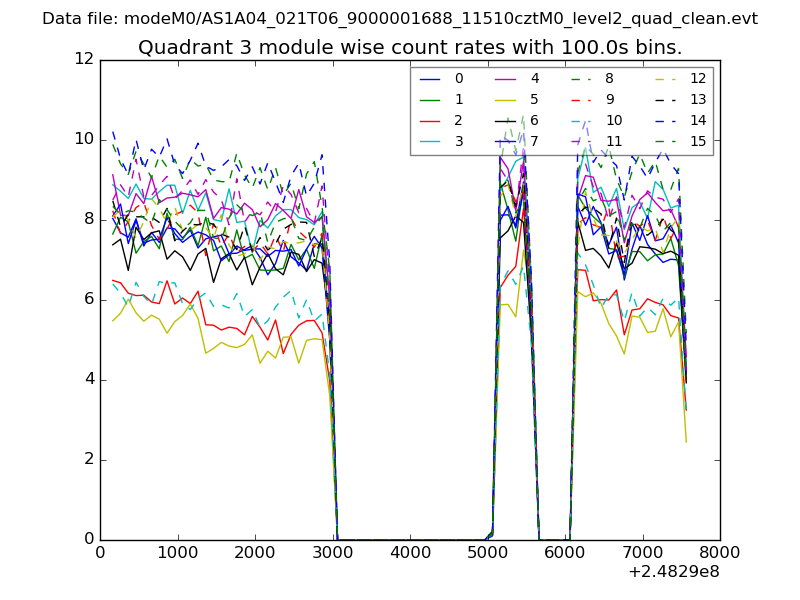

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

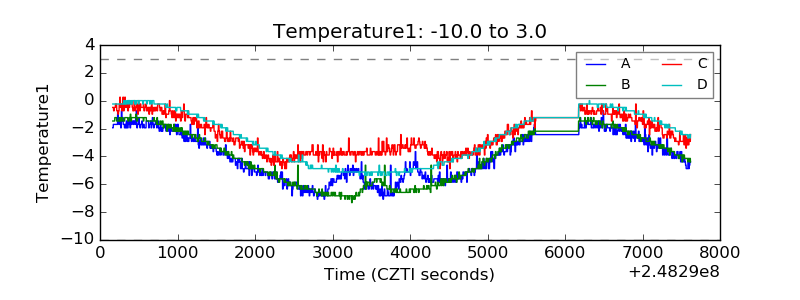

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

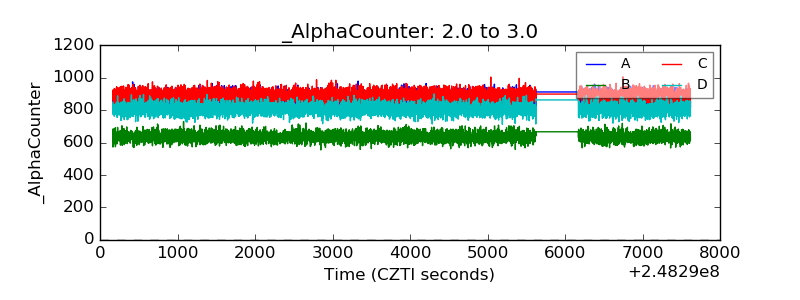

| Alpha Counter |  |

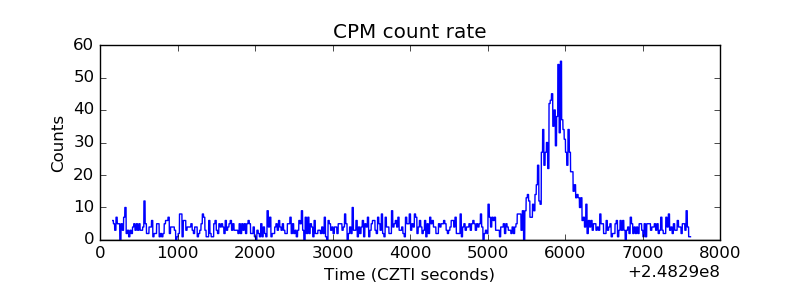

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

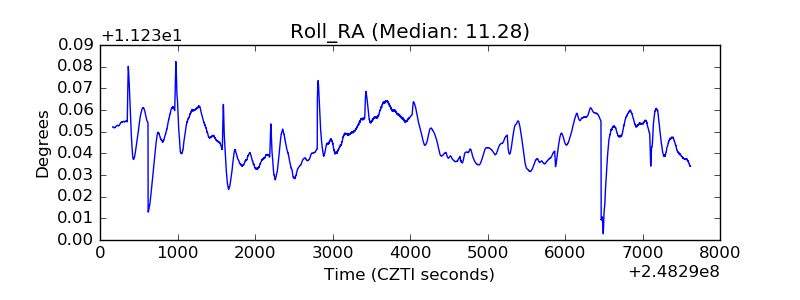

| _Roll_RA |  |
| Veto Counter |  |
