| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_021T06_9000001688_11519cztM0_level2.evt | modeM0/AS1A04_021T06_9000001688_11519cztM0_level2_quad_clean.evt |
| Size (bytes) | 629,360,640 | 72,426,240 |
| Size | 600.2 MB | 69.1 MB |
| Events in quadrant A | 6,895,653 | 389,095 |
| Events in quadrant B | 4,299,627 | 444,767 |
| Events in quadrant C | 3,143,268 | 467,666 |
| Events in quadrant D | 4,284,499 | 440,228 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24877 | 3 |
| B | 0 | 16885 | 2 |
| C | 0 | 13487 | 2 |
| D | 0 | 17040 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6464 | 1336 | 20.668317% |
| B | 6464 | 265 | 4.099629% |
| C | 6464 | 65 | 1.005569% |
| D | 6464 | 155 | 2.397896% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

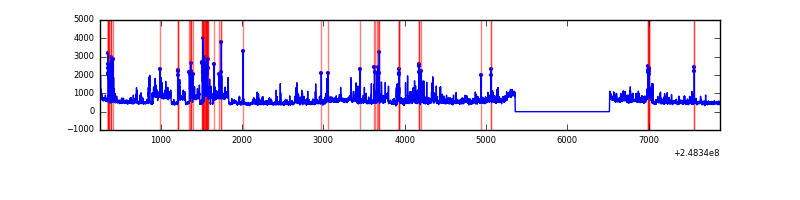

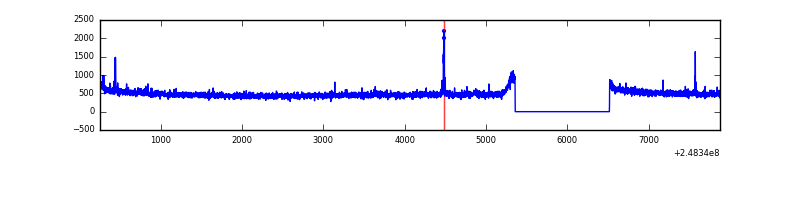

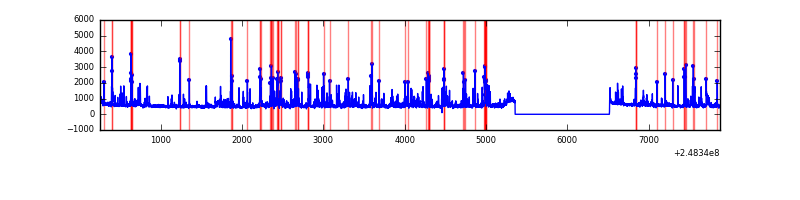

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7625 | 6465 | 833 | 833 | 10.92% | 12.88% |  |
| B | 7625 | 6466 | 85 | 85 | 1.11% | 1.31% |  |
| C | 7625 | 6466 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7625 | 6466 | 80 | 80 | 1.05% | 1.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 3938295 | 25815.98 | 752 | 738 | 152.5 |
| A | 9 | 143 | 20135 | 127.17 | 752 | 738 | 152.5 |
| A | 1 | 162 | 10471 | 63.81 | 752 | 738 | 152.5 |
| B | 4 | 239 | 643707 | 4183.38 | 814 | 795 | 153.7 |
| B | 3 | 64 | 238088 | 1544.05 | 814 | 795 | 153.7 |
| B | 11 | 51 | 95738 | 617.79 | 814 | 795 | 153.7 |
| C | 7 | 87 | 53334 | 286.26 | 793 | 800 | 183.5 |
| C | 13 | 61 | 5665 | 26.51 | 793 | 800 | 183.5 |
| C | 3 | 202 | 1961 | 6.33 | 793 | 800 | 183.5 |
| D | 1 | 52 | 816356 | 4328.23 | 788 | 766 | 188.4 |
| D | 2 | 14 | 98006 | 516.04 | 788 | 766 | 188.4 |
| D | 6 | 219 | 96014 | 505.47 | 788 | 766 | 188.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

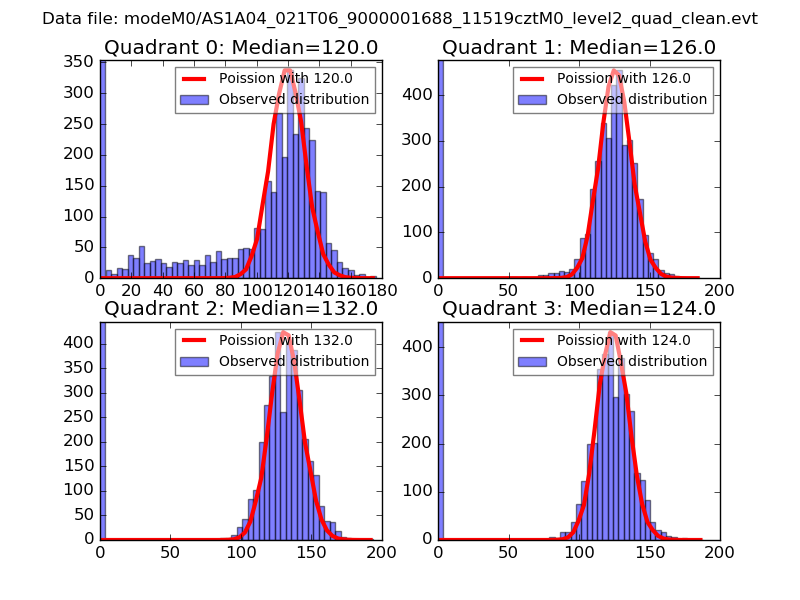

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

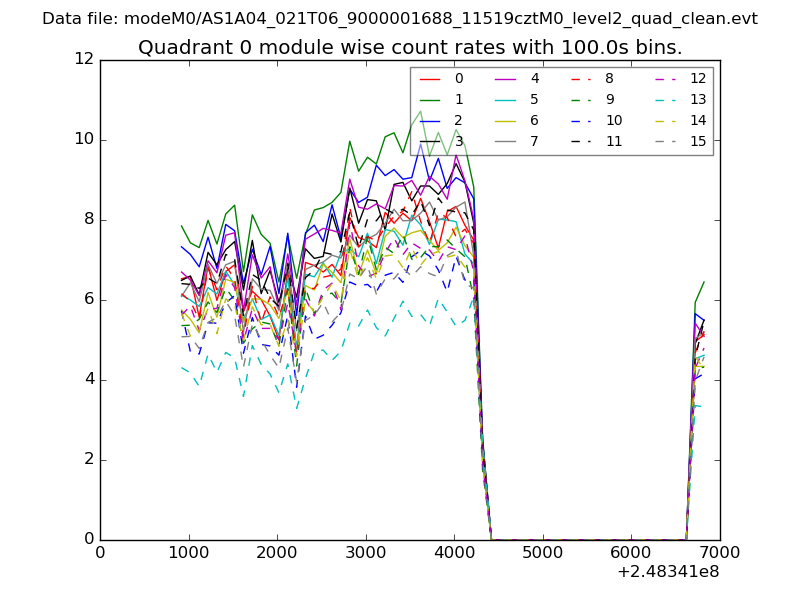

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

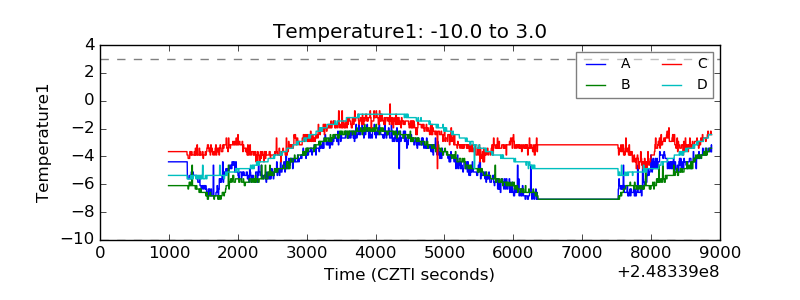

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

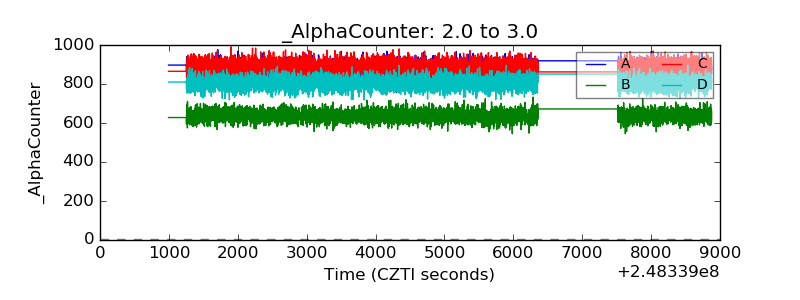

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

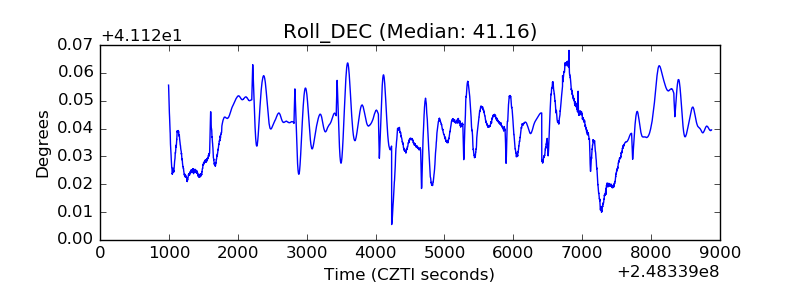

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
