| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T05_9000001690_11525cztM0_level2.evt | modeM0/AS1A04_022T05_9000001690_11525cztM0_level2_quad_clean.evt |
| Size (bytes) | 672,079,680 | 95,840,640 |
| Size | 640.9 MB | 91.4 MB |
| Events in quadrant A | 7,114,194 | 547,219 |
| Events in quadrant B | 5,030,358 | 597,368 |
| Events in quadrant C | 3,233,014 | 651,596 |
| Events in quadrant D | 4,493,096 | 608,058 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26129 | 2 |
| B | 0 | 19714 | 1 |
| C | 0 | 14612 | 1 |
| D | 0 | 18083 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7147 | 1199 | 16.776270% |
| B | 7147 | 410 | 5.736673% |
| C | 7147 | 10 | 0.139919% |
| D | 7147 | 132 | 1.846929% |

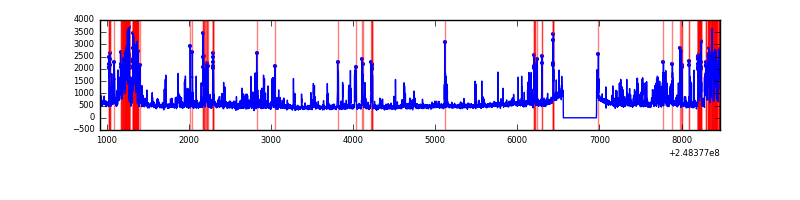

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7553 | 7149 | 700 | 700 | 9.27% | 9.79% |  |
| B | 7553 | 7149 | 257 | 257 | 3.40% | 3.59% |  |
| C | 7553 | 7149 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7553 | 7149 | 91 | 91 | 1.20% | 1.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 3776876 | 24006.99 | 770 | 752 | 157.3 |
| A | 9 | 143 | 114827 | 725.24 | 770 | 752 | 157.3 |
| A | 1 | 162 | 95717 | 603.75 | 770 | 752 | 157.3 |
| B | 4 | 239 | 1429266 | 9090.89 | 819 | 800 | 157.1 |
| B | 11 | 51 | 150410 | 952.13 | 819 | 800 | 157.1 |
| B | 15 | 204 | 106957 | 675.59 | 819 | 800 | 157.1 |
| C | 13 | 61 | 6009 | 26.83 | 828 | 832 | 193.0 |
| C | 12 | 4 | 3387 | 13.24 | 828 | 832 | 193.0 |
| C | 3 | 202 | 2018 | 6.15 | 828 | 832 | 193.0 |
| D | 13 | 152 | 910525 | 4615.77 | 821 | 800 | 197.1 |
| D | 1 | 52 | 233005 | 1178.16 | 821 | 800 | 197.1 |
| D | 2 | 120 | 121649 | 613.16 | 821 | 800 | 197.1 |

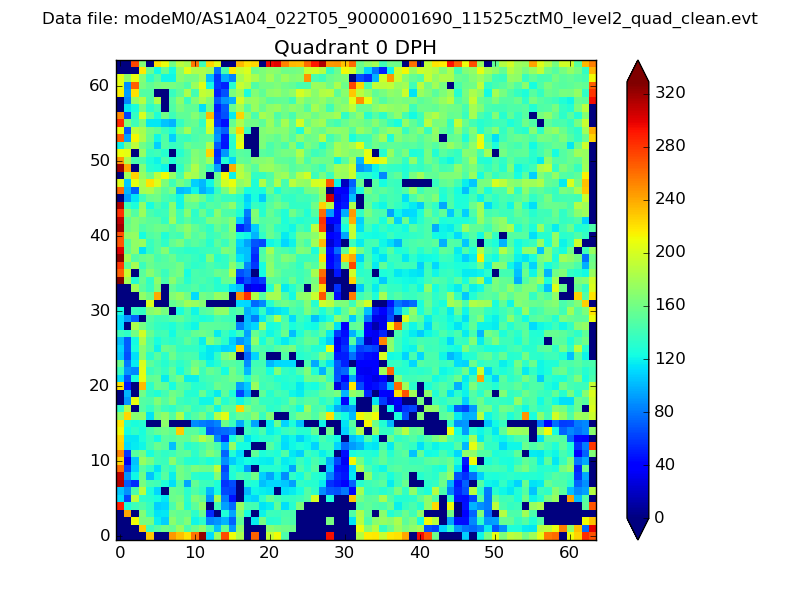

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

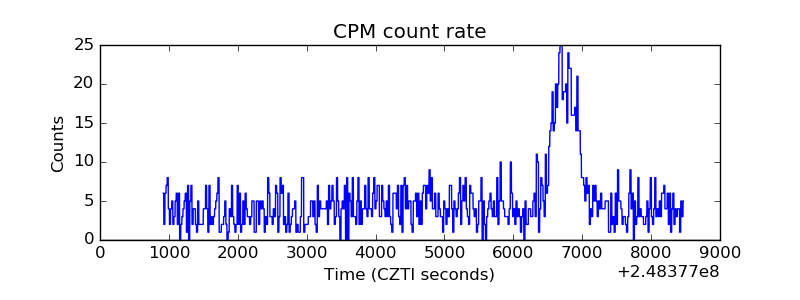

| _CPM_Rate |  |

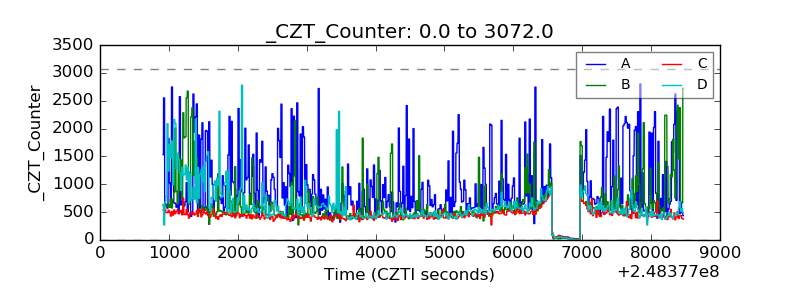

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

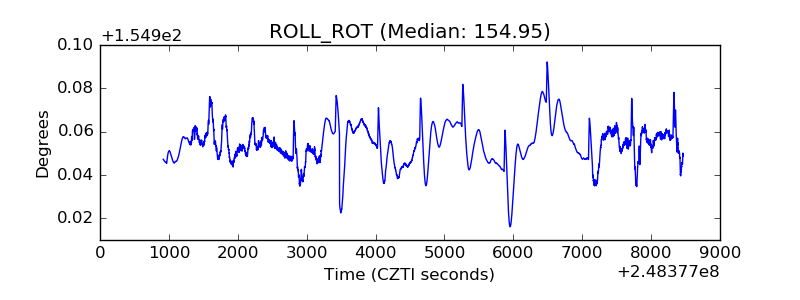

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
