| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T05_9000001690_11527cztM0_level2.evt | modeM0/AS1A04_022T05_9000001690_11527cztM0_level2_quad_clean.evt |
| Size (bytes) | 696,908,160 | 114,926,400 |
| Size | 664.6 MB | 109.6 MB |
| Events in quadrant A | 6,027,651 | 703,086 |
| Events in quadrant B | 5,608,909 | 713,845 |
| Events in quadrant C | 3,700,917 | 779,112 |
| Events in quadrant D | 5,218,785 | 719,518 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23443 | 3 |
| B | 0 | 22135 | 2 |
| C | 0 | 16738 | 2 |
| D | 0 | 21379 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8132 | 637 | 7.833251% |
| B | 8132 | 567 | 6.972455% |
| C | 8132 | 22 | 0.270536% |
| D | 8132 | 273 | 3.357108% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

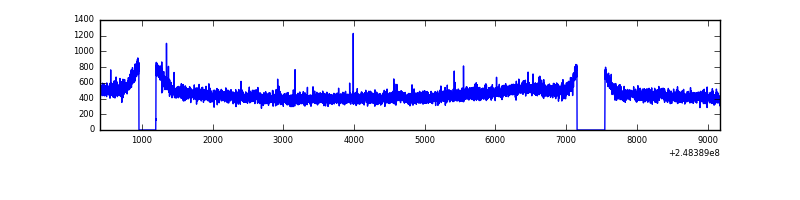

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8768 | 8134 | 322 | 322 | 3.67% | 3.96% |  |
| B | 8768 | 8135 | 263 | 263 | 3.00% | 3.23% |  |
| C | 8768 | 8135 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8768 | 8135 | 227 | 227 | 2.59% | 2.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2157123 | 11402.02 | 924 | 904 | 189.1 |
| A | 1 | 162 | 79040 | 413.18 | 924 | 904 | 189.1 |
| A | 9 | 143 | 70482 | 367.93 | 924 | 904 | 189.1 |
| B | 4 | 239 | 1500988 | 8349.91 | 932 | 908 | 179.7 |
| B | 0 | 219 | 133705 | 739.19 | 932 | 908 | 179.7 |
| B | 11 | 51 | 129997 | 718.55 | 932 | 908 | 179.7 |
| C | 7 | 236 | 7635 | 30.06 | 947 | 952 | 222.3 |
| C | 13 | 61 | 7065 | 27.5 | 947 | 952 | 222.3 |
| C | 3 | 202 | 2375 | 6.4 | 947 | 952 | 222.3 |
| D | 1 | 52 | 480114 | 2131.11 | 929 | 901 | 224.9 |
| D | 8 | 195 | 382830 | 1698.48 | 929 | 901 | 224.9 |
| D | 10 | 253 | 310918 | 1378.68 | 929 | 901 | 224.9 |

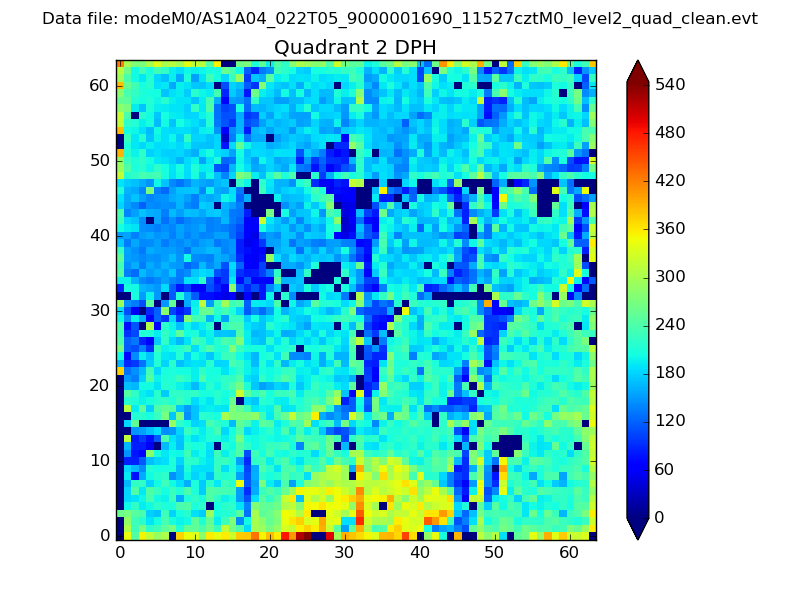

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

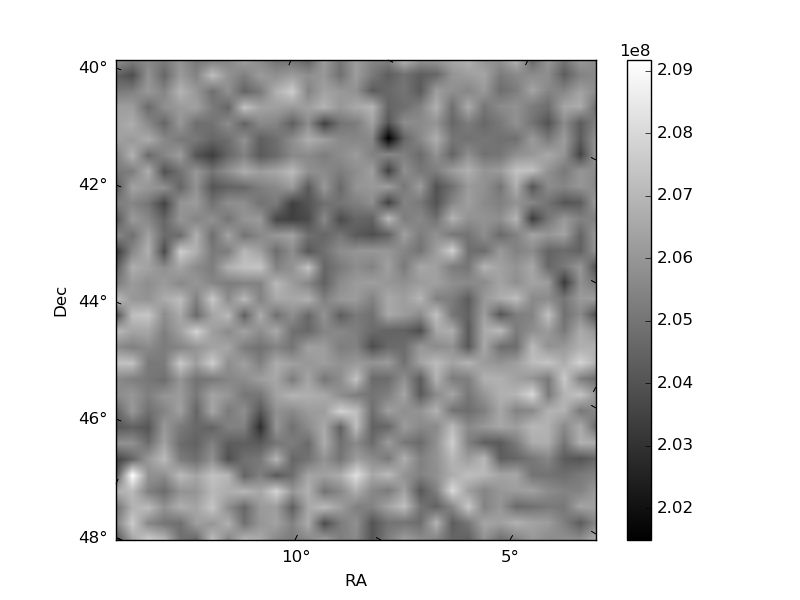

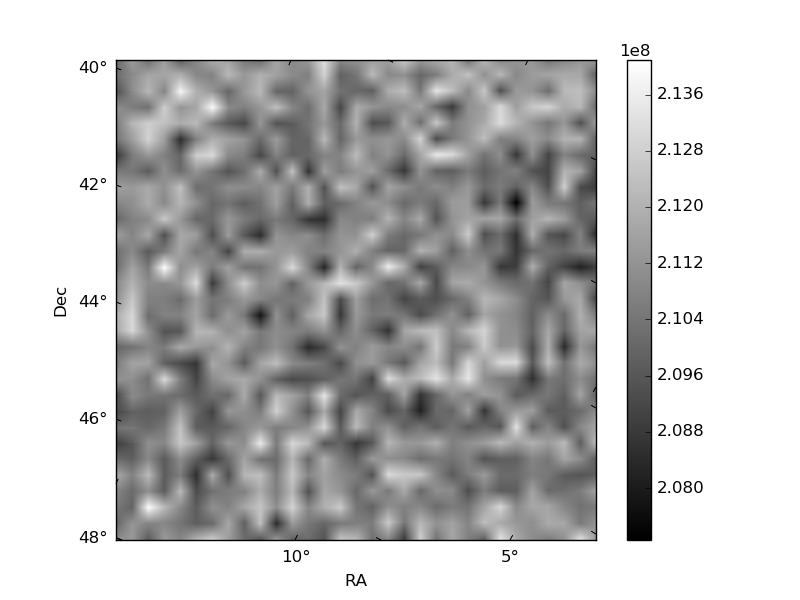

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

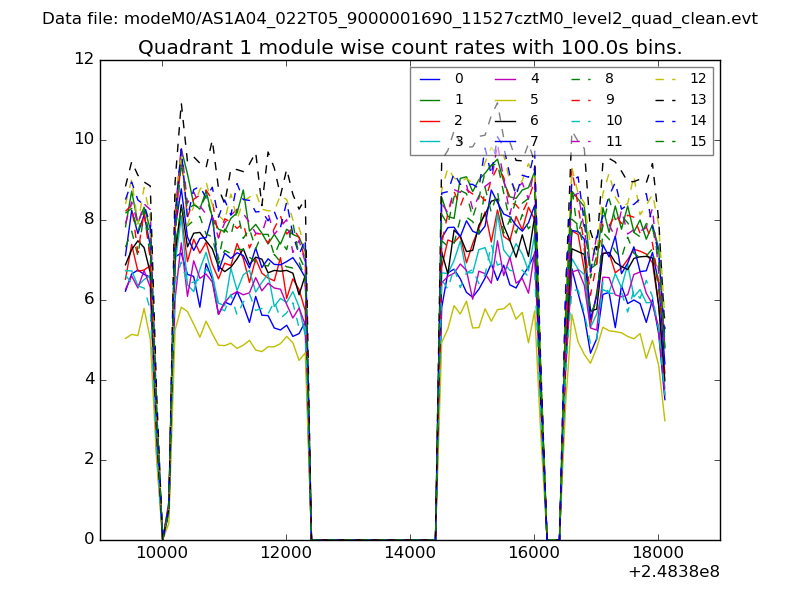

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

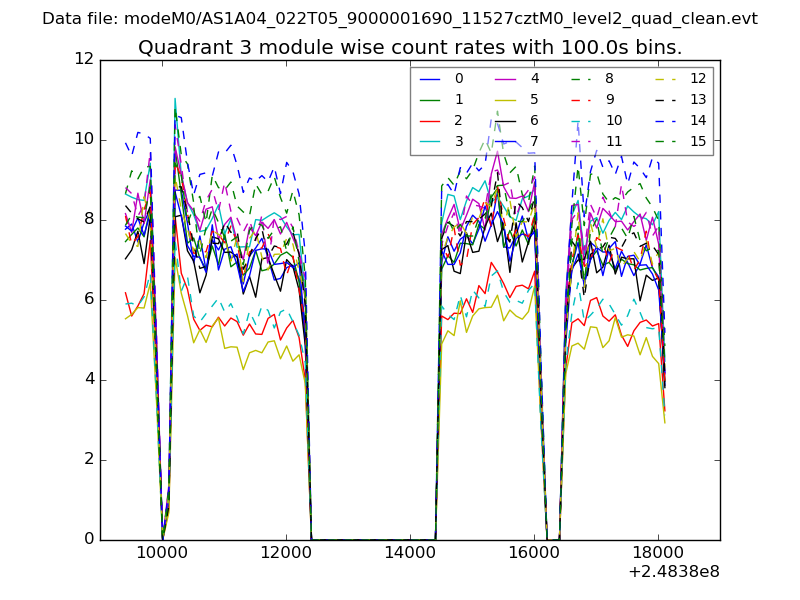

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

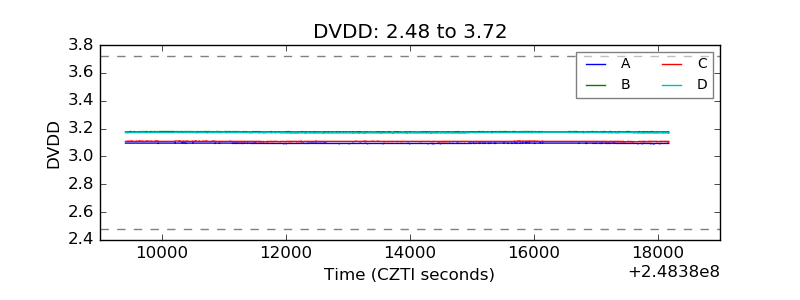

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

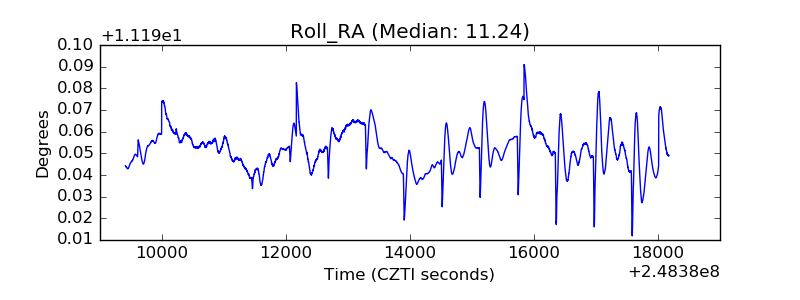

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
