| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T05_9000001690_11535cztM0_level2.evt | modeM0/AS1A04_022T05_9000001690_11535cztM0_level2_quad_clean.evt |
| Size (bytes) | 322,387,200 | 53,184,960 |
| Size | 307.5 MB | 50.7 MB |
| Events in quadrant A | 2,696,787 | 332,333 |
| Events in quadrant B | 2,546,026 | 335,328 |
| Events in quadrant C | 1,806,909 | 352,472 |
| Events in quadrant D | 2,462,121 | 329,008 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10393 | 1 |
| B | 0 | 9872 | 1 |
| C | 0 | 7684 | 1 |
| D | 0 | 9681 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76 | 0 |
| B | 0 | 76 | 0 |
| C | 0 | 76 | 0 |
| D | 0 | 76 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3691 | 196 | 5.310214% |
| B | 3691 | 204 | 5.526957% |
| C | 3691 | 25 | 0.677323% |
| D | 3691 | 85 | 2.302899% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4922 | 3693 | 108 | 108 | 2.19% | 2.92% |  |
| B | 4922 | 3693 | 112 | 112 | 2.28% | 3.03% |  |
| C | 4922 | 3693 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4922 | 3693 | 49 | 49 | 1.00% | 1.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 762632 | 7925.54 | 474 | 465 | 96.2 |
| A | 9 | 143 | 34324 | 352.09 | 474 | 465 | 96.2 |
| A | 1 | 162 | 29215 | 298.96 | 474 | 465 | 96.2 |
| B | 4 | 239 | 579140 | 6408.61 | 471 | 461 | 90.3 |
| B | 15 | 204 | 76372 | 840.68 | 471 | 461 | 90.3 |
| B | 3 | 64 | 35039 | 382.94 | 471 | 461 | 90.3 |
| C | 13 | 61 | 3419 | 27.46 | 463 | 466 | 107.5 |
| C | 14 | 67 | 1281 | 7.58 | 463 | 466 | 107.5 |
| C | 3 | 202 | 1156 | 6.42 | 463 | 466 | 107.5 |
| D | 1 | 52 | 206788 | 1868.25 | 462 | 451 | 110.4 |
| D | 13 | 137 | 182076 | 1644.5 | 462 | 451 | 110.4 |
| D | 5 | 222 | 176617 | 1595.07 | 462 | 451 | 110.4 |

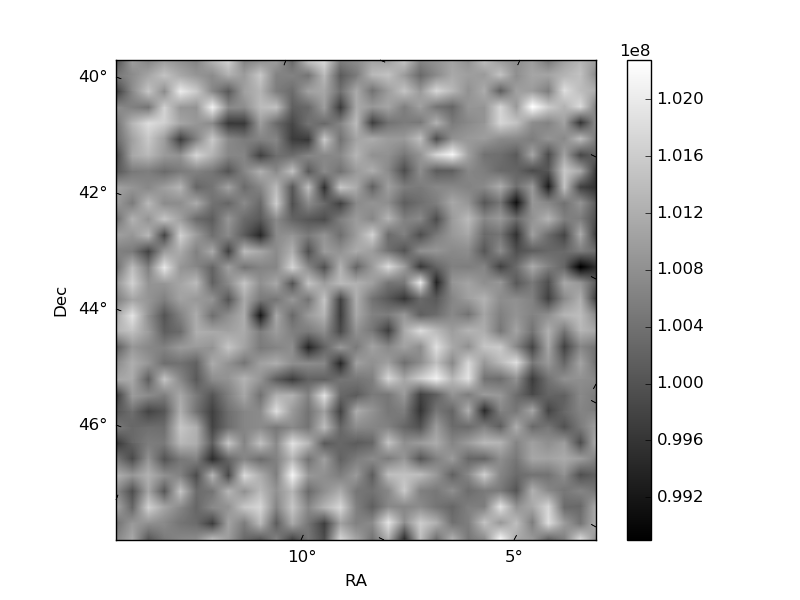

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

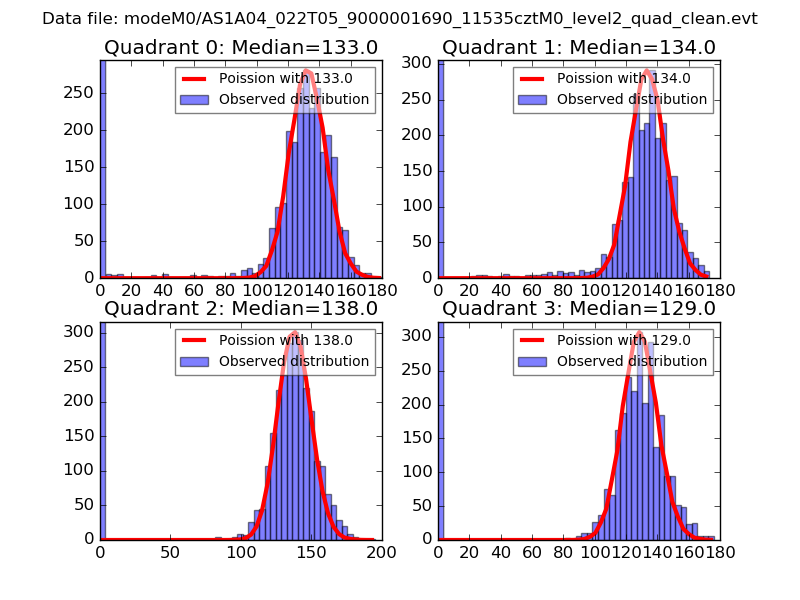

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

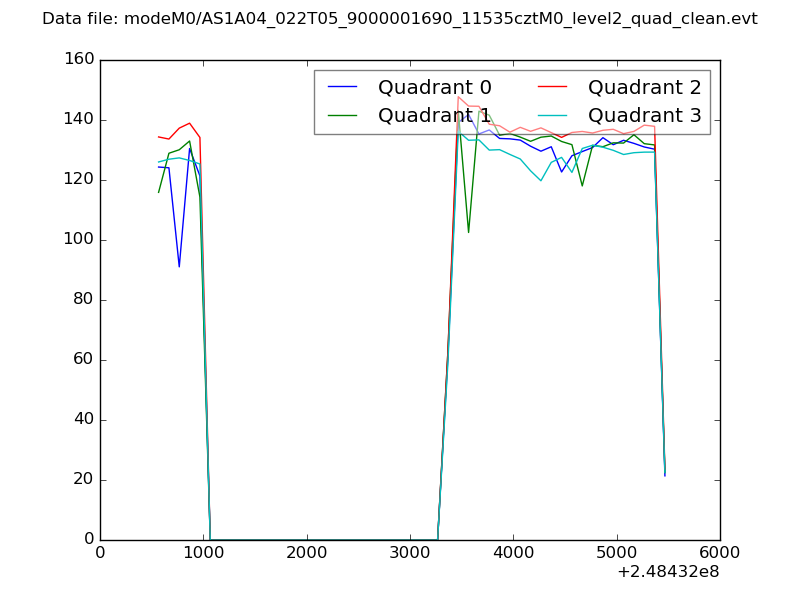

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

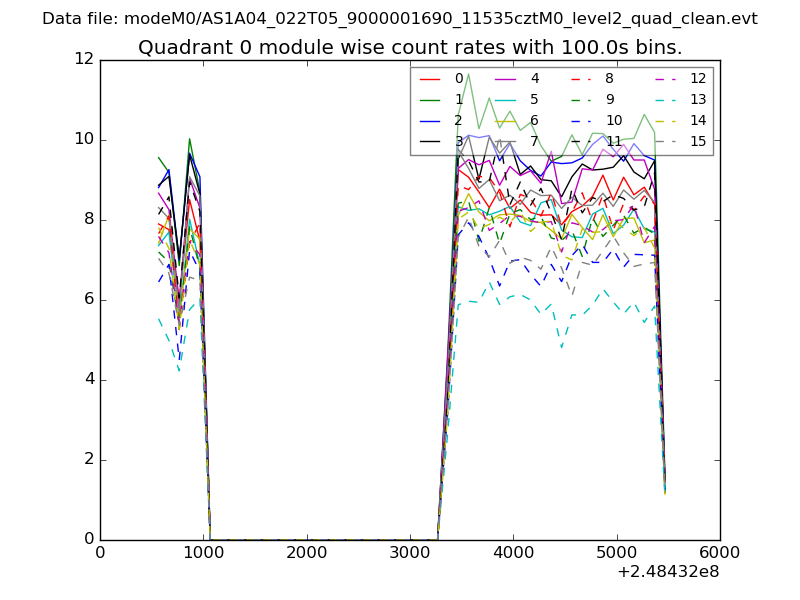

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

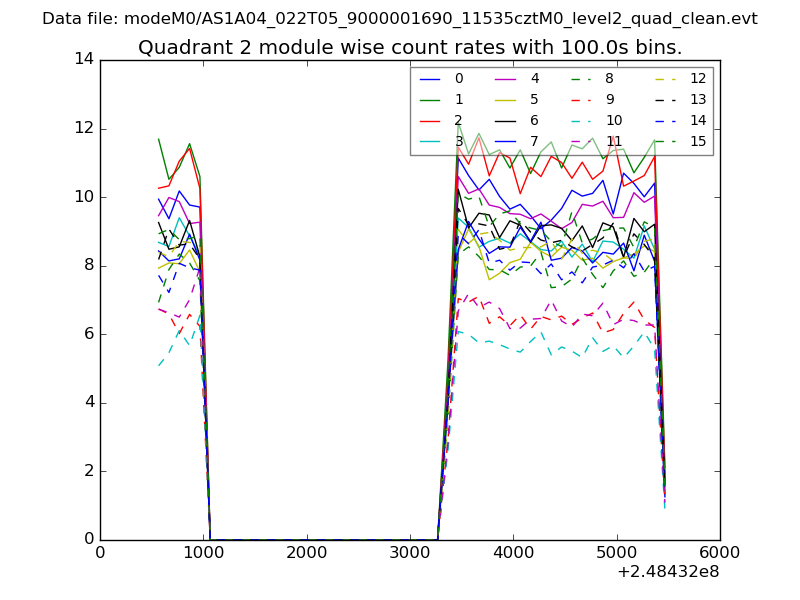

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

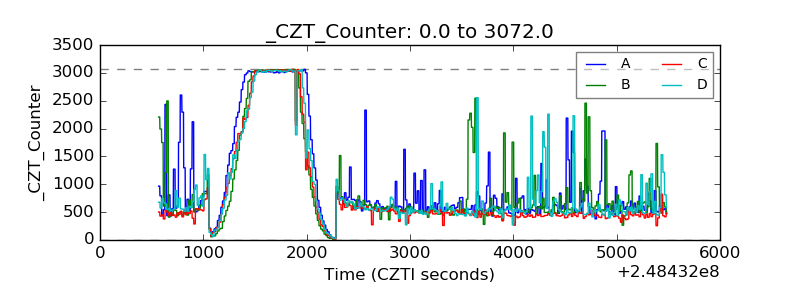

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

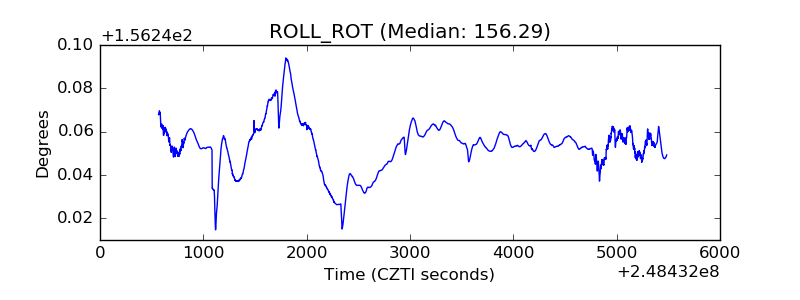

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
