| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_009T01_9000001692_11536cztM0_level2.evt | modeM0/AS1G08_009T01_9000001692_11536cztM0_level2_quad_clean.evt |
| Size (bytes) | 524,600,640 | 97,344,000 |
| Size | 500.3 MB | 92.8 MB |
| Events in quadrant A | 4,914,545 | 629,426 |
| Events in quadrant B | 3,887,771 | 653,788 |
| Events in quadrant C | 2,796,479 | 641,182 |
| Events in quadrant D | 3,888,697 | 610,850 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18782 | 2 |
| B | 0 | 15451 | 1 |
| C | 0 | 12186 | 1 |
| D | 0 | 15391 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5897 | 489 | 8.292352% |
| B | 5897 | 259 | 4.392064% |
| C | 5897 | 47 | 0.797015% |
| D | 5897 | 253 | 4.290317% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7158 | 5899 | 242 | 242 | 3.38% | 4.10% |  |
| B | 7158 | 5899 | 106 | 106 | 1.48% | 1.80% |  |
| C | 7158 | 5899 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7158 | 5899 | 132 | 132 | 1.84% | 2.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1593512 | 10574.16 | 738 | 724 | 150.6 |
| A | 1 | 162 | 154963 | 1023.96 | 738 | 724 | 150.6 |
| A | 1 | 178 | 94982 | 625.76 | 738 | 724 | 150.6 |
| B | 4 | 239 | 728852 | 5133.7 | 746 | 730 | 141.8 |
| B | 15 | 204 | 150268 | 1054.33 | 746 | 730 | 141.8 |
| B | 0 | 214 | 26714 | 183.2 | 746 | 730 | 141.8 |
| C | 13 | 61 | 5341 | 27.83 | 717 | 721 | 166.0 |
| C | 3 | 202 | 1819 | 6.61 | 717 | 721 | 166.0 |
| C | 14 | 67 | 1776 | 6.35 | 717 | 721 | 166.0 |
| D | 1 | 52 | 929152 | 5409.74 | 715 | 695 | 171.6 |
| D | 2 | 120 | 91768 | 530.64 | 715 | 695 | 171.6 |
| D | 13 | 104 | 79379 | 458.46 | 715 | 695 | 171.6 |

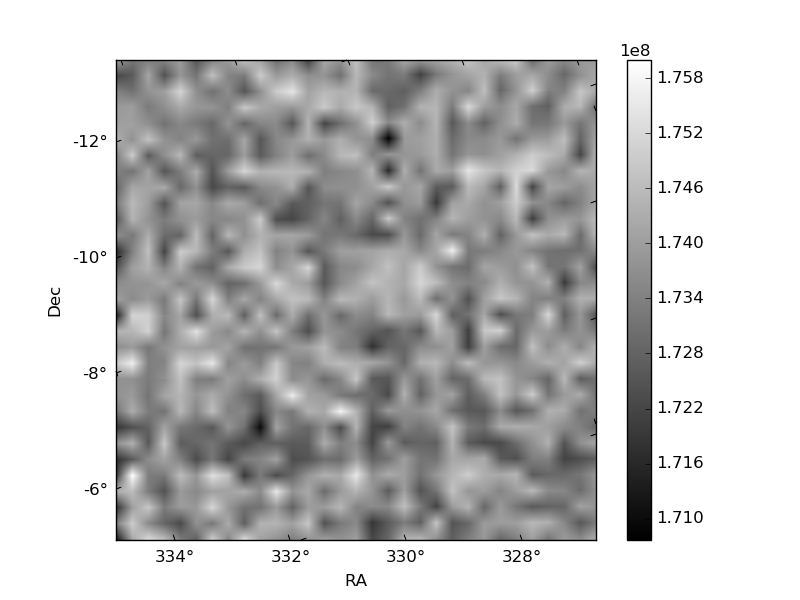

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

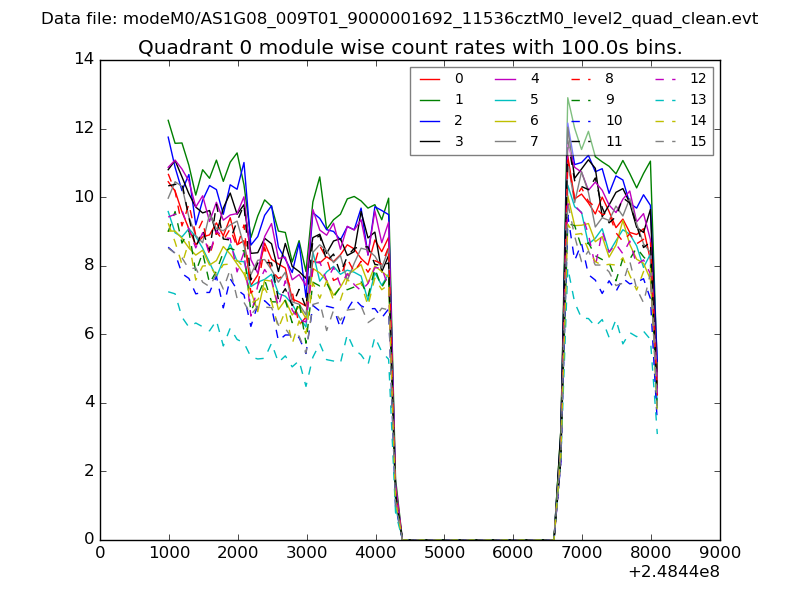

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

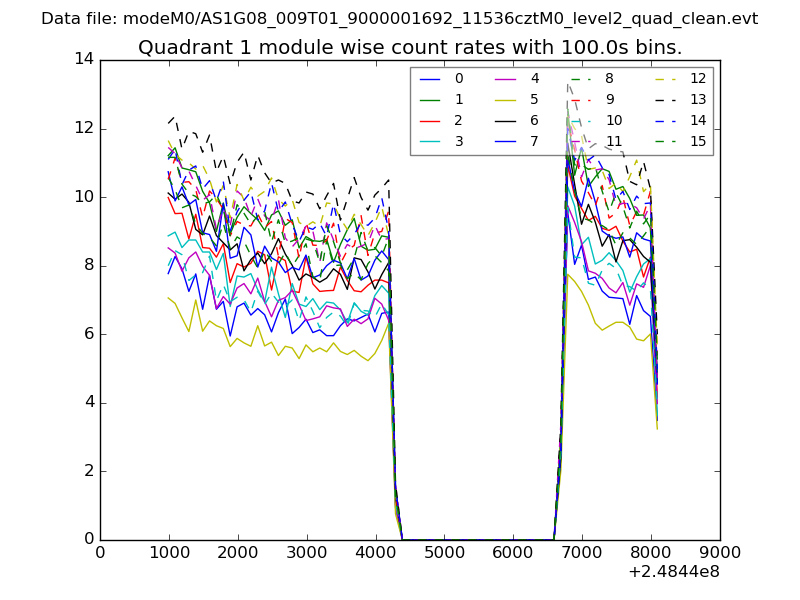

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

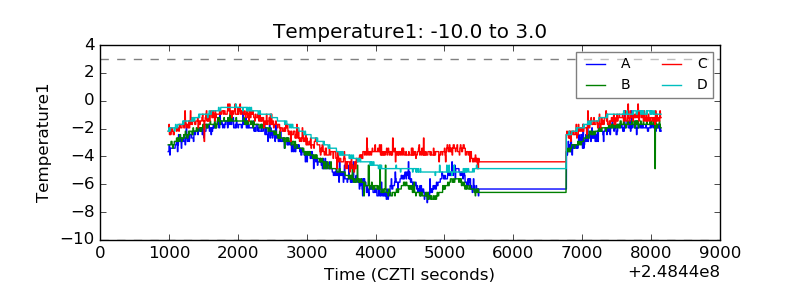

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

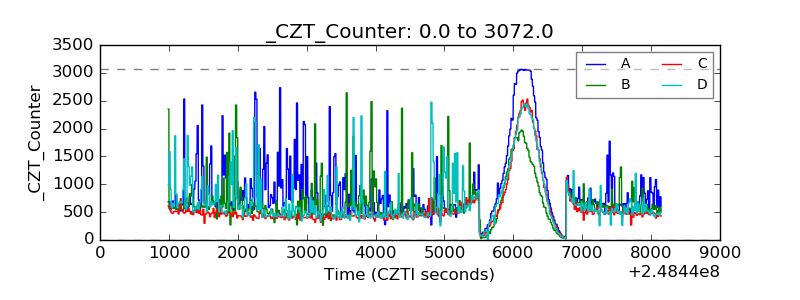

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

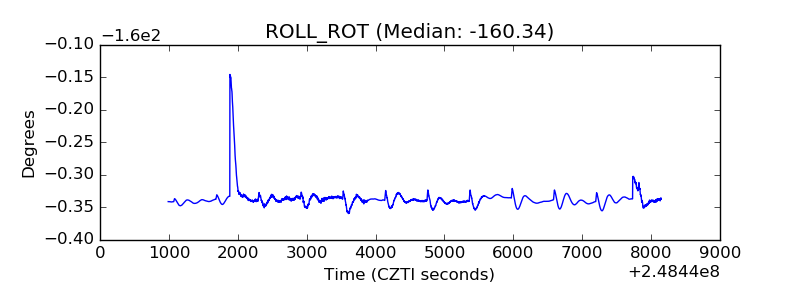

| _ROLL_ROT |  |
| _Roll_DEC |  |

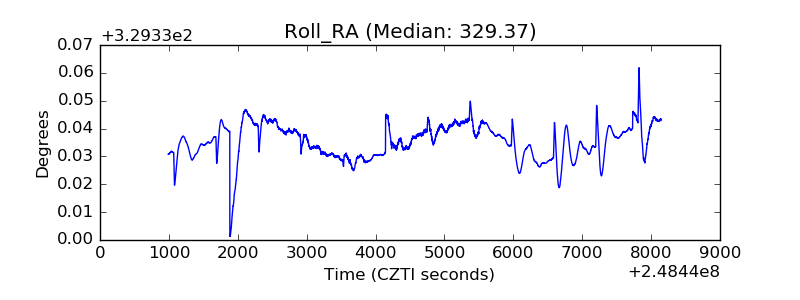

| _Roll_RA |  |
| Veto Counter |  |
