| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_009T01_9000001696_11553cztM0_level2.evt | modeM0/AS1G08_009T01_9000001696_11553cztM0_level2_quad_clean.evt |
| Size (bytes) | 684,987,840 | 92,868,480 |
| Size | 653.3 MB | 88.6 MB |
| Events in quadrant A | 6,225,334 | 565,751 |
| Events in quadrant B | 4,916,572 | 596,756 |
| Events in quadrant C | 3,238,683 | 605,605 |
| Events in quadrant D | 5,885,438 | 550,311 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23465 | 3 |
| B | 0 | 19319 | 2 |
| C | 0 | 14663 | 2 |
| D | 0 | 22260 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7083 | 743 | 10.489905% |
| B | 7083 | 352 | 4.969646% |
| C | 7083 | 41 | 0.578851% |
| D | 7083 | 619 | 8.739235% |

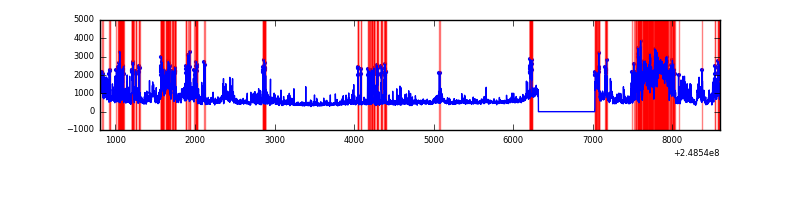

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7794 | 7085 | 347 | 347 | 4.45% | 4.90% |  |
| B | 7794 | 7085 | 169 | 169 | 2.17% | 2.39% |  |
| C | 7794 | 7085 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7794 | 7085 | 497 | 497 | 6.38% | 7.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2729921 | 16117.48 | 827 | 809 | 169.3 |
| A | 1 | 162 | 99480 | 582.73 | 827 | 809 | 169.3 |
| A | 1 | 178 | 62611 | 364.99 | 827 | 809 | 169.3 |
| B | 4 | 239 | 912204 | 5577.96 | 848 | 827 | 163.4 |
| B | 15 | 204 | 392272 | 2395.79 | 848 | 827 | 163.4 |
| B | 11 | 51 | 191915 | 1169.53 | 848 | 827 | 163.4 |
| C | 13 | 61 | 6186 | 27.74 | 829 | 834 | 192.9 |
| C | 8 | 222 | 4983 | 21.51 | 829 | 834 | 192.9 |
| C | 12 | 4 | 2084 | 6.48 | 829 | 834 | 192.9 |
| D | 1 | 52 | 1432187 | 7396.77 | 802 | 781 | 193.5 |
| D | 13 | 137 | 884454 | 4566.37 | 802 | 781 | 193.5 |
| D | 2 | 120 | 280300 | 1444.41 | 802 | 781 | 193.5 |

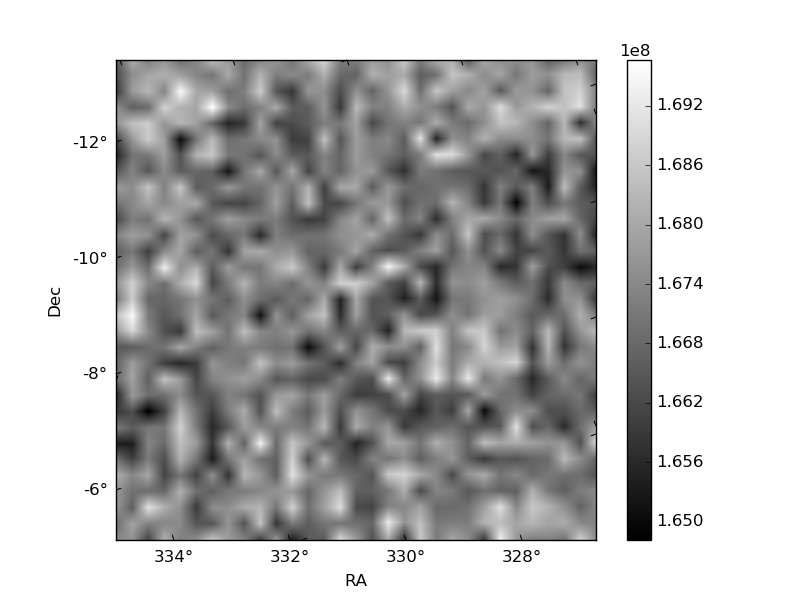

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

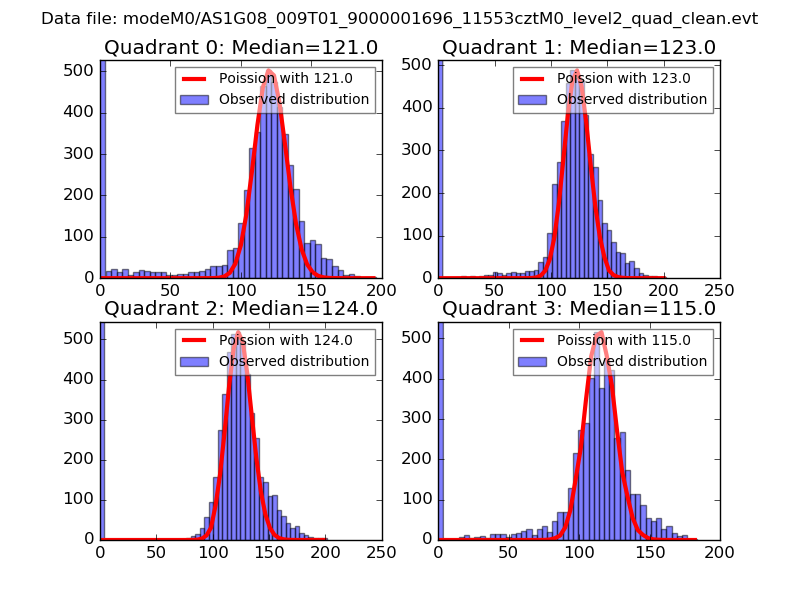

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

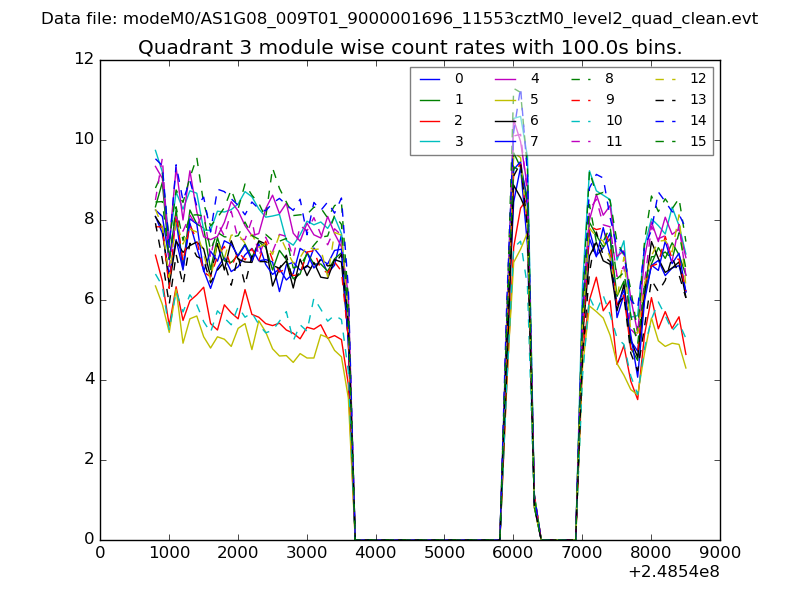

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

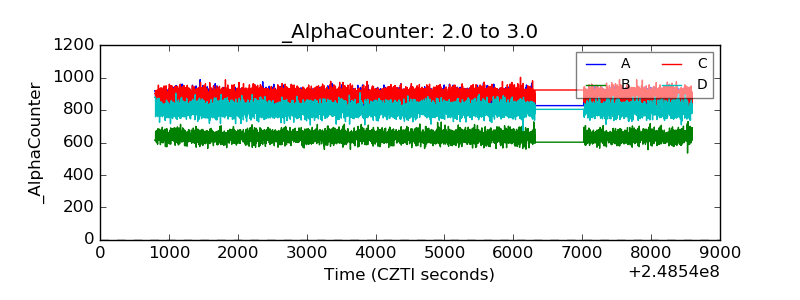

| Alpha Counter |  |
| _CPM_Rate |  |

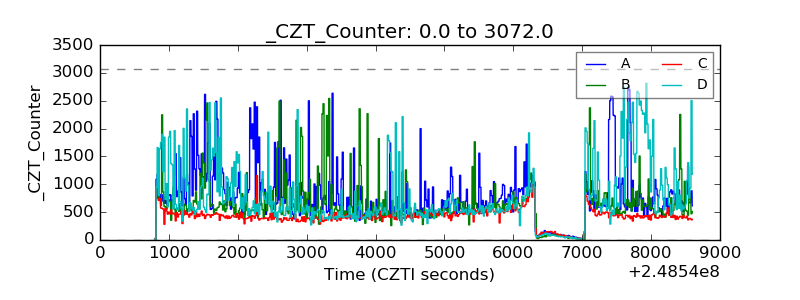

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

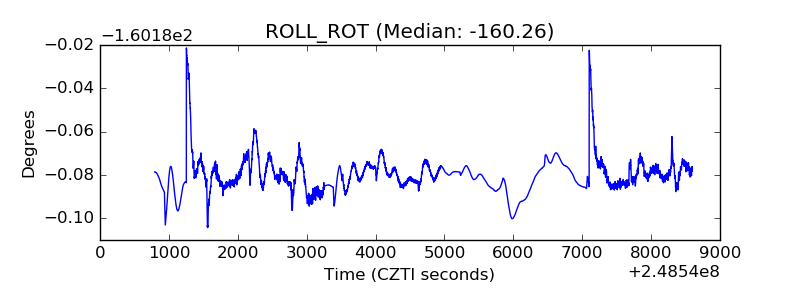

| _ROLL_ROT |  |

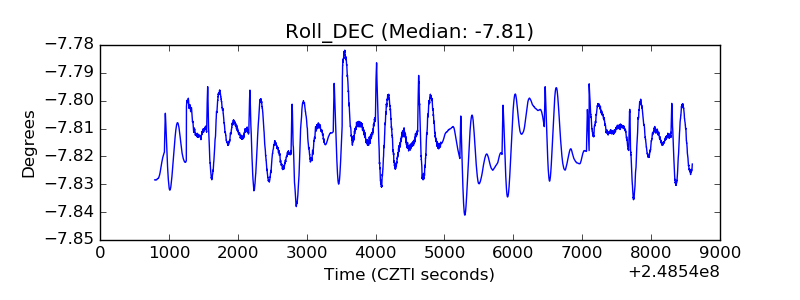

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
