| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_009T01_9000001696_11556cztM0_level2.evt | modeM0/AS1G08_009T01_9000001696_11556cztM0_level2_quad_clean.evt |
| Size (bytes) | 713,050,560 | 95,512,320 |
| Size | 680.0 MB | 91.1 MB |
| Events in quadrant A | 5,320,817 | 595,396 |
| Events in quadrant B | 5,723,619 | 597,097 |
| Events in quadrant C | 3,407,659 | 621,143 |
| Events in quadrant D | 6,626,988 | 547,769 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20946 | 3 |
| B | 0 | 22161 | 2 |
| C | 0 | 15622 | 2 |
| D | 0 | 24922 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7624 | 489 | 6.413956% |
| B | 7624 | 635 | 8.328961% |
| C | 7624 | 41 | 0.537775% |
| D | 7624 | 847 | 11.109654% |

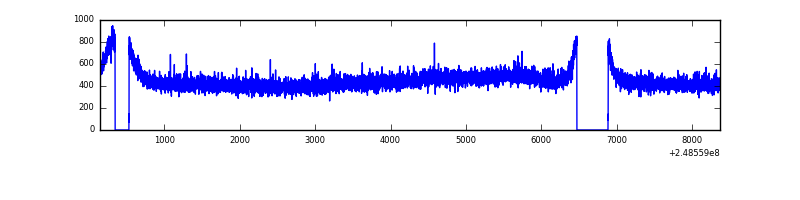

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

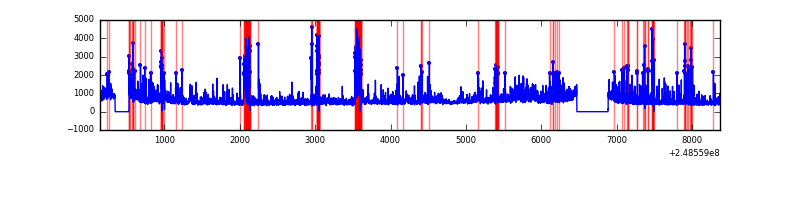

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8225 | 7627 | 203 | 203 | 2.47% | 2.66% |  |
| B | 8225 | 7627 | 278 | 278 | 3.38% | 3.64% |  |
| C | 8225 | 7627 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8225 | 7627 | 679 | 679 | 8.26% | 8.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1498713 | 8377.09 | 870 | 851 | 178.8 |
| A | 1 | 162 | 154604 | 859.89 | 870 | 851 | 178.8 |
| A | 1 | 178 | 93014 | 515.44 | 870 | 851 | 178.8 |
| B | 4 | 239 | 1380650 | 8105.22 | 882 | 861 | 170.2 |
| B | 15 | 204 | 573073 | 3361.31 | 882 | 861 | 170.2 |
| B | 3 | 64 | 154888 | 904.79 | 882 | 861 | 170.2 |
| C | 13 | 61 | 6435 | 27.2 | 874 | 876 | 204.4 |
| C | 3 | 202 | 2208 | 6.52 | 874 | 876 | 204.4 |
| C | -1 | -1 | -1 | -1.0 | 874 | 876 | 204.4 |
| D | 13 | 137 | 1426822 | 7054.04 | 831 | 804 | 202.2 |
| D | 12 | 221 | 1074322 | 5310.34 | 831 | 804 | 202.2 |
| D | 1 | 52 | 495423 | 2446.72 | 831 | 804 | 202.2 |

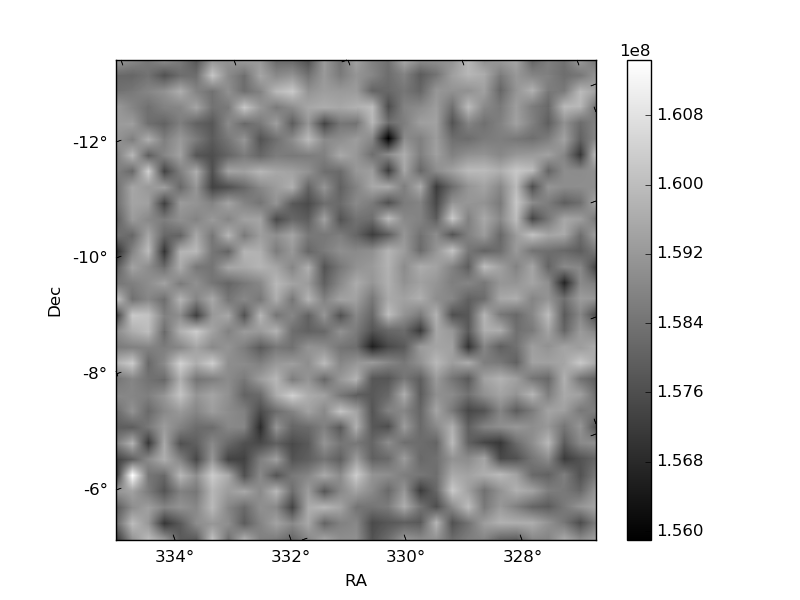

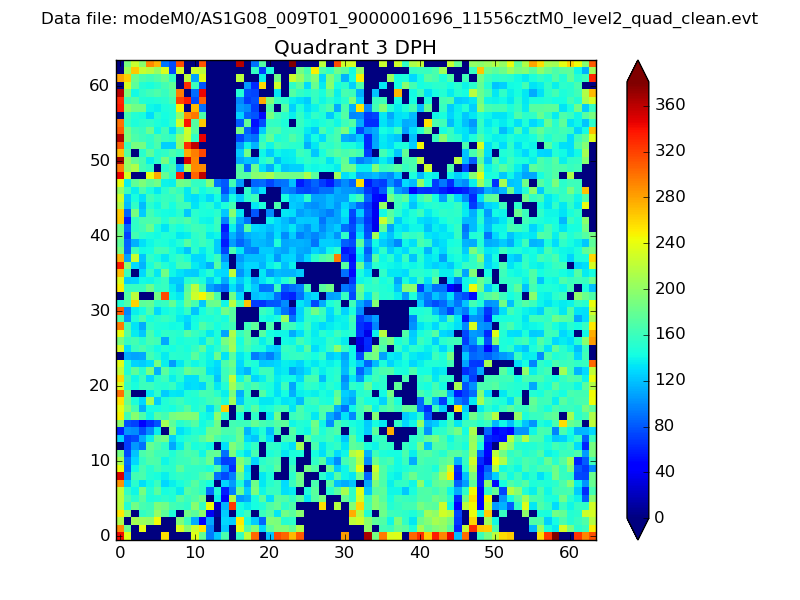

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

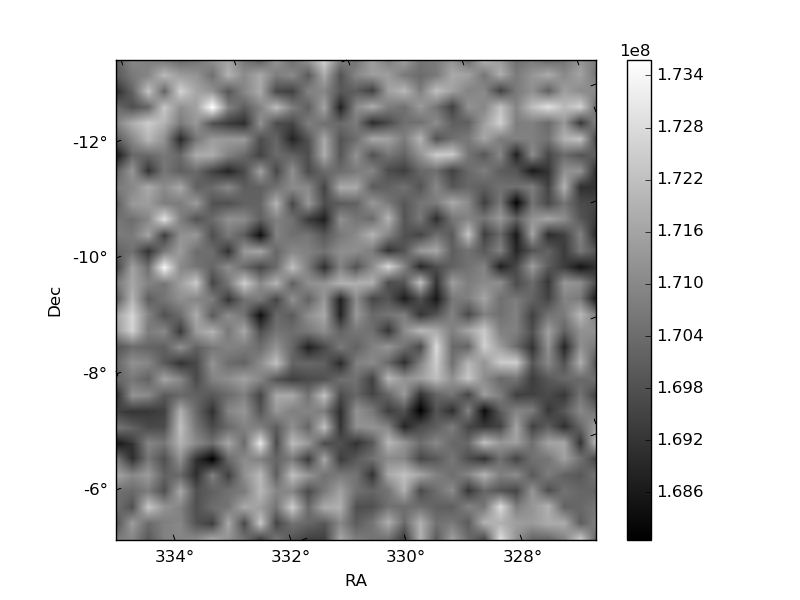

| Plot type | Count rate plots | Images |
|---|---|---|

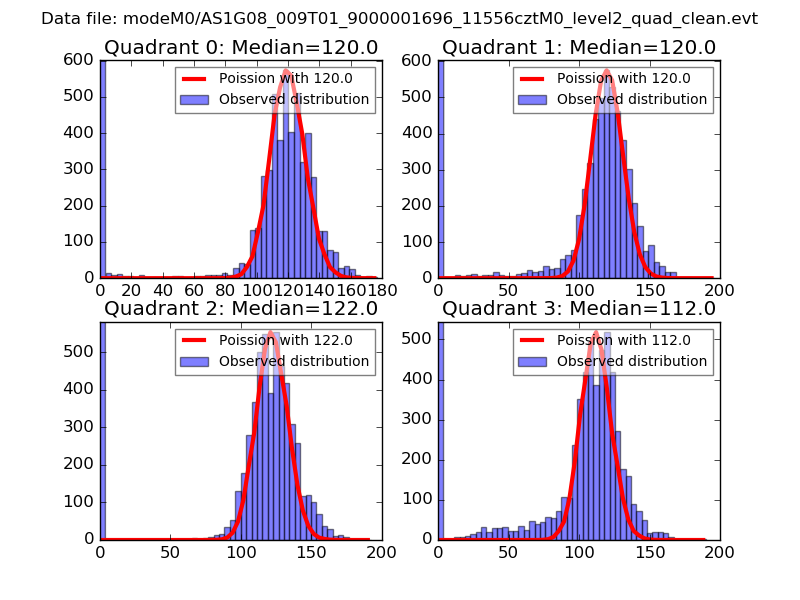

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

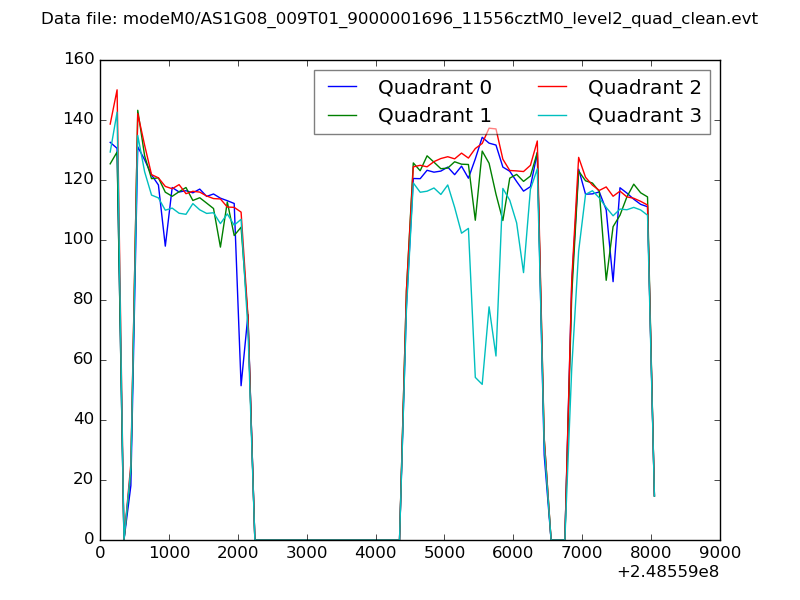

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

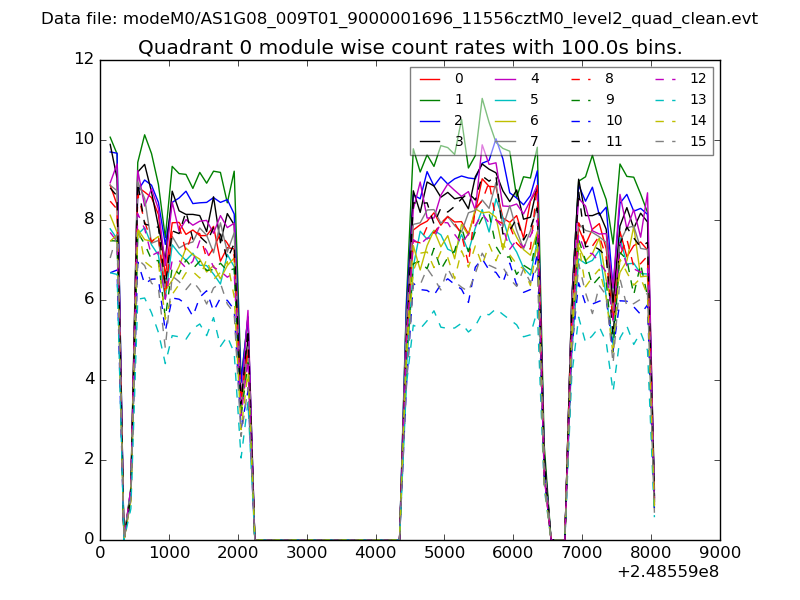

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

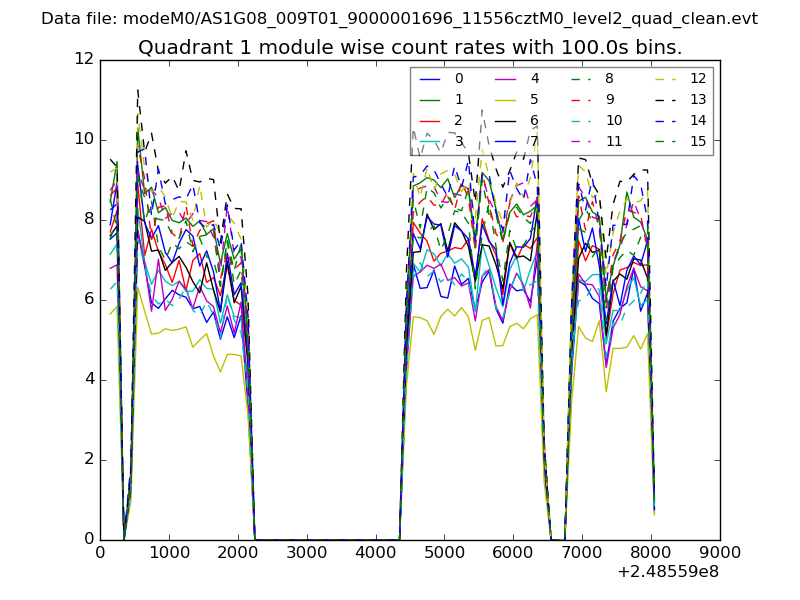

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

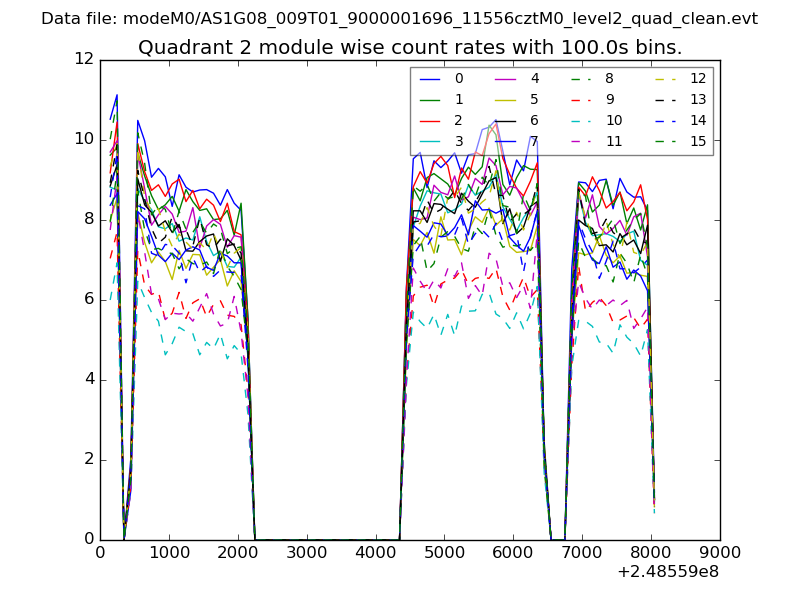

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

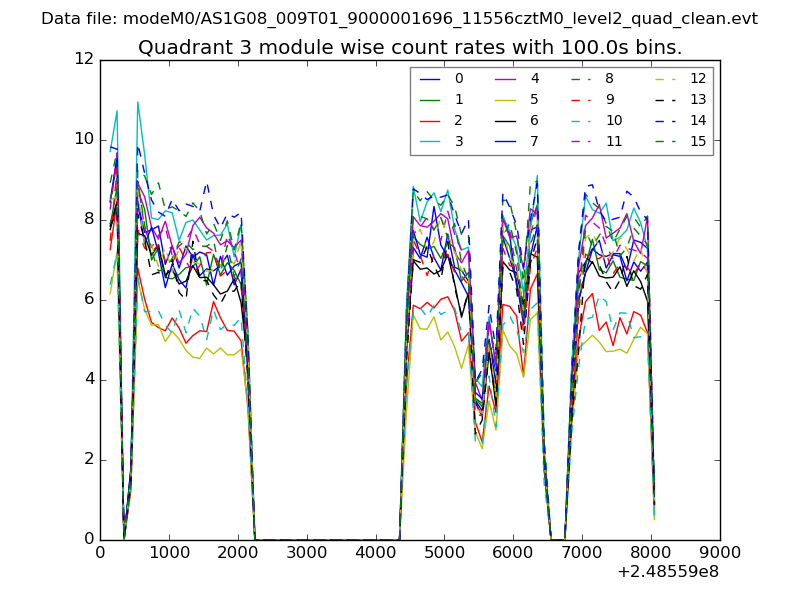

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

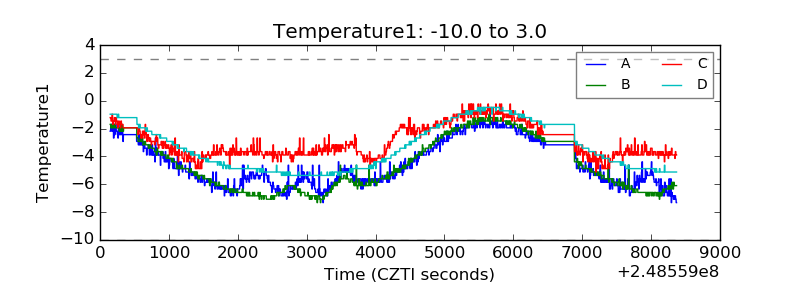

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

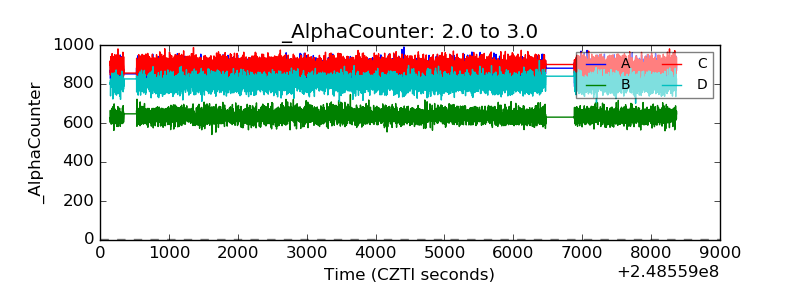

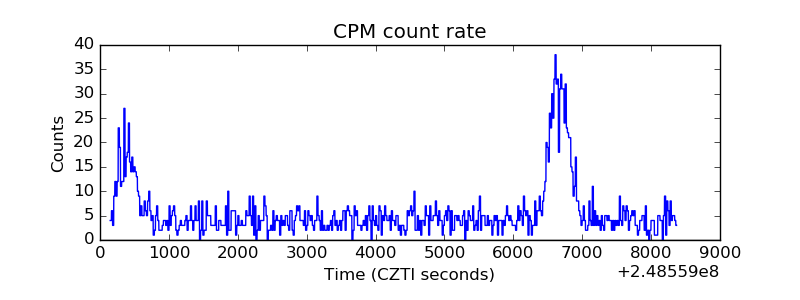

| Alpha Counter |  |
| _CPM_Rate |  |

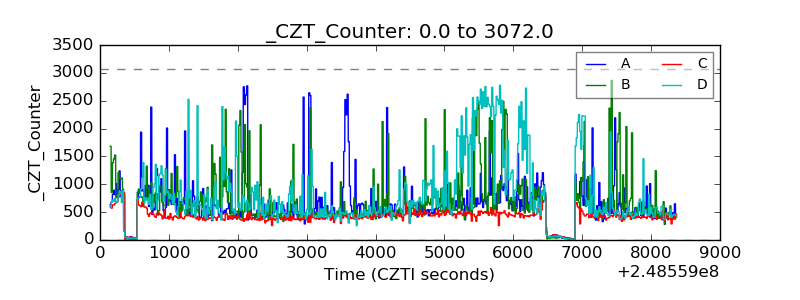

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

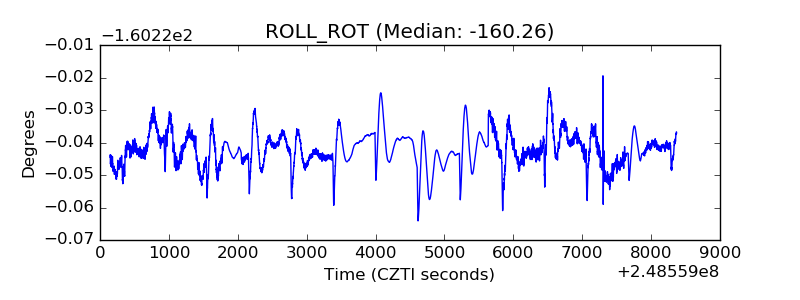

| _ROLL_ROT |  |

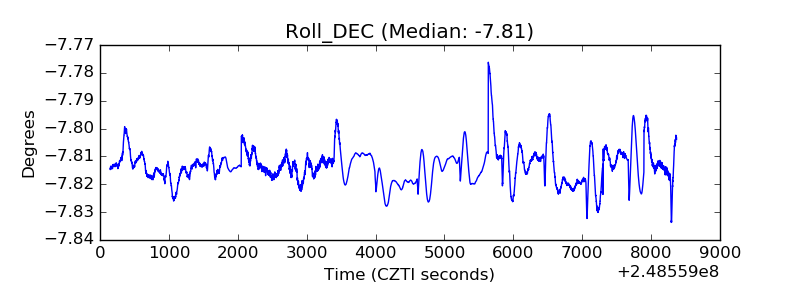

| _Roll_DEC |  |

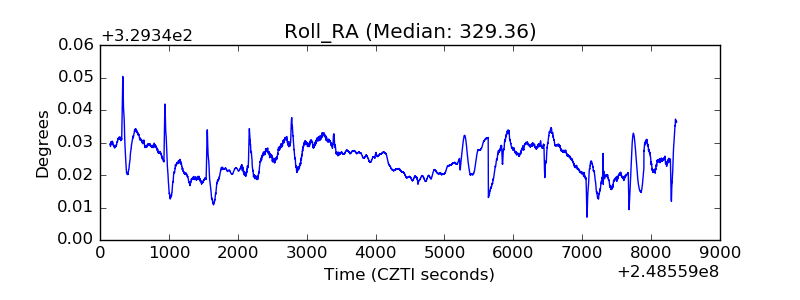

| _Roll_RA |  |

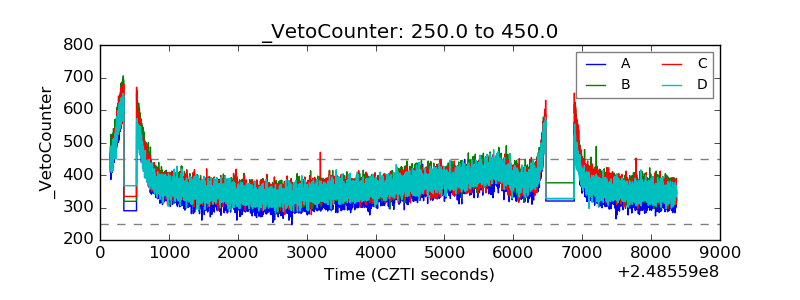

| Veto Counter |  |
