| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_206T01_9000001694_11544cztM0_level2.evt | modeM0/AS1T01_206T01_9000001694_11544cztM0_level2_quad_clean.evt |
| Size (bytes) | 768,251,520 | 121,875,840 |
| Size | 732.7 MB | 116.2 MB |
| Events in quadrant A | 5,854,345 | 793,988 |
| Events in quadrant B | 5,658,497 | 790,006 |
| Events in quadrant C | 4,084,399 | 779,899 |
| Events in quadrant D | 7,072,821 | 714,449 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 180 | 0 |
| B | 0 | 180 | 0 |
| C | 0 | 180 | 0 |
| D | 0 | 180 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23369 | 5 |
| B | 0 | 22464 | 2 |
| C | 0 | 18037 | 5 |
| D | 0 | 27168 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8823 | 306 | 3.468208% |
| B | 8824 | 463 | 5.247053% |
| C | 8822 | 69 | 0.782136% |
| D | 8822 | 751 | 8.512809% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10160 | 8827 | 97 | 97 | 0.95% | 1.10% |  |
| B | 10160 | 8827 | 193 | 193 | 1.90% | 2.19% |  |
| C | 10160 | 8826 | 0 | 0 | 0.00% | 0.00% |  |
| D | 10160 | 8827 | 486 | 486 | 4.78% | 5.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1260049 | 5622.07 | 1082 | 1063 | 223.9 |
| A | 1 | 162 | 148365 | 657.78 | 1082 | 1063 | 223.9 |
| A | 1 | 178 | 90191 | 398.01 | 1082 | 1063 | 223.9 |
| B | 4 | 239 | 1265943 | 6124.03 | 1071 | 1047 | 206.5 |
| B | 15 | 204 | 91275 | 436.84 | 1071 | 1047 | 206.5 |
| B | 0 | 214 | 53345 | 253.2 | 1071 | 1047 | 206.5 |
| C | 13 | 61 | 7604 | 26.85 | 1047 | 1056 | 243.9 |
| C | 3 | 202 | 2642 | 6.5 | 1047 | 1056 | 243.9 |
| C | 14 | 234 | 2287 | 5.05 | 1047 | 1056 | 243.9 |
| D | 1 | 52 | 1894834 | 7815.95 | 1011 | 987 | 242.3 |
| D | 13 | 137 | 897969 | 3701.87 | 1011 | 987 | 242.3 |
| D | 2 | 120 | 341912 | 1407.01 | 1011 | 987 | 242.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

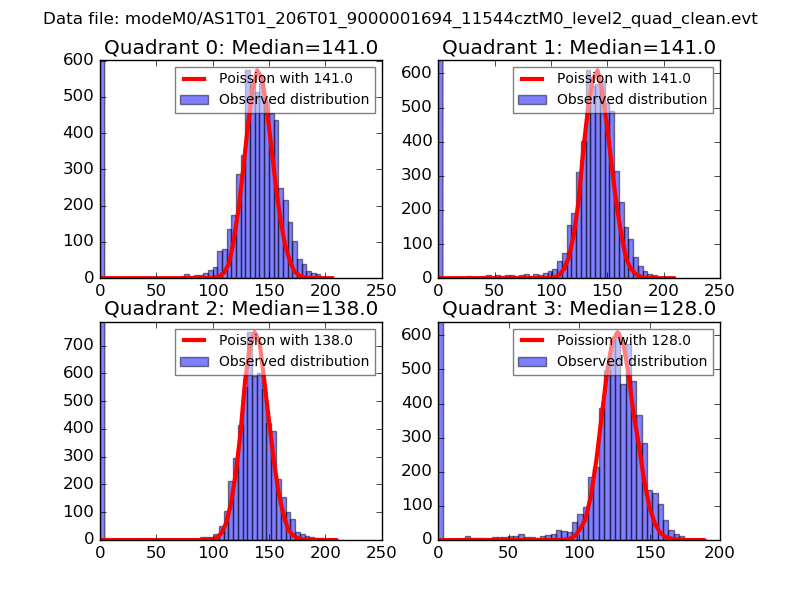

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

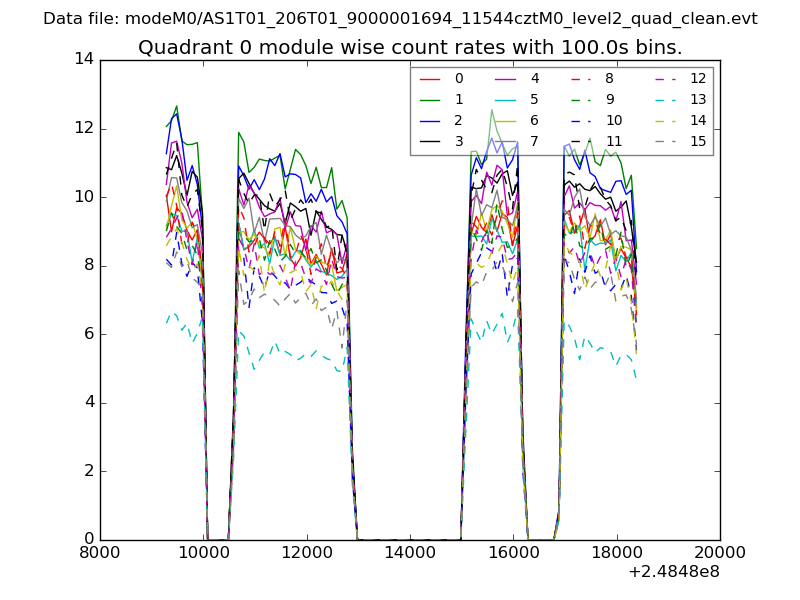

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

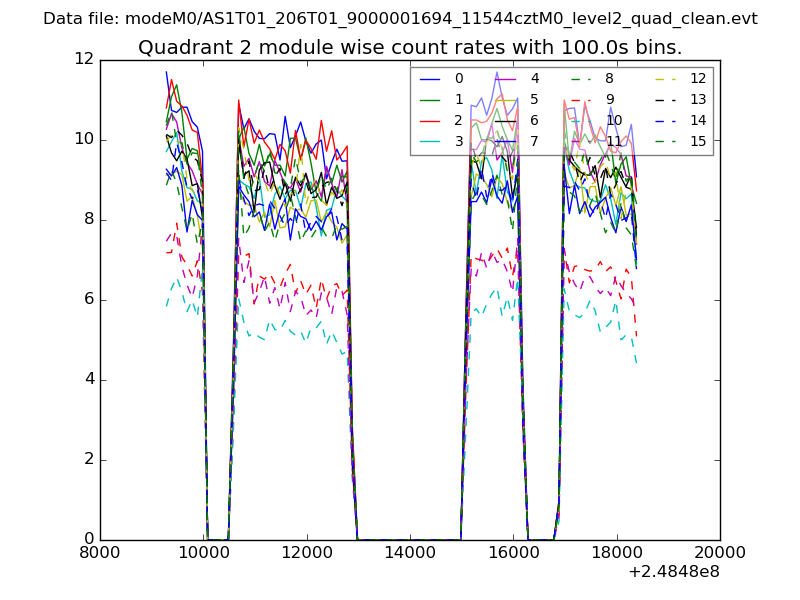

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

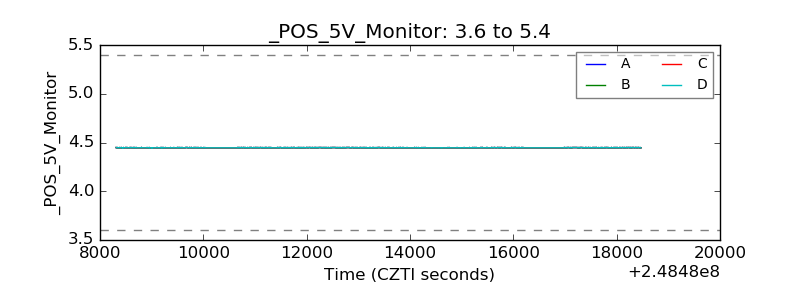

| +5 Volts monitor |  |
| _ROLL_ROT |  |

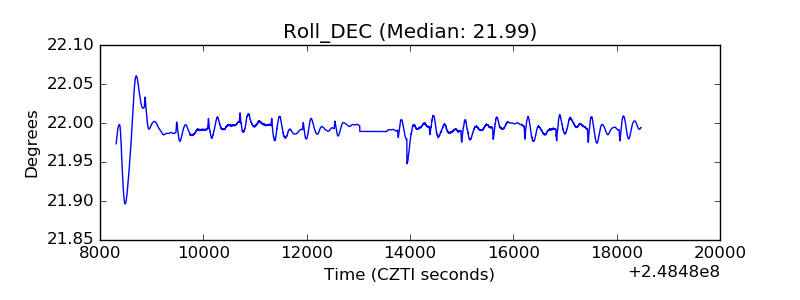

| _Roll_DEC |  |

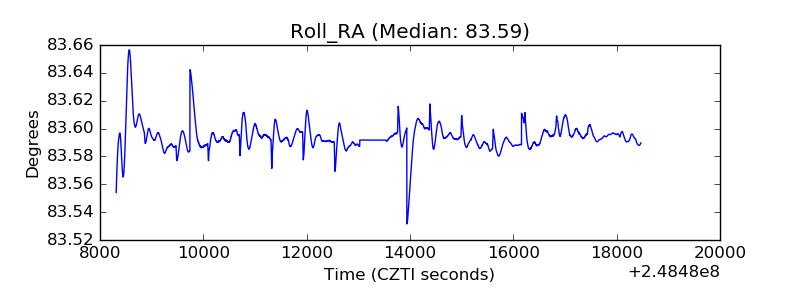

| _Roll_RA |  |
| Veto Counter |  |
