| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_206T01_9000001694_11545cztM0_level2.evt | modeM0/AS1T01_206T01_9000001694_11545cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,304,513,280 | 189,025,920 |
| Size | 1.2 GB | 180.3 MB |
| Events in quadrant A | 9,829,598 | 1,222,069 |
| Events in quadrant B | 9,377,666 | 1,230,902 |
| Events in quadrant C | 6,558,954 | 1,211,582 |
| Events in quadrant D | 12,783,329 | 1,078,797 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 290 | 0 |
| B | 0 | 290 | 0 |
| C | 0 | 290 | 0 |
| D | 0 | 290 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38840 | 4 |
| B | 0 | 36906 | 3 |
| C | 0 | 28943 | 3 |
| D | 0 | 47756 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14205 | 603 | 4.244984% |
| B | 14205 | 783 | 5.512144% |
| C | 14205 | 103 | 0.725097% |
| D | 14205 | 1836 | 12.925026% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16461 | 14209 | 225 | 225 | 1.37% | 1.58% |  |
| B | 16461 | 14209 | 377 | 377 | 2.29% | 2.65% |  |
| C | 16461 | 14209 | 0 | 0 | 0.00% | 0.00% |  |
| D | 16461 | 14209 | 1351 | 1351 | 8.21% | 9.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2375283 | 6676.18 | 1730 | 1698 | 355.5 |
| A | 1 | 162 | 285062 | 797.02 | 1730 | 1698 | 355.5 |
| A | 1 | 178 | 168127 | 468.11 | 1730 | 1698 | 355.5 |
| B | 4 | 239 | 2238060 | 6788.73 | 1719 | 1679 | 329.4 |
| B | 15 | 204 | 173256 | 520.84 | 1719 | 1679 | 329.4 |
| B | 3 | 64 | 104409 | 311.85 | 1719 | 1679 | 329.4 |
| C | 13 | 61 | 12150 | 26.78 | 1683 | 1696 | 390.3 |
| C | 3 | 202 | 4226 | 6.48 | 1683 | 1696 | 390.3 |
| C | -1 | -1 | -1 | -1.0 | 1683 | 1696 | 390.3 |
| D | 13 | 137 | 3358139 | 8806.57 | 1595 | 1552 | 381.1 |
| D | 1 | 52 | 2754391 | 7222.54 | 1595 | 1552 | 381.1 |
| D | 2 | 120 | 415817 | 1086.89 | 1595 | 1552 | 381.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

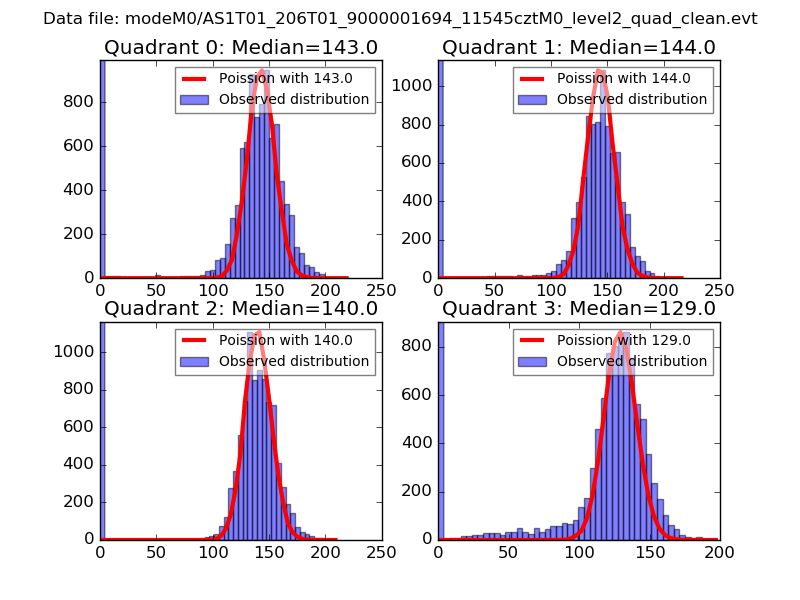

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

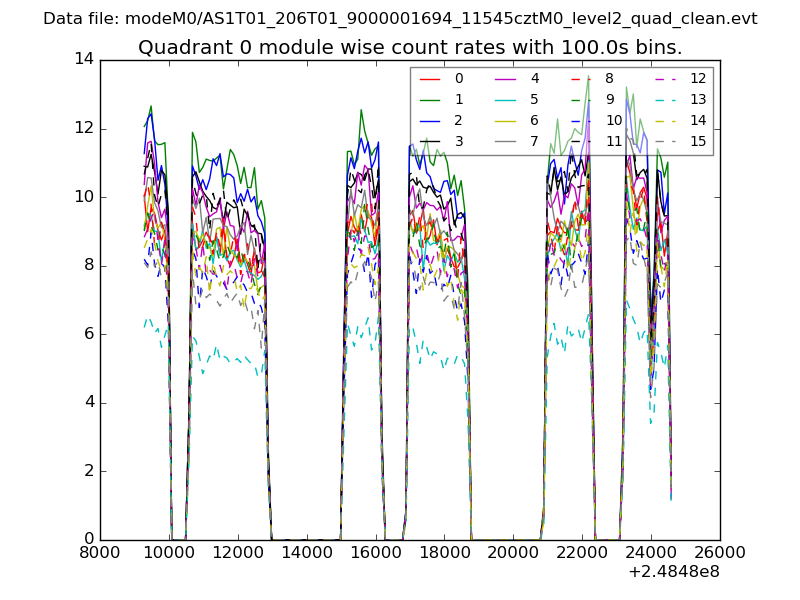

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

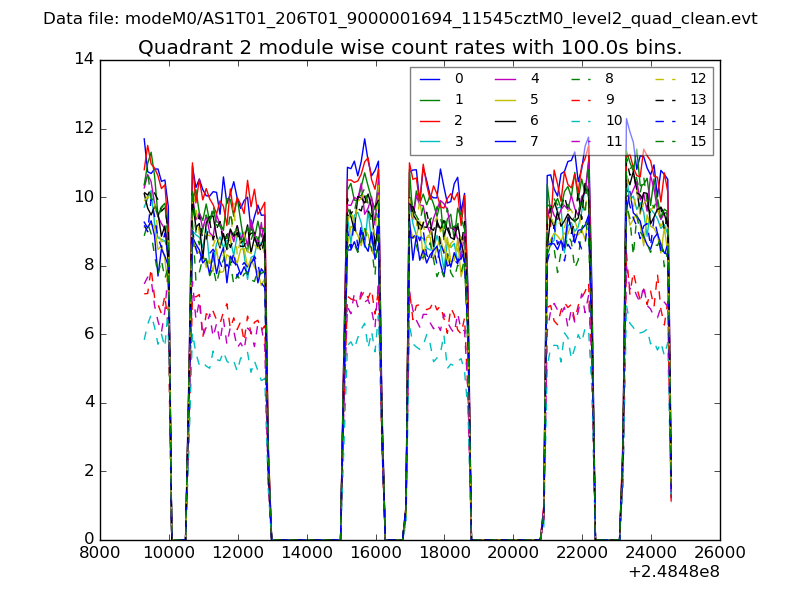

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

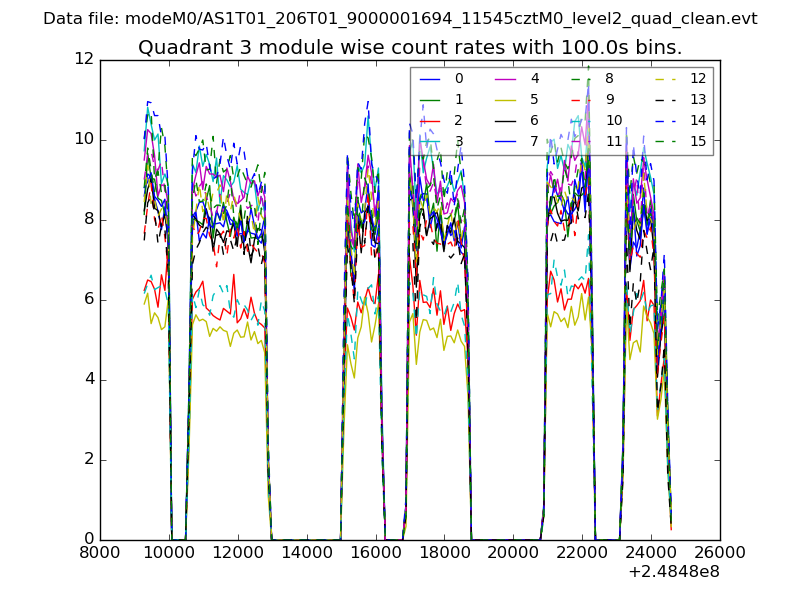

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

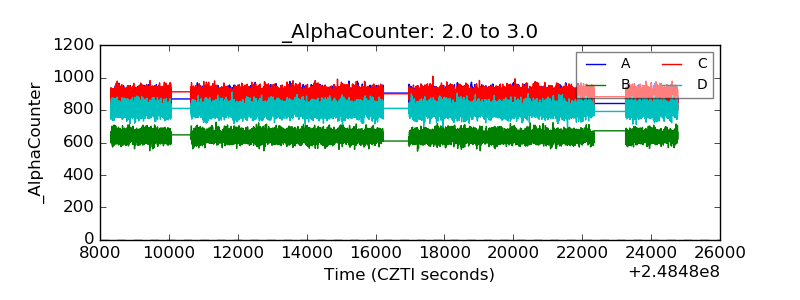

| Alpha Counter |  |

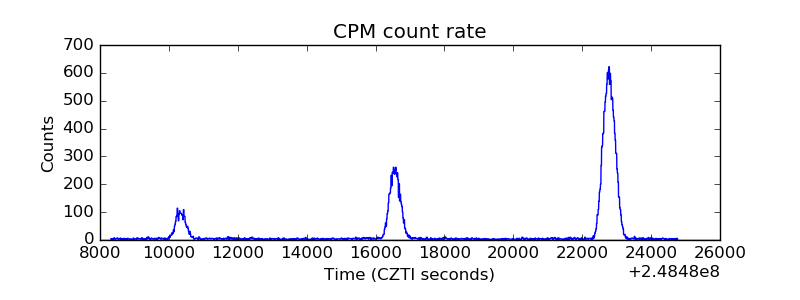

| _CPM_Rate |  |

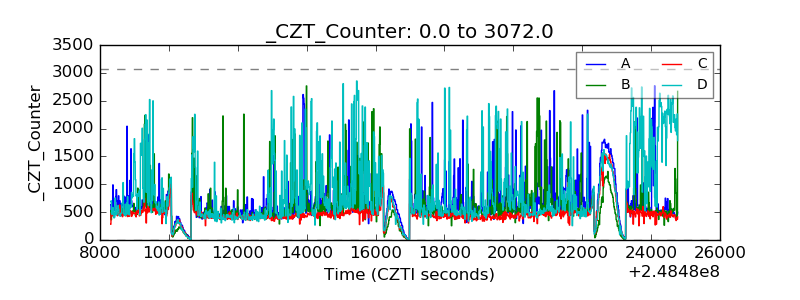

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

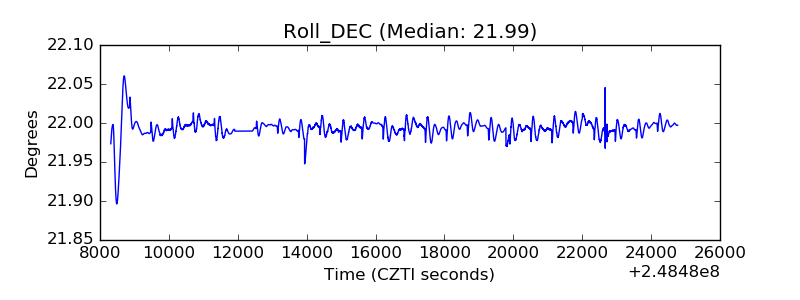

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
