| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_206T01_9000001694_11547cztM0_level2.evt | modeM0/AS1T01_206T01_9000001694_11547cztM0_level2_quad_clean.evt |
| Size (bytes) | 770,921,280 | 69,203,520 |
| Size | 735.2 MB | 66.0 MB |
| Events in quadrant A | 4,774,849 | 473,435 |
| Events in quadrant B | 3,765,918 | 487,614 |
| Events in quadrant C | 2,667,191 | 478,229 |
| Events in quadrant D | 11,755,403 | 257,650 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18150 | 2 |
| B | 0 | 14703 | 1 |
| C | 0 | 11625 | 1 |
| D | 0 | 38857 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5685 | 434 | 7.634125% |
| B | 5685 | 244 | 4.291996% |
| C | 5685 | 24 | 0.422164% |
| D | 5685 | 4296 | 75.567282% |

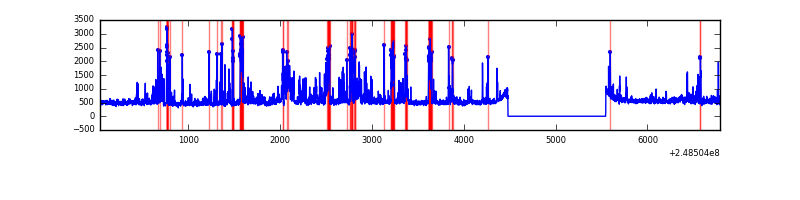

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6751 | 5687 | 220 | 220 | 3.26% | 3.87% |  |
| B | 6751 | 5687 | 127 | 127 | 1.88% | 2.23% |  |
| C | 6751 | 5687 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6751 | 5686 | 3596 | 3596 | 53.27% | 63.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1738311 | 12149.37 | 700 | 687 | 143.0 |
| A | 1 | 162 | 101181 | 702.65 | 700 | 687 | 143.0 |
| A | 9 | 143 | 64856 | 448.67 | 700 | 687 | 143.0 |
| B | 4 | 239 | 865849 | 6441.41 | 702 | 689 | 134.3 |
| B | 15 | 204 | 60640 | 446.36 | 702 | 689 | 134.3 |
| B | 11 | 51 | 39200 | 286.73 | 702 | 689 | 134.3 |
| C | 13 | 61 | 4917 | 26.58 | 684 | 688 | 159.1 |
| C | 3 | 202 | 1610 | 5.79 | 684 | 688 | 159.1 |
| C | -1 | -1 | -1 | -1.0 | 684 | 688 | 159.1 |
| D | 13 | 137 | 8109264 | 80198.99 | 420 | 409 | 101.1 |
| D | 1 | 52 | 1847183 | 18265.14 | 420 | 409 | 101.1 |
| D | 2 | 120 | 87275 | 859.13 | 420 | 409 | 101.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

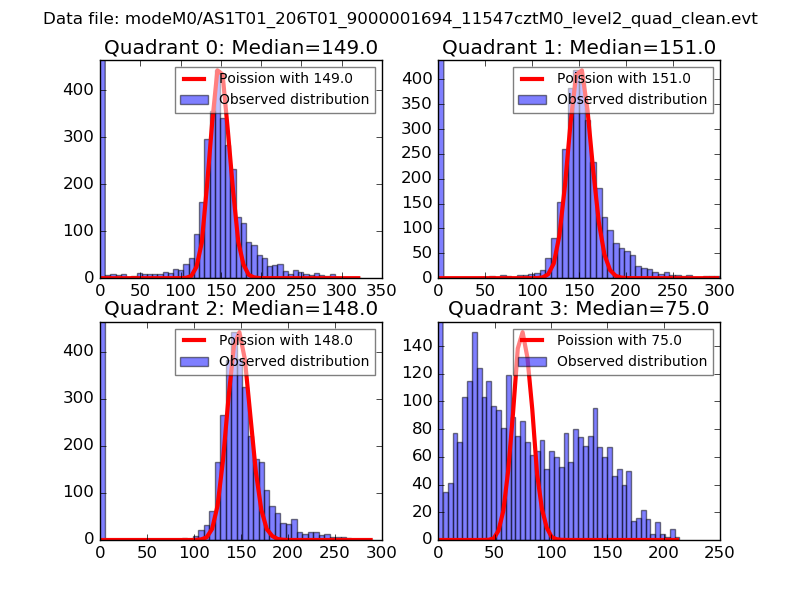

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

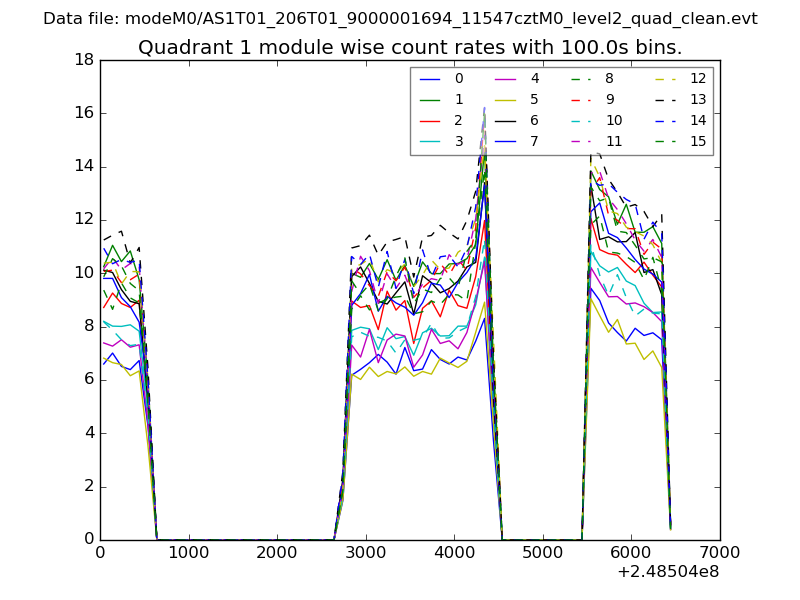

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

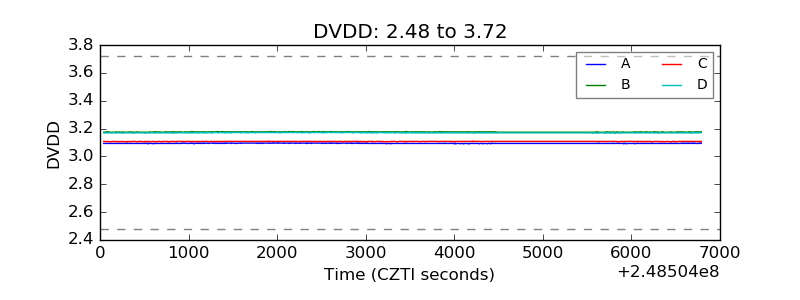

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

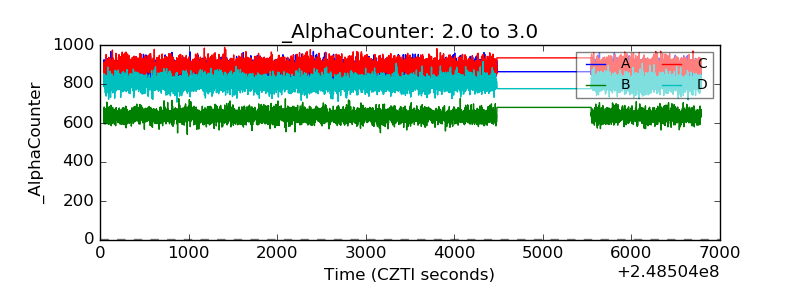

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

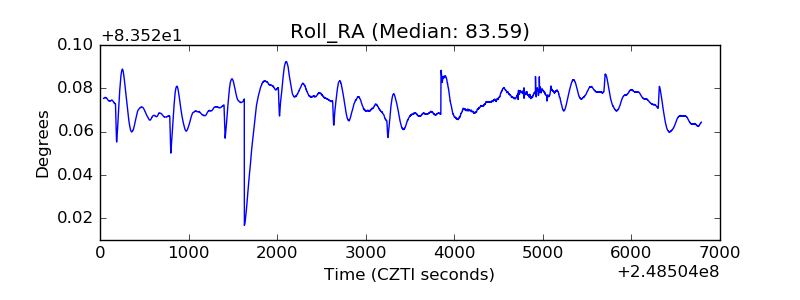

| _Roll_RA |  |

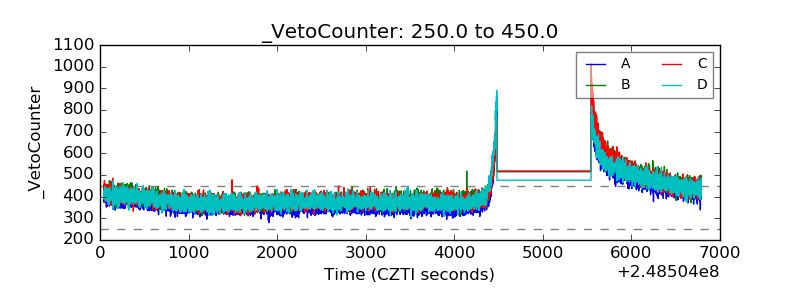

| Veto Counter |  |
