| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_137T01_9000001700_11582cztM0_level2.evt | modeM0/AS1A04_137T01_9000001700_11582cztM0_level2_quad_clean.evt |
| Size (bytes) | 744,906,240 | 92,845,440 |
| Size | 710.4 MB | 88.5 MB |
| Events in quadrant A | 7,013,513 | 568,473 |
| Events in quadrant B | 5,614,293 | 588,853 |
| Events in quadrant C | 3,205,085 | 629,239 |
| Events in quadrant D | 6,261,183 | 543,750 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25613 | 2 |
| B | 0 | 21099 | 1 |
| C | 0 | 14232 | 1 |
| D | 0 | 23141 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6892 | 1008 | 14.625653% |
| B | 6892 | 745 | 10.809634% |
| C | 6892 | 28 | 0.406268% |
| D | 6892 | 961 | 13.943703% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7583 | 6894 | 628 | 628 | 8.28% | 9.11% |  |
| B | 7583 | 6894 | 426 | 426 | 5.62% | 6.18% |  |
| C | 7583 | 6894 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7583 | 6894 | 837 | 837 | 11.04% | 12.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 3344128 | 20199.16 | 806 | 789 | 165.5 |
| A | 9 | 143 | 271624 | 1636.28 | 806 | 789 | 165.5 |
| A | 1 | 162 | 93505 | 560.15 | 806 | 789 | 165.5 |
| B | 4 | 239 | 1748289 | 11034.24 | 813 | 793 | 158.4 |
| B | 3 | 64 | 409324 | 2579.59 | 813 | 793 | 158.4 |
| B | 15 | 204 | 131106 | 822.84 | 813 | 793 | 158.4 |
| C | 0 | 207 | 12548 | 62.25 | 815 | 821 | 188.4 |
| C | 13 | 61 | 5911 | 27.02 | 815 | 821 | 188.4 |
| C | 14 | 234 | 4803 | 21.14 | 815 | 821 | 188.4 |
| D | 2 | 33 | 1958682 | 10575.54 | 775 | 754 | 185.1 |
| D | 10 | 253 | 378498 | 2040.34 | 775 | 754 | 185.1 |
| D | 1 | 52 | 352177 | 1898.17 | 775 | 754 | 185.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

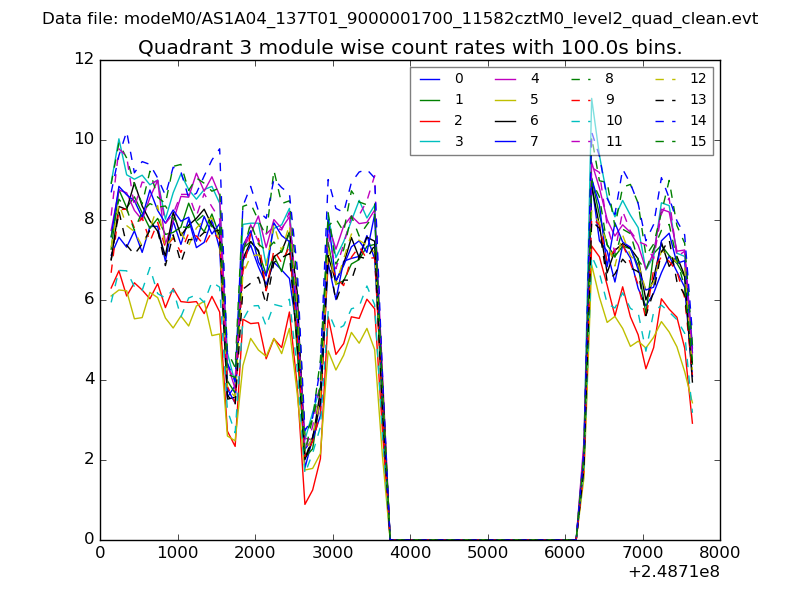

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

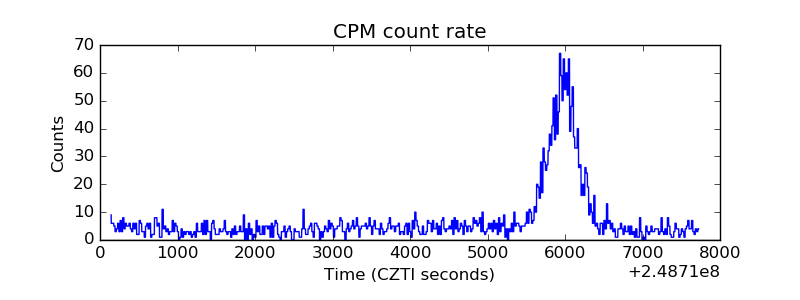

| _CPM_Rate |  |

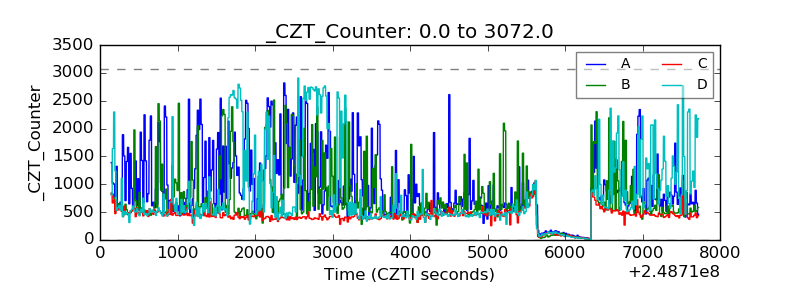

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

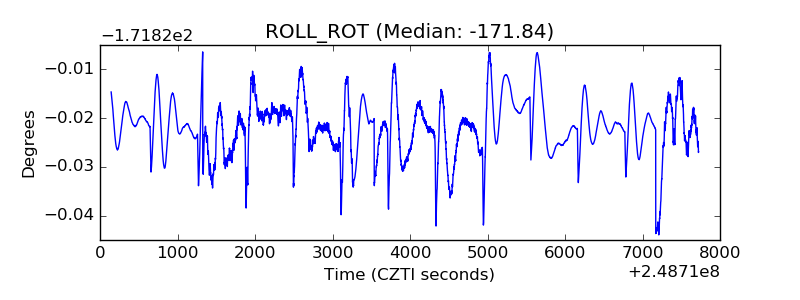

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
