| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T04_9000001704_11593cztM0_level2.evt | modeM0/AS1A04_130T04_9000001704_11593cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,512,960 | 87,845,760 |
| Size | 519.3 MB | 83.8 MB |
| Events in quadrant A | 3,529,441 | 572,405 |
| Events in quadrant B | 4,425,814 | 574,059 |
| Events in quadrant C | 2,879,481 | 574,300 |
| Events in quadrant D | 5,244,535 | 515,327 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14368 | 2 |
| B | 0 | 16963 | 1 |
| C | 0 | 12385 | 1 |
| D | 0 | 19358 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6075 | 93 | 1.530864% |
| B | 6075 | 380 | 6.255144% |
| C | 6075 | 27 | 0.444444% |
| D | 6075 | 628 | 10.337449% |

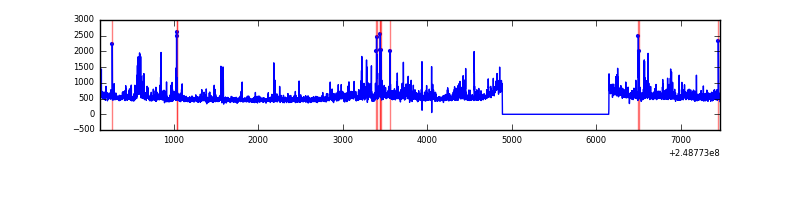

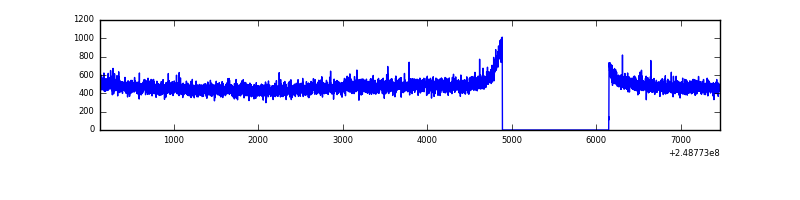

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7336 | 6077 | 12 | 12 | 0.16% | 0.20% |  |
| B | 7336 | 6077 | 184 | 184 | 2.51% | 3.03% |  |
| C | 7336 | 6077 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7336 | 6077 | 644 | 644 | 8.78% | 10.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 337829 | 2157.95 | 766 | 752 | 156.2 |
| A | 1 | 162 | 86076 | 546.24 | 766 | 752 | 156.2 |
| A | 1 | 178 | 53396 | 337.02 | 766 | 752 | 156.2 |
| B | 4 | 239 | 871961 | 6237.58 | 748 | 731 | 139.7 |
| B | 3 | 64 | 453543 | 3241.91 | 748 | 731 | 139.7 |
| B | 11 | 51 | 82717 | 586.98 | 748 | 731 | 139.7 |
| C | 13 | 61 | 5441 | 28.06 | 736 | 739 | 167.5 |
| C | 9 | 54 | 4059 | 19.81 | 736 | 739 | 167.5 |
| C | 12 | 4 | 3295 | 15.25 | 736 | 739 | 167.5 |
| D | 13 | 122 | 1905244 | 11196.04 | 722 | 704 | 170.1 |
| D | 8 | 195 | 285468 | 1674.01 | 722 | 704 | 170.1 |
| D | 1 | 52 | 83850 | 488.78 | 722 | 704 | 170.1 |

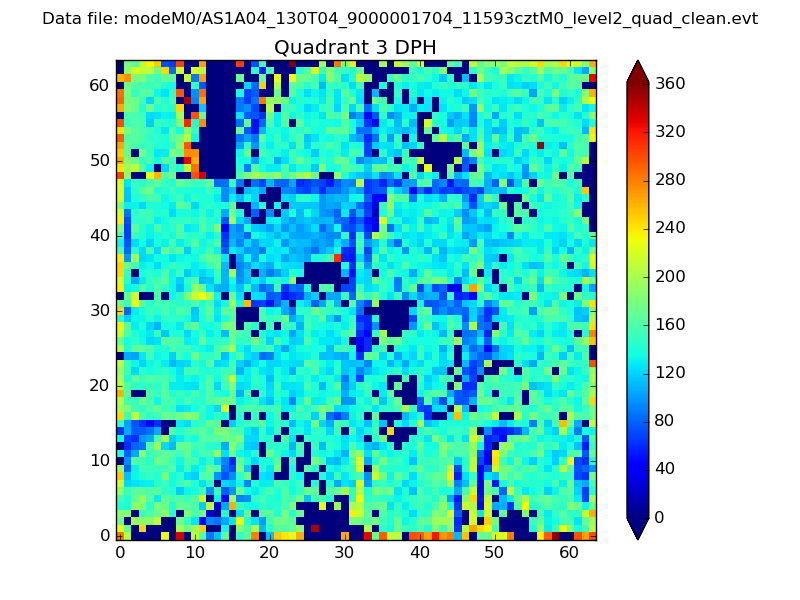

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

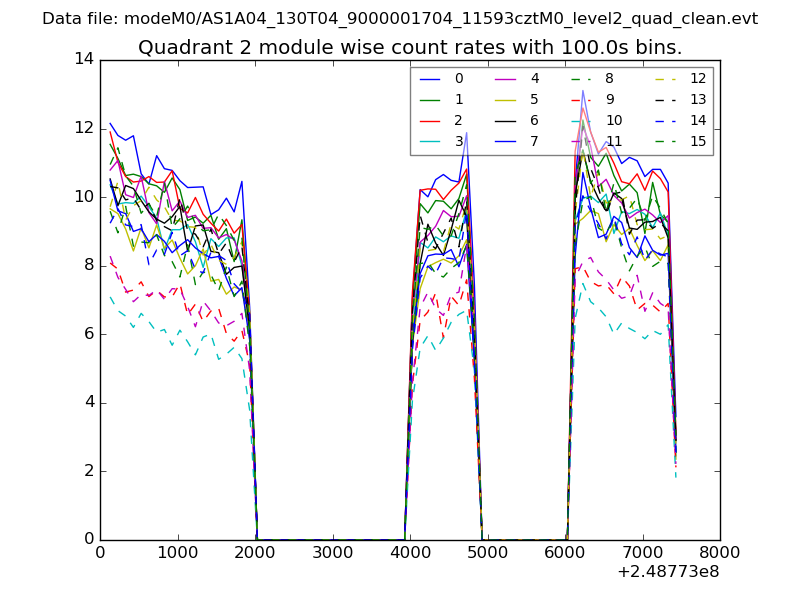

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

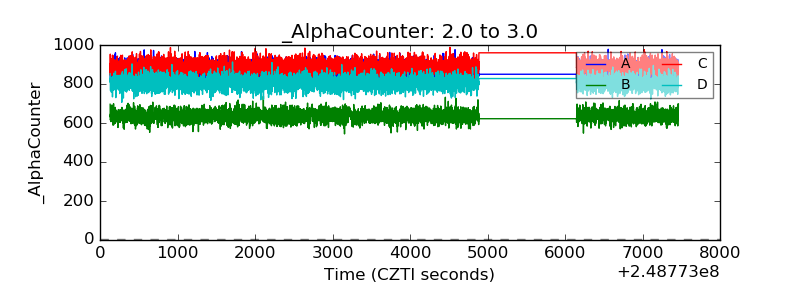

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

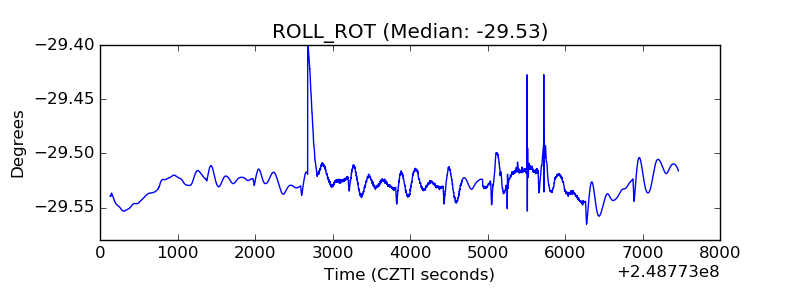

| _ROLL_ROT |  |
| _Roll_DEC |  |

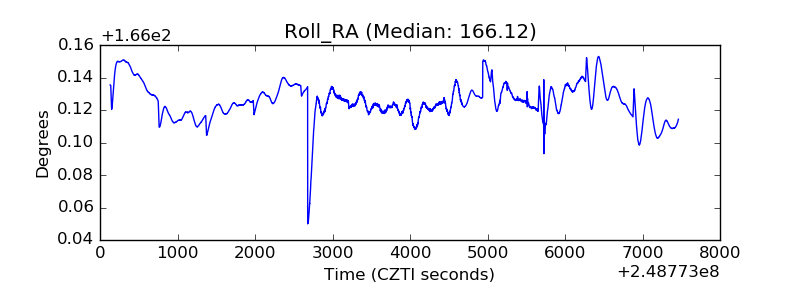

| _Roll_RA |  |
| Veto Counter |  |
