| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T04_9000001704_11595cztM0_level2.evt | modeM0/AS1A04_130T04_9000001704_11595cztM0_level2_quad_clean.evt |
| Size (bytes) | 572,549,760 | 73,373,760 |
| Size | 546.0 MB | 70.0 MB |
| Events in quadrant A | 5,825,872 | 444,680 |
| Events in quadrant B | 4,625,469 | 461,206 |
| Events in quadrant C | 2,759,956 | 464,988 |
| Events in quadrant D | 3,729,104 | 438,713 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21429 | 2 |
| B | 0 | 17540 | 1 |
| C | 0 | 12046 | 1 |
| D | 0 | 14769 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5894 | 690 | 11.706820% |
| B | 5894 | 573 | 9.721751% |
| C | 5894 | 63 | 1.068884% |
| D | 5894 | 309 | 5.242620% |

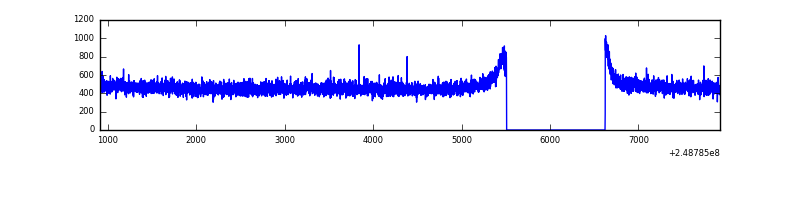

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7010 | 5896 | 360 | 360 | 5.14% | 6.11% |  |
| B | 7010 | 5896 | 319 | 319 | 4.55% | 5.41% |  |
| C | 7010 | 5896 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7010 | 5896 | 85 | 85 | 1.21% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2752456 | 19301.48 | 705 | 691 | 142.6 |
| A | 1 | 162 | 122232 | 852.51 | 705 | 691 | 142.6 |
| A | 1 | 178 | 71189 | 494.49 | 705 | 691 | 142.6 |
| B | 4 | 239 | 1272012 | 9552.81 | 704 | 687 | 133.1 |
| B | 3 | 64 | 240212 | 1799.8 | 704 | 687 | 133.1 |
| B | 15 | 255 | 136295 | 1018.97 | 704 | 687 | 133.1 |
| C | 13 | 61 | 5297 | 28.06 | 706 | 708 | 163.6 |
| C | 12 | 4 | 4640 | 24.04 | 706 | 708 | 163.6 |
| C | 3 | 202 | 1766 | 6.47 | 706 | 708 | 163.6 |
| D | 8 | 195 | 386197 | 2299.78 | 701 | 682 | 167.6 |
| D | 13 | 122 | 301970 | 1797.32 | 701 | 682 | 167.6 |
| D | 1 | 52 | 168251 | 999.63 | 701 | 682 | 167.6 |

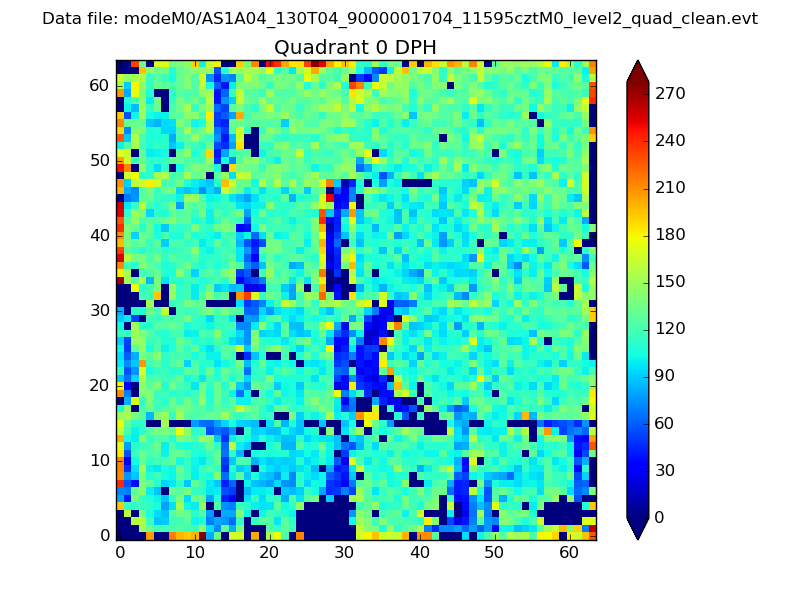

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

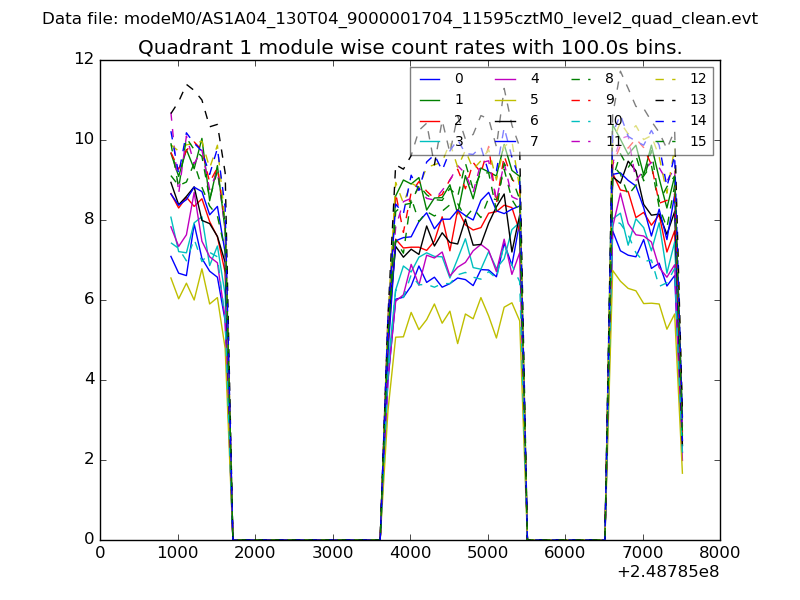

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

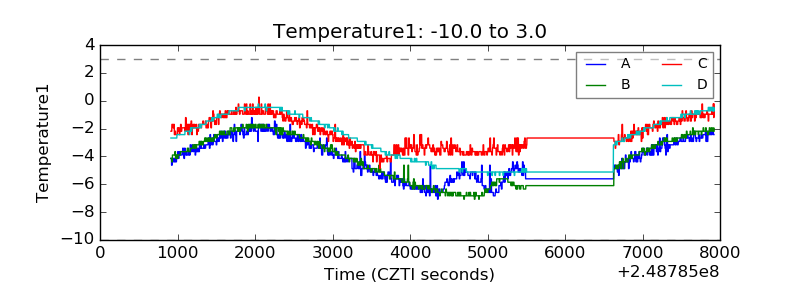

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

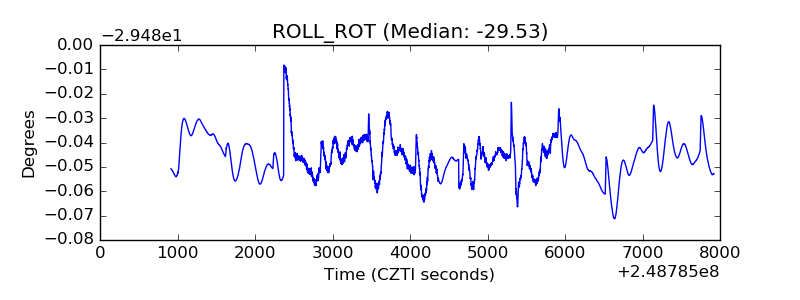

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

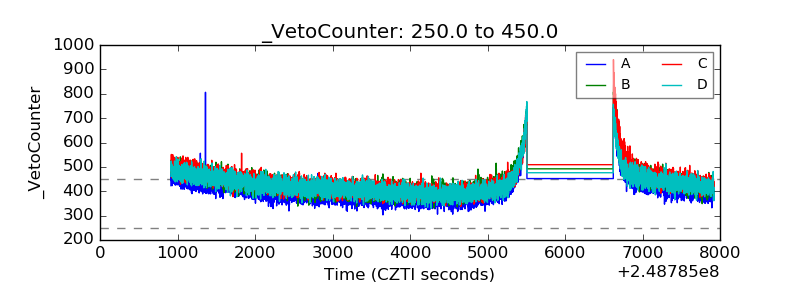

| Veto Counter |  |
