| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_020T01_9000001706_11605cztM0_level2.evt | modeM0/AS1C03_020T01_9000001706_11605cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,261,120 | 60,742,080 |
| Size | 572.5 MB | 57.9 MB |
| Events in quadrant A | 6,960,900 | 335,225 |
| Events in quadrant B | 4,643,436 | 348,180 |
| Events in quadrant C | 3,011,763 | 360,686 |
| Events in quadrant D | 3,128,783 | 347,629 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25141 | 3 |
| B | 0 | 17896 | 2 |
| C | 0 | 13196 | 2 |
| D | 0 | 13518 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6413 | 1271 | 19.819117% |
| B | 6413 | 435 | 6.783097% |
| C | 6413 | 37 | 0.576953% |
| D | 6413 | 49 | 0.764073% |

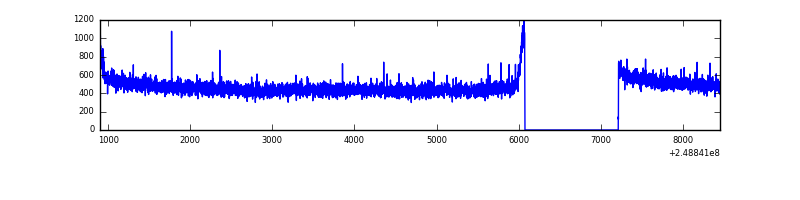

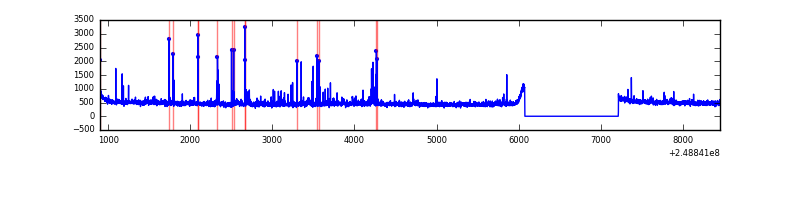

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7554 | 6415 | 799 | 799 | 10.58% | 12.46% |  |
| B | 7554 | 6415 | 258 | 258 | 3.42% | 4.02% |  |
| C | 7554 | 6415 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7554 | 6415 | 15 | 15 | 0.20% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 3782917 | 25410.52 | 734 | 719 | 148.8 |
| A | 1 | 162 | 129305 | 863.9 | 734 | 719 | 148.8 |
| A | 1 | 178 | 72565 | 482.69 | 734 | 719 | 148.8 |
| B | 4 | 239 | 1147425 | 7781.61 | 778 | 761 | 147.4 |
| B | 10 | 16 | 317092 | 2146.72 | 778 | 761 | 147.4 |
| B | 0 | 219 | 40946 | 272.71 | 778 | 761 | 147.4 |
| C | 13 | 61 | 5611 | 27.16 | 771 | 776 | 178.0 |
| C | 14 | 234 | 2695 | 10.78 | 771 | 776 | 178.0 |
| C | 12 | 4 | 2065 | 7.24 | 771 | 776 | 178.0 |
| D | 1 | 52 | 81843 | 442.35 | 767 | 746 | 183.3 |
| D | 13 | 104 | 54489 | 293.14 | 767 | 746 | 183.3 |
| D | 8 | 195 | 50944 | 273.81 | 767 | 746 | 183.3 |

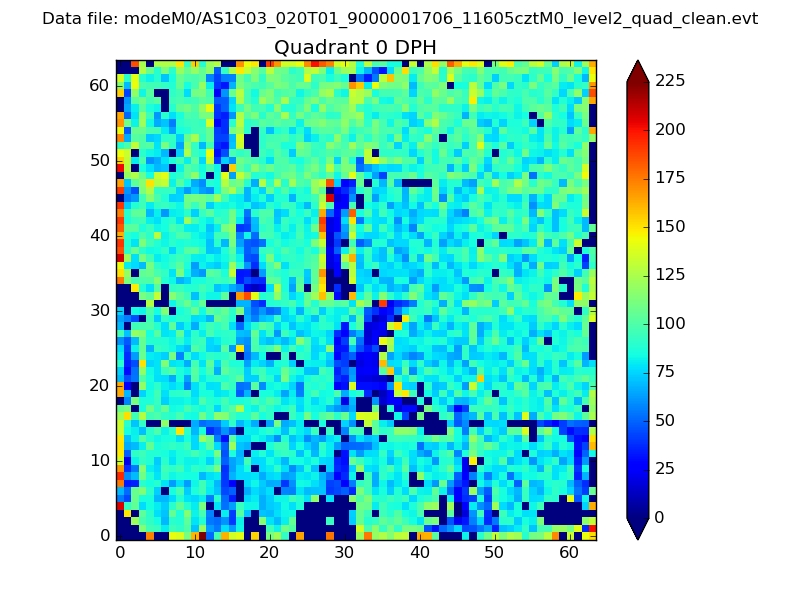

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

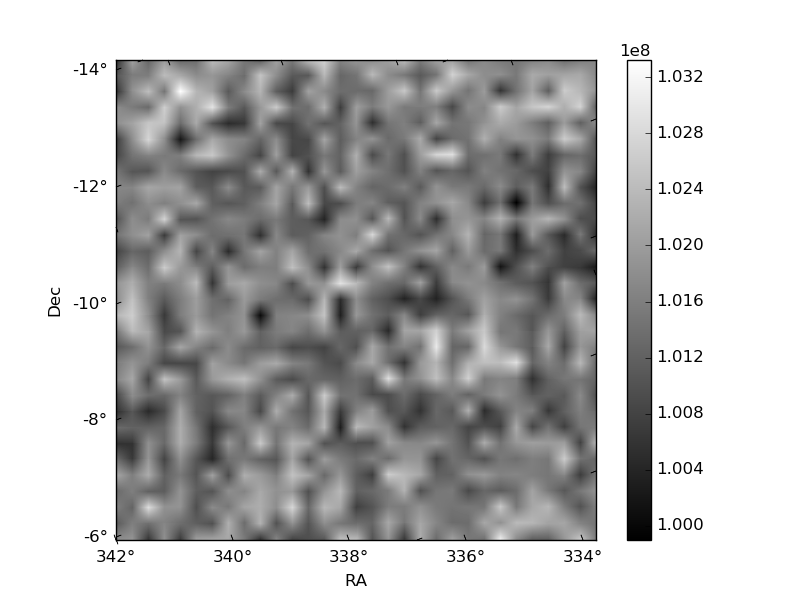

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

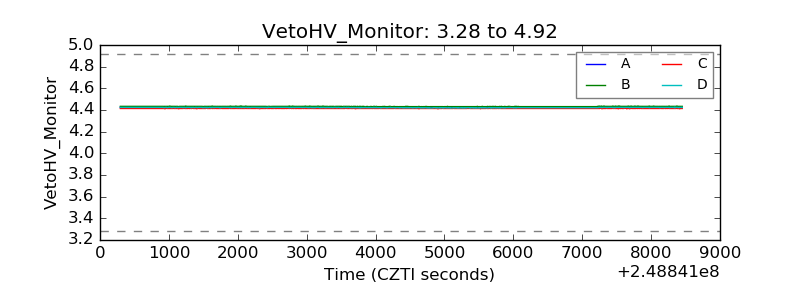

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

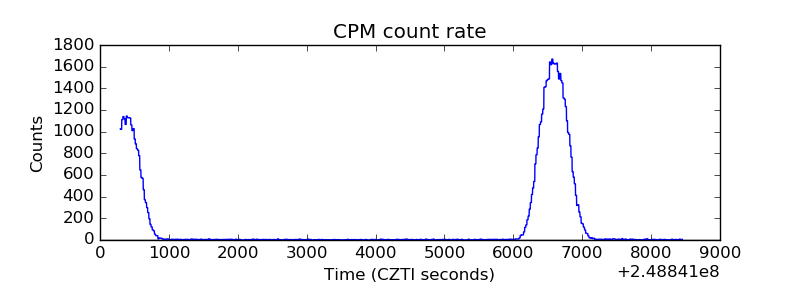

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

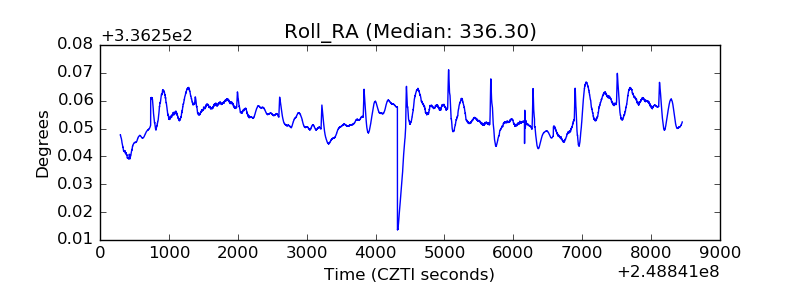

| _Roll_RA |  |
| Veto Counter |  |
