| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_020T01_9000001706_11611cztM0_level2.evt | modeM0/AS1C03_020T01_9000001706_11611cztM0_level2_quad_clean.evt |
| Size (bytes) | 609,747,840 | 80,781,120 |
| Size | 581.5 MB | 77.0 MB |
| Events in quadrant A | 6,485,726 | 488,496 |
| Events in quadrant B | 5,148,884 | 500,062 |
| Events in quadrant C | 2,927,357 | 517,229 |
| Events in quadrant D | 3,470,568 | 493,250 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23670 | 2 |
| B | 0 | 19368 | 1 |
| C | 0 | 13196 | 1 |
| D | 0 | 14648 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6396 | 1072 | 16.760475% |
| B | 6396 | 617 | 9.646654% |
| C | 6396 | 54 | 0.844278% |
| D | 6396 | 132 | 2.063790% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7022 | 6398 | 680 | 680 | 9.68% | 10.63% |  |
| B | 7022 | 6398 | 365 | 365 | 5.20% | 5.70% |  |
| C | 7022 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7022 | 6398 | 69 | 69 | 0.98% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 3246394 | 21087.33 | 742 | 727 | 153.9 |
| A | 1 | 162 | 135915 | 878.33 | 742 | 727 | 153.9 |
| A | 1 | 178 | 80029 | 515.23 | 742 | 727 | 153.9 |
| B | 4 | 239 | 1071047 | 7285.96 | 757 | 739 | 146.9 |
| B | 10 | 16 | 881803 | 5997.71 | 757 | 739 | 146.9 |
| B | 3 | 64 | 98061 | 662.5 | 757 | 739 | 146.9 |
| C | 13 | 61 | 5482 | 26.91 | 750 | 756 | 175.6 |
| C | 8 | 208 | 4122 | 19.17 | 750 | 756 | 175.6 |
| C | 3 | 202 | 1885 | 6.43 | 750 | 756 | 175.6 |
| D | 1 | 52 | 404434 | 2252.87 | 744 | 725 | 179.2 |
| D | 13 | 104 | 62622 | 345.41 | 744 | 725 | 179.2 |
| D | 2 | 136 | 62138 | 342.71 | 744 | 725 | 179.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

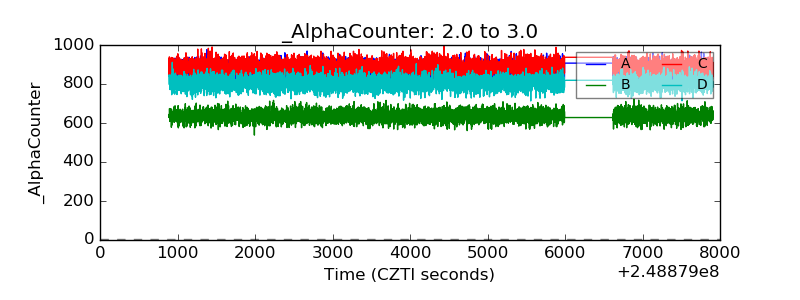

| Alpha Counter |  |

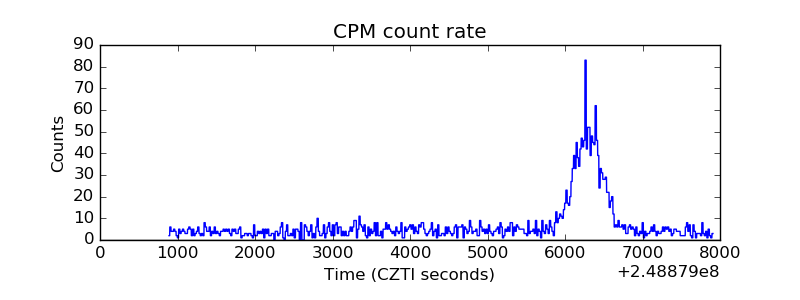

| _CPM_Rate |  |

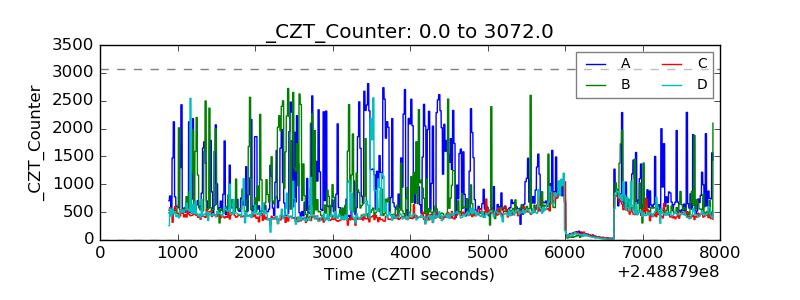

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

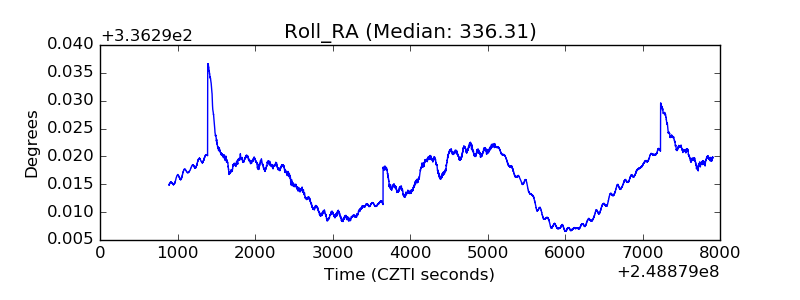

| _Roll_RA |  |
| Veto Counter |  |
