| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000001708_11614cztM0_level2.evt | modeM0/AS1A04_198T01_9000001708_11614cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,840,320 | 63,429,120 |
| Size | 448.1 MB | 60.5 MB |
| Events in quadrant A | 5,061,531 | 385,312 |
| Events in quadrant B | 3,255,532 | 396,361 |
| Events in quadrant C | 2,404,223 | 389,377 |
| Events in quadrant D | 3,139,736 | 369,884 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18836 | 2 |
| B | 0 | 13411 | 1 |
| C | 0 | 11012 | 1 |
| D | 0 | 13172 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5420 | 689 | 12.712177% |
| B | 5420 | 202 | 3.726937% |
| C | 5420 | 12 | 0.221402% |
| D | 5420 | 161 | 2.970480% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

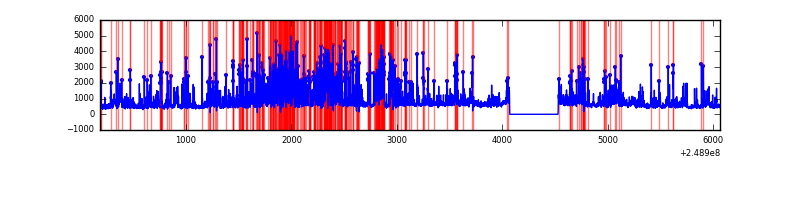

| A | 5881 | 5422 | 441 | 441 | 7.50% | 8.13% |  |

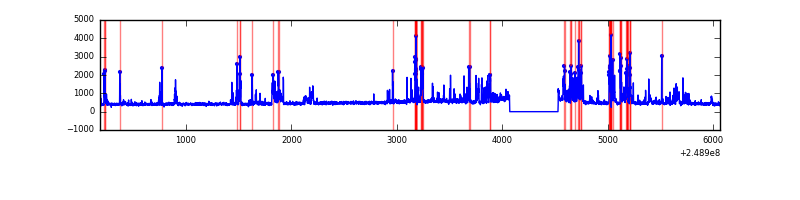

| B | 5881 | 5422 | 72 | 72 | 1.22% | 1.33% |  |

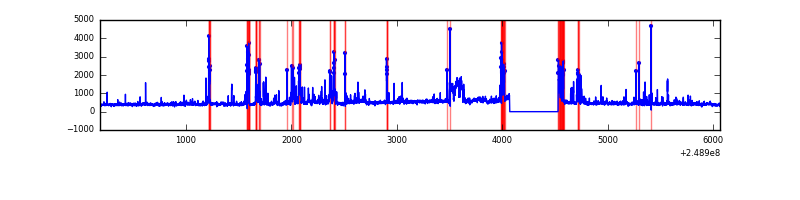

| C | 5881 | 5422 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5881 | 5422 | 93 | 93 | 1.58% | 1.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2545923 | 20522.46 | 600 | 585 | 124.0 |
| A | 1 | 162 | 70949 | 567.33 | 600 | 585 | 124.0 |
| A | 1 | 178 | 40458 | 321.49 | 600 | 585 | 124.0 |
| B | 4 | 239 | 608363 | 5028.49 | 629 | 612 | 120.9 |
| B | 10 | 16 | 153336 | 1263.63 | 629 | 612 | 120.9 |
| B | 12 | 111 | 14088 | 111.5 | 629 | 612 | 120.9 |
| C | 13 | 61 | 4470 | 26.84 | 616 | 619 | 143.5 |
| C | 9 | 54 | 2199 | 11.01 | 616 | 619 | 143.5 |
| C | 1 | 5 | 1957 | 9.32 | 616 | 619 | 143.5 |
| D | 1 | 52 | 655835 | 4509.28 | 601 | 585 | 145.3 |
| D | 8 | 195 | 71477 | 487.86 | 601 | 585 | 145.3 |
| D | 10 | 199 | 34515 | 233.5 | 601 | 585 | 145.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

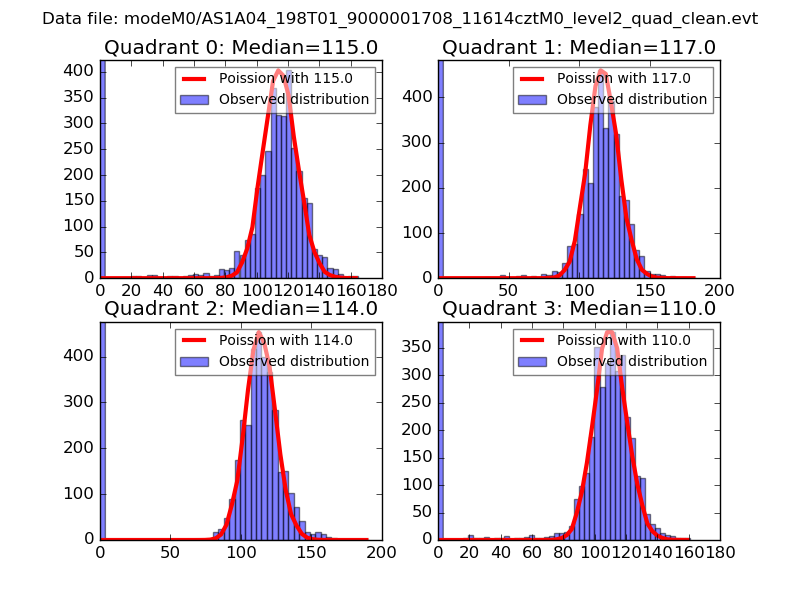

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

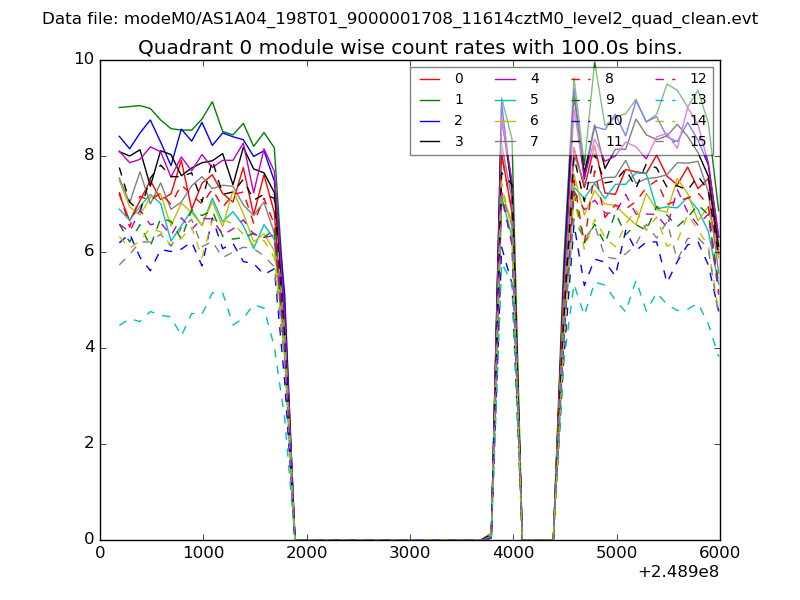

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

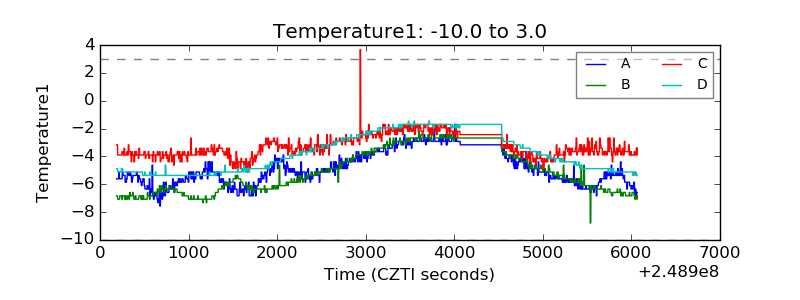

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

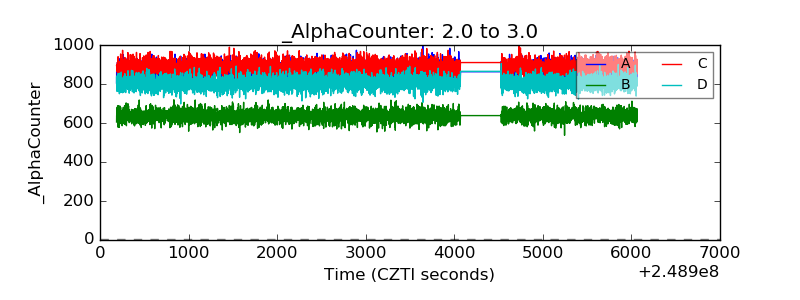

| Alpha Counter |  |
| _CPM_Rate |  |

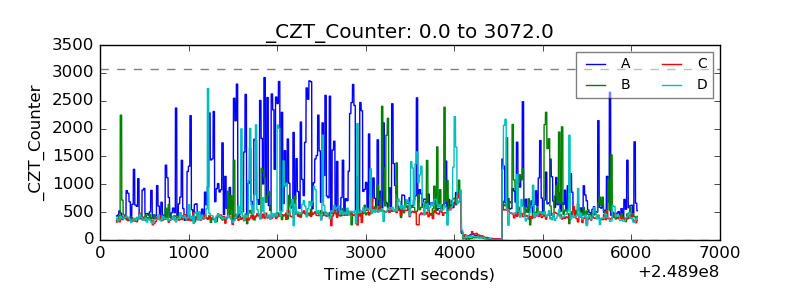

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
