| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_198T01_9000001708_11618cztM0_level2.evt | modeM0/AS1A04_198T01_9000001708_11618cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,735,360 | 110,148,480 |
| Size | 518.5 MB | 105.0 MB |
| Events in quadrant A | 4,523,712 | 708,731 |
| Events in quadrant B | 3,913,467 | 719,715 |
| Events in quadrant C | 3,420,557 | 713,318 |
| Events in quadrant D | 4,114,515 | 686,355 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18216 | 3 |
| B | 0 | 16211 | 2 |
| C | 0 | 15003 | 2 |
| D | 0 | 17167 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7300 | 252 | 3.452055% |
| B | 7300 | 179 | 2.452055% |
| C | 7300 | 60 | 0.821918% |
| D | 7300 | 119 | 1.630137% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9231 | 7303 | 77 | 77 | 0.83% | 1.05% |  |
| B | 9231 | 7303 | 54 | 54 | 0.58% | 0.74% |  |
| C | 9231 | 7303 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9231 | 7303 | 44 | 44 | 0.48% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 541684 | 2983.1 | 885 | 868 | 181.3 |
| A | 1 | 162 | 184317 | 1011.89 | 885 | 868 | 181.3 |
| A | 13 | 251 | 105165 | 575.3 | 885 | 868 | 181.3 |
| B | 4 | 239 | 335218 | 1967.03 | 889 | 865 | 170.0 |
| B | 11 | 51 | 48567 | 280.64 | 889 | 865 | 170.0 |
| B | 15 | 204 | 32931 | 188.65 | 889 | 865 | 170.0 |
| C | 13 | 61 | 6237 | 26.43 | 877 | 881 | 202.7 |
| C | 3 | 202 | 2172 | 6.37 | 877 | 881 | 202.7 |
| C | 9 | 54 | 1902 | 5.04 | 877 | 881 | 202.7 |
| D | 13 | 122 | 267903 | 1286.22 | 866 | 844 | 207.6 |
| D | 1 | 52 | 184371 | 883.91 | 866 | 844 | 207.6 |
| D | 13 | 104 | 107370 | 513.05 | 866 | 844 | 207.6 |

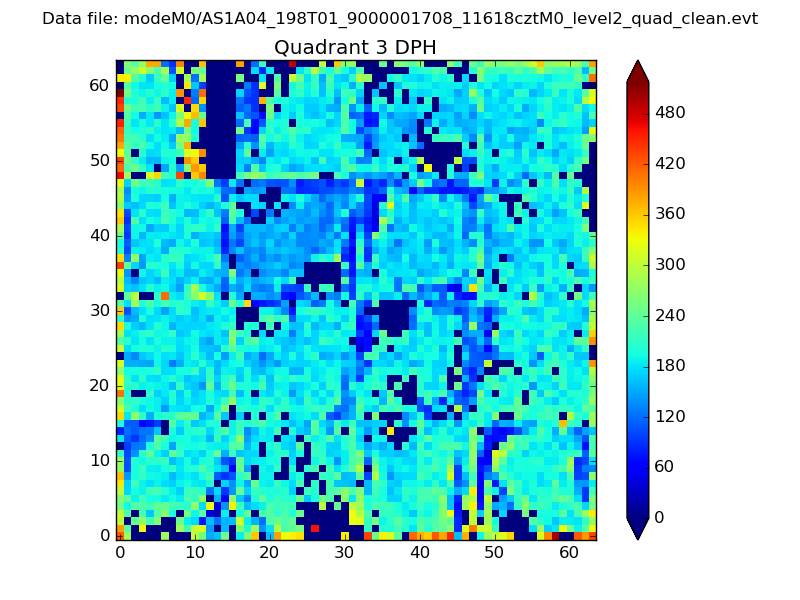

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

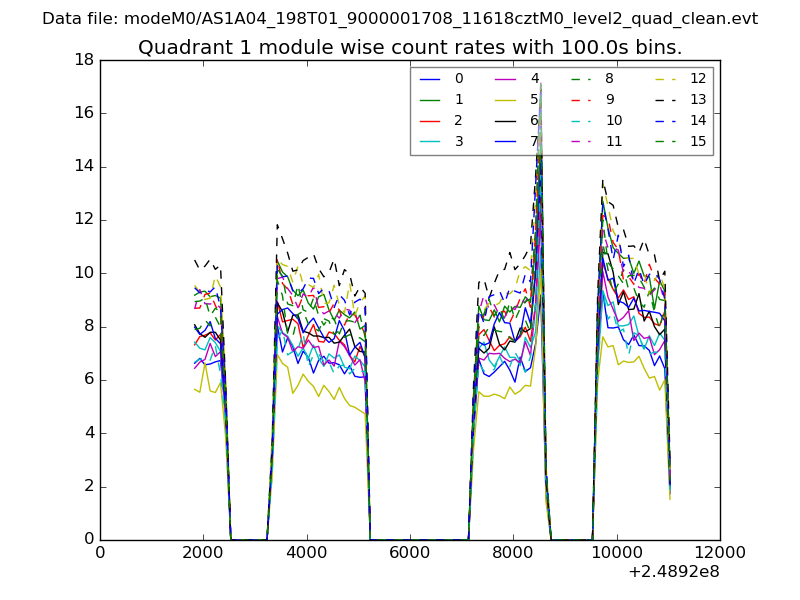

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

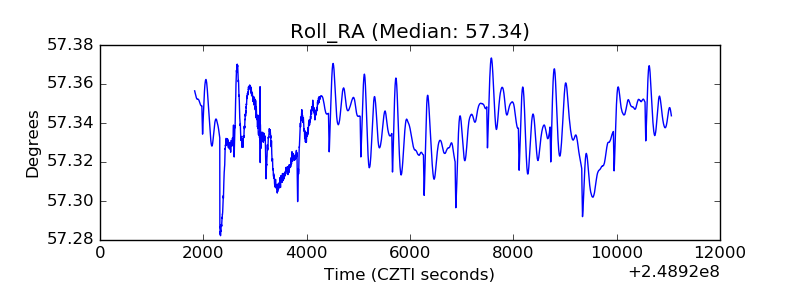

| _ROLL_ROT |  |

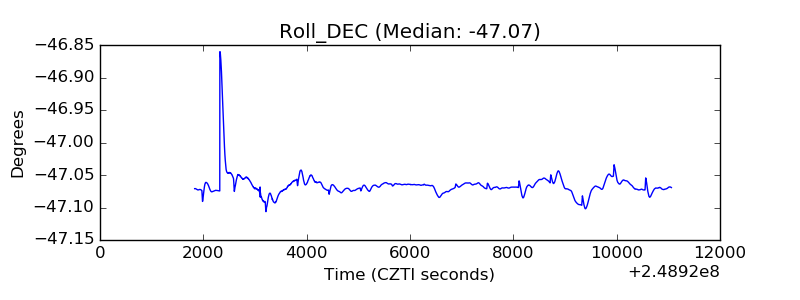

| _Roll_DEC |  |
| _Roll_RA |  |

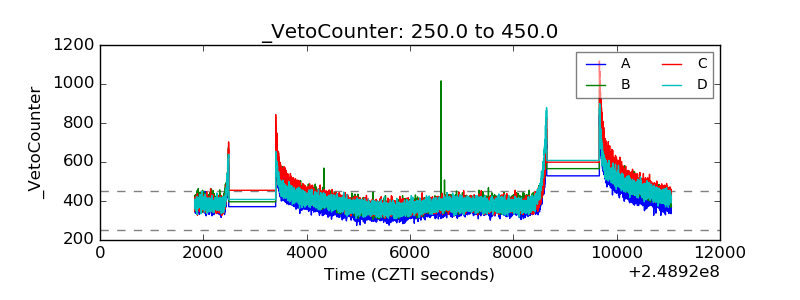

| Veto Counter |  |
