| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_037T01_9000001716_11646cztM0_level2.evt | modeM0/AS1A04_037T01_9000001716_11646cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,912,320 | 90,011,520 |
| Size | 465.3 MB | 85.8 MB |
| Events in quadrant A | 3,760,040 | 571,845 |
| Events in quadrant B | 3,598,118 | 576,588 |
| Events in quadrant C | 3,042,561 | 564,953 |
| Events in quadrant D | 3,914,438 | 538,898 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15506 | 3 |
| B | 0 | 15154 | 2 |
| C | 0 | 13720 | 2 |
| D | 0 | 16408 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6793 | 49 | 0.721331% |
| B | 6793 | 157 | 2.311203% |
| C | 6793 | 20 | 0.294421% |
| D | 6793 | 186 | 2.738113% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7744 | 6795 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7744 | 6795 | 63 | 63 | 0.81% | 0.93% |  |
| C | 7744 | 6795 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7744 | 6795 | 118 | 118 | 1.52% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 218902 | 1346.72 | 790 | 772 | 162.0 |
| A | 1 | 178 | 131624 | 807.87 | 790 | 772 | 162.0 |
| A | 1 | 161 | 110182 | 675.49 | 790 | 772 | 162.0 |
| B | 4 | 239 | 459130 | 2988.21 | 794 | 773 | 153.4 |
| B | 15 | 204 | 34167 | 217.71 | 794 | 773 | 153.4 |
| B | 12 | 111 | 18206 | 113.65 | 794 | 773 | 153.4 |
| C | 1 | 0 | 7886 | 39.4 | 774 | 778 | 180.4 |
| C | 14 | 234 | 6151 | 29.78 | 774 | 778 | 180.4 |
| C | 14 | 67 | 6118 | 29.6 | 774 | 778 | 180.4 |
| D | 13 | 104 | 498759 | 2766.26 | 757 | 738 | 180.0 |
| D | 10 | 199 | 159257 | 880.5 | 757 | 738 | 180.0 |
| D | 4 | 95 | 134969 | 745.59 | 757 | 738 | 180.0 |

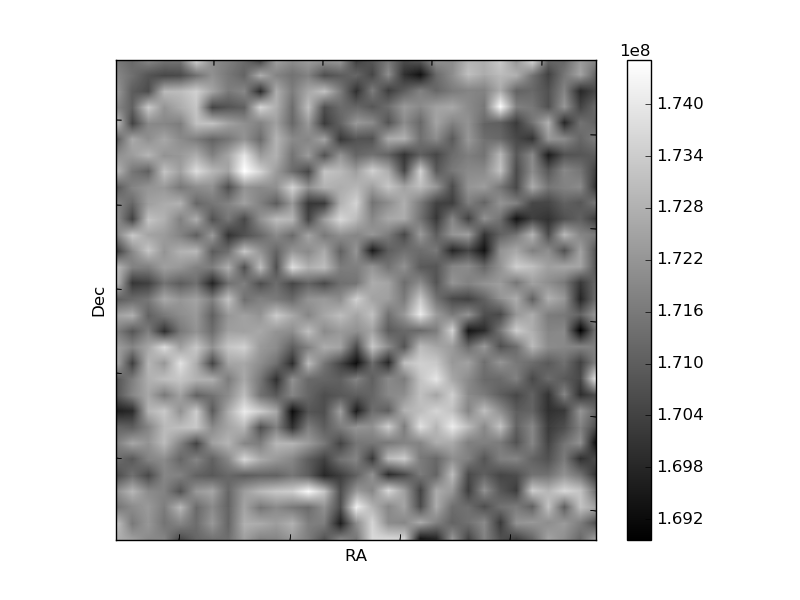

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

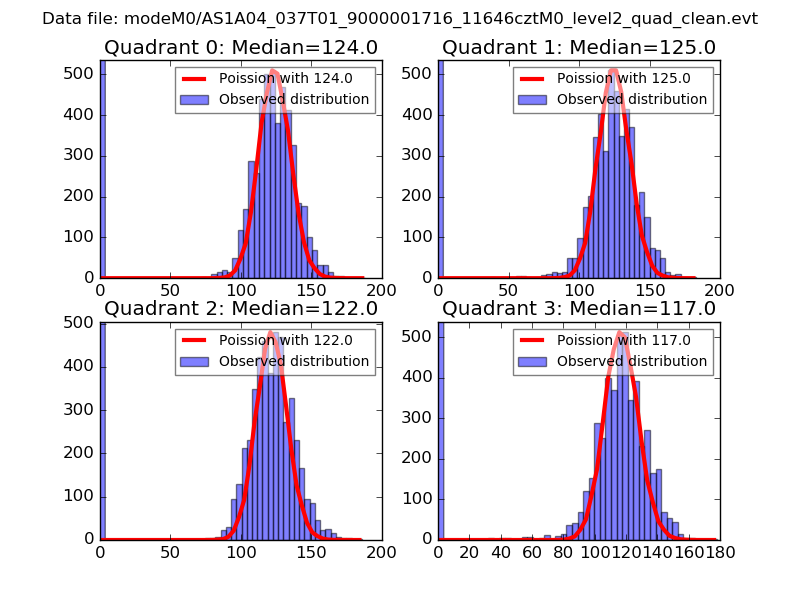

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

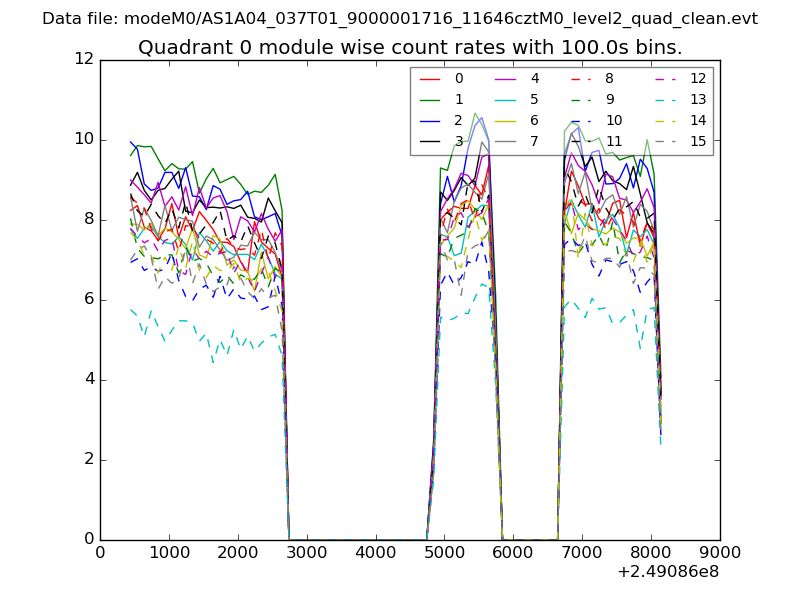

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

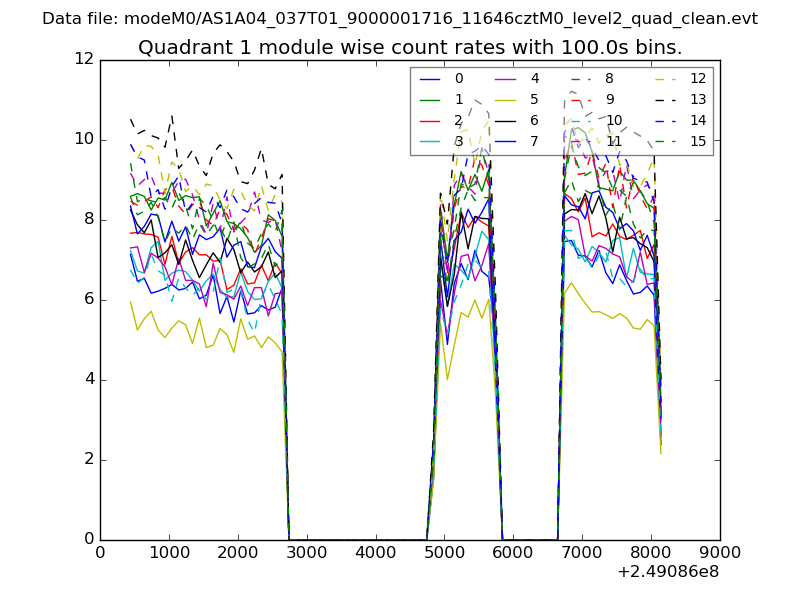

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

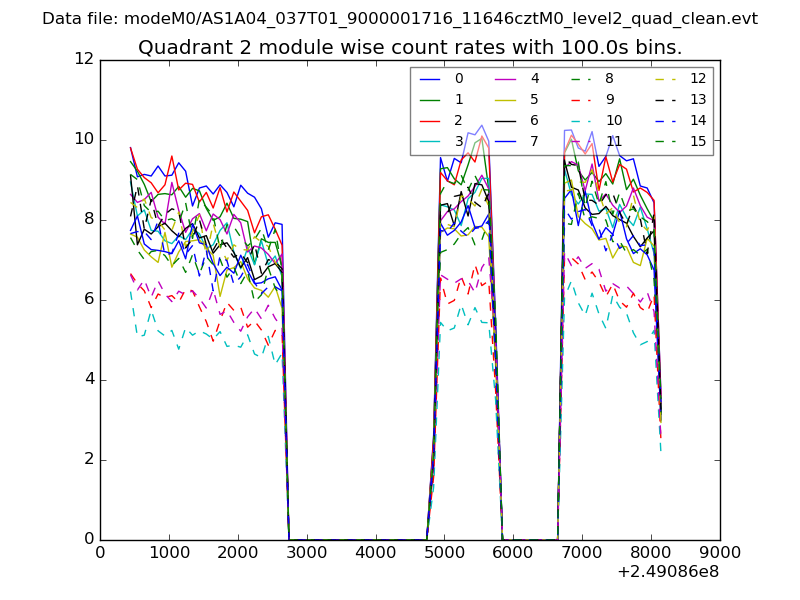

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

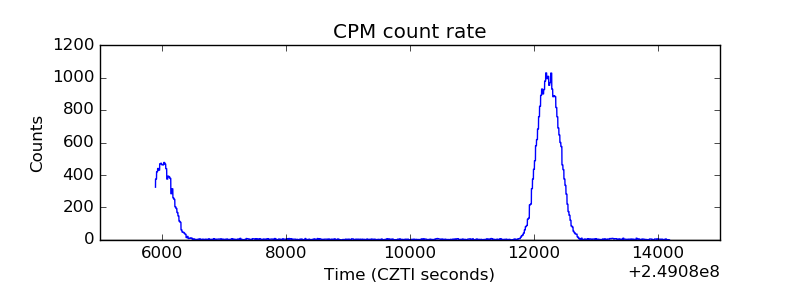

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
