| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_037T01_9000001716_11649cztM0_level2.evt | modeM0/AS1A04_037T01_9000001716_11649cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,037,760 | 88,107,840 |
| Size | 450.2 MB | 84.0 MB |
| Events in quadrant A | 3,811,267 | 552,278 |
| Events in quadrant B | 3,470,017 | 571,346 |
| Events in quadrant C | 3,141,637 | 558,317 |
| Events in quadrant D | 3,433,467 | 534,724 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15581 | 3 |
| B | 0 | 14379 | 2 |
| C | 0 | 13422 | 2 |
| D | 0 | 14231 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6470 | 69 | 1.066461% |
| B | 6470 | 78 | 1.205564% |
| C | 6470 | 29 | 0.448223% |
| D | 6470 | 47 | 0.726430% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7631 | 6472 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7631 | 6472 | 17 | 17 | 0.22% | 0.26% |  |
| C | 7631 | 6472 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7631 | 6472 | 20 | 20 | 0.26% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 202545 | 1230.5 | 805 | 787 | 164.0 |
| A | 1 | 162 | 185789 | 1128.3 | 805 | 787 | 164.0 |
| A | 1 | 178 | 108374 | 656.16 | 805 | 787 | 164.0 |
| B | 4 | 239 | 267724 | 1744.45 | 813 | 793 | 153.0 |
| B | 15 | 204 | 31671 | 201.79 | 813 | 793 | 153.0 |
| B | 12 | 111 | 17802 | 111.16 | 813 | 793 | 153.0 |
| C | 1 | 0 | 8251 | 40.4 | 801 | 807 | 184.3 |
| C | 13 | 61 | 5721 | 26.67 | 801 | 807 | 184.3 |
| C | 8 | 128 | 5084 | 23.21 | 801 | 807 | 184.3 |
| D | 4 | 95 | 198171 | 1053.75 | 787 | 766 | 187.3 |
| D | 8 | 195 | 79311 | 419.27 | 787 | 766 | 187.3 |
| D | 13 | 249 | 48767 | 256.23 | 787 | 766 | 187.3 |

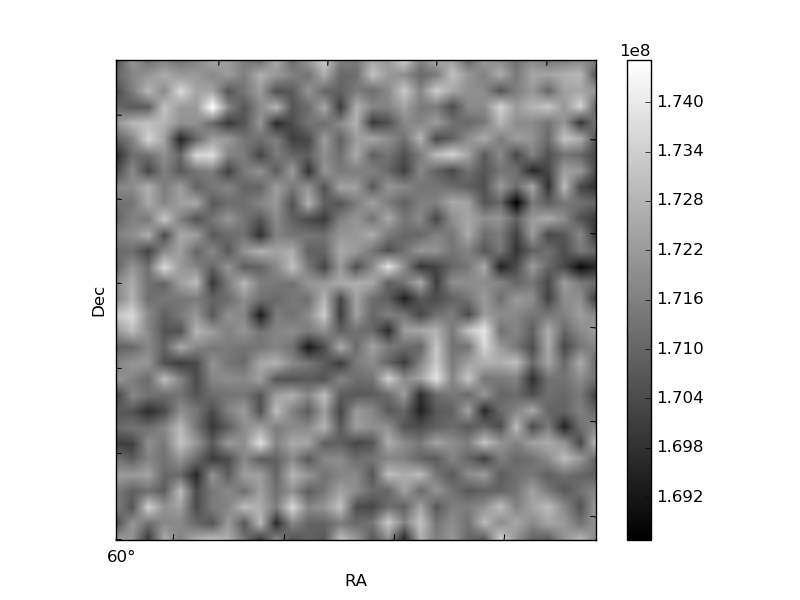

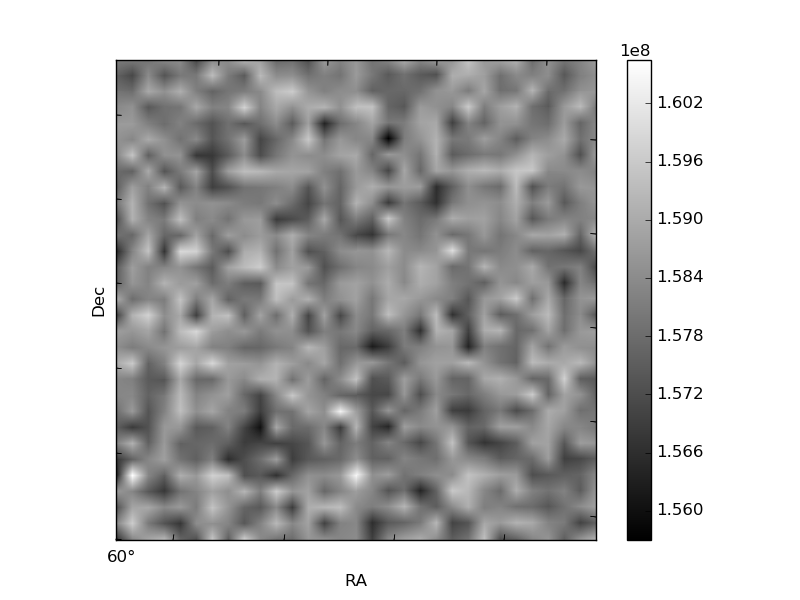

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

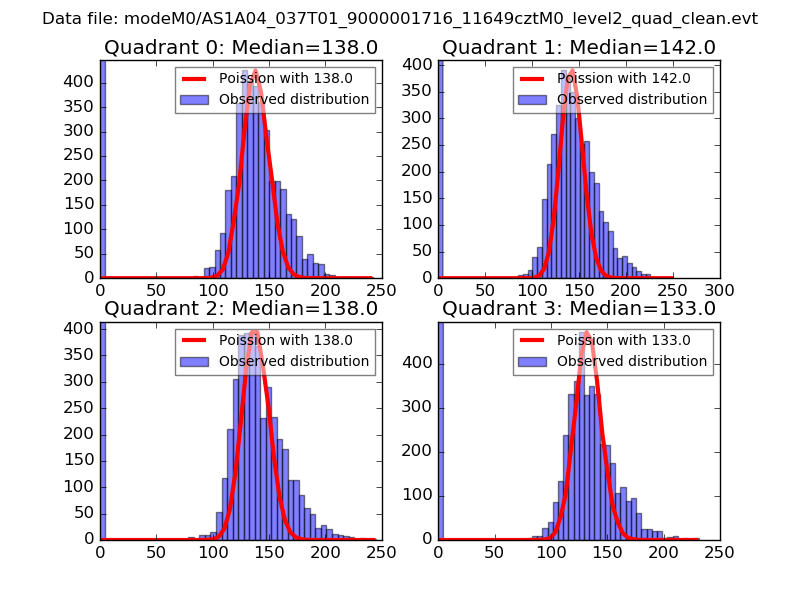

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

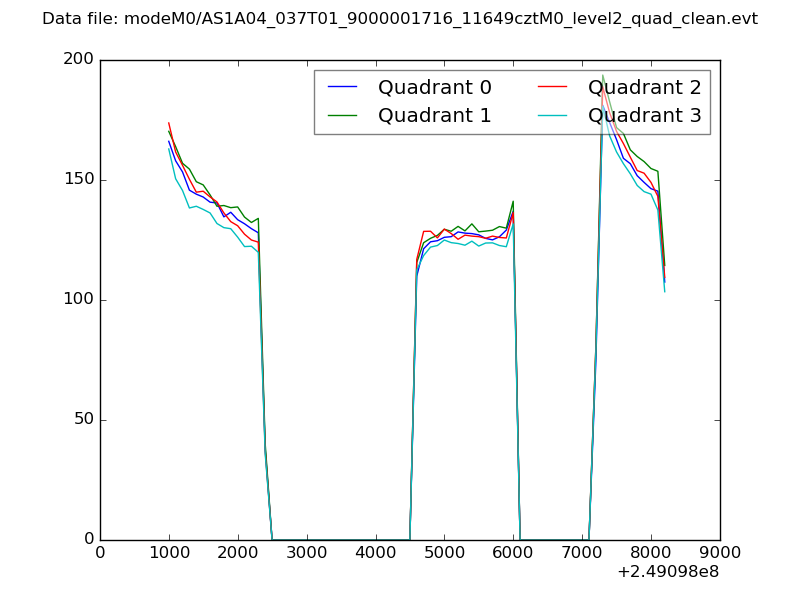

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

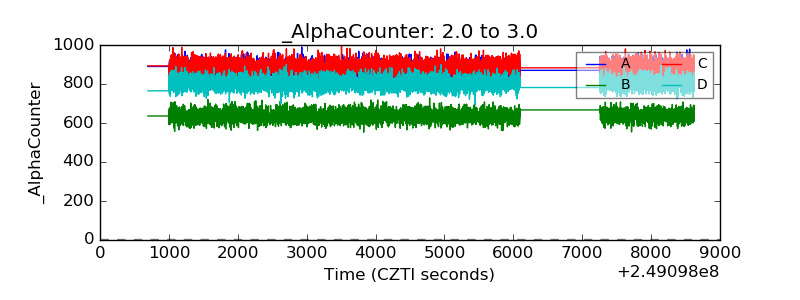

| Alpha Counter |  |

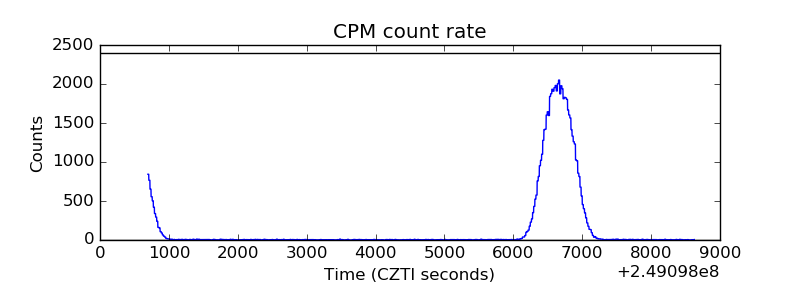

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

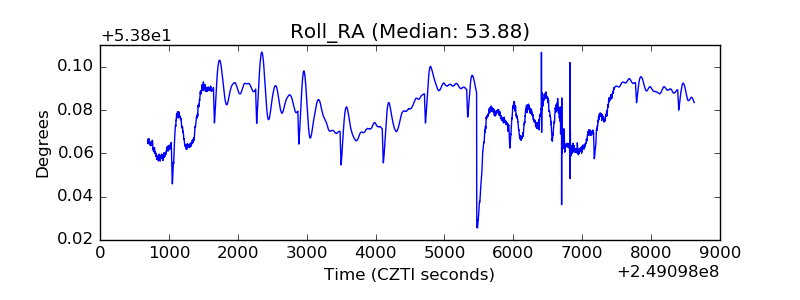

| _Roll_RA |  |

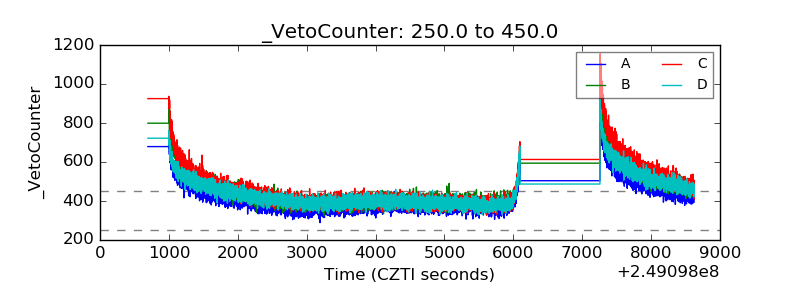

| Veto Counter |  |
