| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_037T03_9000001722_11676cztM0_level2.evt | modeM0/AS1A04_037T03_9000001722_11676cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,774,720 | 88,637,760 |
| Size | 472.8 MB | 84.5 MB |
| Events in quadrant A | 4,501,304 | 549,164 |
| Events in quadrant B | 3,595,242 | 573,675 |
| Events in quadrant C | 2,985,345 | 568,464 |
| Events in quadrant D | 3,492,393 | 540,555 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17629 | 3 |
| B | 0 | 14792 | 2 |
| C | 0 | 13141 | 2 |
| D | 0 | 14515 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6483 | 314 | 4.843437% |
| B | 6483 | 134 | 2.066944% |
| C | 6483 | 20 | 0.308499% |
| D | 6483 | 60 | 0.925497% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 6485 | 188 | 188 | 2.47% | 2.90% |  |
| B | 7599 | 6485 | 85 | 85 | 1.12% | 1.31% |  |
| C | 7599 | 6485 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7599 | 6485 | 35 | 35 | 0.46% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1157699 | 7472.71 | 759 | 741 | 154.8 |
| A | 1 | 162 | 167253 | 1075.49 | 759 | 741 | 154.8 |
| A | 1 | 178 | 90325 | 578.62 | 759 | 741 | 154.8 |
| B | 3 | 64 | 367398 | 2451.77 | 778 | 759 | 149.5 |
| B | 4 | 239 | 98167 | 651.38 | 778 | 759 | 149.5 |
| B | 15 | 204 | 48645 | 320.22 | 778 | 759 | 149.5 |
| C | 13 | 61 | 5538 | 26.86 | 765 | 768 | 177.6 |
| C | 3 | 202 | 1881 | 6.27 | 765 | 768 | 177.6 |
| C | -1 | -1 | -1 | -1.0 | 765 | 768 | 177.6 |
| D | 8 | 195 | 327860 | 1815.49 | 753 | 734 | 180.2 |
| D | 13 | 104 | 237790 | 1315.61 | 753 | 734 | 180.2 |
| D | 1 | 52 | 45920 | 250.77 | 753 | 734 | 180.2 |

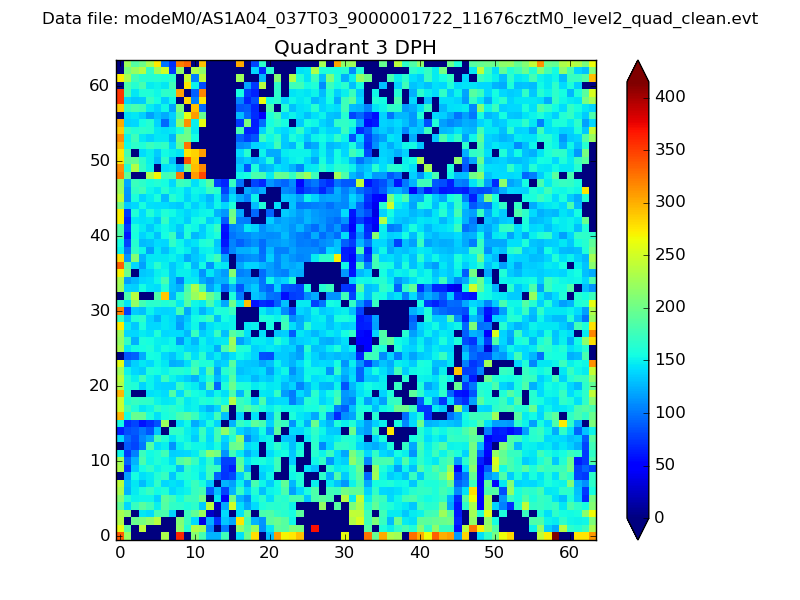

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

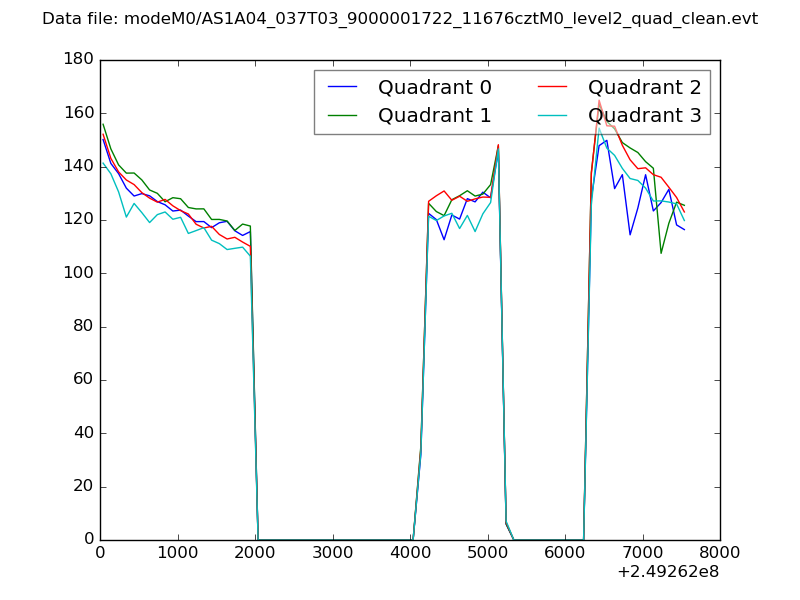

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

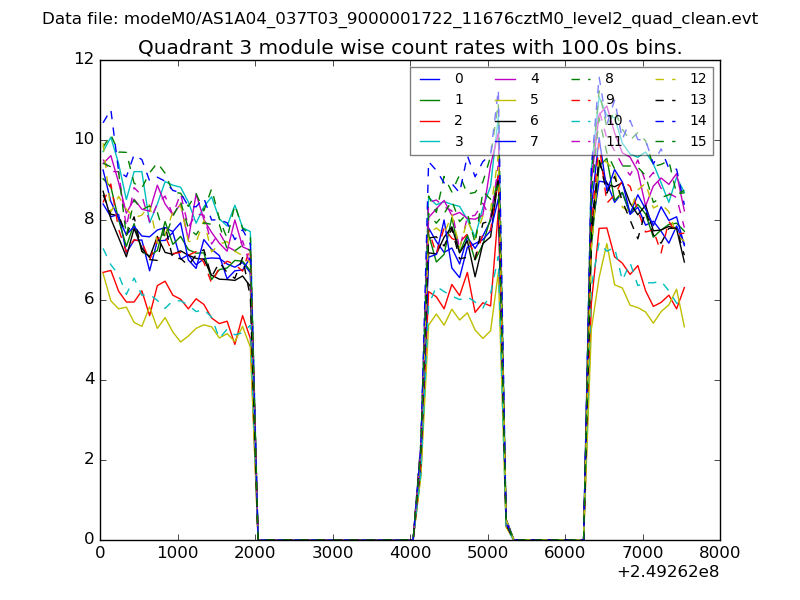

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

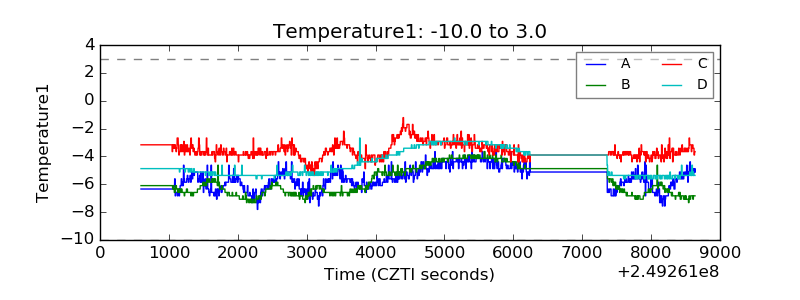

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

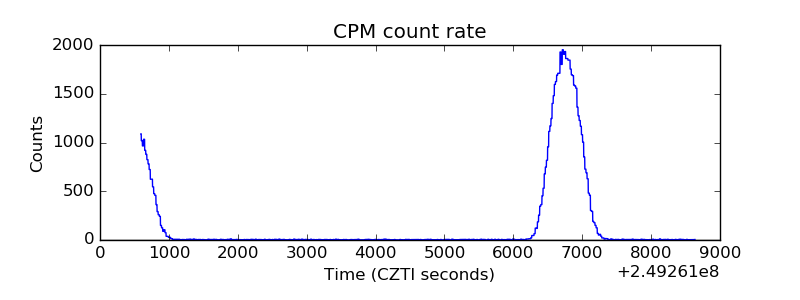

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

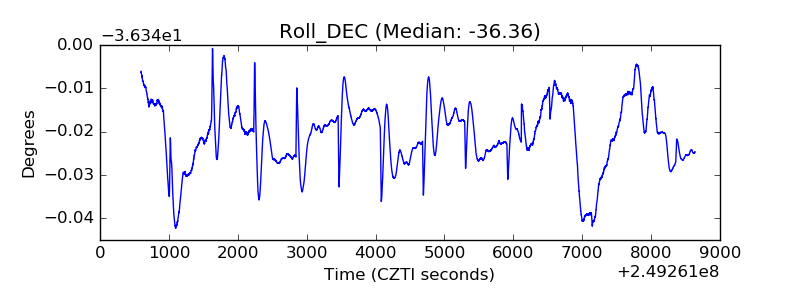

| _Roll_DEC |  |

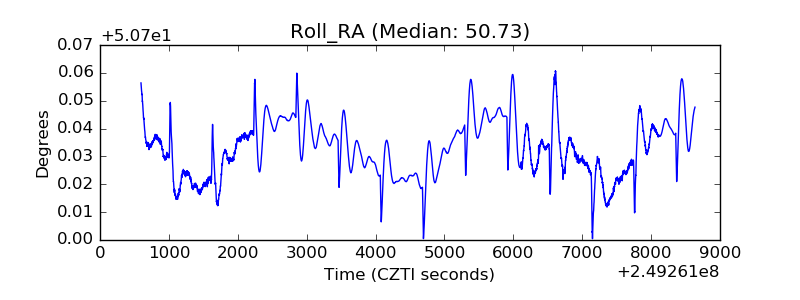

| _Roll_RA |  |
| Veto Counter |  |
