| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_037T03_9000001722_11678cztM0_level2.evt | modeM0/AS1A04_037T03_9000001722_11678cztM0_level2_quad_clean.evt |
| Size (bytes) | 631,716,480 | 89,222,400 |
| Size | 602.5 MB | 85.1 MB |
| Events in quadrant A | 5,722,379 | 540,511 |
| Events in quadrant B | 6,625,482 | 583,535 |
| Events in quadrant C | 3,049,945 | 583,840 |
| Events in quadrant D | 3,307,498 | 554,316 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21298 | 3 |
| B | 0 | 23745 | 2 |
| C | 0 | 13012 | 2 |
| D | 0 | 13617 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6296 | 751 | 11.928208% |
| B | 6296 | 1304 | 20.711563% |
| C | 6296 | 31 | 0.492376% |
| D | 6296 | 21 | 0.333545% |

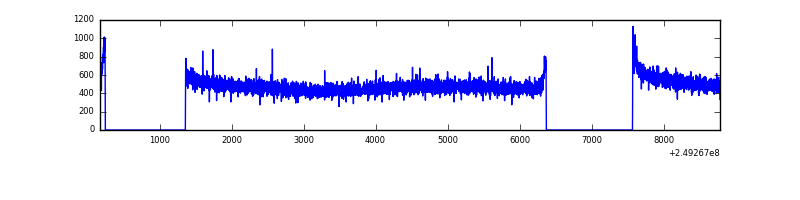

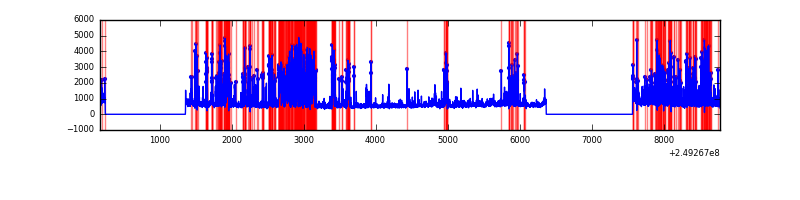

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8612 | 6299 | 538 | 538 | 6.25% | 8.54% |  |
| B | 8612 | 6299 | 1190 | 1190 | 13.82% | 18.89% |  |
| C | 8612 | 6299 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8612 | 6299 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2450576 | 16297.52 | 746 | 730 | 150.3 |
| A | 1 | 162 | 153485 | 1016.2 | 746 | 730 | 150.3 |
| A | 1 | 178 | 86464 | 570.34 | 746 | 730 | 150.3 |
| B | 3 | 64 | 3754879 | 29247.33 | 687 | 671 | 128.4 |
| B | 4 | 239 | 121430 | 940.78 | 687 | 671 | 128.4 |
| B | 15 | 204 | 39920 | 305.77 | 687 | 671 | 128.4 |
| C | 13 | 61 | 5702 | 27.29 | 782 | 786 | 180.2 |
| C | 3 | 202 | 1924 | 6.32 | 782 | 786 | 180.2 |
| C | -1 | -1 | -1 | -1.0 | 782 | 786 | 180.2 |
| D | 8 | 195 | 280847 | 1528.51 | 768 | 747 | 183.3 |
| D | 13 | 104 | 67860 | 366.24 | 768 | 747 | 183.3 |
| D | 1 | 52 | 30585 | 162.83 | 768 | 747 | 183.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

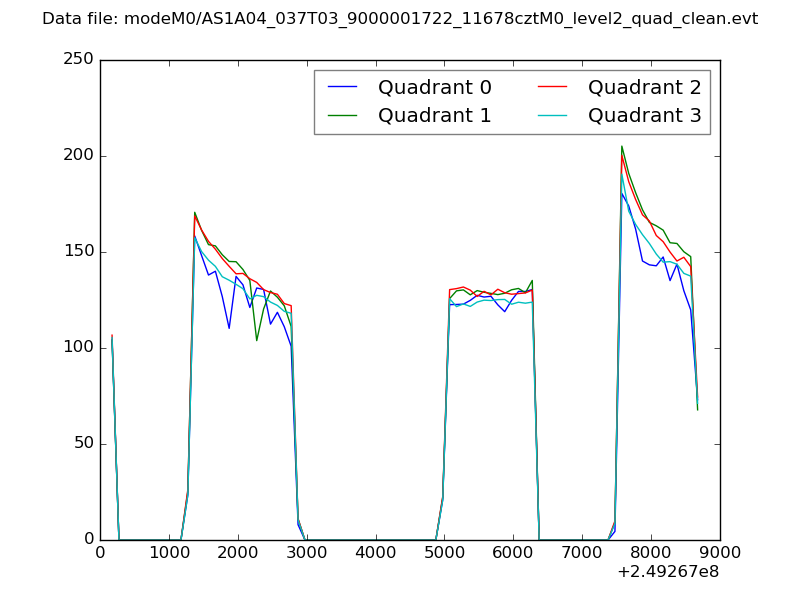

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

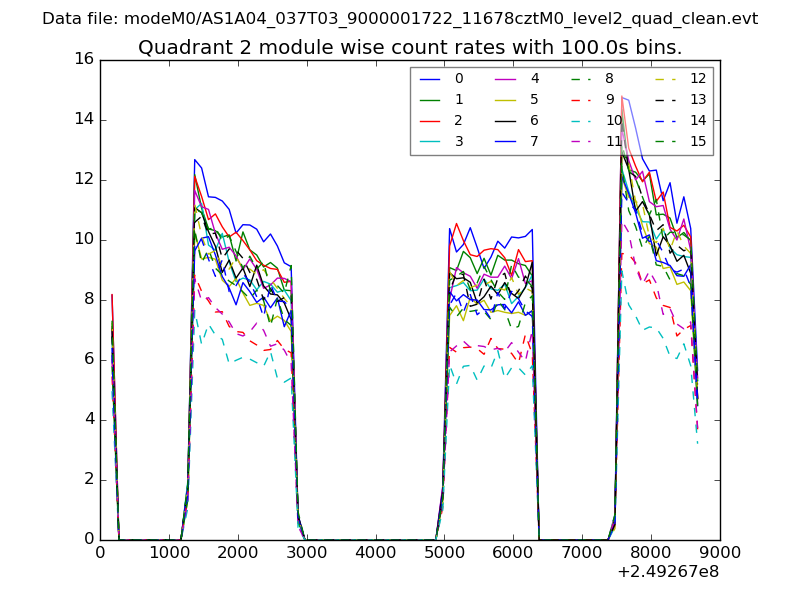

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

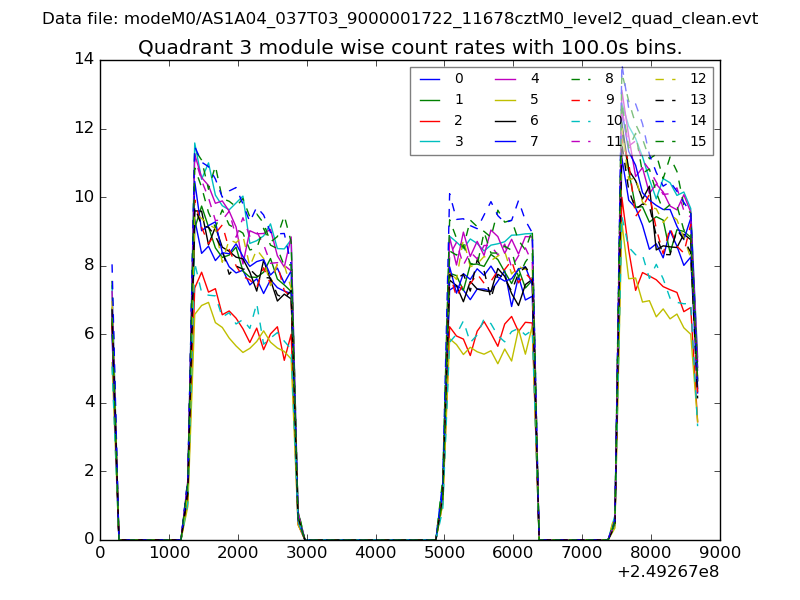

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

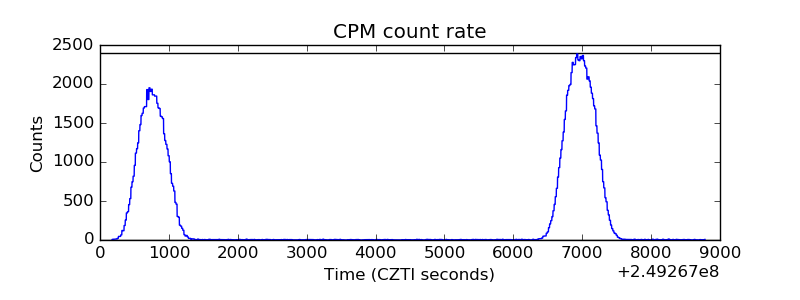

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

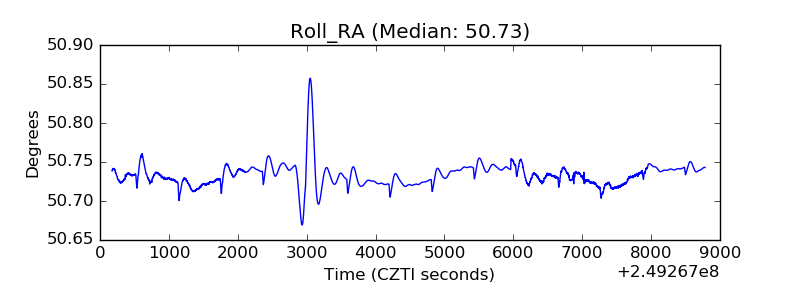

| _ROLL_ROT |  |

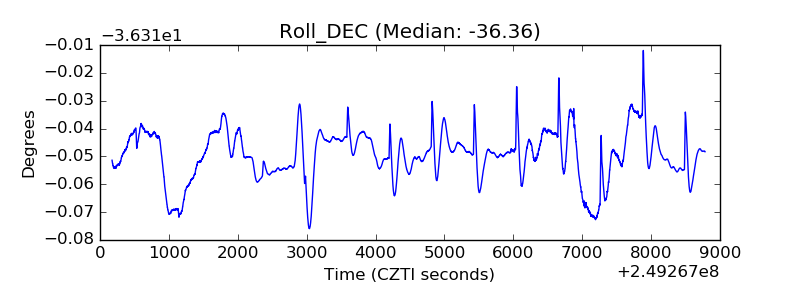

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
