| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_037T03_9000001722_11679cztM0_level2.evt | modeM0/AS1A04_037T03_9000001722_11679cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,985,280 | 82,552,320 |
| Size | 597.0 MB | 78.7 MB |
| Events in quadrant A | 6,649,166 | 458,991 |
| Events in quadrant B | 4,901,844 | 554,261 |
| Events in quadrant C | 3,140,418 | 548,225 |
| Events in quadrant D | 3,846,761 | 504,931 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24027 | 3 |
| B | 0 | 18413 | 2 |
| C | 0 | 13113 | 2 |
| D | 0 | 15167 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6203 | 1239 | 19.974206% |
| B | 6203 | 629 | 10.140255% |
| C | 6203 | 64 | 1.031759% |
| D | 6203 | 191 | 3.079155% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7444 | 6205 | 813 | 813 | 10.92% | 13.10% |  |
| B | 7444 | 6205 | 445 | 445 | 5.98% | 7.17% |  |
| C | 7444 | 6205 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7444 | 6205 | 92 | 92 | 1.24% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 3422742 | 23440.09 | 727 | 713 | 146.0 |
| A | 1 | 162 | 161815 | 1103.51 | 727 | 713 | 146.0 |
| A | 1 | 178 | 92372 | 627.84 | 727 | 713 | 146.0 |
| B | 3 | 64 | 1628120 | 11020.21 | 789 | 771 | 147.7 |
| B | 4 | 239 | 127415 | 857.61 | 789 | 771 | 147.7 |
| B | 15 | 204 | 45547 | 303.21 | 789 | 771 | 147.7 |
| C | 13 | 61 | 5924 | 27.71 | 805 | 811 | 184.5 |
| C | 3 | 202 | 2012 | 6.51 | 805 | 811 | 184.5 |
| C | 3 | 203 | 1757 | 5.13 | 805 | 811 | 184.5 |
| D | 8 | 195 | 379684 | 2052.95 | 780 | 760 | 184.6 |
| D | 1 | 52 | 377578 | 2041.54 | 780 | 760 | 184.6 |
| D | 13 | 104 | 101301 | 544.71 | 780 | 760 | 184.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

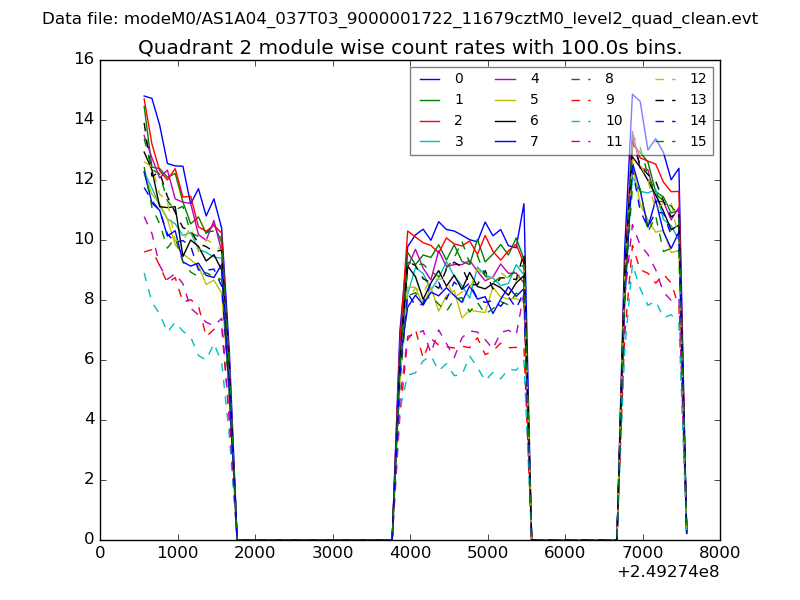

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

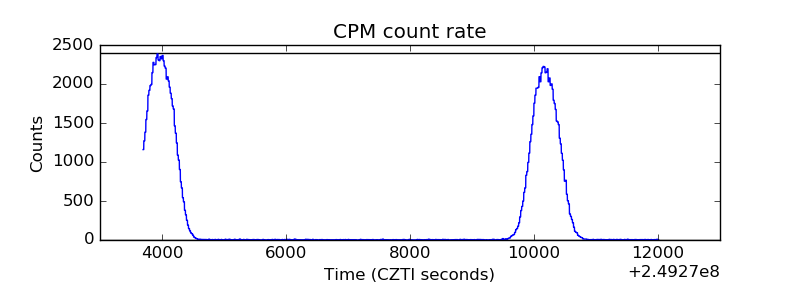

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

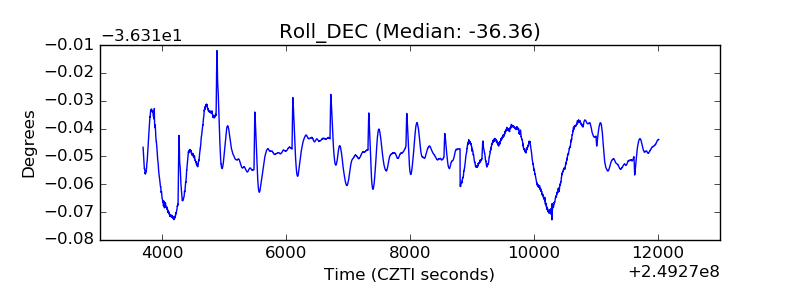

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
