| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_037T03_9000001722_11683cztM0_level2.evt | modeM0/AS1A04_037T03_9000001722_11683cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,500,480 | 78,857,280 |
| Size | 516.4 MB | 75.2 MB |
| Events in quadrant A | 4,534,102 | 474,909 |
| Events in quadrant B | 3,659,168 | 484,401 |
| Events in quadrant C | 3,316,832 | 480,030 |
| Events in quadrant D | 4,413,192 | 459,665 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18050 | 3 |
| B | 0 | 15174 | 2 |
| C | 0 | 14578 | 2 |
| D | 0 | 17883 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7019 | 294 | 4.188631% |
| B | 7019 | 196 | 2.792421% |
| C | 7019 | 115 | 1.638410% |
| D | 7019 | 167 | 2.379256% |

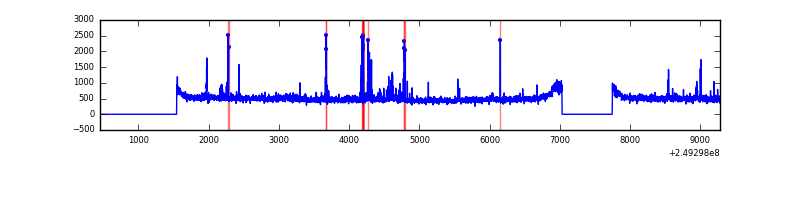

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8825 | 7022 | 63 | 63 | 0.71% | 0.90% |  |
| B | 8825 | 7022 | 18 | 18 | 0.20% | 0.26% |  |
| C | 8825 | 7022 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8825 | 7022 | 31 | 31 | 0.35% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 762034 | 4309.01 | 862 | 842 | 176.7 |
| A | 1 | 162 | 171265 | 964.74 | 862 | 842 | 176.7 |
| A | 1 | 178 | 93712 | 525.73 | 862 | 842 | 176.7 |
| B | 4 | 239 | 156063 | 930.69 | 865 | 844 | 166.8 |
| B | 15 | 204 | 88921 | 528.11 | 865 | 844 | 166.8 |
| B | 12 | 111 | 19760 | 113.42 | 865 | 844 | 166.8 |
| C | 13 | 61 | 6153 | 26.69 | 851 | 856 | 198.4 |
| C | 3 | 202 | 1998 | 5.75 | 851 | 856 | 198.4 |
| C | -1 | -1 | -1 | -1.0 | 851 | 856 | 198.4 |
| D | 13 | 152 | 622556 | 3052.89 | 842 | 816 | 203.7 |
| D | 8 | 195 | 272671 | 1334.87 | 842 | 816 | 203.7 |
| D | 13 | 104 | 105014 | 511.64 | 842 | 816 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

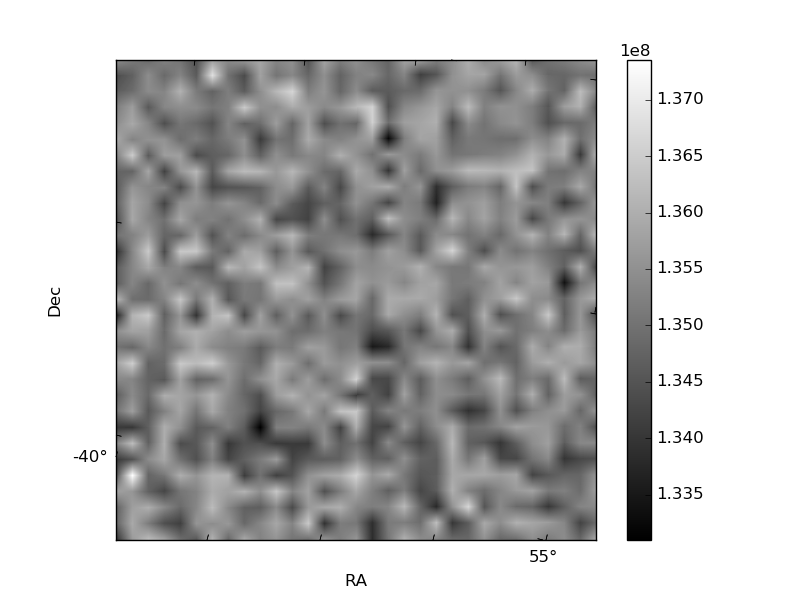

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

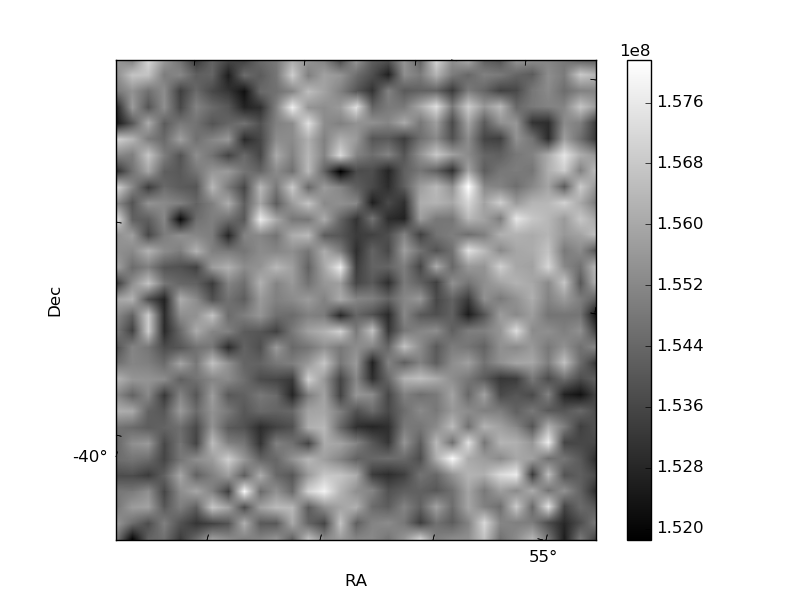

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

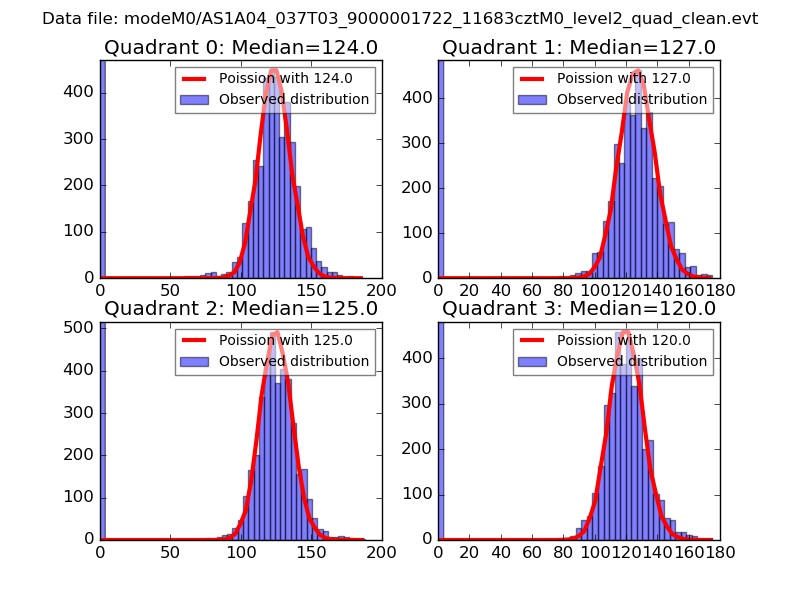

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

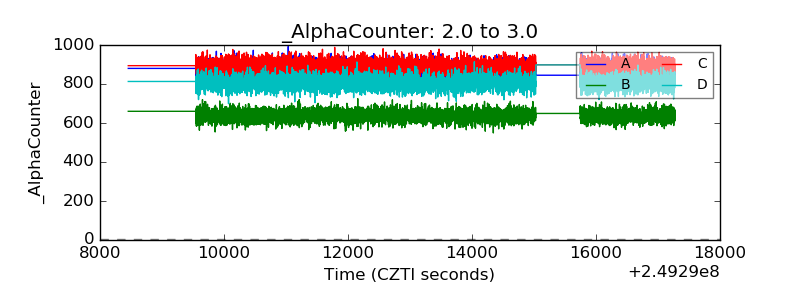

| Alpha Counter |  |

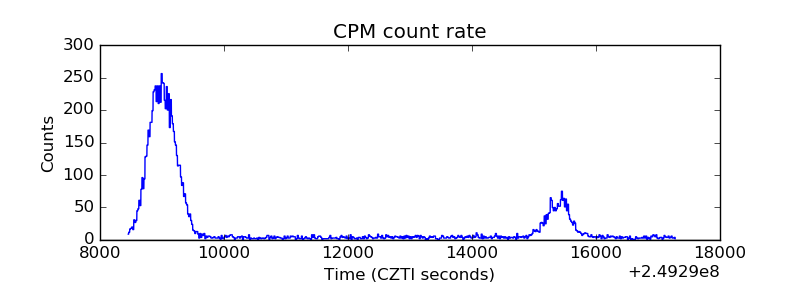

| _CPM_Rate |  |

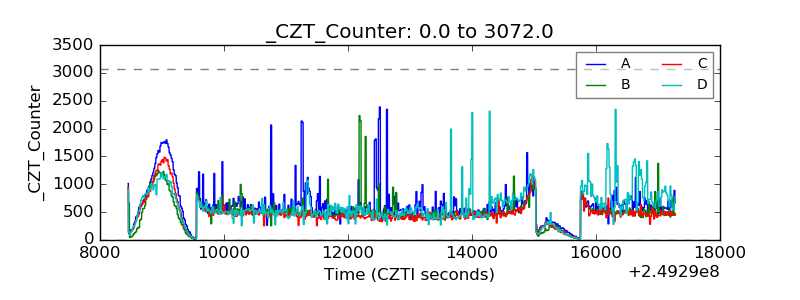

| CZT Counter |  |

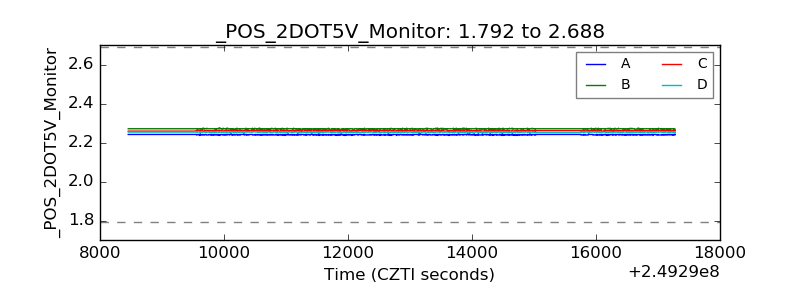

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
