| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_207T01_9000001720_11667cztM0_level2.evt | modeM0/AS1T01_207T01_9000001720_11667cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,993,920 | 76,694,400 |
| Size | 511.2 MB | 73.1 MB |
| Events in quadrant A | 4,431,871 | 466,911 |
| Events in quadrant B | 4,210,909 | 474,961 |
| Events in quadrant C | 3,131,057 | 479,584 |
| Events in quadrant D | 4,026,604 | 455,854 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17390 | 3 |
| B | 0 | 16411 | 2 |
| C | 0 | 13311 | 2 |
| D | 0 | 16019 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6370 | 348 | 5.463108% |
| B | 6370 | 358 | 5.620094% |
| C | 6370 | 124 | 1.946625% |
| D | 6370 | 248 | 3.893250% |

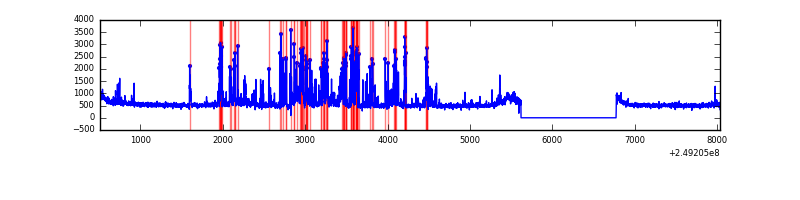

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6372 | 119 | 119 | 1.58% | 1.87% |  |
| B | 7526 | 6372 | 105 | 105 | 1.40% | 1.65% |  |
| C | 7526 | 6372 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7526 | 6372 | 101 | 101 | 1.34% | 1.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 907660 | 5667.55 | 803 | 785 | 160.0 |
| A | 1 | 162 | 164595 | 1023.74 | 803 | 785 | 160.0 |
| A | 1 | 178 | 94894 | 588.14 | 803 | 785 | 160.0 |
| B | 4 | 239 | 754412 | 4990.58 | 806 | 788 | 151.0 |
| B | 3 | 64 | 179907 | 1186.14 | 806 | 788 | 151.0 |
| B | 0 | 214 | 52639 | 343.36 | 806 | 788 | 151.0 |
| C | 13 | 61 | 5853 | 27.68 | 803 | 807 | 182.3 |
| C | 3 | 202 | 1913 | 6.07 | 803 | 807 | 182.3 |
| C | -1 | -1 | -1 | -1.0 | 803 | 807 | 182.3 |
| D | 13 | 104 | 387794 | 2038.72 | 794 | 772 | 189.8 |
| D | 1 | 52 | 334308 | 1756.97 | 794 | 772 | 189.8 |
| D | 2 | 33 | 207033 | 1086.52 | 794 | 772 | 189.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

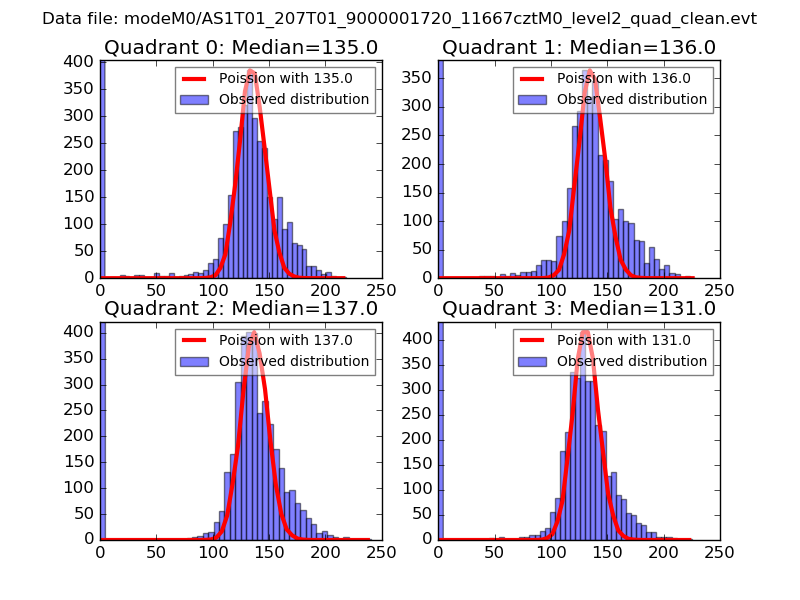

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

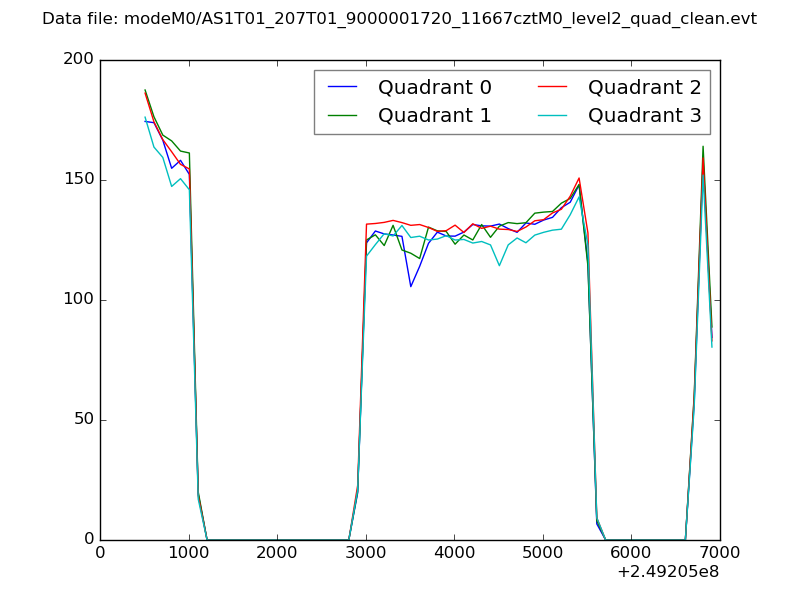

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

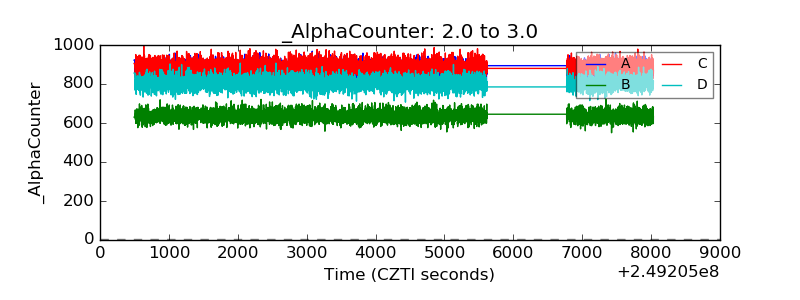

| Alpha Counter |  |

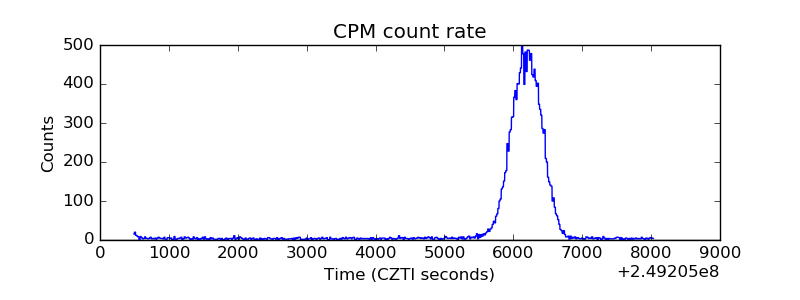

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

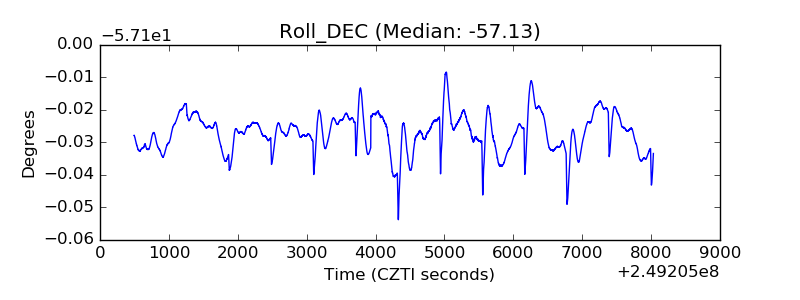

| _Roll_DEC |  |

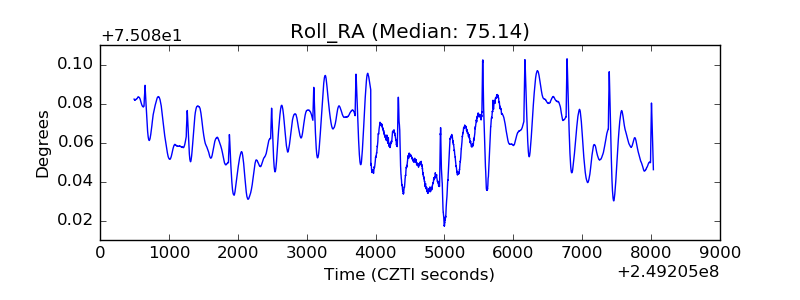

| _Roll_RA |  |
| Veto Counter |  |
