| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_227T01_9000001724_11686cztM0_level2.evt | modeM0/AS1A04_227T01_9000001724_11686cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,704,640 | 102,435,840 |
| Size | 675.9 MB | 97.7 MB |
| Events in quadrant A | 5,598,885 | 630,794 |
| Events in quadrant B | 5,013,437 | 644,212 |
| Events in quadrant C | 3,571,169 | 670,733 |
| Events in quadrant D | 6,763,297 | 624,388 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21883 | 2 |
| B | 0 | 19727 | 1 |
| C | 0 | 15828 | 1 |
| D | 0 | 25993 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7639 | 492 | 6.440634% |
| B | 7639 | 457 | 5.982458% |
| C | 7639 | 71 | 0.929441% |
| D | 7639 | 335 | 4.385391% |

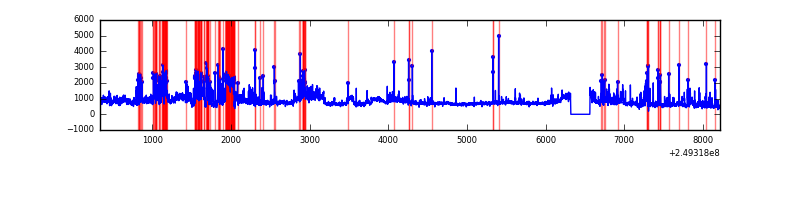

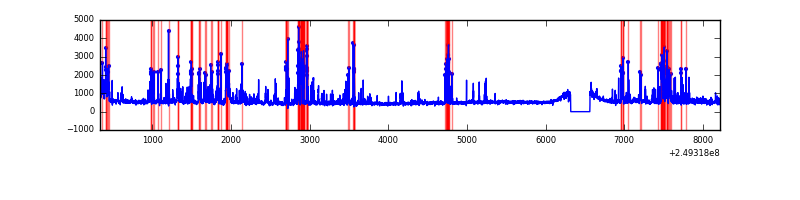

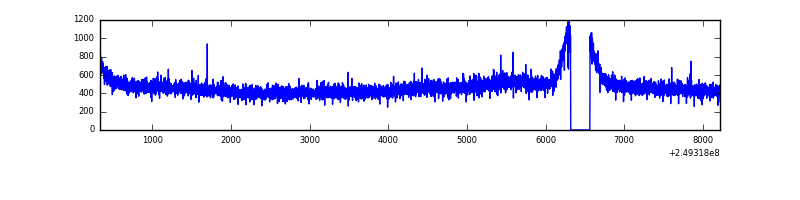

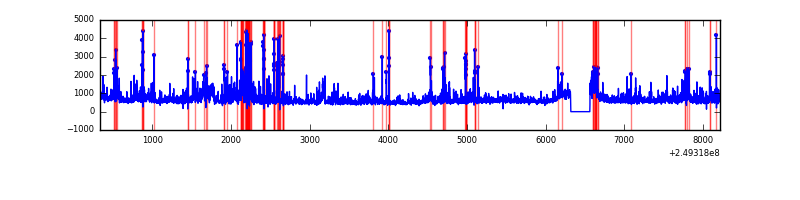

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7885 | 7641 | 132 | 132 | 1.67% | 1.73% |  |
| B | 7885 | 7641 | 166 | 166 | 2.11% | 2.17% |  |
| C | 7885 | 7641 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7885 | 7641 | 215 | 215 | 2.73% | 2.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1230313 | 6588.28 | 912 | 891 | 186.6 |
| A | 9 | 143 | 250114 | 1335.55 | 912 | 891 | 186.6 |
| A | 1 | 162 | 235483 | 1257.14 | 912 | 891 | 186.6 |
| B | 4 | 239 | 875377 | 4922.74 | 914 | 891 | 177.6 |
| B | 15 | 204 | 208702 | 1169.83 | 914 | 891 | 177.6 |
| B | 0 | 85 | 172226 | 964.5 | 914 | 891 | 177.6 |
| C | 8 | 112 | 11889 | 51.89 | 909 | 916 | 211.5 |
| C | 8 | 128 | 10716 | 46.35 | 909 | 916 | 211.5 |
| C | 13 | 61 | 6854 | 28.08 | 909 | 916 | 211.5 |
| D | 13 | 152 | 1889073 | 8621.27 | 901 | 876 | 219.0 |
| D | 7 | 80 | 478241 | 2179.59 | 901 | 876 | 219.0 |
| D | 8 | 195 | 374332 | 1705.15 | 901 | 876 | 219.0 |

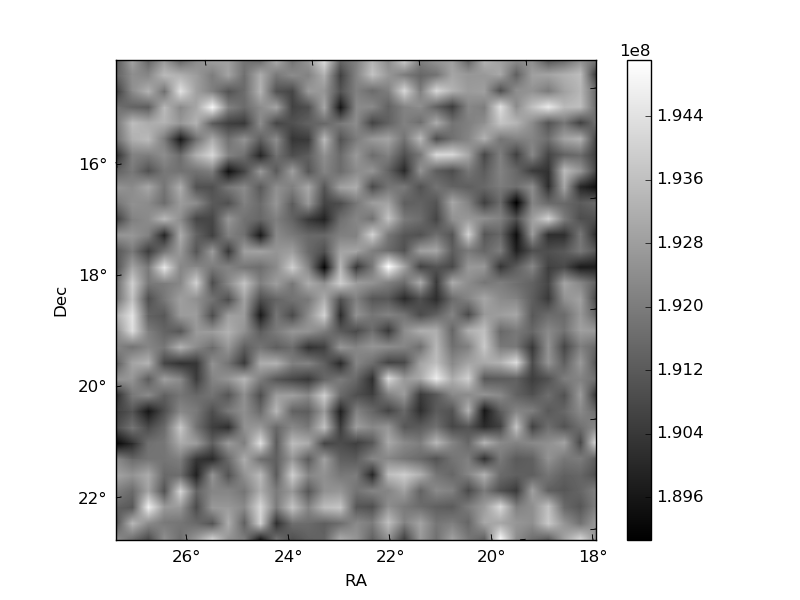

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

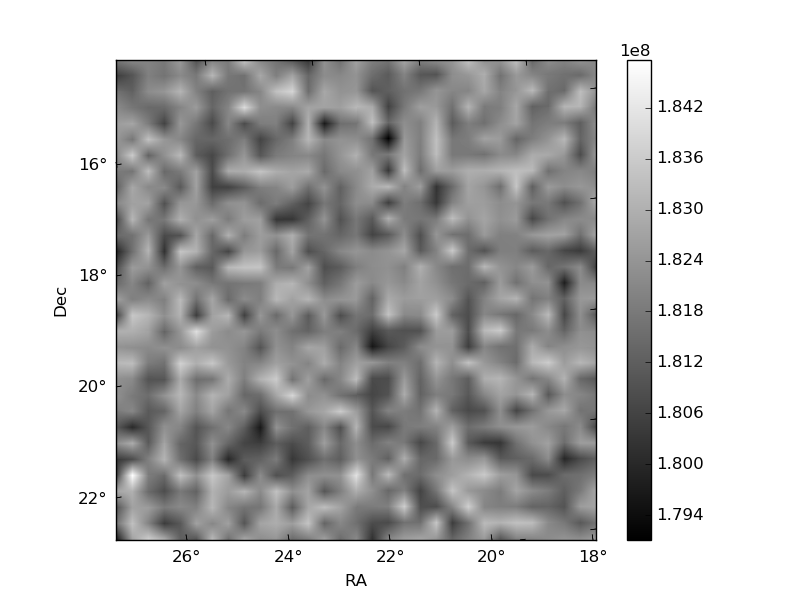

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

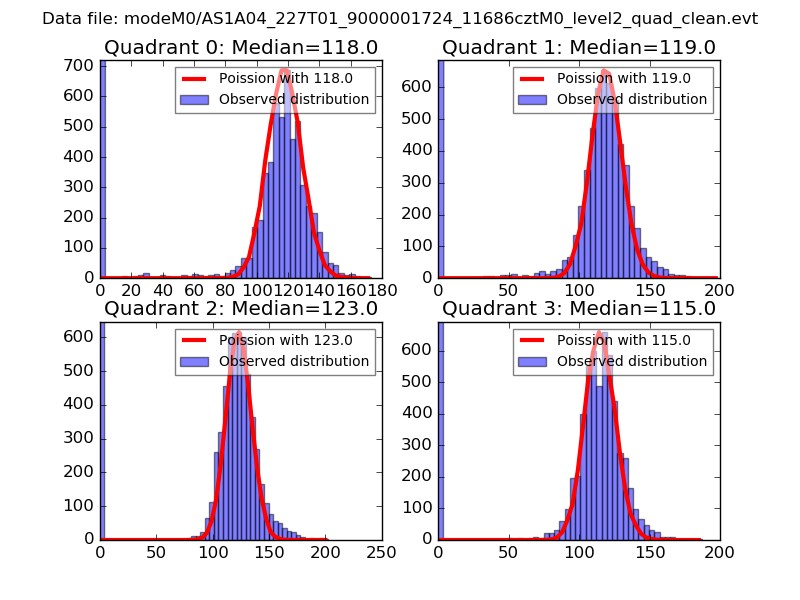

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

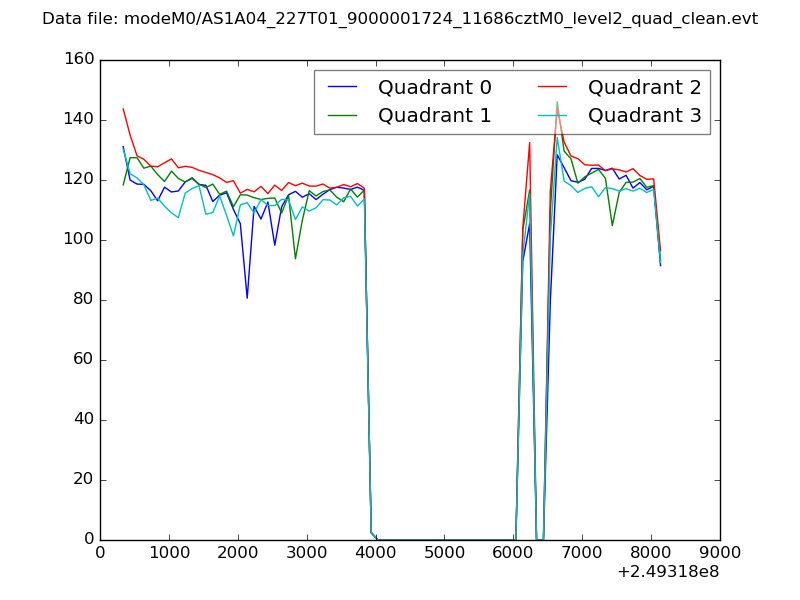

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

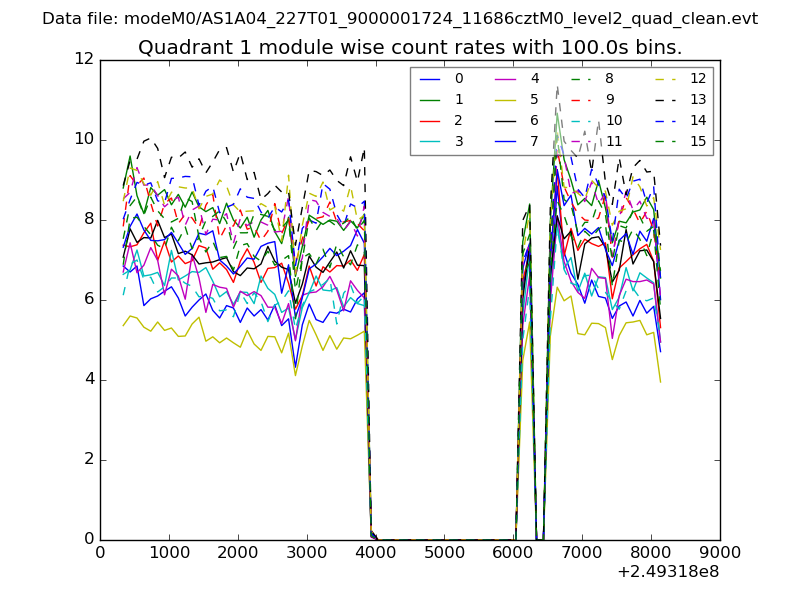

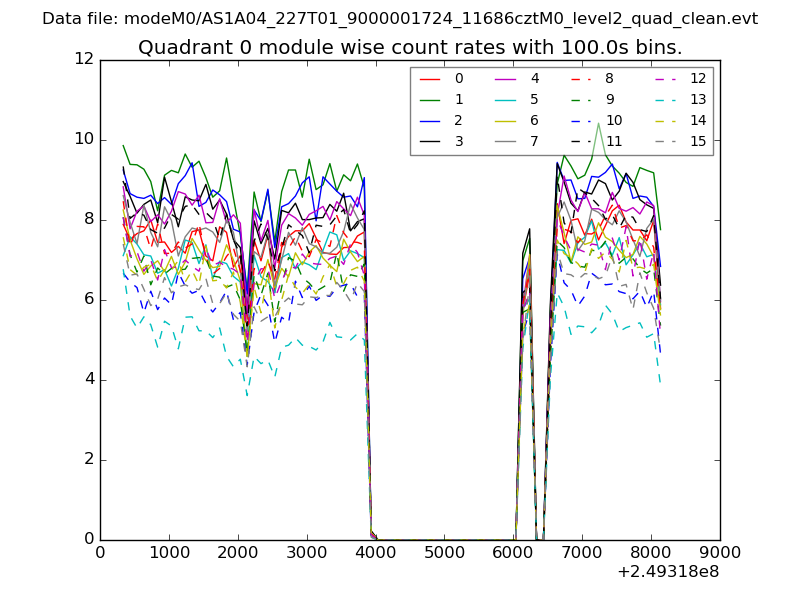

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

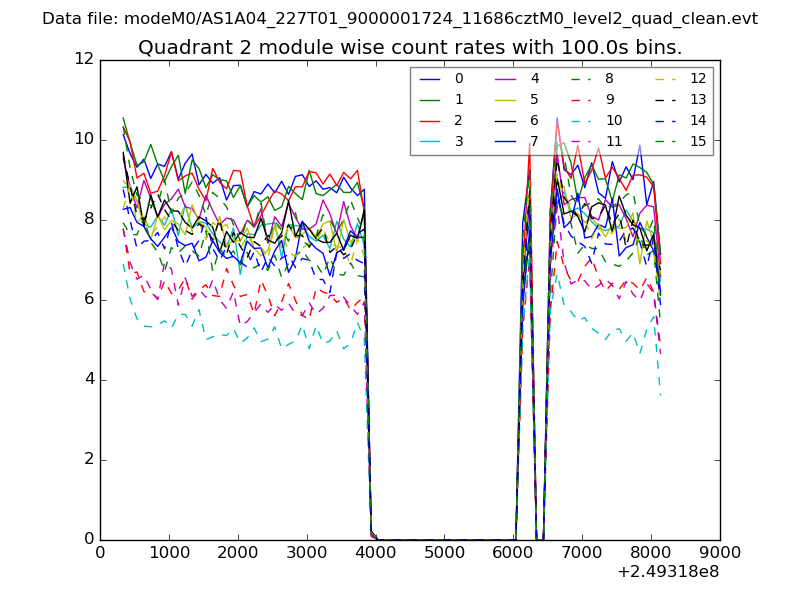

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

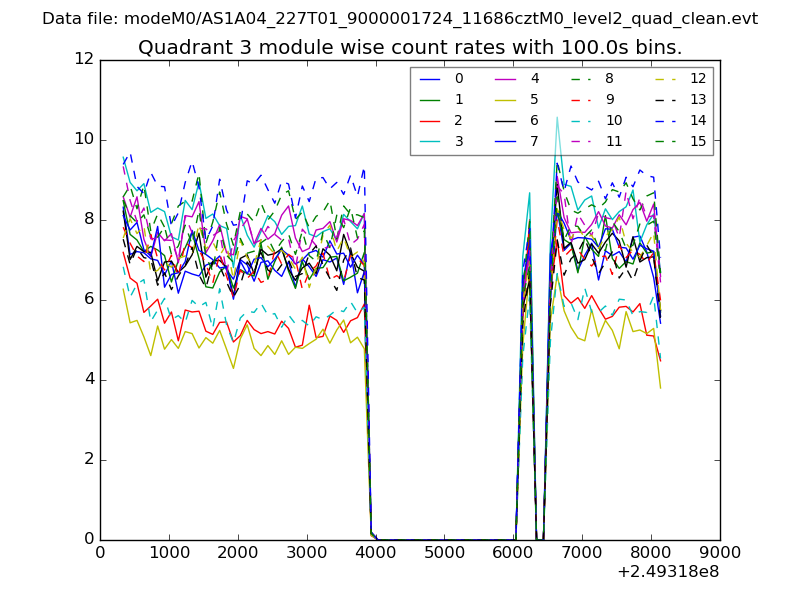

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

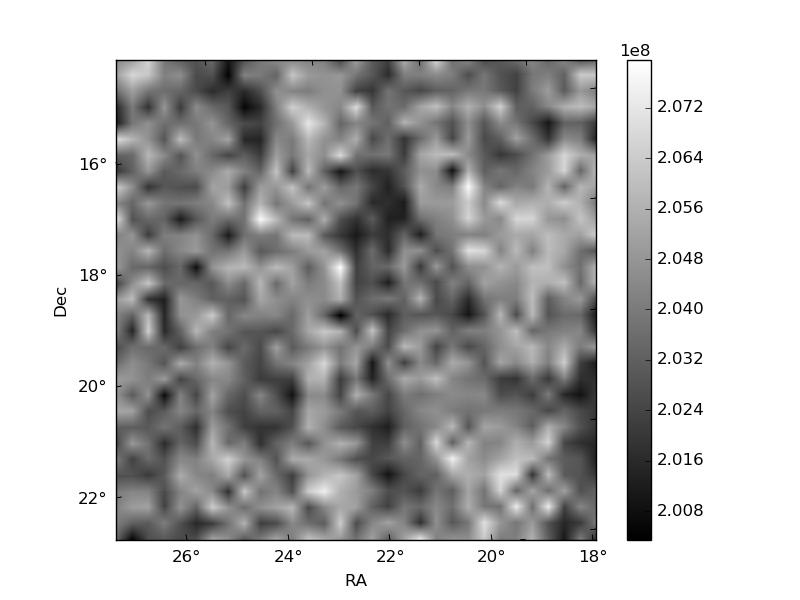

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

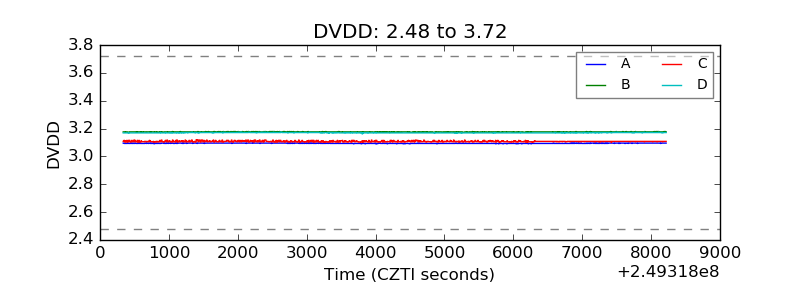

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

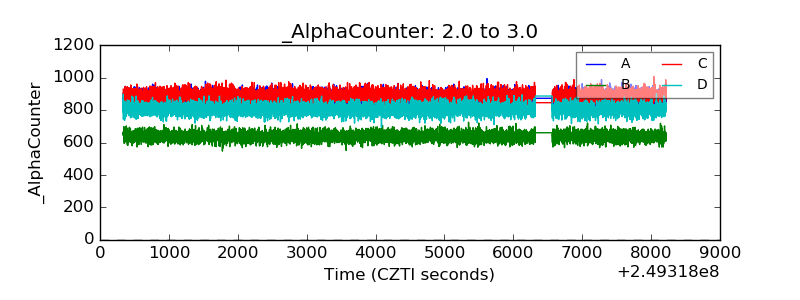

| Alpha Counter |  |

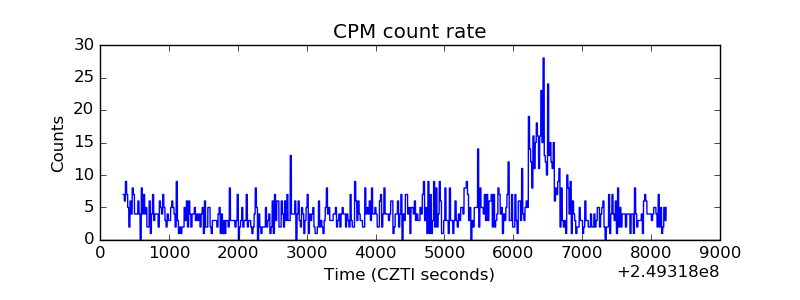

| _CPM_Rate |  |

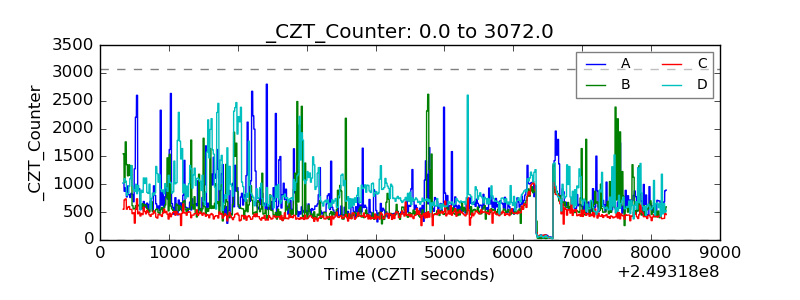

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

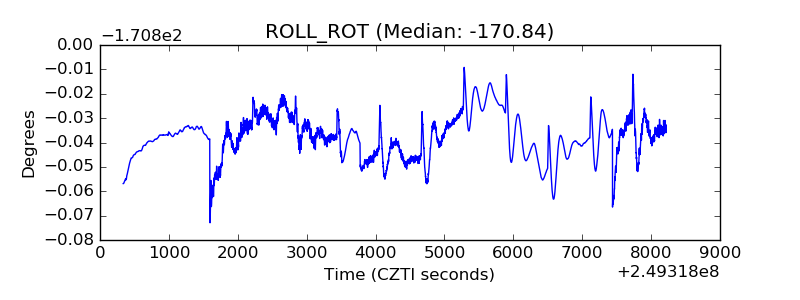

| _ROLL_ROT |  |

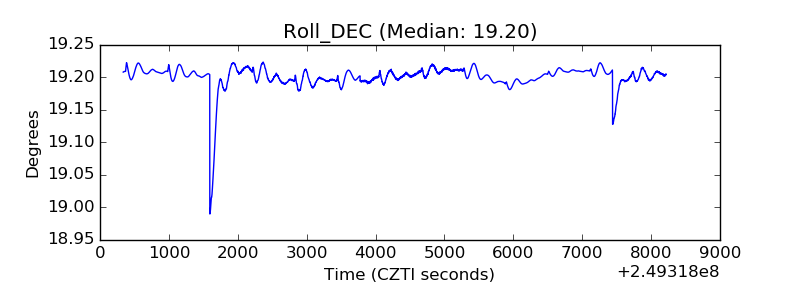

| _Roll_DEC |  |

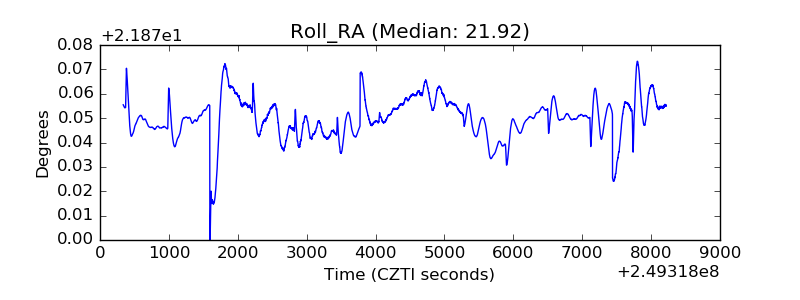

| _Roll_RA |  |

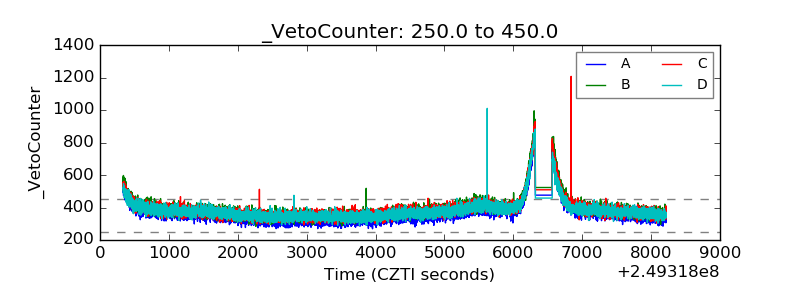

| Veto Counter |  |
