| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_227T01_9000001724_11692cztM0_level2.evt | modeM0/AS1A04_227T01_9000001724_11692cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,532,800 | 81,912,960 |
| Size | 472.6 MB | 78.1 MB |
| Events in quadrant A | 4,269,901 | 503,933 |
| Events in quadrant B | 4,132,340 | 510,003 |
| Events in quadrant C | 2,990,684 | 522,023 |
| Events in quadrant D | 3,179,033 | 496,758 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17006 | 3 |
| B | 0 | 16612 | 2 |
| C | 0 | 13077 | 2 |
| D | 0 | 13735 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6415 | 185 | 2.883866% |
| B | 6415 | 264 | 4.115355% |
| C | 6415 | 19 | 0.296181% |
| D | 6415 | 49 | 0.763835% |

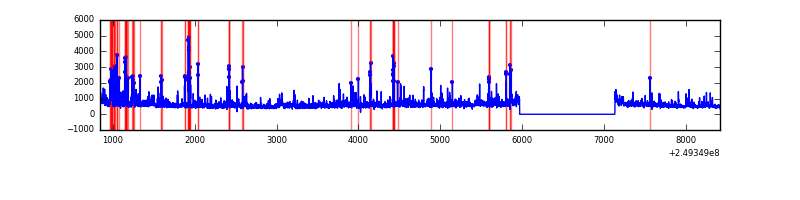

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 6417 | 87 | 87 | 1.15% | 1.36% |  |
| B | 7581 | 6417 | 133 | 133 | 1.75% | 2.07% |  |
| C | 7581 | 6417 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7581 | 6417 | 27 | 27 | 0.36% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 729825 | 4666.51 | 770 | 753 | 156.2 |
| A | 1 | 162 | 213342 | 1360.7 | 770 | 753 | 156.2 |
| A | 1 | 178 | 121946 | 775.71 | 770 | 753 | 156.2 |
| B | 4 | 239 | 540797 | 3697.75 | 774 | 756 | 146.0 |
| B | 3 | 64 | 366627 | 2505.18 | 774 | 756 | 146.0 |
| B | 0 | 219 | 84024 | 570.15 | 774 | 756 | 146.0 |
| C | 13 | 61 | 5468 | 26.48 | 765 | 770 | 177.4 |
| C | 8 | 128 | 4274 | 19.75 | 765 | 770 | 177.4 |
| C | 12 | 4 | 2367 | 9.0 | 765 | 770 | 177.4 |
| D | 13 | 104 | 129109 | 696.76 | 755 | 732 | 184.2 |
| D | 2 | 14 | 41337 | 220.38 | 755 | 732 | 184.2 |
| D | 8 | 195 | 39770 | 211.88 | 755 | 732 | 184.2 |

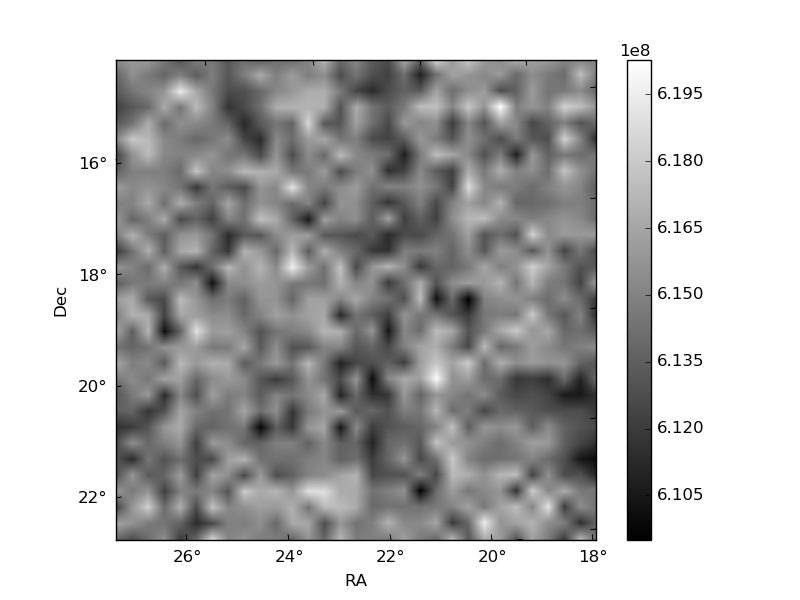

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

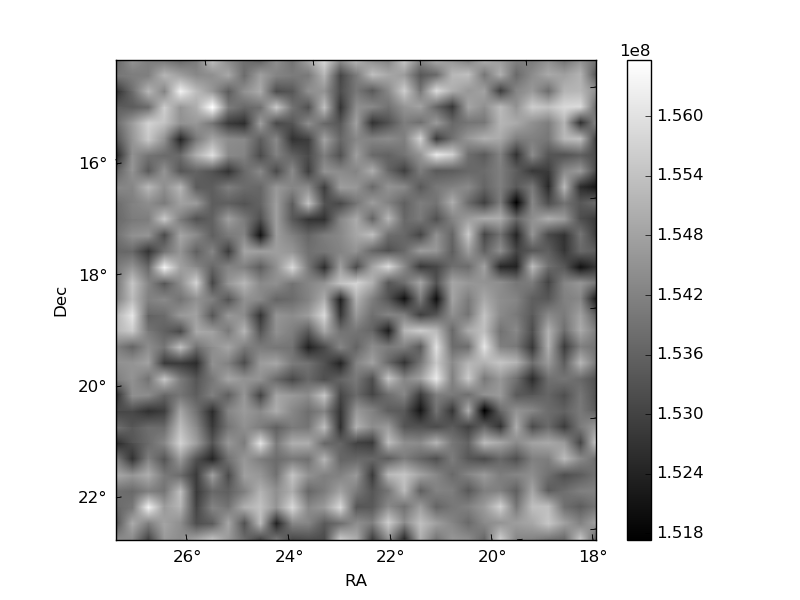

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

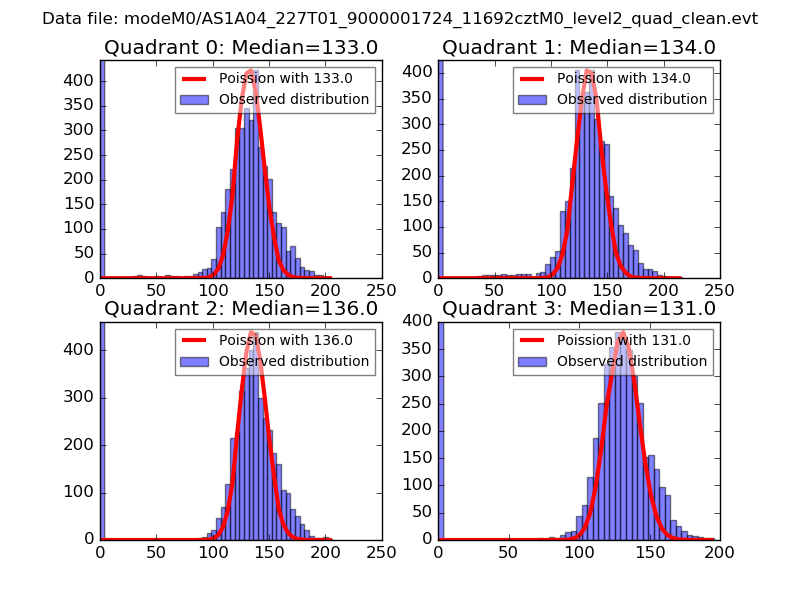

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

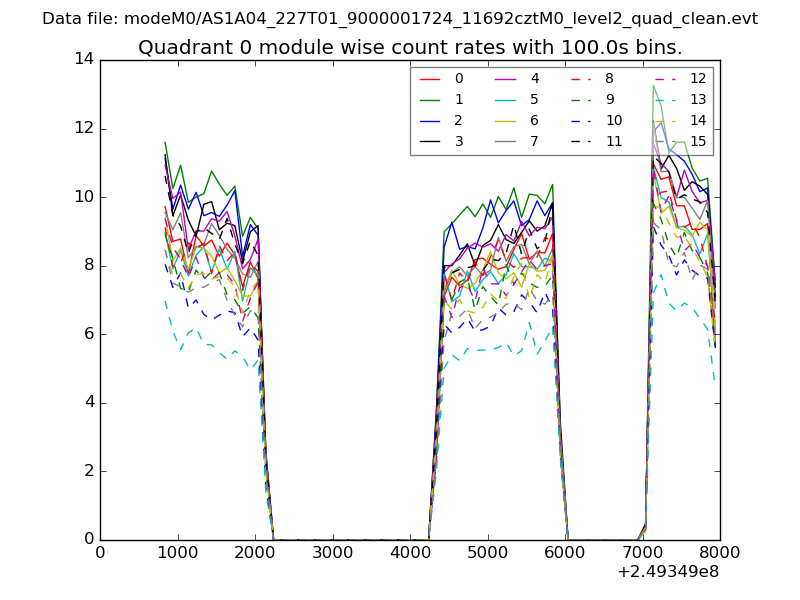

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

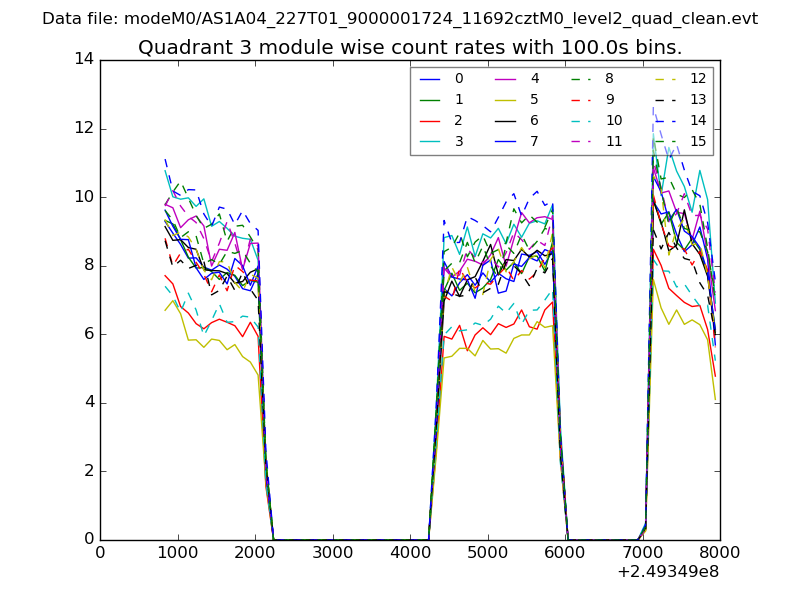

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

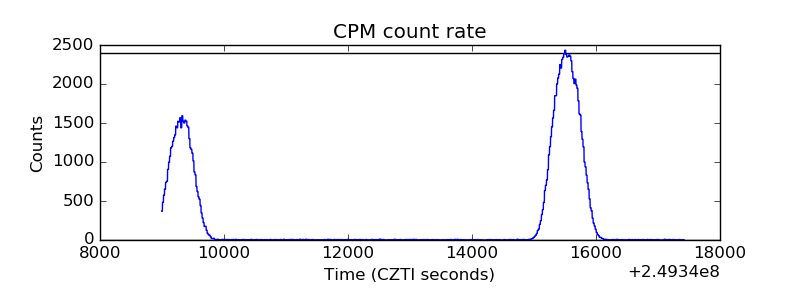

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

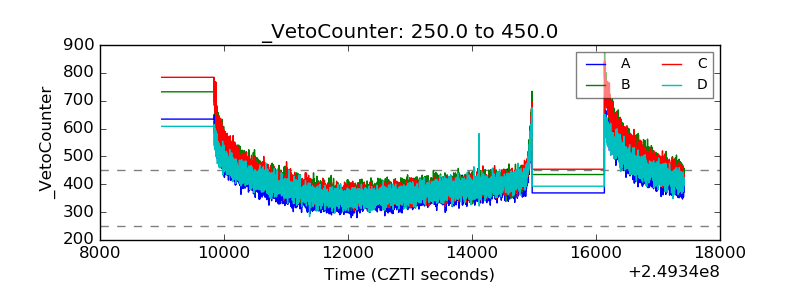

| Veto Counter |  |
