| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_227T01_9000001724_11695cztM0_level2.evt | modeM0/AS1A04_227T01_9000001724_11695cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,555,200 | 64,105,920 |
| Size | 490.7 MB | 61.1 MB |
| Events in quadrant A | 4,439,682 | 368,380 |
| Events in quadrant B | 3,927,726 | 376,860 |
| Events in quadrant C | 3,259,362 | 380,763 |
| Events in quadrant D | 3,516,799 | 362,371 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17626 | 3 |
| B | 0 | 15590 | 2 |
| C | 0 | 13600 | 2 |
| D | 0 | 14540 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6490 | 201 | 3.097072% |
| B | 6490 | 198 | 3.050847% |
| C | 6490 | 50 | 0.770416% |
| D | 6490 | 87 | 1.340524% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

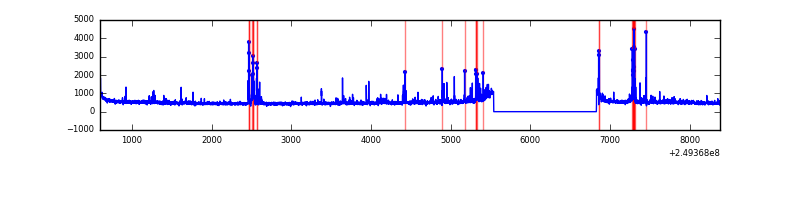

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7781 | 6492 | 19 | 19 | 0.24% | 0.29% |  |
| B | 7781 | 6492 | 47 | 47 | 0.60% | 0.72% |  |
| C | 7781 | 6492 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7781 | 6492 | 30 | 30 | 0.39% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 377413 | 2178.9 | 855 | 841 | 172.8 |
| A | 5 | 112 | 258406 | 1490.31 | 855 | 841 | 172.8 |
| A | 1 | 162 | 171350 | 986.59 | 855 | 841 | 172.8 |
| B | 4 | 239 | 340166 | 2054.47 | 865 | 846 | 165.2 |
| B | 3 | 64 | 124760 | 750.26 | 865 | 846 | 165.2 |
| B | 15 | 204 | 55233 | 329.3 | 865 | 846 | 165.2 |
| C | 13 | 61 | 6351 | 28.74 | 835 | 844 | 191.6 |
| C | 12 | 4 | 2237 | 7.27 | 835 | 844 | 191.6 |
| C | 3 | 202 | 2019 | 6.13 | 835 | 844 | 191.6 |
| D | 1 | 52 | 186573 | 937.53 | 824 | 803 | 198.1 |
| D | 5 | 222 | 72195 | 360.29 | 824 | 803 | 198.1 |
| D | 13 | 122 | 37299 | 184.18 | 824 | 803 | 198.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

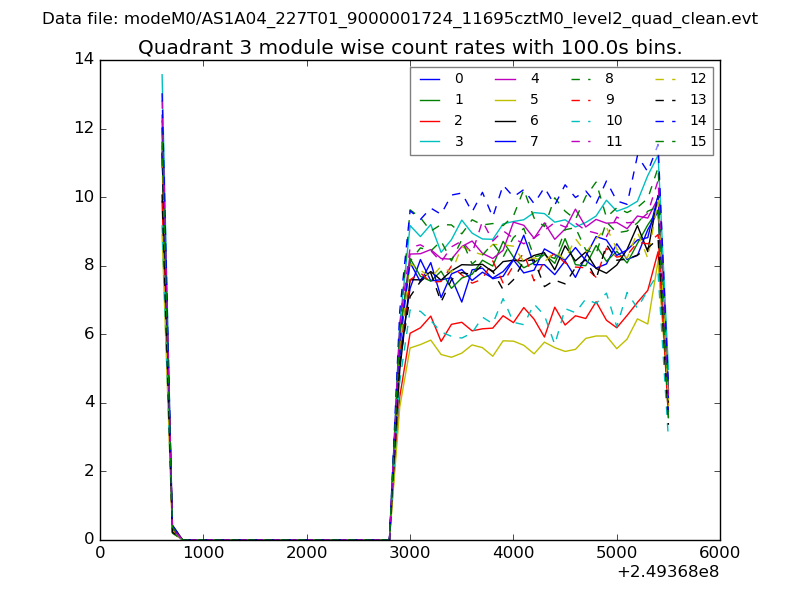

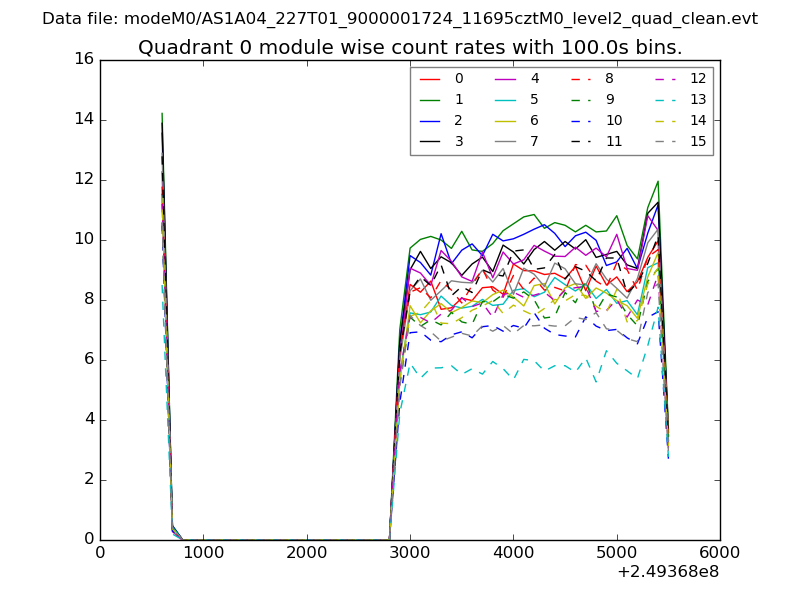

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

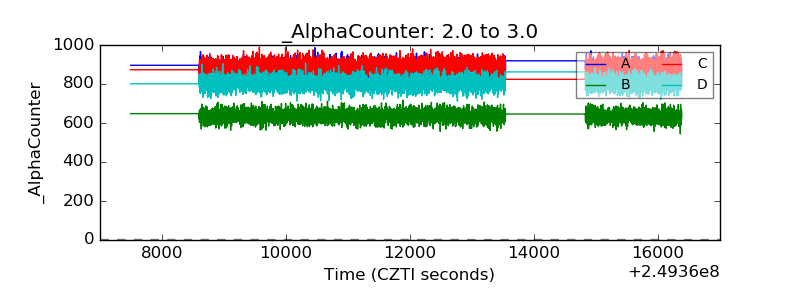

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

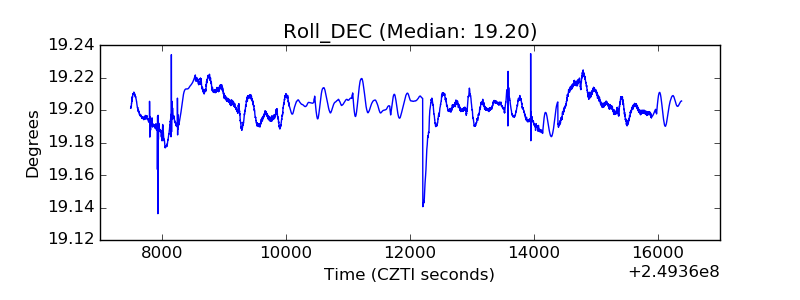

| _Roll_DEC |  |

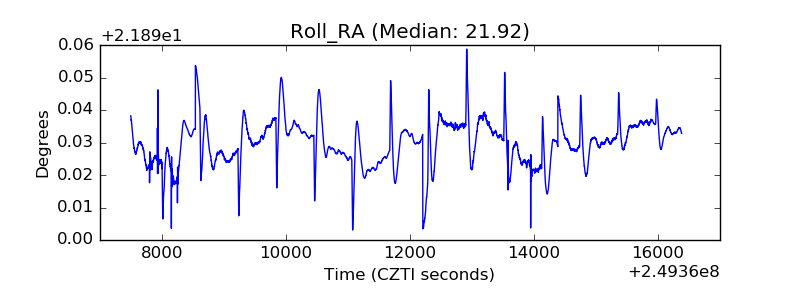

| _Roll_RA |  |

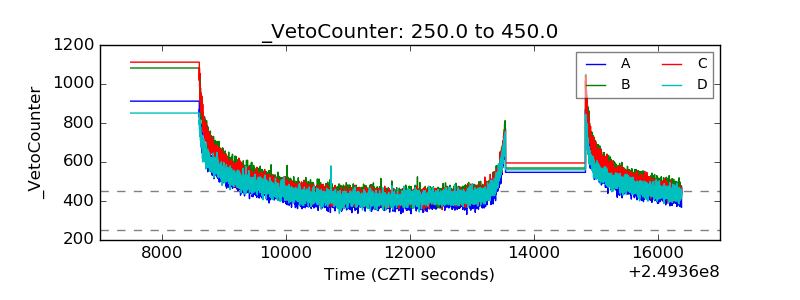

| Veto Counter |  |
