| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_227T01_9000001724_11708cztM0_level2.evt | modeM0/AS1A04_227T01_9000001724_11708cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,378,240 | 71,637,120 |
| Size | 526.8 MB | 68.3 MB |
| Events in quadrant A | 4,394,494 | 437,910 |
| Events in quadrant B | 4,065,300 | 439,847 |
| Events in quadrant C | 3,060,860 | 448,847 |
| Events in quadrant D | 4,782,518 | 403,756 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17269 | 3 |
| B | 0 | 16102 | 2 |
| C | 0 | 12974 | 2 |
| D | 0 | 18231 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6282 | 164 | 2.610634% |
| B | 6282 | 253 | 4.027380% |
| C | 6282 | 4 | 0.063674% |
| D | 6282 | 382 | 6.080866% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

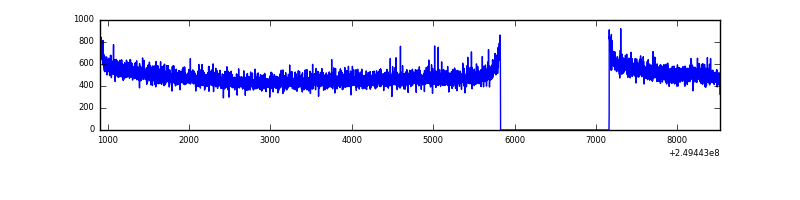

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7618 | 6284 | 89 | 89 | 1.17% | 1.42% |  |
| B | 7618 | 6283 | 128 | 128 | 1.68% | 2.04% |  |
| C | 7618 | 6284 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7618 | 6284 | 297 | 297 | 3.90% | 4.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 849557 | 5310.97 | 795 | 781 | 159.8 |
| A | 1 | 162 | 139638 | 868.86 | 795 | 781 | 159.8 |
| A | 1 | 178 | 77608 | 480.72 | 795 | 781 | 159.8 |
| B | 4 | 239 | 469603 | 3148.85 | 797 | 782 | 148.9 |
| B | 3 | 64 | 288031 | 1929.32 | 797 | 782 | 148.9 |
| B | 10 | 245 | 52803 | 349.4 | 797 | 782 | 148.9 |
| C | 13 | 61 | 5813 | 27.87 | 783 | 790 | 180.2 |
| C | 4 | 175 | 3206 | 13.41 | 783 | 790 | 180.2 |
| C | 8 | 222 | 2688 | 10.53 | 783 | 790 | 180.2 |
| D | 1 | 52 | 1304643 | 7238.9 | 753 | 732 | 180.1 |
| D | 7 | 80 | 200534 | 1109.24 | 753 | 732 | 180.1 |
| D | 8 | 195 | 191368 | 1058.35 | 753 | 732 | 180.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

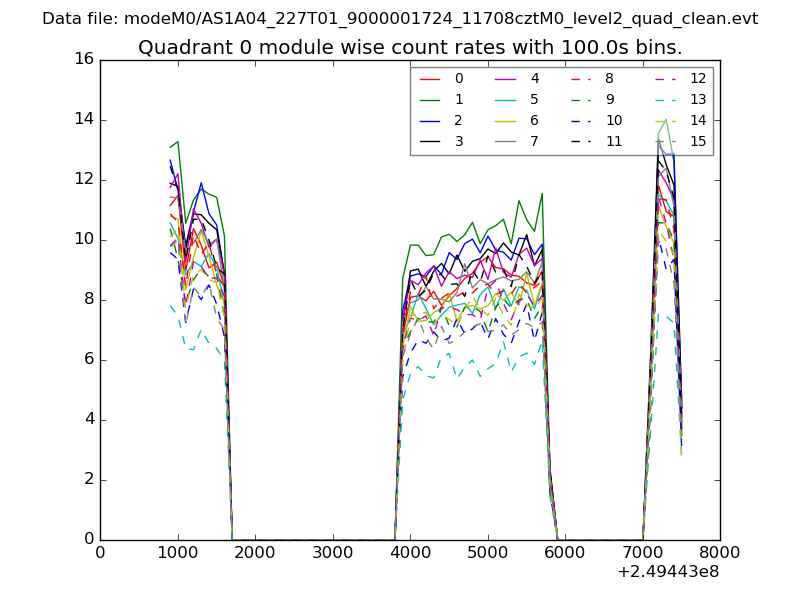

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

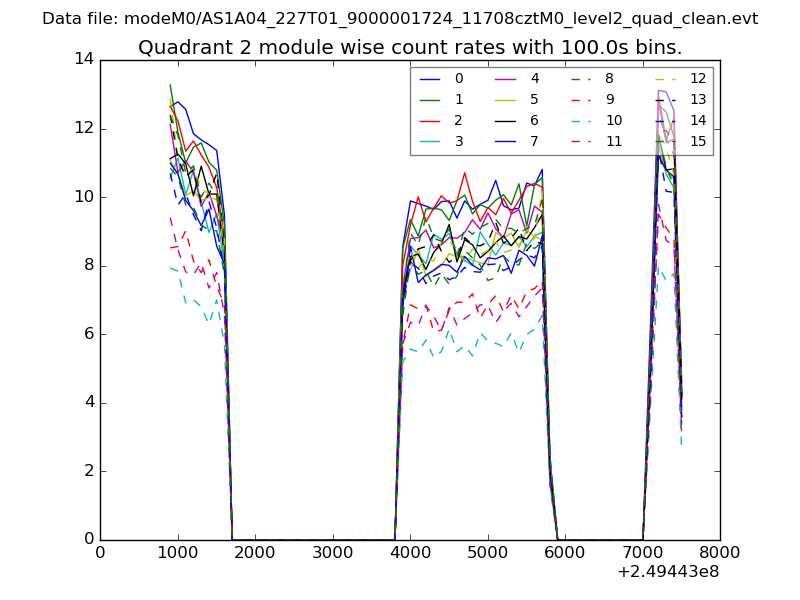

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

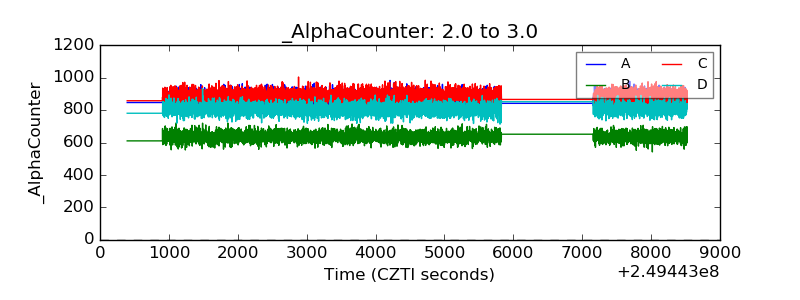

| Alpha Counter |  |
| _CPM_Rate |  |

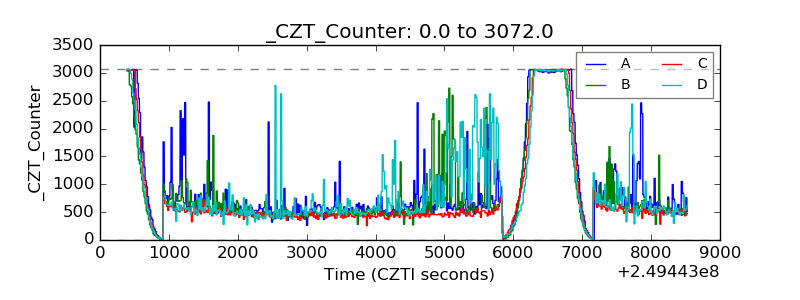

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

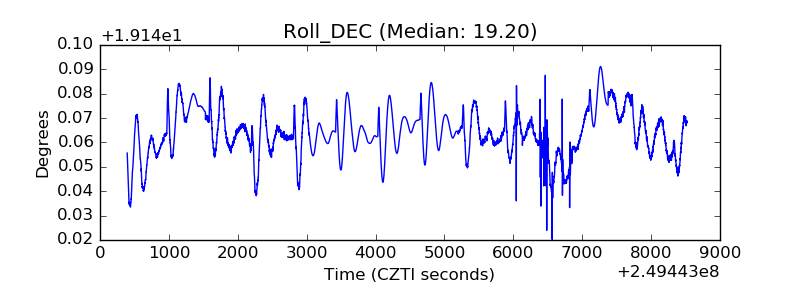

| _Roll_DEC |  |

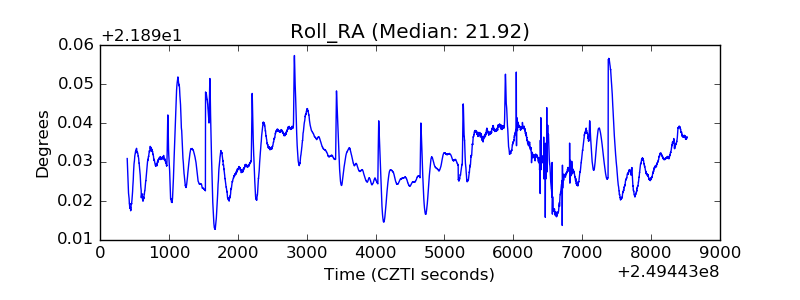

| _Roll_RA |  |

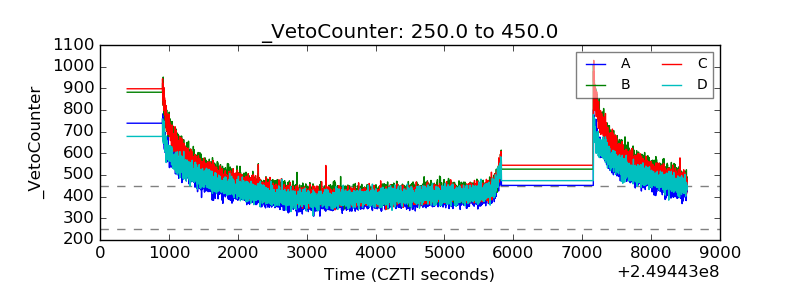

| Veto Counter |  |
