| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_113T03_9000001738_11755cztM0_level2.evt | modeM0/AS1A04_113T03_9000001738_11755cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,738,240 | 86,094,720 |
| Size | 527.1 MB | 82.1 MB |
| Events in quadrant A | 4,305,634 | 537,831 |
| Events in quadrant B | 4,456,782 | 531,738 |
| Events in quadrant C | 3,229,044 | 546,319 |
| Events in quadrant D | 4,292,714 | 522,792 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17233 | 3 |
| B | 0 | 17326 | 2 |
| C | 0 | 14077 | 2 |
| D | 0 | 16971 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6728 | 201 | 2.987515% |
| B | 6728 | 380 | 5.648038% |
| C | 6728 | 104 | 1.545779% |
| D | 6728 | 189 | 2.809156% |

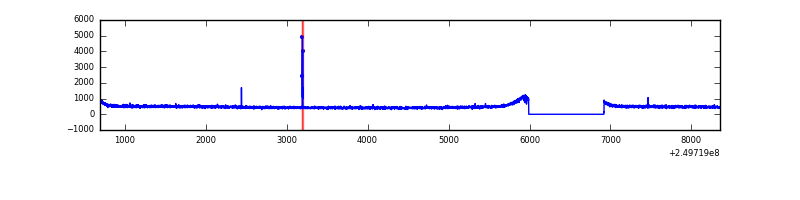

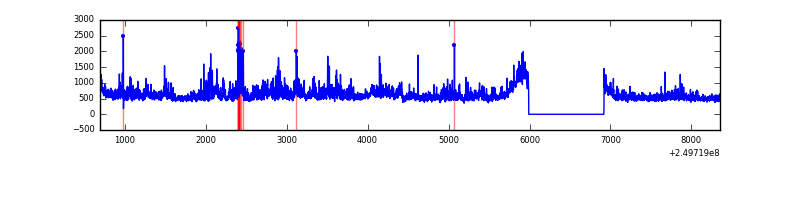

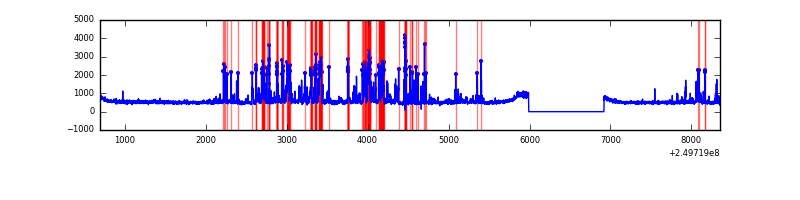

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7659 | 6730 | 14 | 14 | 0.18% | 0.21% |  |
| B | 7659 | 6730 | 198 | 198 | 2.59% | 2.94% |  |
| C | 7659 | 6730 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7659 | 6730 | 56 | 56 | 0.73% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 647750 | 3800.94 | 841 | 826 | 170.2 |
| A | 1 | 162 | 136021 | 794.33 | 841 | 826 | 170.2 |
| A | 1 | 178 | 78656 | 457.28 | 841 | 826 | 170.2 |
| B | 4 | 239 | 836076 | 5317.29 | 831 | 811 | 157.1 |
| B | 15 | 204 | 134176 | 849.0 | 831 | 811 | 157.1 |
| B | 3 | 64 | 124334 | 786.35 | 831 | 811 | 157.1 |
| C | 14 | 234 | 18314 | 92.37 | 823 | 828 | 189.3 |
| C | 13 | 61 | 6057 | 27.62 | 823 | 828 | 189.3 |
| C | 12 | 4 | 3670 | 15.01 | 823 | 828 | 189.3 |
| D | 8 | 195 | 672973 | 3378.98 | 824 | 803 | 198.9 |
| D | 1 | 52 | 189848 | 950.32 | 824 | 803 | 198.9 |
| D | 10 | 199 | 68635 | 340.99 | 824 | 803 | 198.9 |

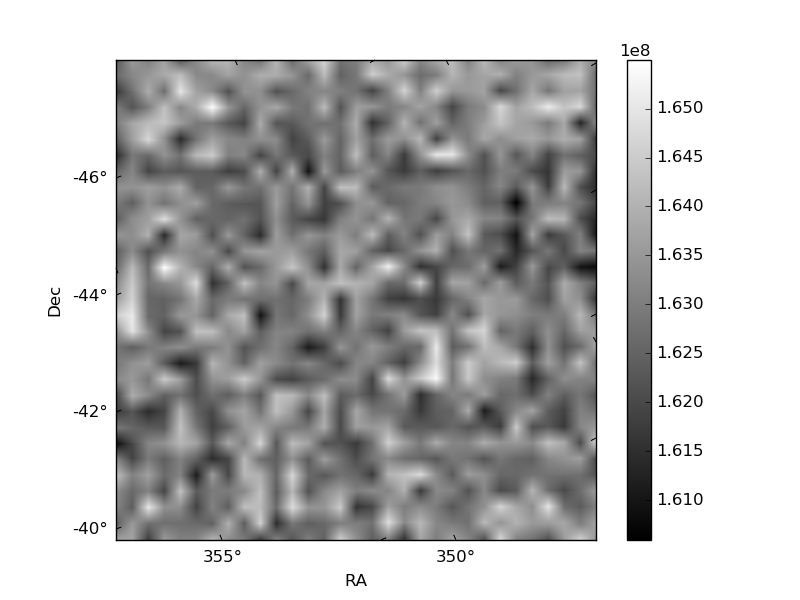

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

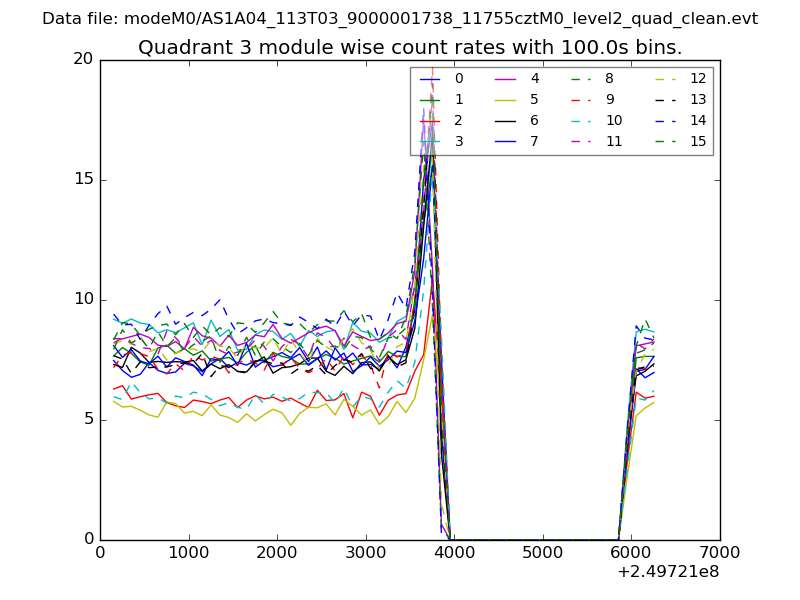

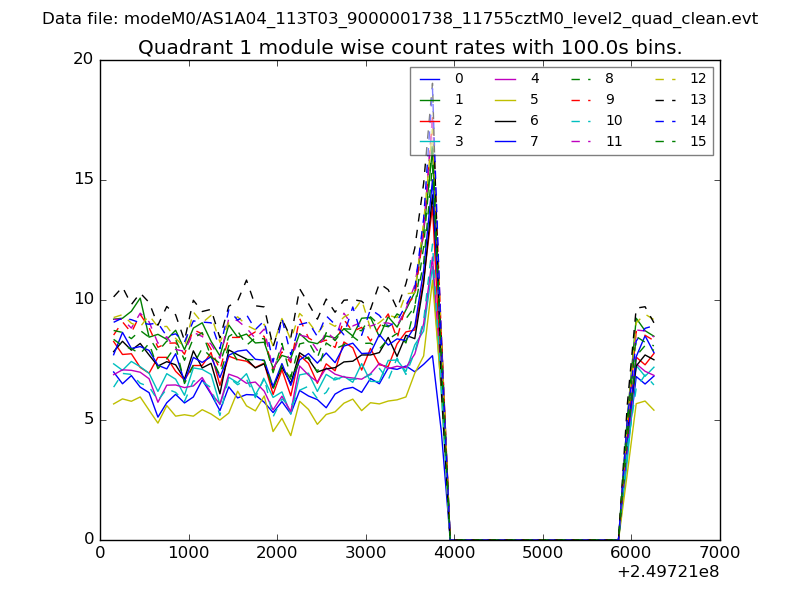

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

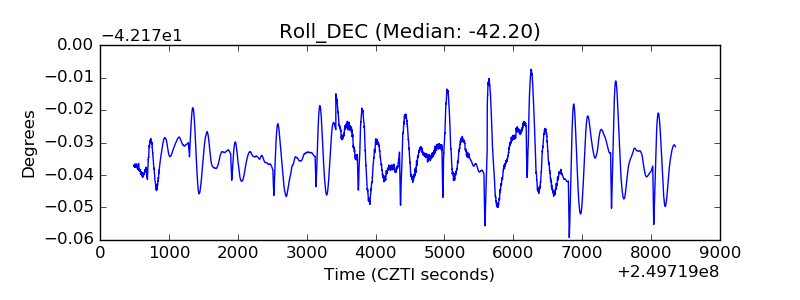

| _Roll_DEC |  |

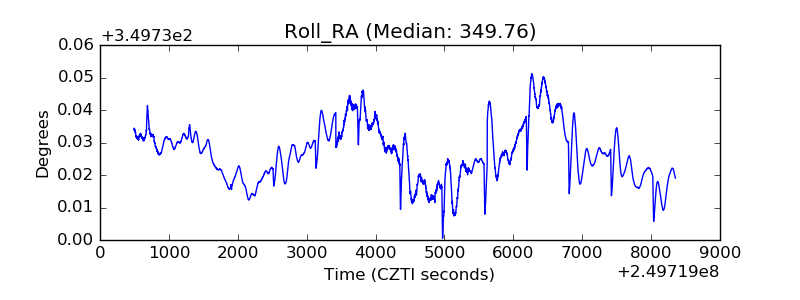

| _Roll_RA |  |
| Veto Counter |  |
