| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_113T03_9000001738_11762cztM0_level2.evt | modeM0/AS1A04_113T03_9000001738_11762cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,511,798,400 | 212,875,200 |
| Size | 1.4 GB | 203.0 MB |
| Events in quadrant A | 10,344,835 | 1,340,051 |
| Events in quadrant B | 12,283,752 | 1,301,105 |
| Events in quadrant C | 7,735,497 | 1,347,843 |
| Events in quadrant D | 14,227,341 | 1,237,077 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42776 | 3 |
| B | 0 | 48037 | 3 |
| C | 0 | 35866 | 3 |
| D | 0 | 54293 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 362 | 0 |
| B | 0 | 362 | 0 |
| C | 0 | 362 | 0 |
| D | 0 | 362 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17700 | 223 | 1.259887% |
| B | 17700 | 1027 | 5.802260% |
| C | 17700 | 33 | 0.186441% |
| D | 17700 | 1011 | 5.711864% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19526 | 17704 | 19 | 19 | 0.10% | 0.11% |  |
| B | 19526 | 17704 | 563 | 563 | 2.88% | 3.18% |  |
| C | 19526 | 17704 | 0 | 0 | 0.00% | 0.00% |  |
| D | 19526 | 17704 | 913 | 913 | 4.68% | 5.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 1422675 | 3424.4 | 2043 | 1999 | 414.9 |
| A | 1 | 162 | 360167 | 863.33 | 2043 | 1999 | 414.9 |
| A | 1 | 178 | 188440 | 449.4 | 2043 | 1999 | 414.9 |
| B | 4 | 239 | 2064003 | 5370.15 | 2020 | 1971 | 384.0 |
| B | 3 | 64 | 1371380 | 3566.35 | 2020 | 1971 | 384.0 |
| B | 15 | 204 | 702973 | 1825.62 | 2020 | 1971 | 384.0 |
| C | 13 | 61 | 14798 | 27.96 | 1982 | 1988 | 458.1 |
| C | 12 | 4 | 5870 | 8.47 | 1982 | 1988 | 458.1 |
| C | 8 | 222 | 5303 | 7.24 | 1982 | 1988 | 458.1 |
| D | 1 | 52 | 3551288 | 7618.56 | 1933 | 1876 | 465.9 |
| D | 8 | 195 | 1187657 | 2545.2 | 1933 | 1876 | 465.9 |
| D | 10 | 199 | 546150 | 1168.25 | 1933 | 1876 | 465.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

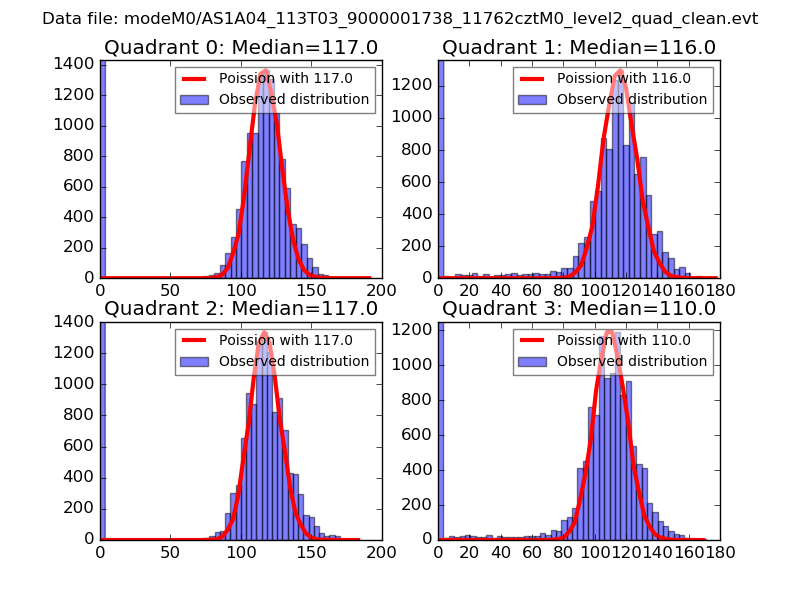

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

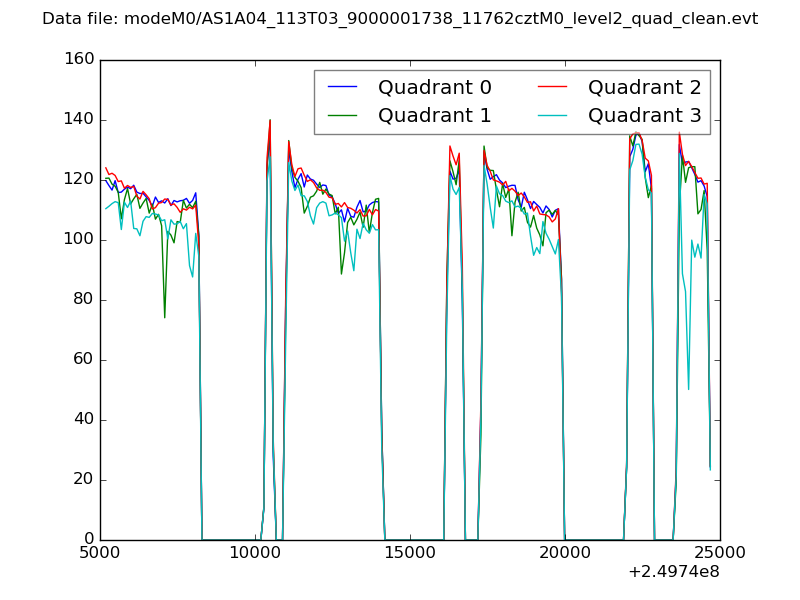

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
