| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_060T01_9000001736_11747cztM0_level2.evt | modeM0/AS1G08_060T01_9000001736_11747cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,167,456,960 | 236,828,160 |
| Size | 1.1 GB | 225.9 MB |
| Events in quadrant A | 8,093,820 | 1,596,498 |
| Events in quadrant B | 8,810,671 | 1,586,985 |
| Events in quadrant C | 6,328,333 | 1,563,181 |
| Events in quadrant D | 11,152,879 | 1,433,964 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 294 | 0 |
| B | 0 | 294 | 0 |
| C | 0 | 294 | 0 |
| D | 0 | 294 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33944 | 4 |
| B | 0 | 36003 | 3 |
| C | 0 | 29117 | 3 |
| D | 0 | 42906 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14371 | 209 | 1.454318% |
| B | 14371 | 639 | 4.446455% |
| C | 14371 | 59 | 0.410549% |
| D | 14371 | 1165 | 8.106604% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16497 | 14375 | 23 | 23 | 0.14% | 0.16% |  |
| B | 16497 | 14375 | 272 | 272 | 1.65% | 1.89% |  |
| C | 16497 | 14375 | 1 | 1 | 0.01% | 0.01% |  |
| D | 16497 | 14375 | 1020 | 1020 | 6.18% | 7.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 813082 | 2404.54 | 1664 | 1628 | 337.5 |
| A | 1 | 162 | 261459 | 769.95 | 1664 | 1628 | 337.5 |
| A | 1 | 178 | 140292 | 410.9 | 1664 | 1628 | 337.5 |
| B | 4 | 239 | 1653804 | 5230.69 | 1649 | 1610 | 315.9 |
| B | 15 | 204 | 356939 | 1124.94 | 1649 | 1610 | 315.9 |
| B | 10 | 245 | 126280 | 394.69 | 1649 | 1610 | 315.9 |
| C | 12 | 4 | 14649 | 34.81 | 1612 | 1616 | 374.4 |
| C | 13 | 61 | 11976 | 27.67 | 1612 | 1616 | 374.4 |
| C | 8 | 128 | 11600 | 26.67 | 1612 | 1616 | 374.4 |
| D | 1 | 52 | 3078901 | 8275.59 | 1548 | 1502 | 371.9 |
| D | 8 | 195 | 1001957 | 2690.37 | 1548 | 1502 | 371.9 |
| D | 9 | 85 | 223938 | 598.16 | 1548 | 1502 | 371.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

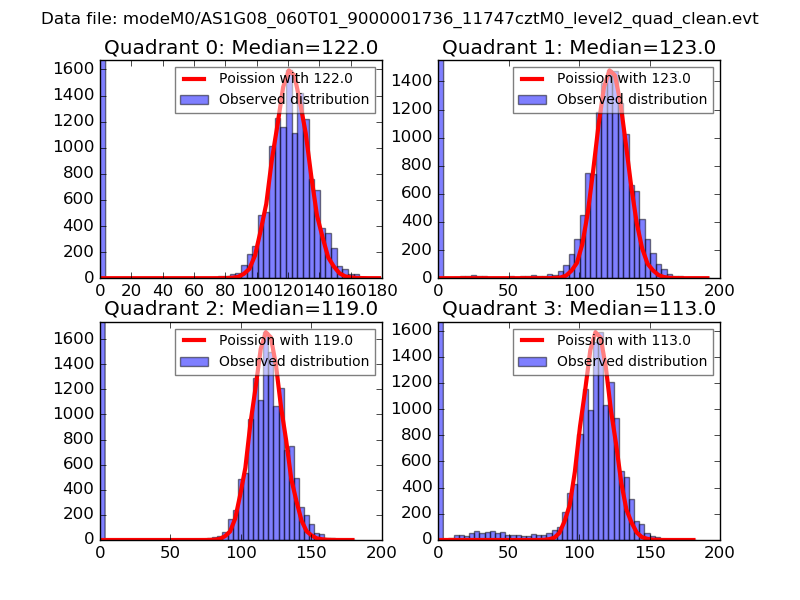

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

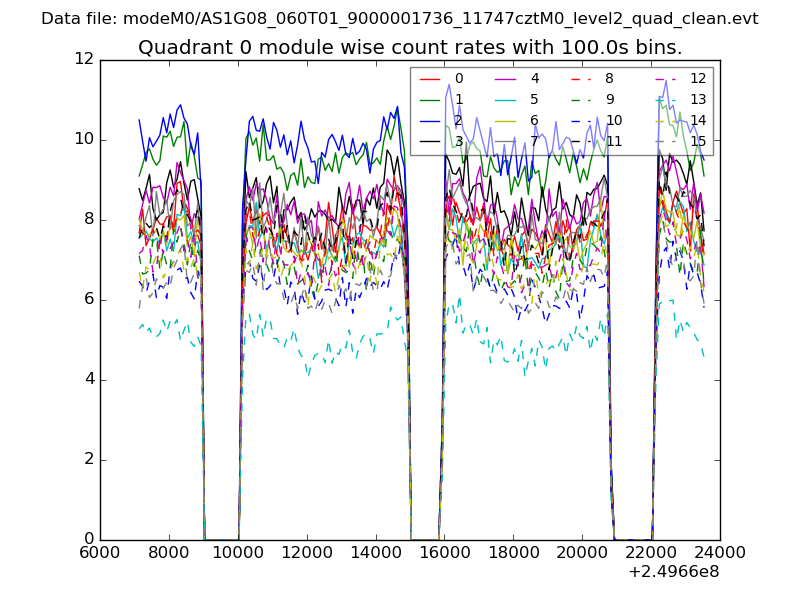

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

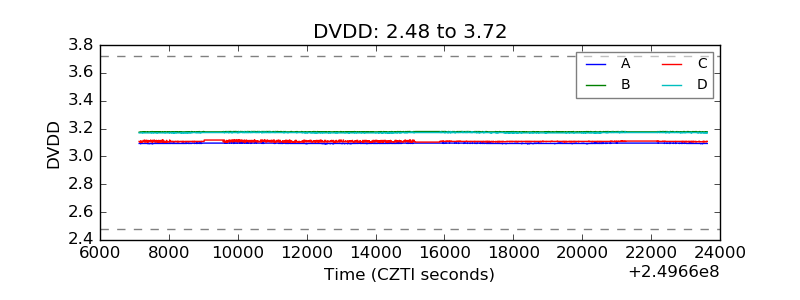

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

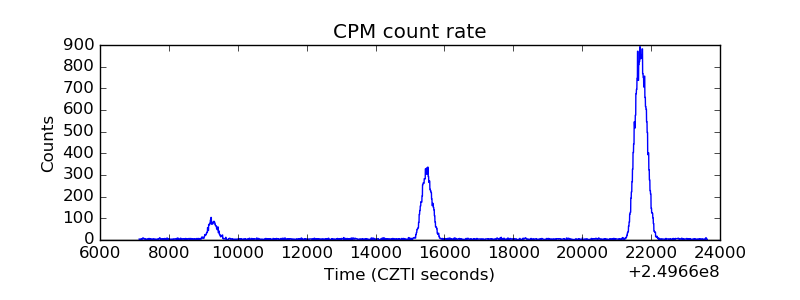

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

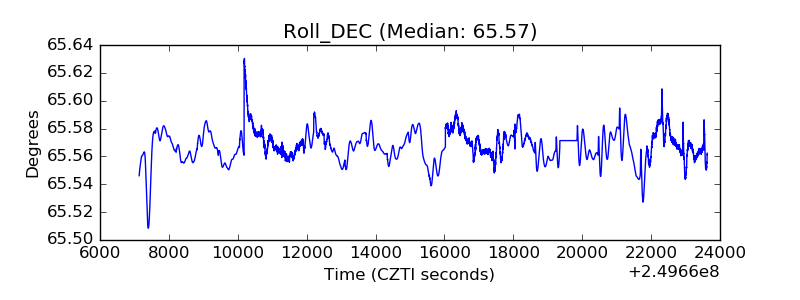

| _Roll_DEC |  |

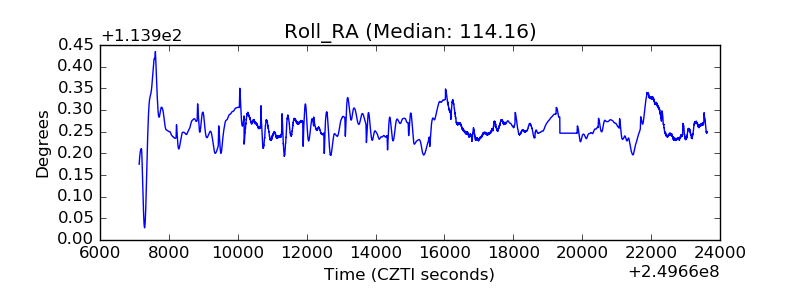

| _Roll_RA |  |
| Veto Counter |  |
