| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_231T01_9000001740_11765cztM0_level2.evt | modeM0/AS1A04_231T01_9000001740_11765cztM0_level2_quad_clean.evt |
| Size (bytes) | 612,106,560 | 107,925,120 |
| Size | 583.8 MB | 102.9 MB |
| Events in quadrant A | 3,739,256 | 709,627 |
| Events in quadrant B | 4,850,859 | 713,005 |
| Events in quadrant C | 3,000,704 | 729,242 |
| Events in quadrant D | 6,505,952 | 661,817 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15599 | 3 |
| B | 0 | 18841 | 2 |
| C | 0 | 13293 | 2 |
| D | 0 | 23834 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6520 | 75 | 1.150307% |
| B | 6520 | 431 | 6.610429% |
| C | 6520 | 10 | 0.153374% |
| D | 6520 | 518 | 7.944785% |

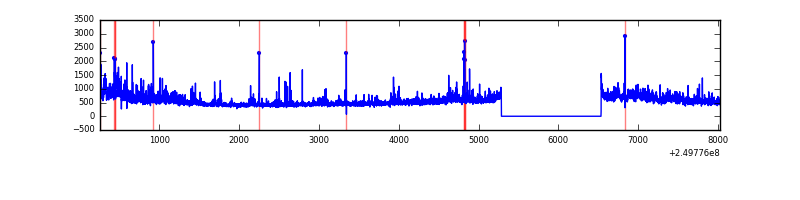

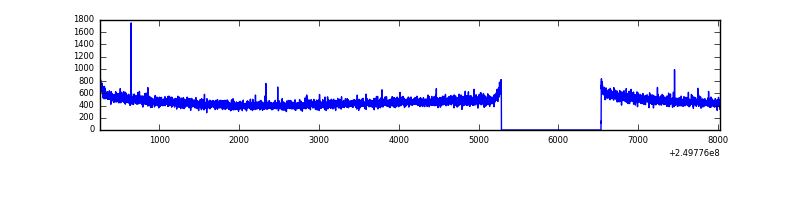

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7771 | 6522 | 12 | 12 | 0.15% | 0.18% |  |
| B | 7771 | 6521 | 236 | 236 | 3.04% | 3.62% |  |
| C | 7771 | 6522 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7771 | 6522 | 552 | 552 | 7.10% | 8.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 285427 | 1824.13 | 769 | 753 | 156.1 |
| A | 1 | 162 | 137261 | 874.72 | 769 | 753 | 156.1 |
| A | 1 | 178 | 77381 | 491.02 | 769 | 753 | 156.1 |
| B | 4 | 239 | 846128 | 5944.84 | 765 | 745 | 142.2 |
| B | 10 | 16 | 390106 | 2738.04 | 765 | 745 | 142.2 |
| B | 3 | 64 | 262816 | 1842.92 | 765 | 745 | 142.2 |
| C | 13 | 61 | 5777 | 28.23 | 768 | 772 | 177.3 |
| C | 12 | 4 | 4070 | 18.6 | 768 | 772 | 177.3 |
| C | 3 | 202 | 1852 | 6.09 | 768 | 772 | 177.3 |
| D | 13 | 137 | 2292611 | 12986.99 | 733 | 714 | 176.5 |
| D | 1 | 52 | 524291 | 2966.84 | 733 | 714 | 176.5 |
| D | 7 | 80 | 273389 | 1545.11 | 733 | 714 | 176.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

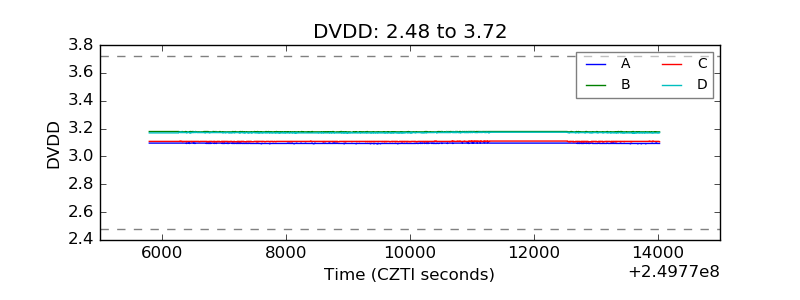

| D_VDD |  |

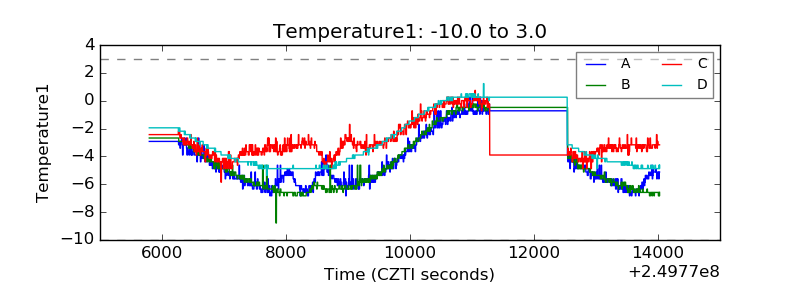

| Temperature 1 |  |

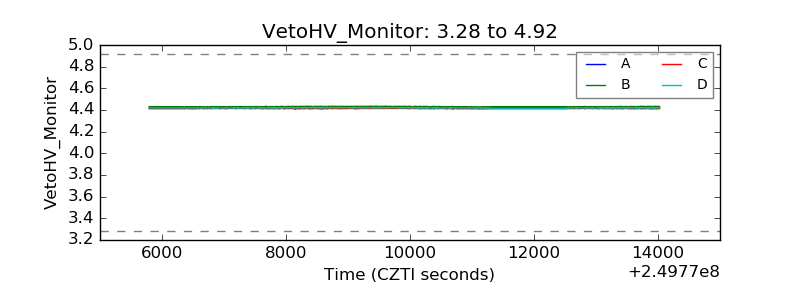

| Veto HV Monitor |  |
| Veto LLD |  |

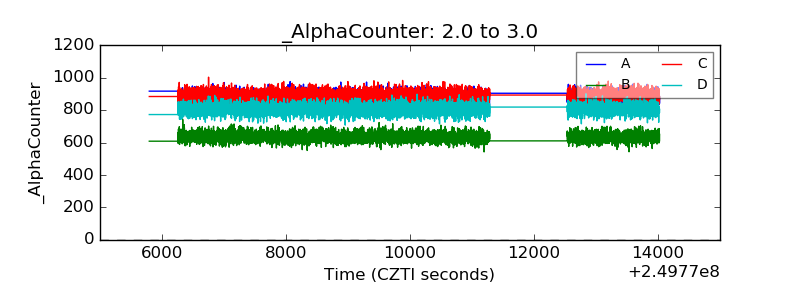

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

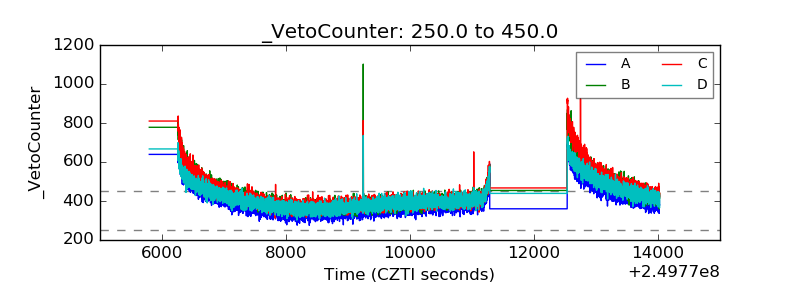

| Veto Counter |  |
