| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_231T01_9000001740_11767cztM0_level2.evt | modeM0/AS1A04_231T01_9000001740_11767cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,814,720 | 106,300,800 |
| Size | 486.2 MB | 101.4 MB |
| Events in quadrant A | 3,793,932 | 681,051 |
| Events in quadrant B | 4,141,751 | 708,739 |
| Events in quadrant C | 3,105,103 | 716,121 |
| Events in quadrant D | 3,965,353 | 667,464 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15430 | 3 |
| B | 0 | 16539 | 2 |
| C | 0 | 13217 | 2 |
| D | 0 | 15871 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6385 | 155 | 2.427565% |
| B | 6385 | 182 | 2.850431% |
| C | 6385 | 15 | 0.234926% |
| D | 6385 | 92 | 1.440877% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7721 | 6387 | 26 | 26 | 0.34% | 0.41% |  |
| B | 7721 | 6387 | 83 | 83 | 1.07% | 1.30% |  |
| C | 7721 | 6387 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7721 | 6387 | 69 | 69 | 0.89% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 293979 | 1874.37 | 778 | 762 | 156.4 |
| A | 1 | 162 | 125072 | 794.64 | 778 | 762 | 156.4 |
| A | 5 | 16 | 93983 | 595.91 | 778 | 762 | 156.4 |
| B | 4 | 239 | 429408 | 2938.08 | 794 | 775 | 145.9 |
| B | 10 | 16 | 284873 | 1947.36 | 794 | 775 | 145.9 |
| B | 15 | 204 | 159294 | 1086.57 | 794 | 775 | 145.9 |
| C | 8 | 222 | 7759 | 38.73 | 794 | 798 | 179.7 |
| C | 13 | 61 | 5856 | 28.14 | 794 | 798 | 179.7 |
| C | 12 | 4 | 2188 | 7.73 | 794 | 798 | 179.7 |
| D | 1 | 52 | 628162 | 3430.78 | 775 | 755 | 182.9 |
| D | 8 | 195 | 143064 | 778.17 | 775 | 755 | 182.9 |
| D | 13 | 104 | 120417 | 654.33 | 775 | 755 | 182.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

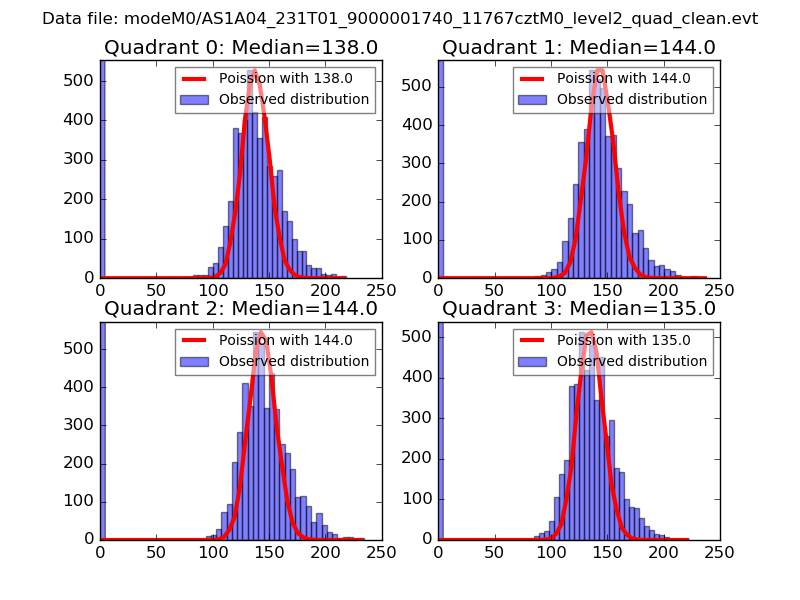

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

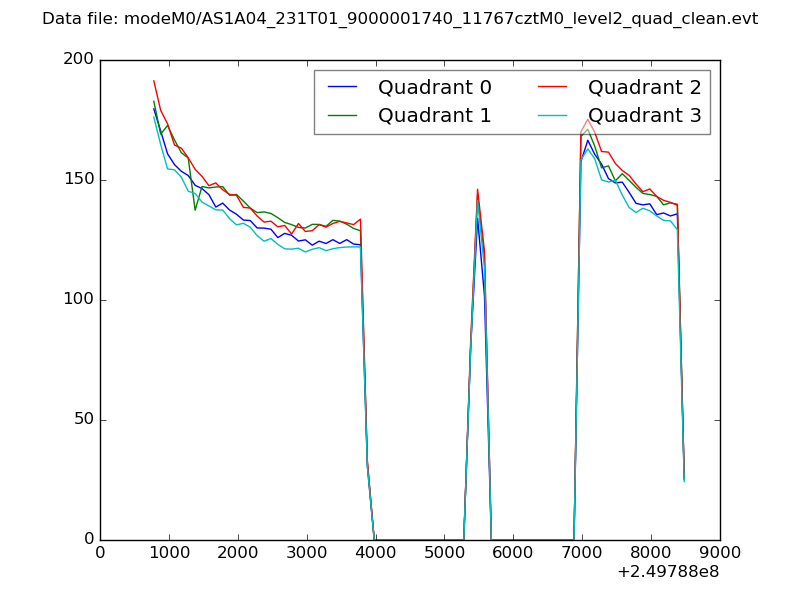

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

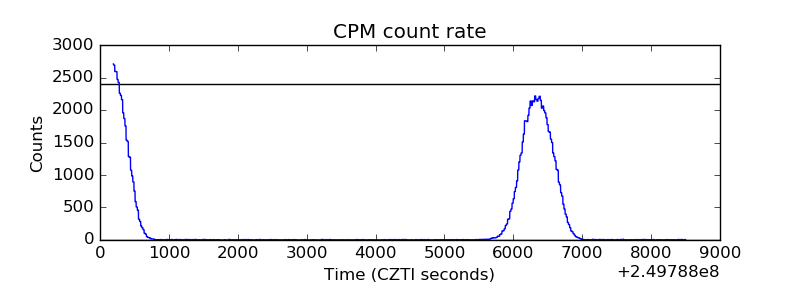

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

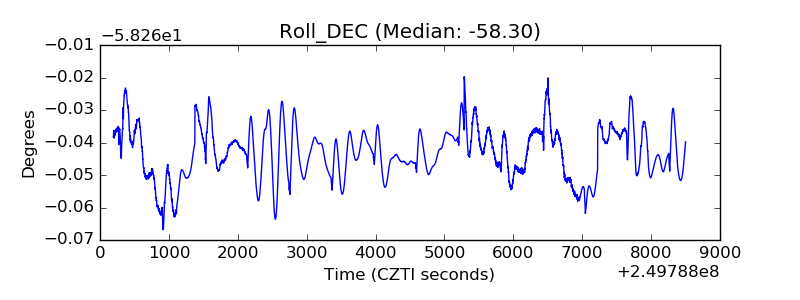

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
