| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_024T01_9000001742_11776cztM0_level2.evt | modeM0/AS1C03_024T01_9000001742_11776cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,687,040 | 91,229,760 |
| Size | 560.5 MB | 87.0 MB |
| Events in quadrant A | 3,377,264 | 585,714 |
| Events in quadrant B | 6,898,068 | 537,183 |
| Events in quadrant C | 3,116,808 | 589,805 |
| Events in quadrant D | 3,931,793 | 562,049 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14721 | 3 |
| B | 0 | 25327 | 2 |
| C | 0 | 14206 | 2 |
| D | 0 | 16497 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6998 | 44 | 0.628751% |
| B | 6998 | 1007 | 14.389826% |
| C | 6998 | 21 | 0.300086% |
| D | 6998 | 84 | 1.200343% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8599 | 7001 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8599 | 7001 | 829 | 829 | 9.64% | 11.84% |  |
| C | 8599 | 7001 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8599 | 7001 | 46 | 46 | 0.53% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 111672 | 655.6 | 819 | 799 | 169.1 |
| A | 1 | 162 | 39665 | 229.82 | 819 | 799 | 169.1 |
| A | 1 | 178 | 20959 | 119.21 | 819 | 799 | 169.1 |
| B | 10 | 16 | 2936427 | 19405.71 | 784 | 763 | 151.3 |
| B | 4 | 239 | 537952 | 3551.0 | 784 | 763 | 151.3 |
| B | 3 | 64 | 124295 | 816.59 | 784 | 763 | 151.3 |
| C | 13 | 61 | 5752 | 26.71 | 797 | 804 | 185.2 |
| C | 12 | 4 | 4342 | 19.1 | 797 | 804 | 185.2 |
| C | 14 | 234 | 2476 | 9.03 | 797 | 804 | 185.2 |
| D | 1 | 52 | 550002 | 2874.28 | 793 | 773 | 191.1 |
| D | 5 | 222 | 101962 | 529.55 | 793 | 773 | 191.1 |
| D | 13 | 104 | 62296 | 321.97 | 793 | 773 | 191.1 |

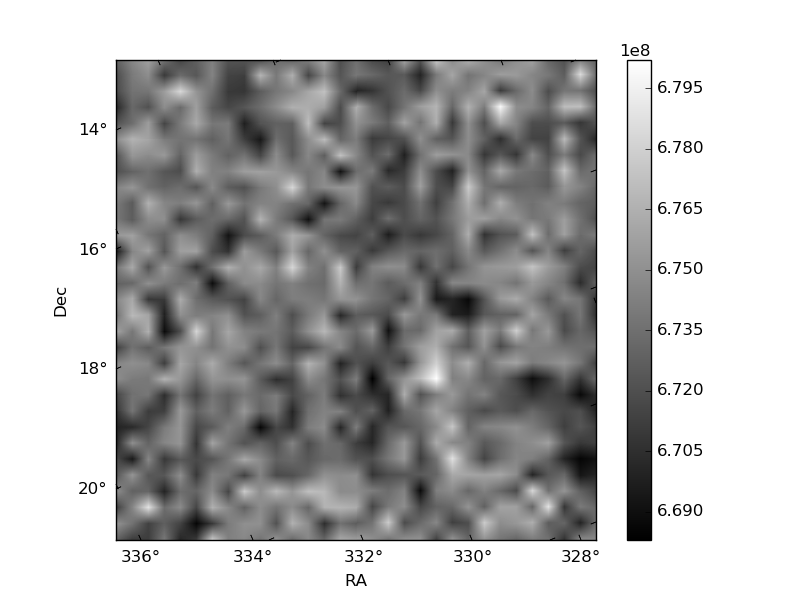

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

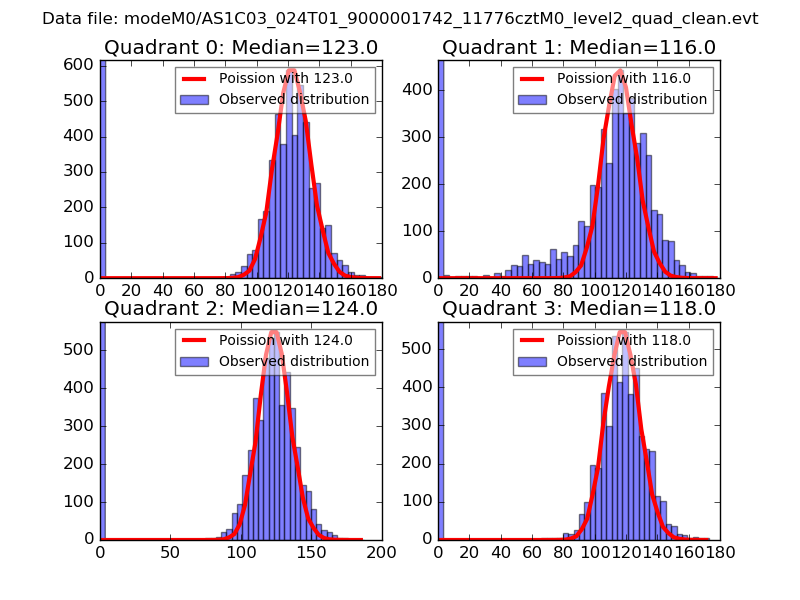

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

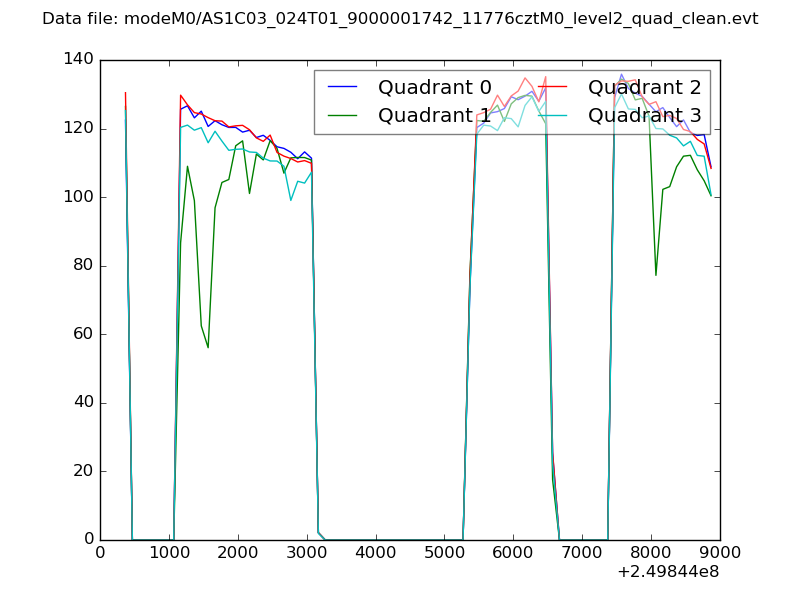

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

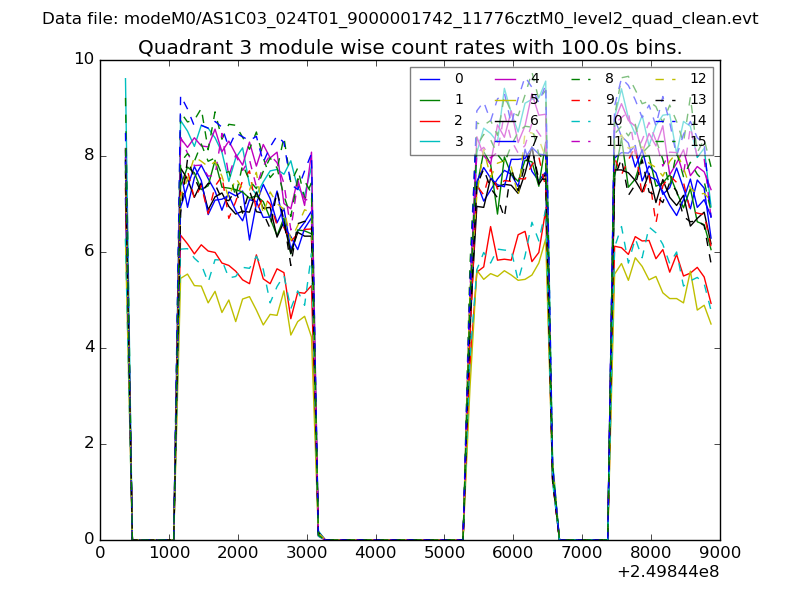

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

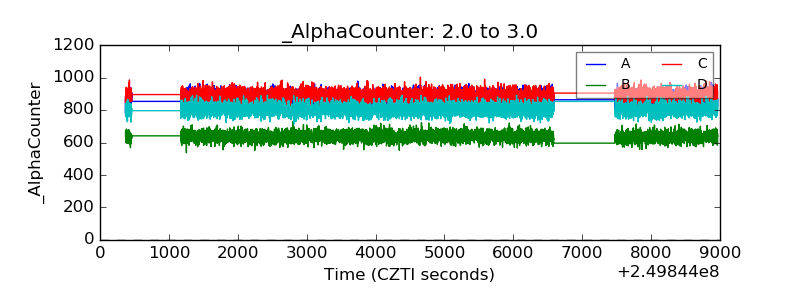

| Alpha Counter |  |
| _CPM_Rate |  |

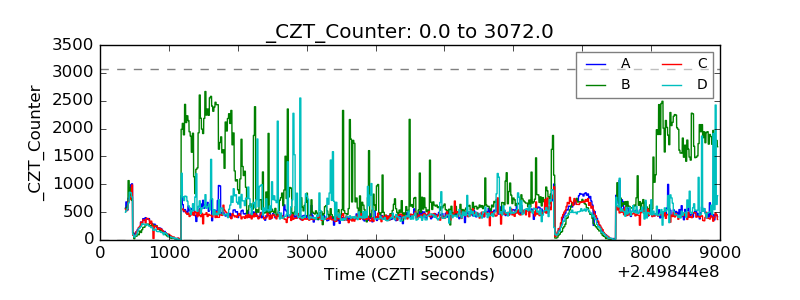

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
