| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_024T01_9000001742_11780cztM0_level2.evt | modeM0/AS1C03_024T01_9000001742_11780cztM0_level2_quad_clean.evt |
| Size (bytes) | 641,560,320 | 59,060,160 |
| Size | 611.8 MB | 56.3 MB |
| Events in quadrant A | 3,255,138 | 355,657 |
| Events in quadrant B | 7,208,723 | 332,562 |
| Events in quadrant C | 2,890,198 | 357,173 |
| Events in quadrant D | 5,665,743 | 319,066 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13436 | 2 |
| B | 0 | 25620 | 1 |
| C | 0 | 12451 | 1 |
| D | 0 | 20886 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6059 | 41 | 0.676679% |
| B | 6059 | 1186 | 19.574187% |
| C | 6059 | 5 | 0.082522% |
| D | 6059 | 937 | 15.464598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7350 | 6061 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7350 | 6061 | 1029 | 1029 | 14.00% | 16.98% |  |
| C | 7350 | 6061 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7350 | 6061 | 826 | 826 | 11.24% | 13.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 110701 | 720.23 | 755 | 740 | 152.7 |
| A | 8 | 15 | 69890 | 452.92 | 755 | 740 | 152.7 |
| A | 1 | 178 | 57077 | 369.0 | 755 | 740 | 152.7 |
| B | 10 | 16 | 3781076 | 27654.5 | 730 | 715 | 136.7 |
| B | 4 | 239 | 434331 | 3172.03 | 730 | 715 | 136.7 |
| B | 15 | 204 | 49512 | 356.97 | 730 | 715 | 136.7 |
| C | 13 | 61 | 5475 | 27.62 | 740 | 747 | 171.2 |
| C | 14 | 234 | 4068 | 19.4 | 740 | 747 | 171.2 |
| C | 3 | 202 | 1910 | 6.79 | 740 | 747 | 171.2 |
| D | 13 | 137 | 1904872 | 11661.28 | 680 | 664 | 163.3 |
| D | 1 | 52 | 800683 | 4899.28 | 680 | 664 | 163.3 |
| D | 10 | 199 | 180267 | 1099.88 | 680 | 664 | 163.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

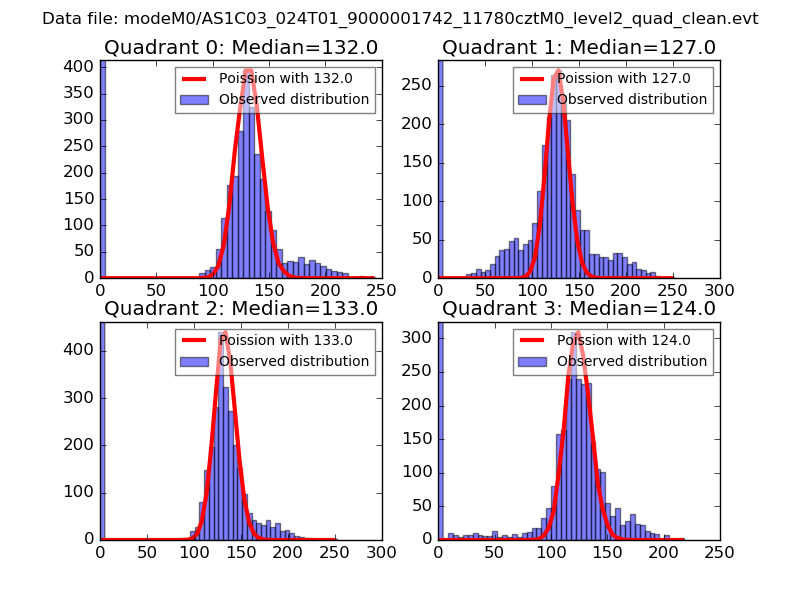

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

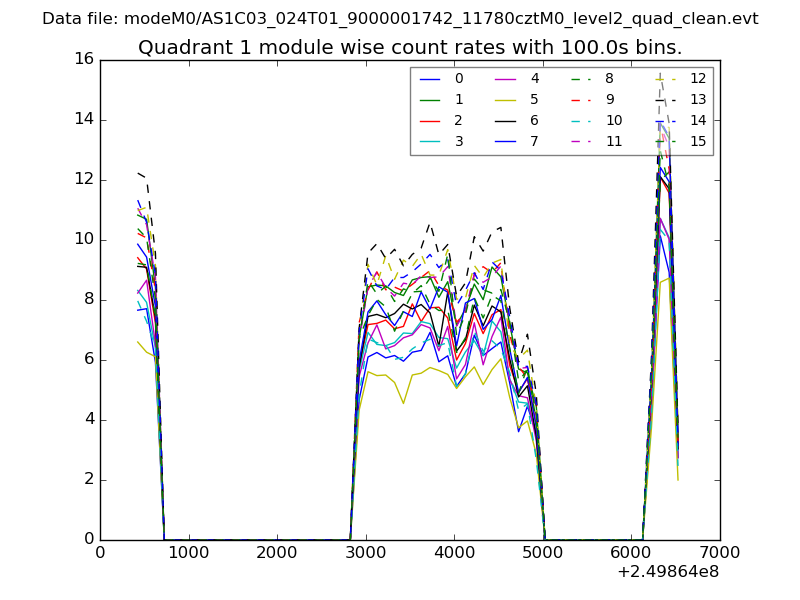

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

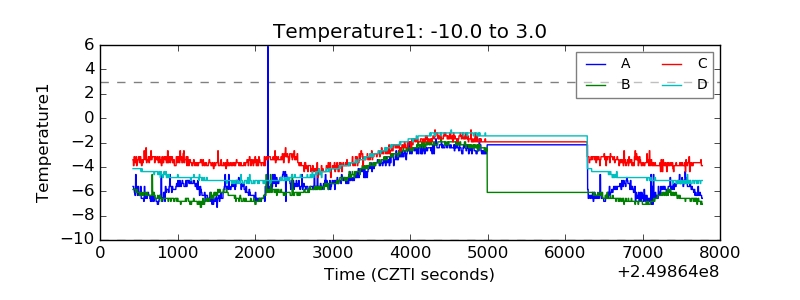

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

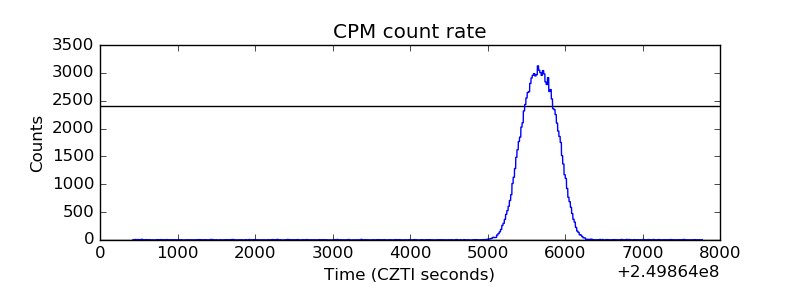

| _CPM_Rate |  |

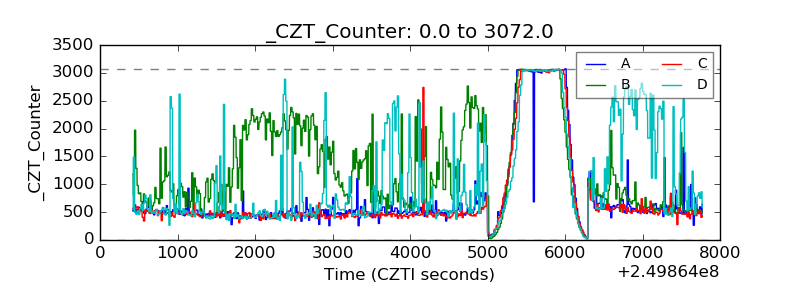

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

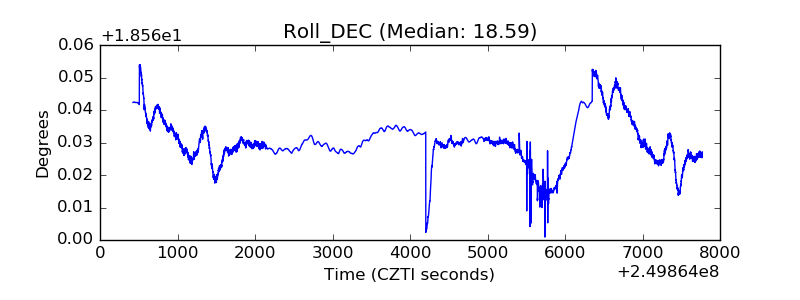

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
