| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_024T01_9000001742_11782cztM0_level2.evt | modeM0/AS1C03_024T01_9000001742_11782cztM0_level2_quad_clean.evt |
| Size (bytes) | 597,231,360 | 63,964,800 |
| Size | 569.6 MB | 61.0 MB |
| Events in quadrant A | 3,584,937 | 382,633 |
| Events in quadrant B | 5,548,030 | 375,396 |
| Events in quadrant C | 3,155,782 | 384,184 |
| Events in quadrant D | 5,375,636 | 357,494 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14515 | 2 |
| B | 0 | 21025 | 1 |
| C | 0 | 13155 | 1 |
| D | 0 | 20249 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6253 | 133 | 2.126979% |
| B | 6253 | 263 | 4.205981% |
| C | 6253 | 64 | 1.023509% |
| D | 6253 | 181 | 2.894611% |

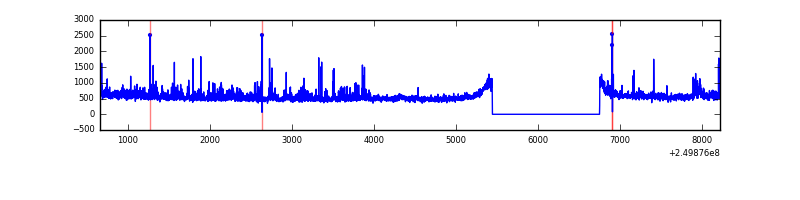

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7564 | 6255 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7564 | 6255 | 92 | 92 | 1.22% | 1.47% |  |
| C | 7564 | 6255 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7564 | 6255 | 60 | 60 | 0.79% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 125377 | 751.0 | 825 | 811 | 165.9 |
| A | 1 | 162 | 111100 | 664.93 | 825 | 811 | 165.9 |
| A | 1 | 178 | 60220 | 358.17 | 825 | 811 | 165.9 |
| B | 10 | 16 | 1702607 | 11016.37 | 823 | 807 | 154.5 |
| B | 4 | 239 | 365583 | 2361.33 | 823 | 807 | 154.5 |
| B | 15 | 204 | 113784 | 731.34 | 823 | 807 | 154.5 |
| C | 14 | 234 | 24374 | 127.88 | 803 | 809 | 184.3 |
| C | 13 | 61 | 5980 | 28.06 | 803 | 809 | 184.3 |
| C | 3 | 202 | 1967 | 6.28 | 803 | 809 | 184.3 |
| D | 1 | 52 | 2180659 | 11593.86 | 786 | 767 | 188.0 |
| D | 10 | 199 | 69653 | 366.37 | 786 | 767 | 188.0 |
| D | 5 | 222 | 69516 | 365.64 | 786 | 767 | 188.0 |

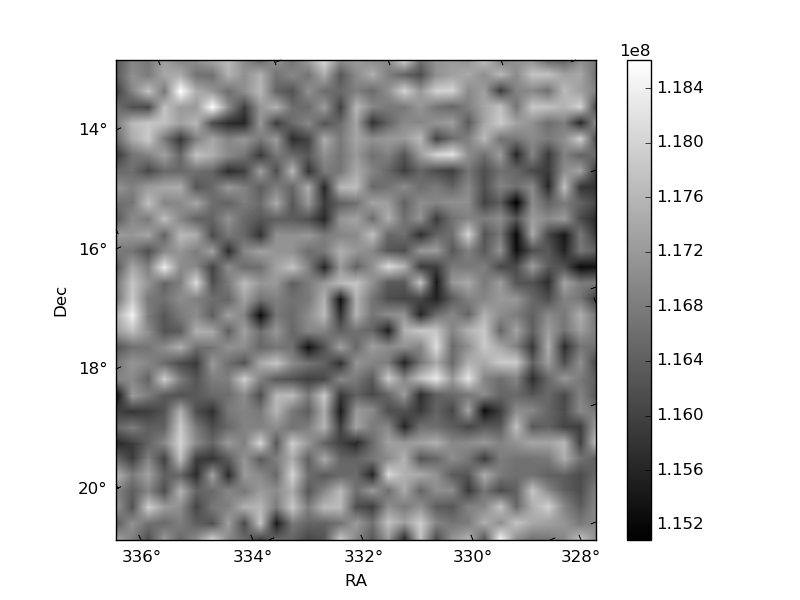

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

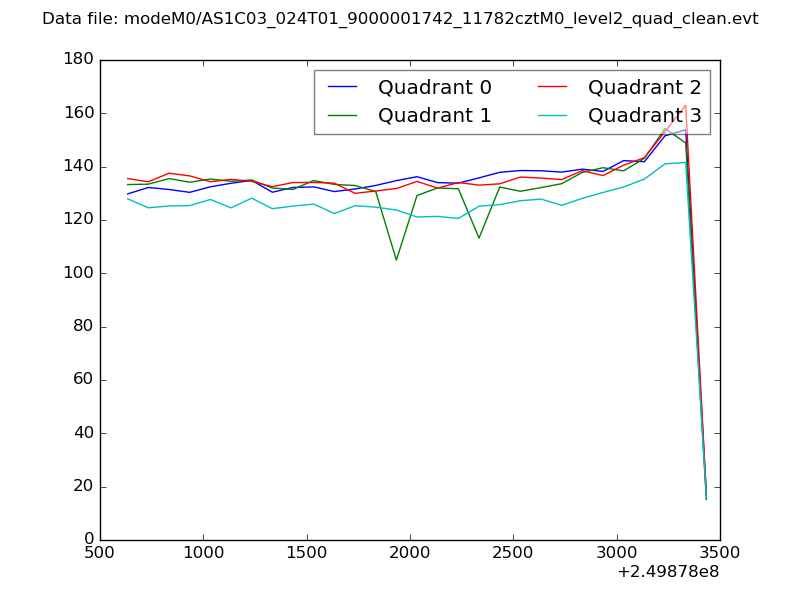

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

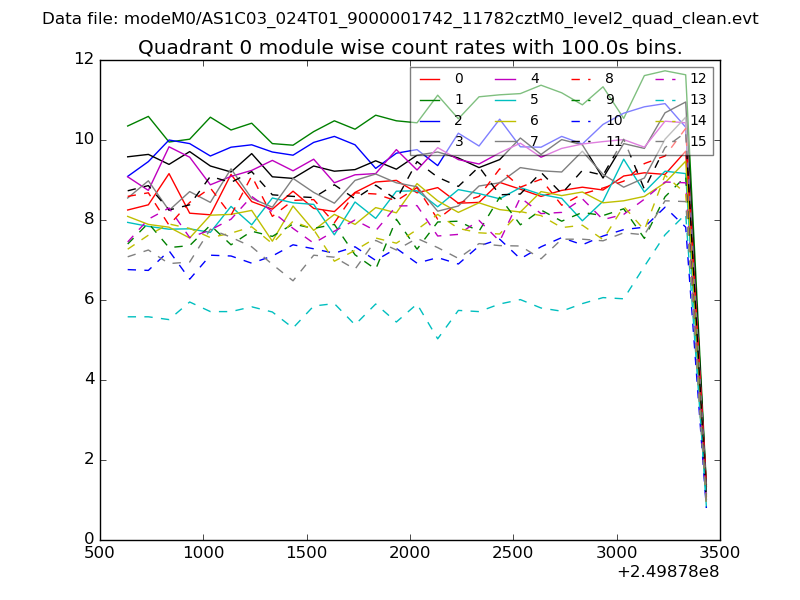

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

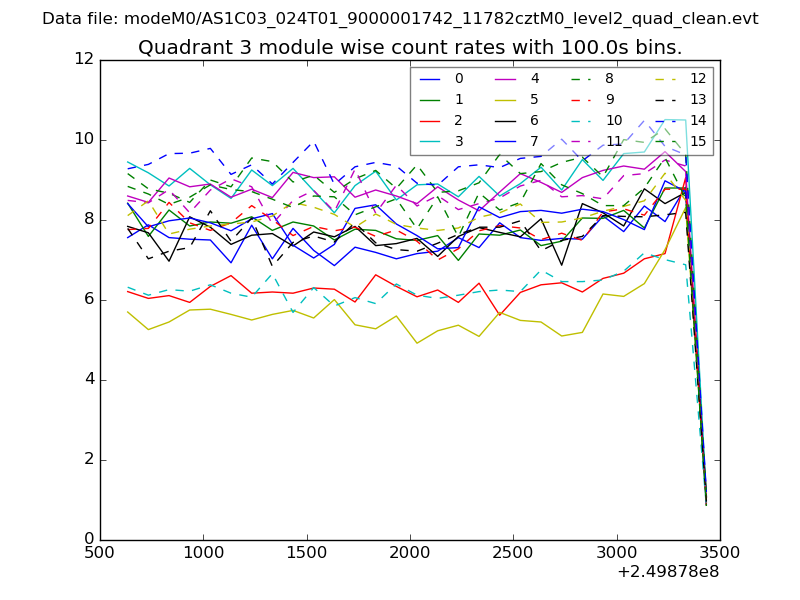

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

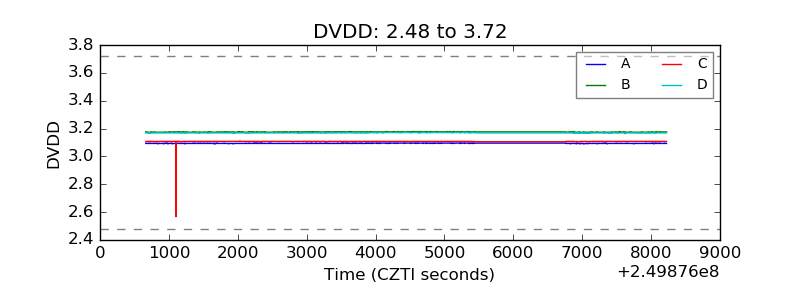

| D_VDD |  |

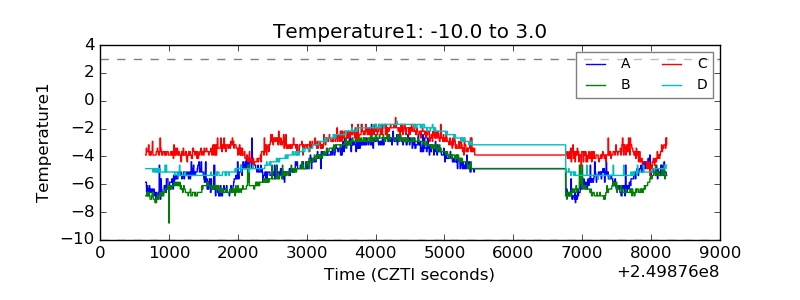

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

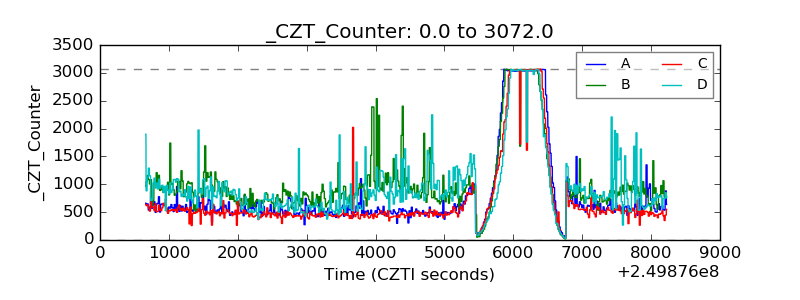

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
