| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_058T09_9000001744_11802cztM0_level2.evt | modeM0/AS1G08_058T09_9000001744_11802cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,724,480 | 90,676,800 |
| Size | 560.5 MB | 86.5 MB |
| Events in quadrant A | 3,736,889 | 570,867 |
| Events in quadrant B | 6,257,615 | 532,475 |
| Events in quadrant C | 3,368,057 | 581,265 |
| Events in quadrant D | 3,939,986 | 551,052 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15633 | 2 |
| B | 0 | 23405 | 1 |
| C | 0 | 15066 | 1 |
| D | 0 | 16564 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7327 | 170 | 2.320186% |
| B | 7327 | 750 | 10.236113% |
| C | 7327 | 91 | 1.241982% |
| D | 7327 | 185 | 2.524908% |

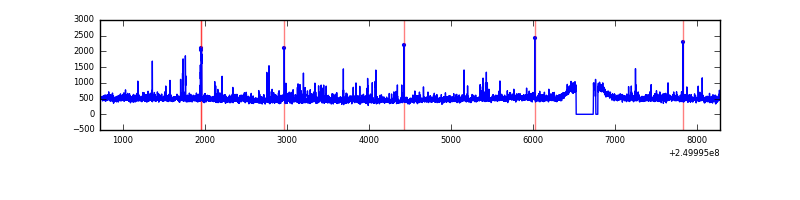

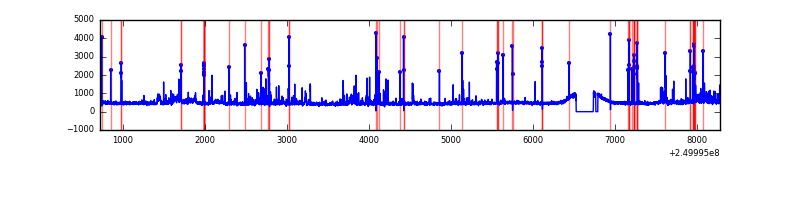

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7563 | 7329 | 6 | 6 | 0.08% | 0.08% |  |
| B | 7563 | 7329 | 460 | 460 | 6.08% | 6.28% |  |
| C | 7563 | 7329 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7563 | 7329 | 69 | 69 | 0.91% | 0.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 126644 | 688.77 | 881 | 861 | 182.6 |
| A | 1 | 178 | 62729 | 338.78 | 881 | 861 | 182.6 |
| A | 1 | 161 | 55359 | 298.42 | 881 | 861 | 182.6 |
| B | 10 | 16 | 1475481 | 8926.85 | 849 | 828 | 165.2 |
| B | 3 | 64 | 710739 | 4297.46 | 849 | 828 | 165.2 |
| B | 4 | 239 | 534331 | 3229.57 | 849 | 828 | 165.2 |
| C | 1 | 3 | 12730 | 59.01 | 858 | 862 | 201.1 |
| C | 13 | 61 | 6356 | 27.32 | 858 | 862 | 201.1 |
| C | 14 | 128 | 5992 | 25.51 | 858 | 862 | 201.1 |
| D | 1 | 52 | 225994 | 1085.71 | 852 | 826 | 207.4 |
| D | 13 | 104 | 95268 | 455.38 | 852 | 826 | 207.4 |
| D | 8 | 195 | 90244 | 431.15 | 852 | 826 | 207.4 |

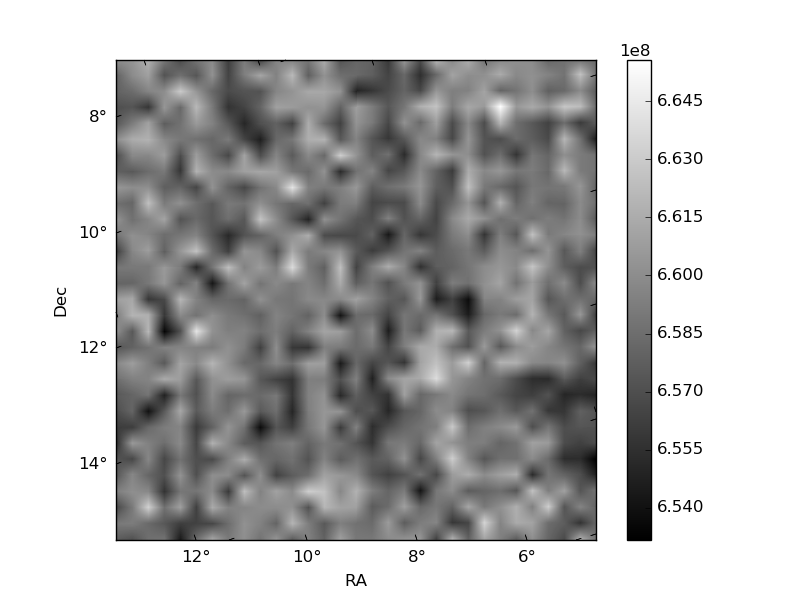

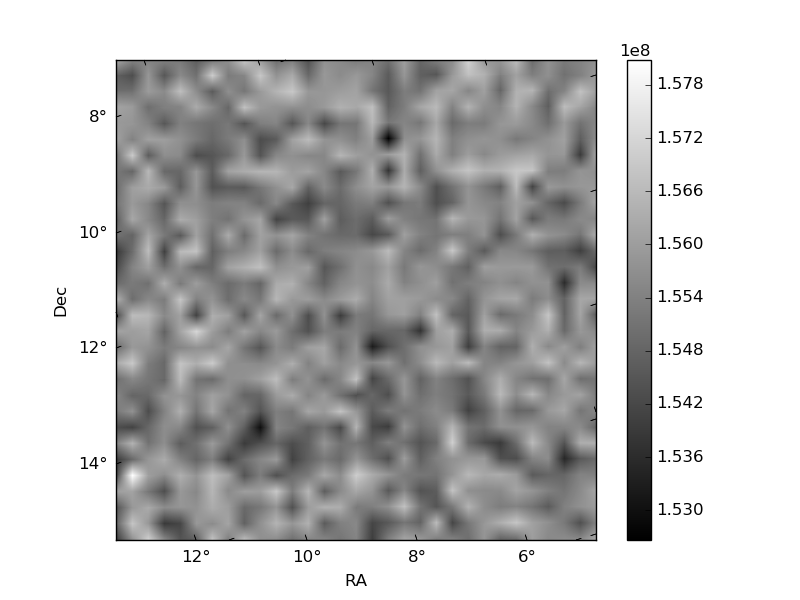

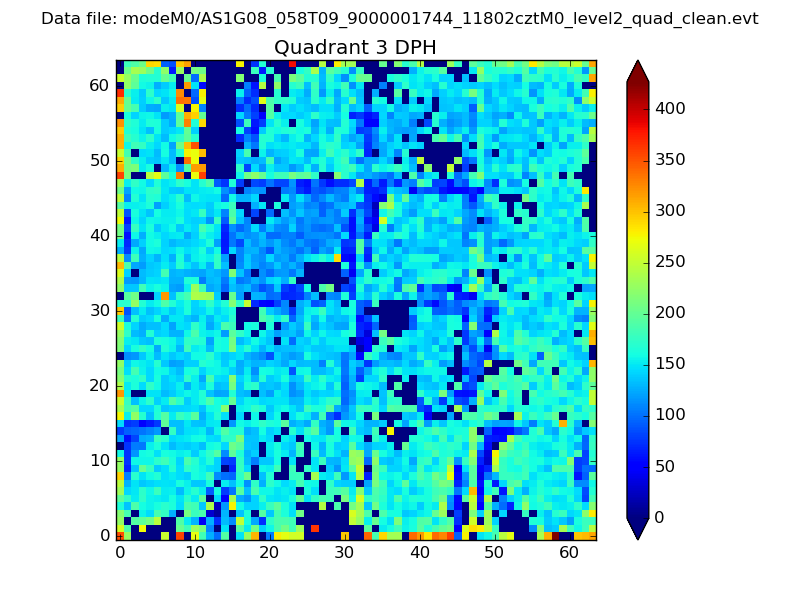

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

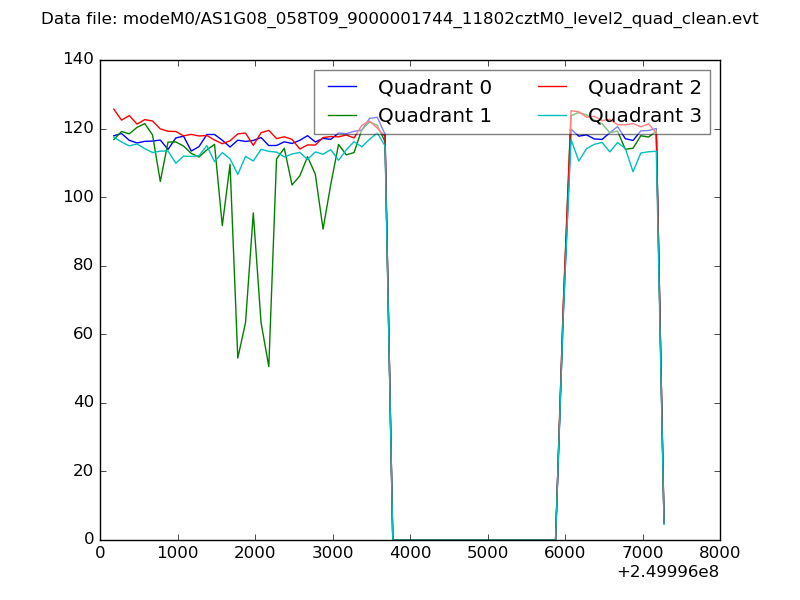

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

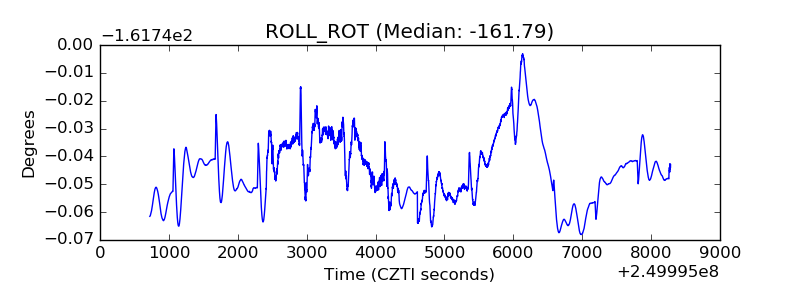

| _ROLL_ROT |  |

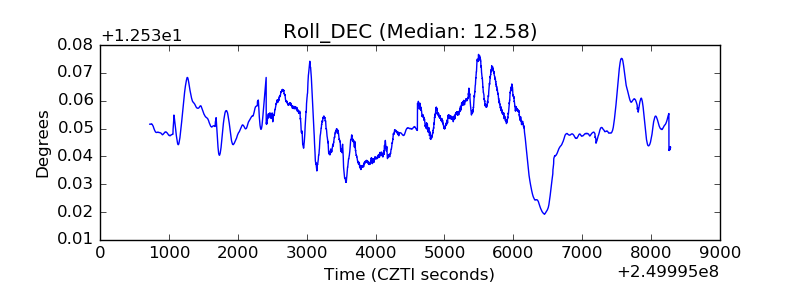

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
