| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T04_9000001746_11808cztM0_level2.evt | modeM0/AS1A04_022T04_9000001746_11808cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,897,280 | 95,722,560 |
| Size | 483.4 MB | 91.3 MB |
| Events in quadrant A | 3,383,004 | 614,120 |
| Events in quadrant B | 4,829,698 | 603,929 |
| Events in quadrant C | 3,054,563 | 629,692 |
| Events in quadrant D | 3,638,463 | 592,939 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14422 | 3 |
| B | 0 | 18799 | 2 |
| C | 0 | 13564 | 2 |
| D | 0 | 15268 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6564 | 89 | 1.355881% |
| B | 6564 | 401 | 6.109080% |
| C | 6564 | 34 | 0.517977% |
| D | 6564 | 137 | 2.087142% |

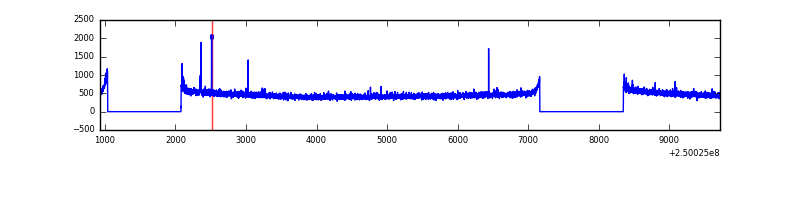

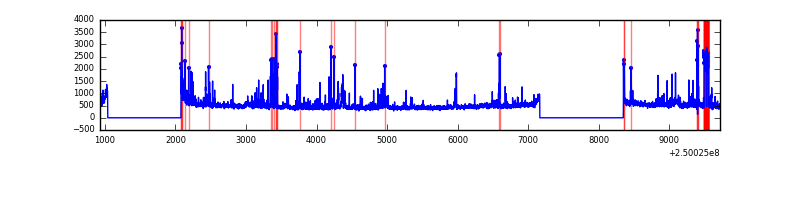

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8790 | 6567 | 3 | 3 | 0.03% | 0.05% |  |
| B | 8790 | 6567 | 241 | 241 | 2.74% | 3.67% |  |
| C | 8790 | 6567 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8790 | 6567 | 86 | 86 | 0.98% | 1.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 138686 | 879.44 | 779 | 765 | 156.8 |
| A | 1 | 178 | 78742 | 497.21 | 779 | 765 | 156.8 |
| A | 1 | 161 | 67838 | 427.69 | 779 | 765 | 156.8 |
| B | 4 | 239 | 998705 | 6910.97 | 773 | 755 | 144.4 |
| B | 15 | 185 | 298761 | 2063.74 | 773 | 755 | 144.4 |
| B | 3 | 64 | 182311 | 1257.3 | 773 | 755 | 144.4 |
| C | 1 | 16 | 12816 | 66.78 | 775 | 778 | 180.3 |
| C | 8 | 208 | 9350 | 47.56 | 775 | 778 | 180.3 |
| C | 13 | 61 | 5722 | 27.43 | 775 | 778 | 180.3 |
| D | 13 | 122 | 158193 | 861.74 | 762 | 742 | 182.7 |
| D | 1 | 52 | 109132 | 593.23 | 762 | 742 | 182.7 |
| D | 13 | 104 | 99715 | 541.69 | 762 | 742 | 182.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

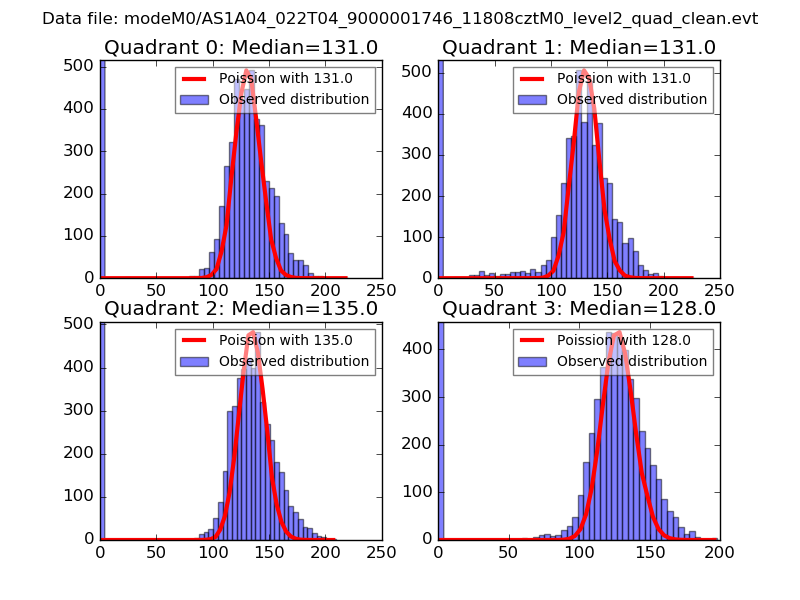

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

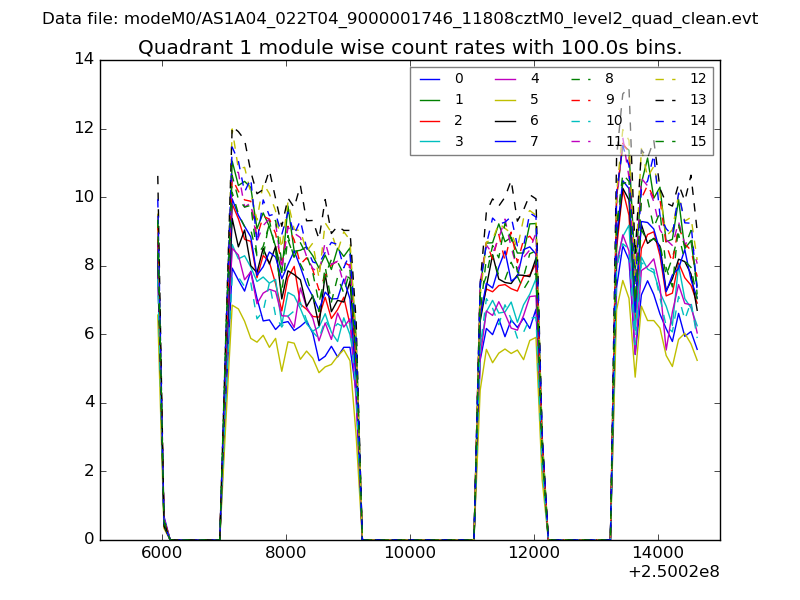

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

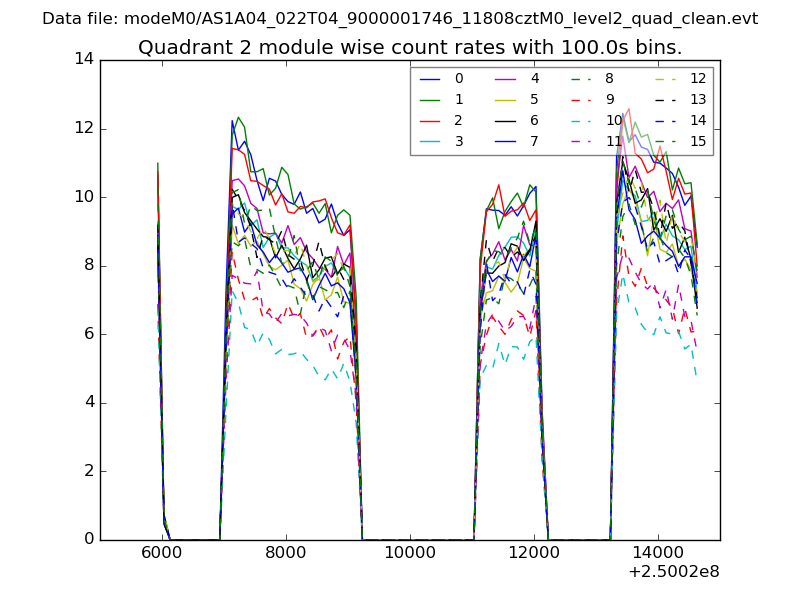

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

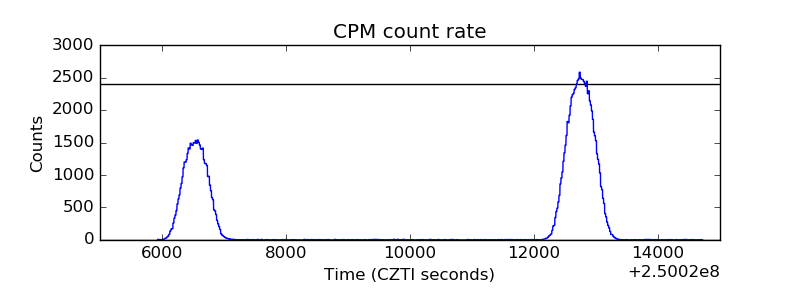

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

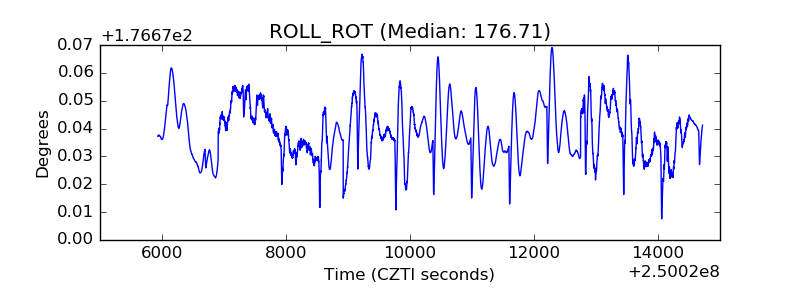

| _ROLL_ROT |  |
| _Roll_DEC |  |

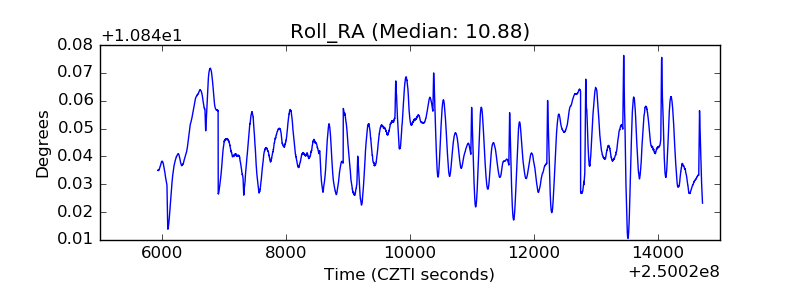

| _Roll_RA |  |
| Veto Counter |  |
