| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T04_9000001746_11809cztM0_level2.evt | modeM0/AS1A04_022T04_9000001746_11809cztM0_level2_quad_clean.evt |
| Size (bytes) | 584,380,800 | 87,822,720 |
| Size | 557.3 MB | 83.8 MB |
| Events in quadrant A | 3,059,801 | 589,239 |
| Events in quadrant B | 7,746,100 | 484,074 |
| Events in quadrant C | 2,893,426 | 601,191 |
| Events in quadrant D | 3,582,668 | 556,055 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13181 | 3 |
| B | 0 | 27248 | 2 |
| C | 0 | 12667 | 2 |
| D | 0 | 14711 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6138 | 35 | 0.570218% |
| B | 6138 | 1817 | 29.602476% |
| C | 6138 | 29 | 0.472467% |
| D | 6138 | 148 | 2.411209% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7409 | 6140 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7409 | 6140 | 1531 | 1531 | 20.66% | 24.93% |  |
| C | 7409 | 6140 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7409 | 6140 | 102 | 102 | 1.38% | 1.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 75784 | 494.87 | 743 | 728 | 151.7 |
| A | 1 | 178 | 39129 | 253.19 | 743 | 728 | 151.7 |
| A | 1 | 161 | 34758 | 224.37 | 743 | 728 | 151.7 |
| B | 10 | 16 | 3496914 | 29855.81 | 631 | 616 | 117.1 |
| B | 4 | 239 | 763807 | 6517.09 | 631 | 616 | 117.1 |
| B | 3 | 64 | 694255 | 5923.17 | 631 | 616 | 117.1 |
| C | 1 | 16 | 6455 | 33.34 | 739 | 743 | 171.3 |
| C | 13 | 61 | 5322 | 26.73 | 739 | 743 | 171.3 |
| C | 12 | 4 | 3467 | 15.9 | 739 | 743 | 171.3 |
| D | 13 | 122 | 213320 | 1228.91 | 720 | 701 | 173.0 |
| D | 1 | 52 | 176651 | 1016.97 | 720 | 701 | 173.0 |
| D | 8 | 195 | 115799 | 665.25 | 720 | 701 | 173.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

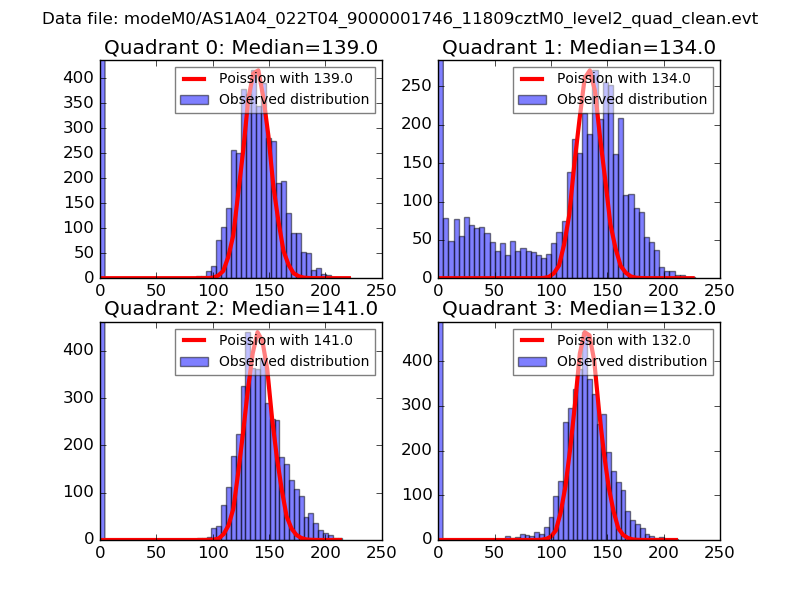

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

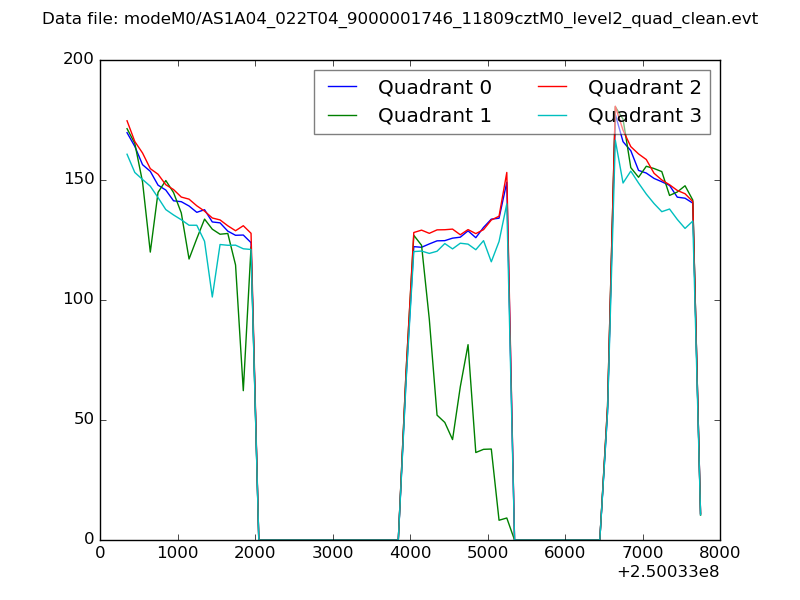

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

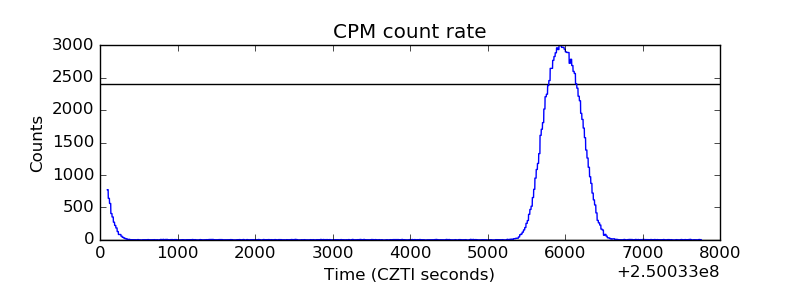

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

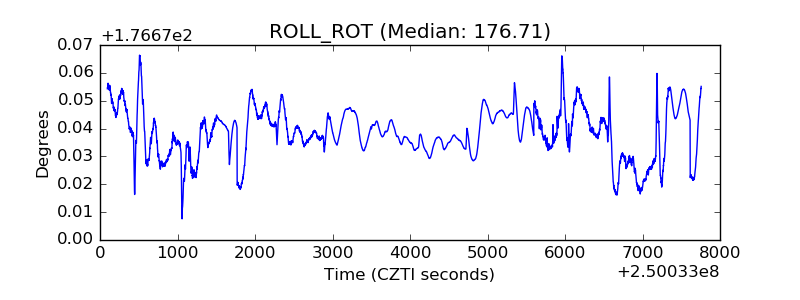

| _ROLL_ROT |  |
