| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T04_9000001746_11814cztM0_level2.evt | modeM0/AS1A04_022T04_9000001746_11814cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,496,000 | 81,259,200 |
| Size | 497.3 MB | 77.5 MB |
| Events in quadrant A | 3,462,435 | 493,775 |
| Events in quadrant B | 4,186,363 | 493,208 |
| Events in quadrant C | 3,258,311 | 501,127 |
| Events in quadrant D | 4,398,154 | 471,733 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15073 | 3 |
| B | 0 | 16986 | 2 |
| C | 0 | 14738 | 2 |
| D | 0 | 17785 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7189 | 143 | 1.989150% |
| B | 7189 | 292 | 4.061761% |
| C | 7189 | 75 | 1.043261% |
| D | 7189 | 347 | 4.826819% |

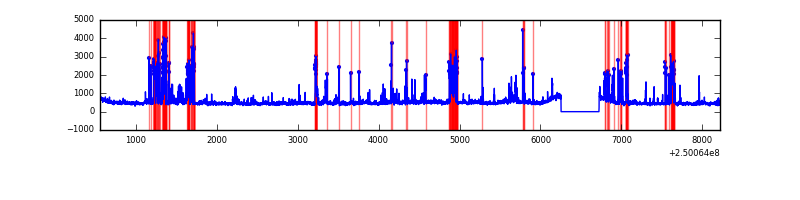

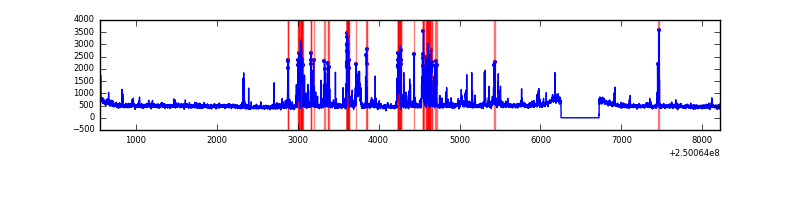

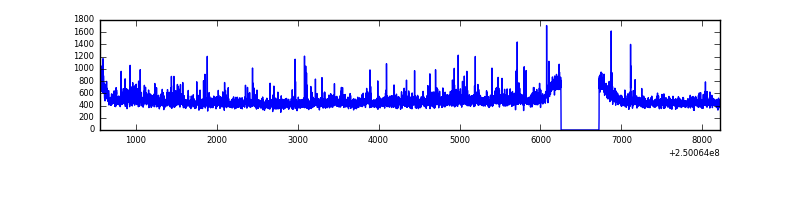

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7660 | 7191 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7660 | 7191 | 98 | 98 | 1.28% | 1.36% |  |
| C | 7660 | 7191 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7660 | 7191 | 211 | 211 | 2.75% | 2.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 81220 | 468.15 | 845 | 826 | 171.7 |
| A | 1 | 178 | 40070 | 228.53 | 845 | 826 | 171.7 |
| A | 1 | 161 | 35365 | 201.13 | 845 | 826 | 171.7 |
| B | 4 | 239 | 612845 | 3812.15 | 846 | 825 | 160.5 |
| B | 3 | 64 | 107703 | 665.72 | 846 | 825 | 160.5 |
| B | 10 | 16 | 67373 | 414.51 | 846 | 825 | 160.5 |
| C | 13 | 61 | 6104 | 27.15 | 831 | 834 | 194.1 |
| C | 8 | 208 | 5217 | 22.58 | 831 | 834 | 194.1 |
| C | 8 | 128 | 4288 | 17.8 | 831 | 834 | 194.1 |
| D | 10 | 199 | 429741 | 2172.23 | 813 | 789 | 197.5 |
| D | 9 | 85 | 271050 | 1368.61 | 813 | 789 | 197.5 |
| D | 8 | 195 | 220522 | 1112.73 | 813 | 789 | 197.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

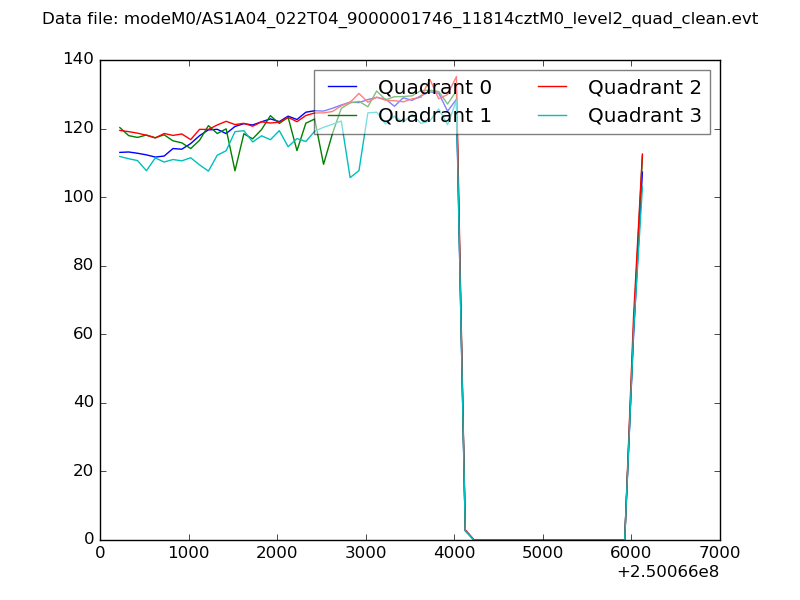

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

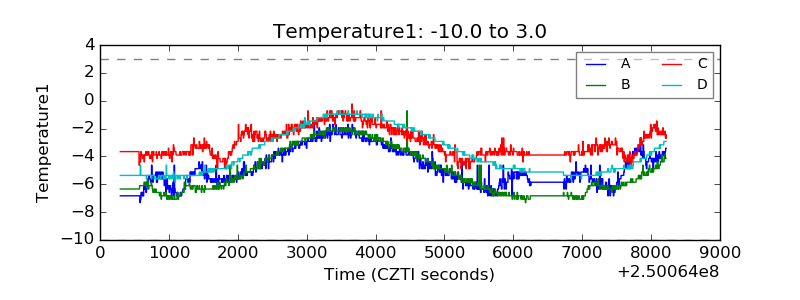

| Temperature 1 |  |

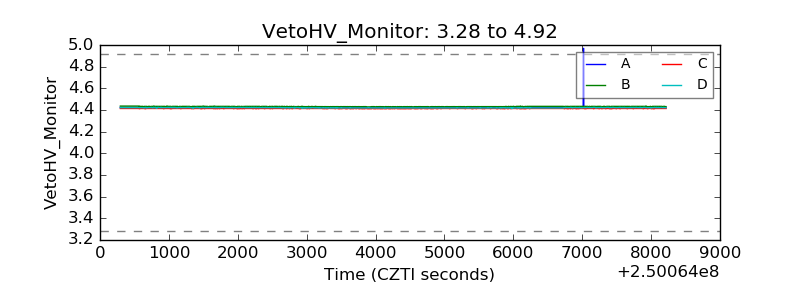

| Veto HV Monitor |  |
| Veto LLD |  |

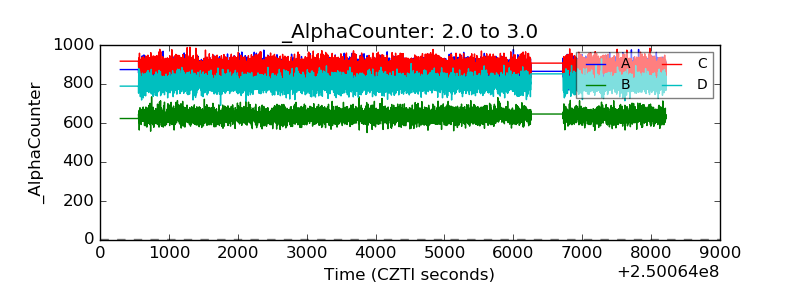

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

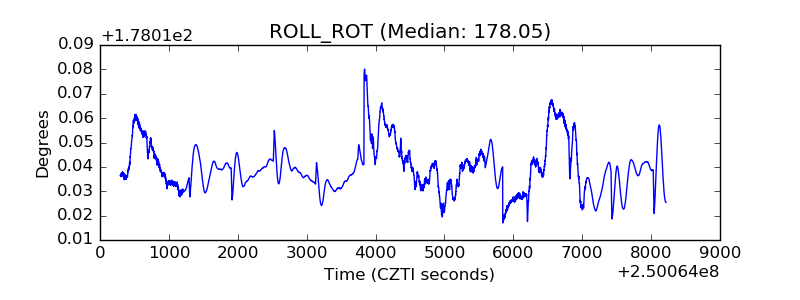

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
