| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T07_9000001748_11822cztM0_level2.evt | modeM0/AS1A04_022T07_9000001748_11822cztM0_level2_quad_clean.evt |
| Size (bytes) | 556,153,920 | 91,486,080 |
| Size | 530.4 MB | 87.2 MB |
| Events in quadrant A | 3,250,790 | 593,444 |
| Events in quadrant B | 6,694,769 | 553,029 |
| Events in quadrant C | 2,955,019 | 599,462 |
| Events in quadrant D | 3,504,475 | 573,466 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14051 | 3 |
| B | 0 | 24208 | 2 |
| C | 0 | 13221 | 2 |
| D | 0 | 14930 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6460 | 41 | 0.634675% |
| B | 6460 | 996 | 15.417957% |
| C | 6460 | 12 | 0.185759% |
| D | 6460 | 88 | 1.362229% |

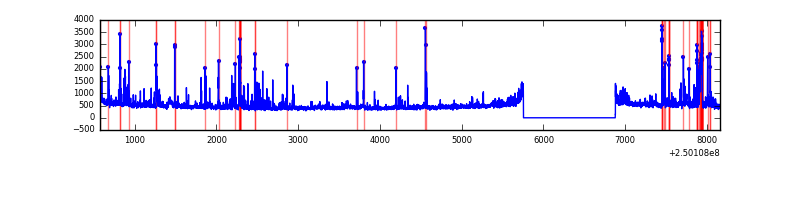

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7586 | 6462 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7586 | 6462 | 788 | 788 | 10.39% | 12.19% |  |
| C | 7586 | 6462 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7586 | 6462 | 70 | 70 | 0.92% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 111932 | 718.42 | 763 | 747 | 154.8 |
| A | 1 | 178 | 56401 | 359.61 | 763 | 747 | 154.8 |
| A | 1 | 161 | 50135 | 319.12 | 763 | 747 | 154.8 |
| B | 10 | 16 | 2079541 | 14960.56 | 742 | 724 | 139.0 |
| B | 4 | 239 | 729218 | 5242.73 | 742 | 724 | 139.0 |
| B | 15 | 185 | 294734 | 2115.89 | 742 | 724 | 139.0 |
| C | 0 | 207 | 8302 | 42.49 | 754 | 757 | 177.6 |
| C | 13 | 61 | 5554 | 27.02 | 754 | 757 | 177.6 |
| C | 1 | 16 | 2349 | 8.97 | 754 | 757 | 177.6 |
| D | 1 | 52 | 174944 | 966.88 | 749 | 729 | 180.2 |
| D | 10 | 253 | 102875 | 566.9 | 749 | 729 | 180.2 |
| D | 9 | 85 | 98482 | 542.52 | 749 | 729 | 180.2 |

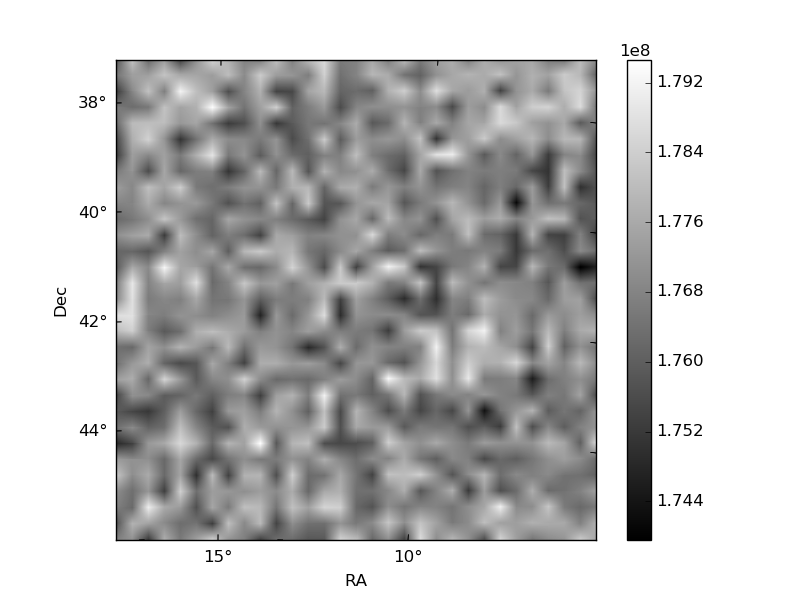

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

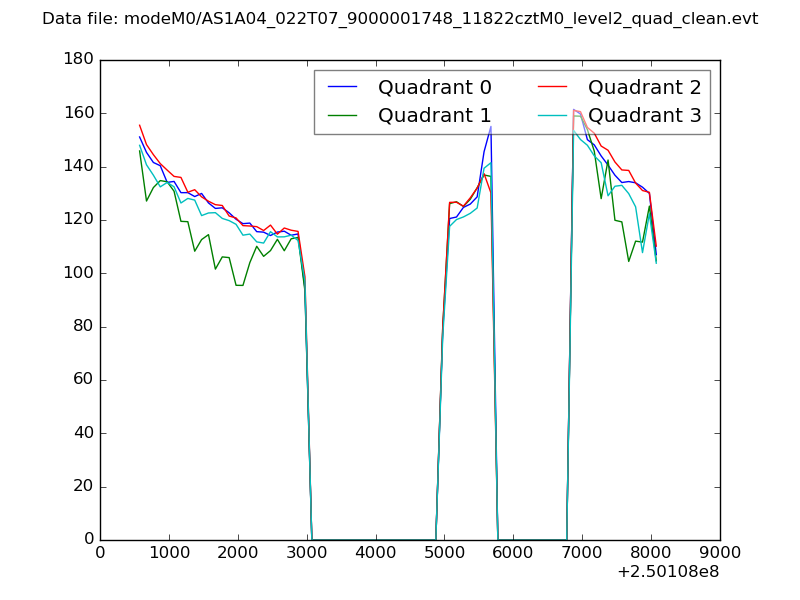

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

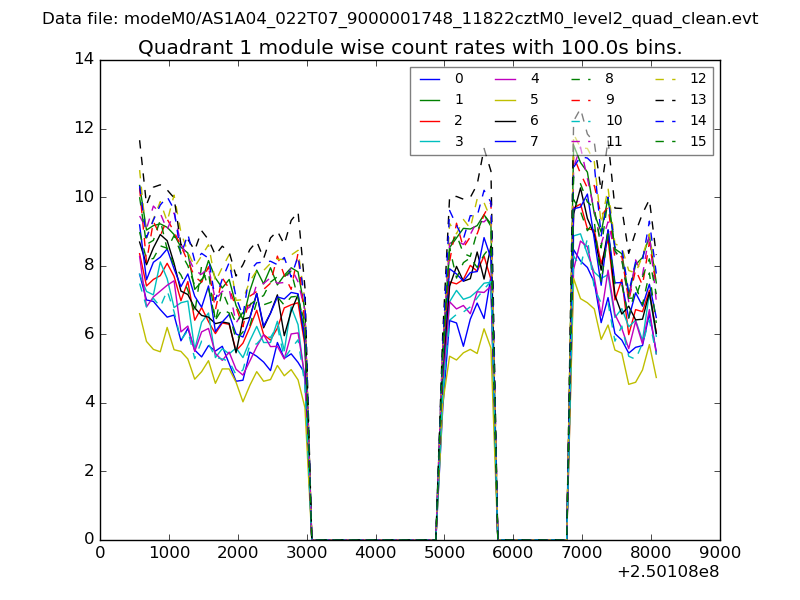

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

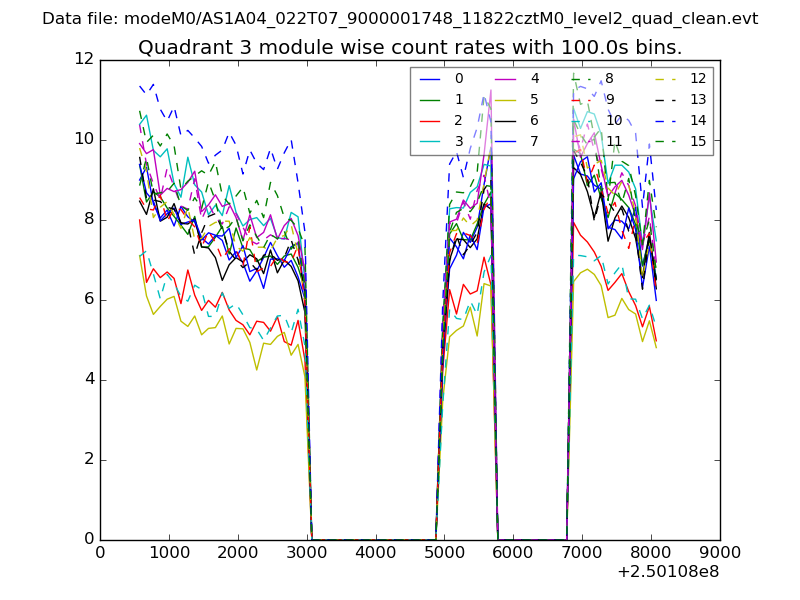

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

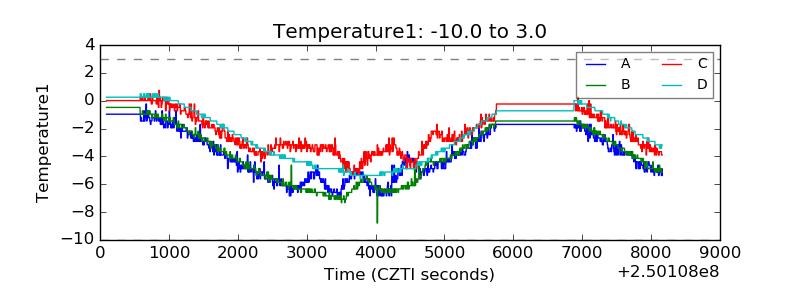

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

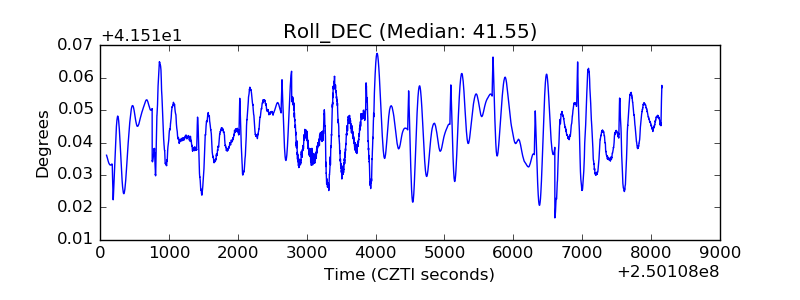

| _Roll_DEC |  |

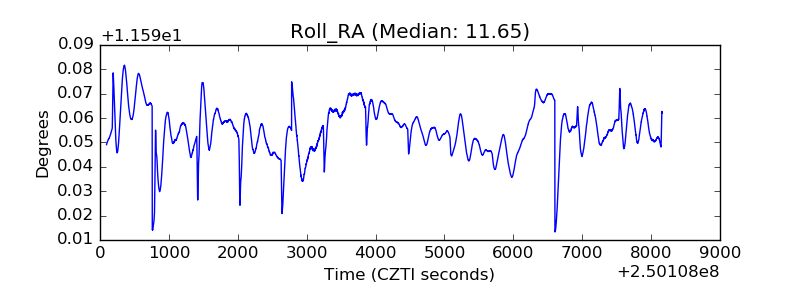

| _Roll_RA |  |
| Veto Counter |  |
