| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T07_9000001748_11824cztM0_level2.evt | modeM0/AS1A04_022T07_9000001748_11824cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,365,760 | 92,568,960 |
| Size | 472.4 MB | 88.3 MB |
| Events in quadrant A | 3,175,436 | 602,885 |
| Events in quadrant B | 4,660,893 | 595,547 |
| Events in quadrant C | 2,943,867 | 613,290 |
| Events in quadrant D | 3,804,546 | 561,926 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13440 | 3 |
| B | 0 | 17913 | 2 |
| C | 0 | 12746 | 2 |
| D | 0 | 15474 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6155 | 60 | 0.974817% |
| B | 6155 | 396 | 6.433794% |
| C | 6155 | 21 | 0.341186% |
| D | 6155 | 205 | 3.330626% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

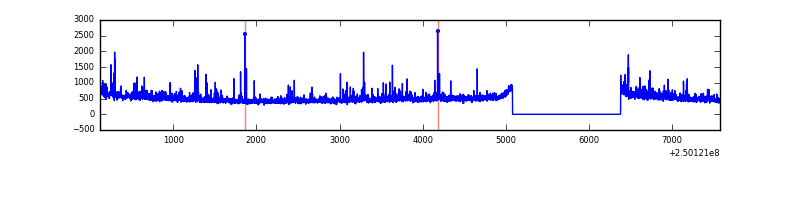

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7456 | 6157 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7456 | 6157 | 233 | 233 | 3.12% | 3.78% |  |
| C | 7456 | 6157 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7456 | 6157 | 157 | 157 | 2.11% | 2.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 110464 | 727.03 | 755 | 739 | 150.9 |
| A | 1 | 178 | 54779 | 358.06 | 755 | 739 | 150.9 |
| A | 1 | 161 | 49128 | 320.62 | 755 | 739 | 150.9 |
| B | 4 | 239 | 783278 | 5675.13 | 746 | 728 | 137.9 |
| B | 3 | 64 | 436714 | 3161.82 | 746 | 728 | 137.9 |
| B | 10 | 16 | 410342 | 2970.56 | 746 | 728 | 137.9 |
| C | 13 | 61 | 5548 | 27.66 | 750 | 753 | 173.3 |
| C | 1 | 16 | 5518 | 27.49 | 750 | 753 | 173.3 |
| C | 7 | 253 | 2914 | 12.46 | 750 | 753 | 173.3 |
| D | 1 | 52 | 484349 | 2563.26 | 719 | 706 | 188.7 |
| D | 9 | 85 | 278546 | 1472.52 | 719 | 706 | 188.7 |
| D | 13 | 104 | 64798 | 339.68 | 719 | 706 | 188.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

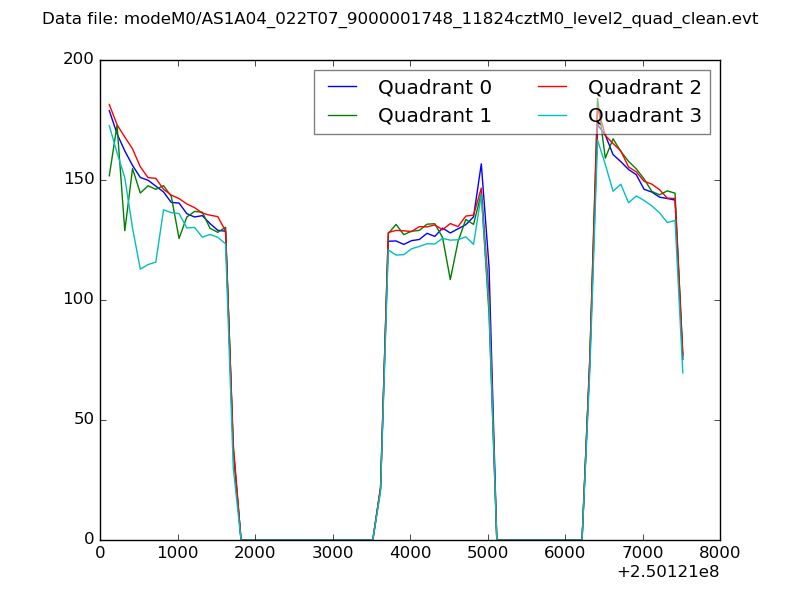

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

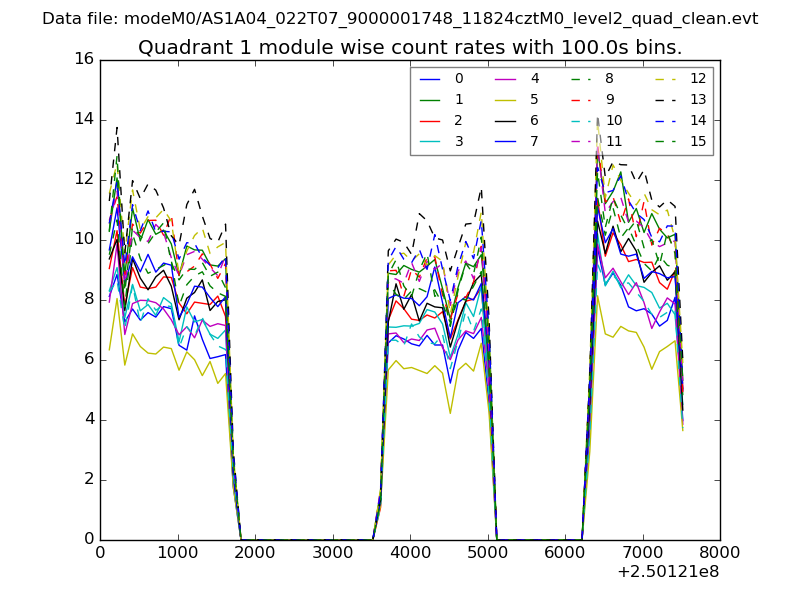

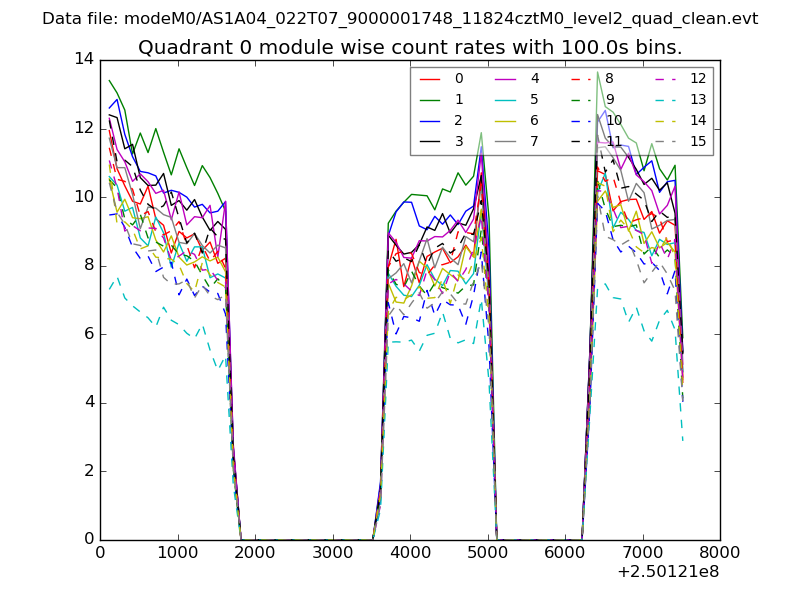

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

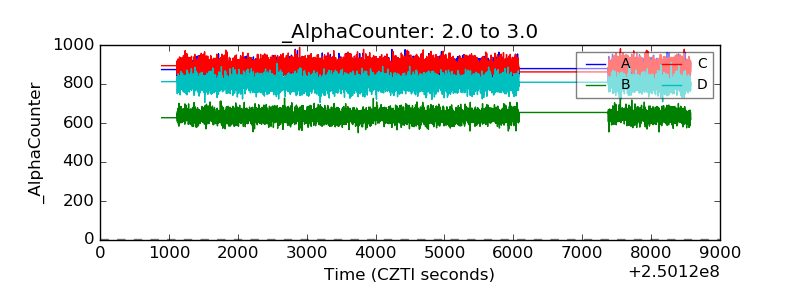

| Alpha Counter |  |
| _CPM_Rate |  |

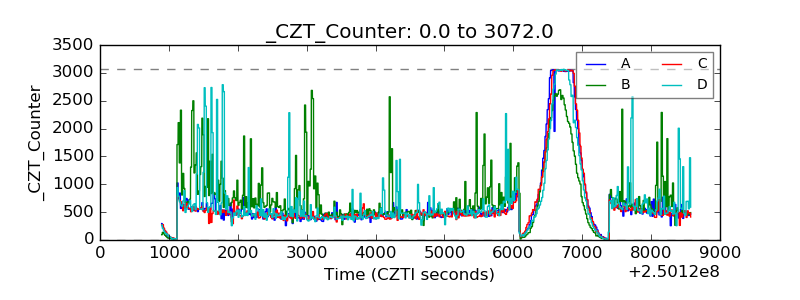

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

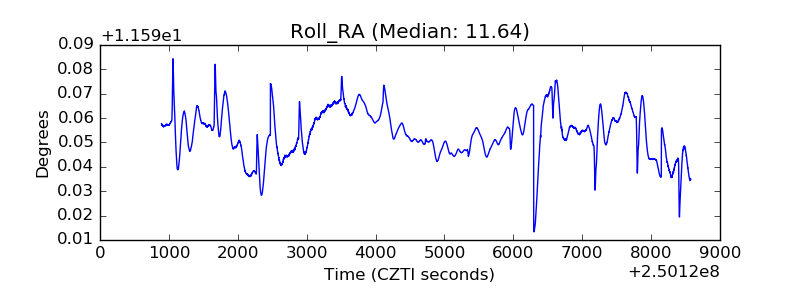

| _Roll_RA |  |

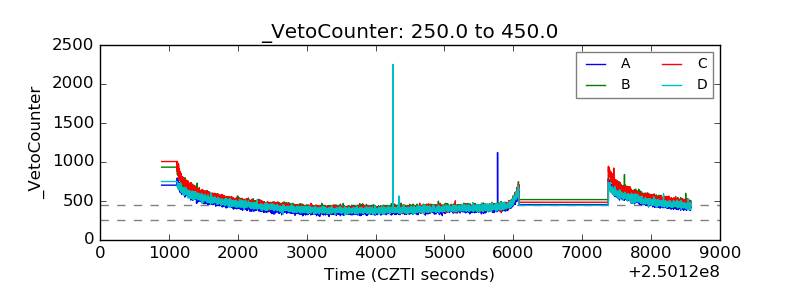

| Veto Counter |  |
