| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_022T07_9000001748_11826cztM0_level2.evt | modeM0/AS1A04_022T07_9000001748_11826cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,556,800 | 75,228,480 |
| Size | 449.7 MB | 71.7 MB |
| Events in quadrant A | 3,188,088 | 462,889 |
| Events in quadrant B | 4,057,746 | 462,885 |
| Events in quadrant C | 2,980,333 | 468,604 |
| Events in quadrant D | 3,622,323 | 439,051 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13584 | 3 |
| B | 0 | 16162 | 2 |
| C | 0 | 13039 | 2 |
| D | 0 | 15156 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6368 | 36 | 0.565327% |
| B | 6368 | 181 | 2.842337% |
| C | 6368 | 10 | 0.157035% |
| D | 6368 | 95 | 1.491834% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7744 | 6370 | 5 | 5 | 0.06% | 0.08% |  |
| B | 7744 | 6370 | 91 | 91 | 1.18% | 1.43% |  |
| C | 7744 | 6370 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7744 | 6370 | 68 | 68 | 0.88% | 1.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 82120 | 525.55 | 774 | 759 | 154.8 |
| A | 1 | 178 | 42505 | 269.66 | 774 | 759 | 154.8 |
| A | 1 | 161 | 37061 | 234.49 | 774 | 759 | 154.8 |
| B | 4 | 239 | 412542 | 2843.05 | 779 | 761 | 144.8 |
| B | 10 | 16 | 317751 | 2188.58 | 779 | 761 | 144.8 |
| B | 3 | 64 | 95136 | 651.59 | 779 | 761 | 144.8 |
| C | 13 | 61 | 5684 | 27.91 | 763 | 769 | 176.1 |
| C | 12 | 4 | 2623 | 10.53 | 763 | 769 | 176.1 |
| C | 8 | 222 | 2487 | 9.76 | 763 | 769 | 176.1 |
| D | 1 | 52 | 306512 | 1701.99 | 745 | 726 | 179.7 |
| D | 13 | 104 | 132937 | 735.88 | 745 | 726 | 179.7 |
| D | 13 | 249 | 128704 | 712.32 | 745 | 726 | 179.7 |

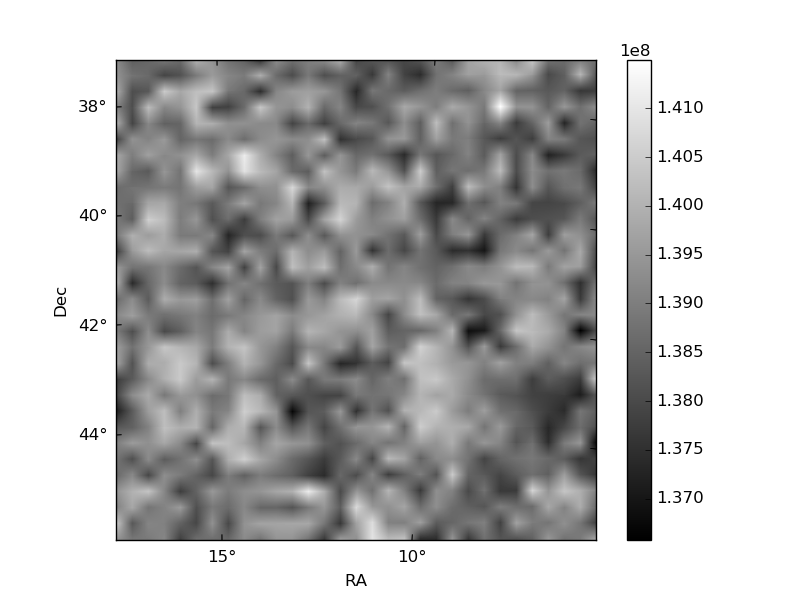

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

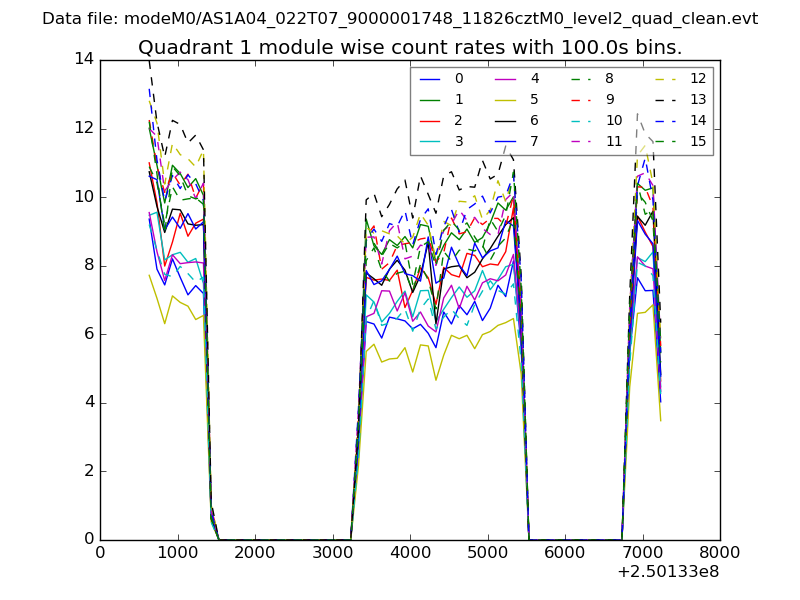

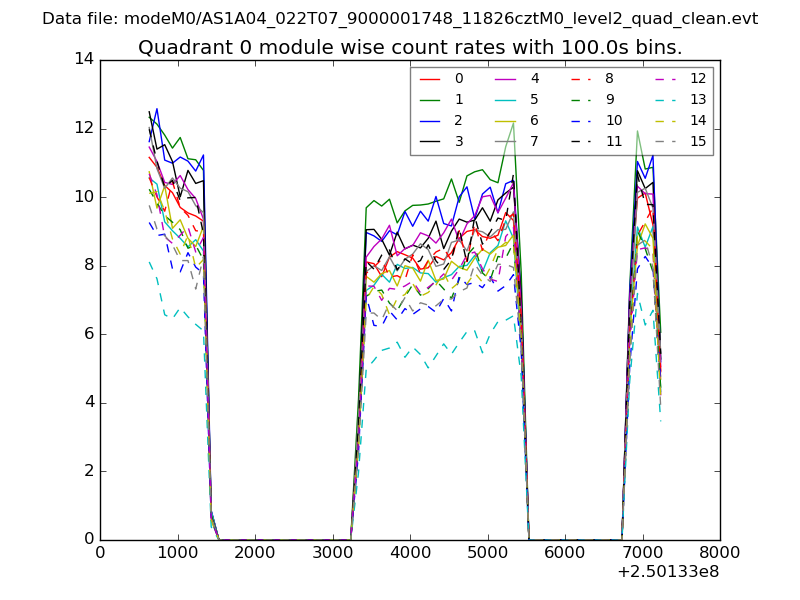

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

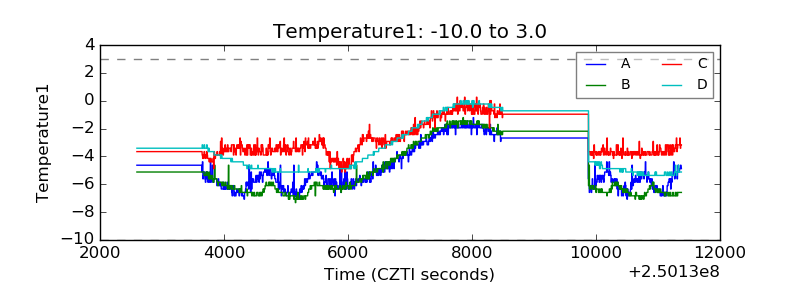

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

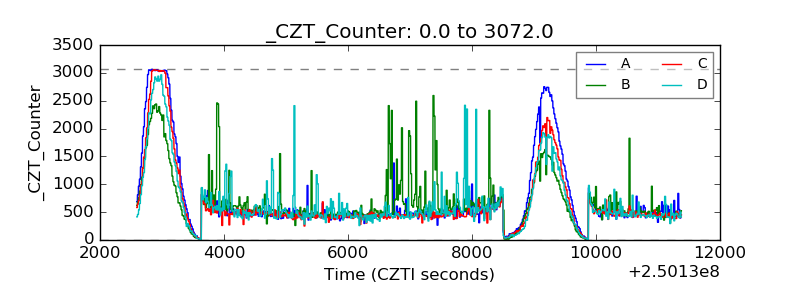

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

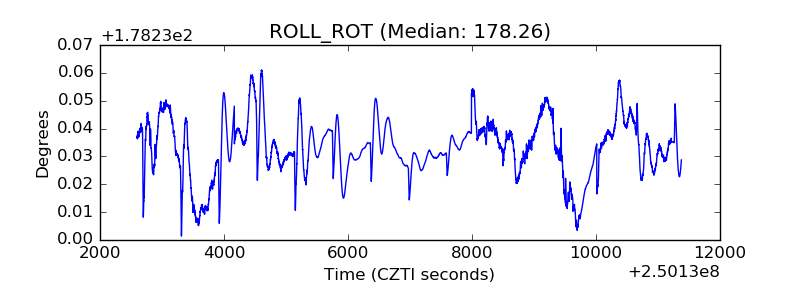

| _ROLL_ROT |  |

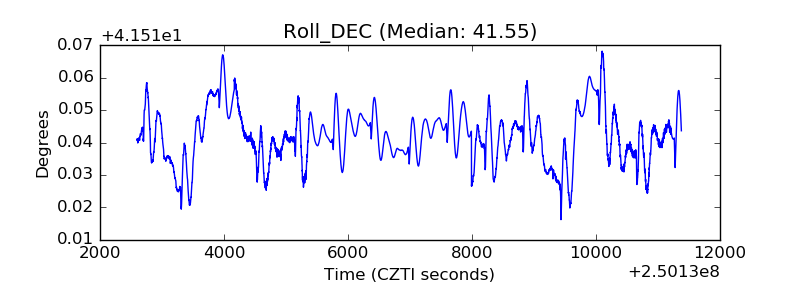

| _Roll_DEC |  |

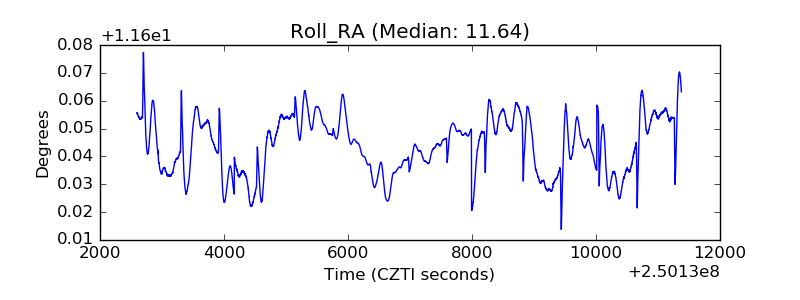

| _Roll_RA |  |
| Veto Counter |  |
