| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_088T03_9000001750_11841cztM0_level2.evt | modeM0/AS1A04_088T03_9000001750_11841cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,241,280 | 93,960,000 |
| Size | 464.7 MB | 89.6 MB |
| Events in quadrant A | 3,260,898 | 615,888 |
| Events in quadrant B | 4,200,244 | 607,086 |
| Events in quadrant C | 2,964,461 | 598,487 |
| Events in quadrant D | 3,882,808 | 564,116 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13945 | 3 |
| B | 0 | 16906 | 2 |
| C | 0 | 13474 | 2 |
| D | 0 | 16195 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6594 | 37 | 0.561116% |
| B | 6594 | 283 | 4.291780% |
| C | 6594 | 11 | 0.166818% |
| D | 6594 | 134 | 2.032150% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7815 | 6596 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7815 | 6596 | 122 | 122 | 1.56% | 1.85% |  |
| C | 7815 | 6596 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7815 | 6596 | 116 | 116 | 1.48% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 82019 | 507.43 | 795 | 780 | 160.1 |
| A | 1 | 178 | 37829 | 231.41 | 795 | 780 | 160.1 |
| A | 1 | 161 | 34115 | 208.21 | 795 | 780 | 160.1 |
| B | 4 | 239 | 567430 | 3817.29 | 784 | 766 | 148.4 |
| B | 15 | 204 | 375068 | 2521.45 | 784 | 766 | 148.4 |
| B | 3 | 64 | 180678 | 1211.96 | 784 | 766 | 148.4 |
| C | 13 | 61 | 5571 | 27.52 | 760 | 764 | 174.6 |
| C | 12 | 4 | 1923 | 6.63 | 760 | 764 | 174.6 |
| C | 3 | 202 | 1872 | 6.34 | 760 | 764 | 174.6 |
| D | 1 | 52 | 883906 | 4917.4 | 749 | 729 | 179.6 |
| D | 9 | 85 | 62295 | 342.79 | 749 | 729 | 179.6 |
| D | 8 | 195 | 46299 | 253.73 | 749 | 729 | 179.6 |

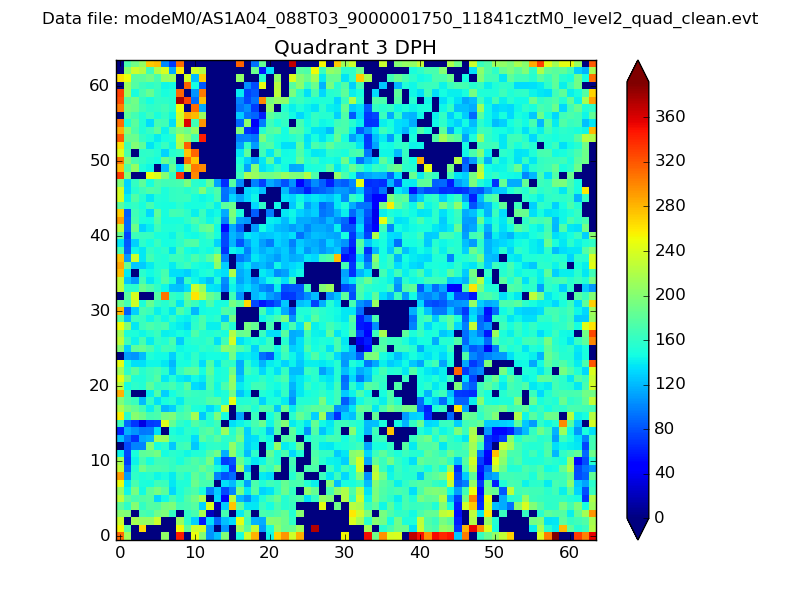

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

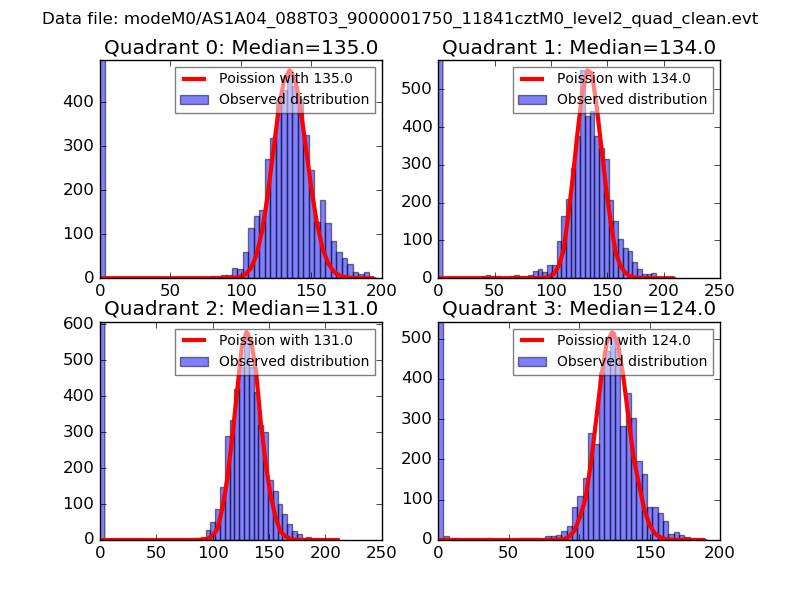

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

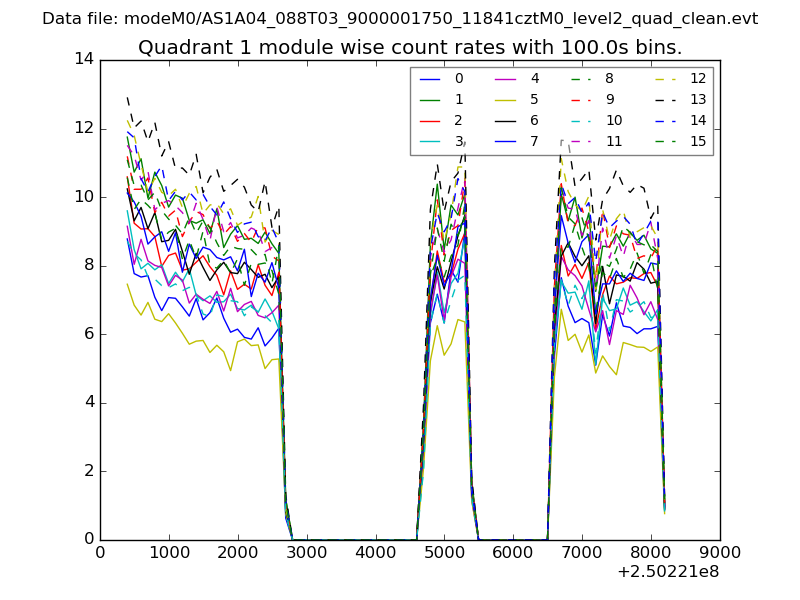

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

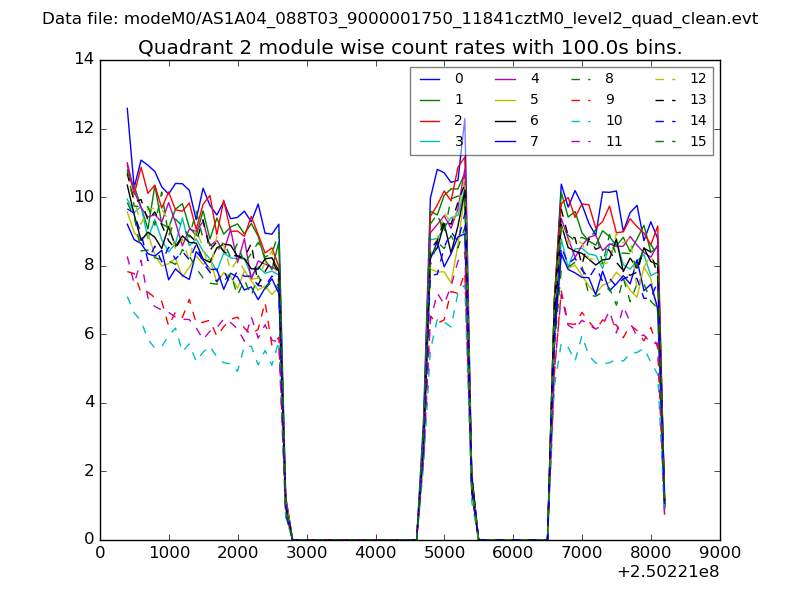

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

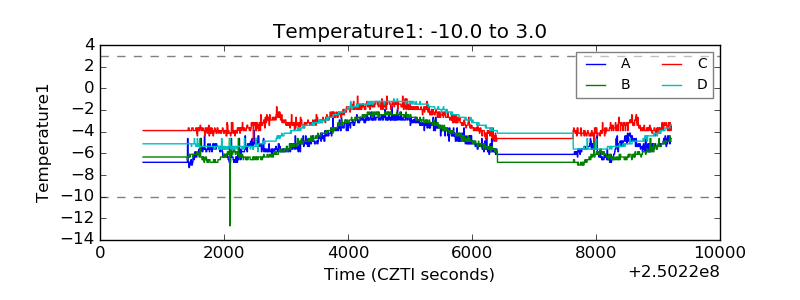

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

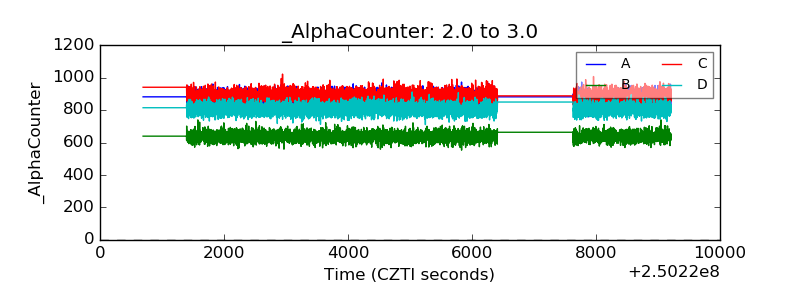

| Alpha Counter |  |

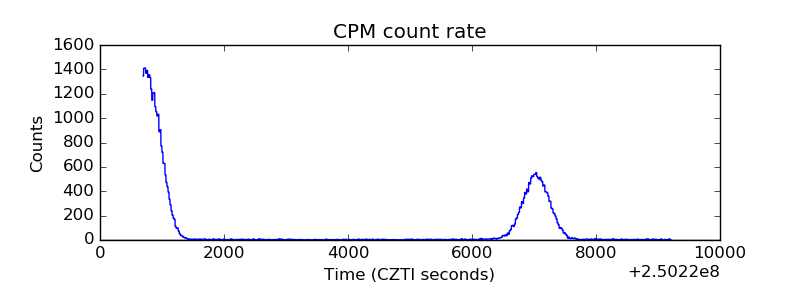

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

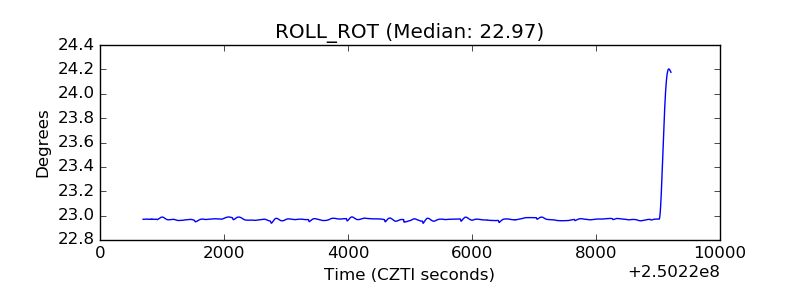

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
