| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_088T03_9000001750_11856cztM0_level2.evt | modeM0/AS1A04_088T03_9000001750_11856cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,839,360 | 92,767,680 |
| Size | 436.6 MB | 88.5 MB |
| Events in quadrant A | 3,356,030 | 600,426 |
| Events in quadrant B | 3,791,850 | 595,762 |
| Events in quadrant C | 2,968,416 | 587,439 |
| Events in quadrant D | 3,299,564 | 564,197 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14270 | 3 |
| B | 0 | 15621 | 2 |
| C | 0 | 13545 | 2 |
| D | 0 | 14593 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6613 | 94 | 1.421443% |
| B | 6613 | 183 | 2.767277% |
| C | 6613 | 31 | 0.468774% |
| D | 6613 | 91 | 1.376077% |

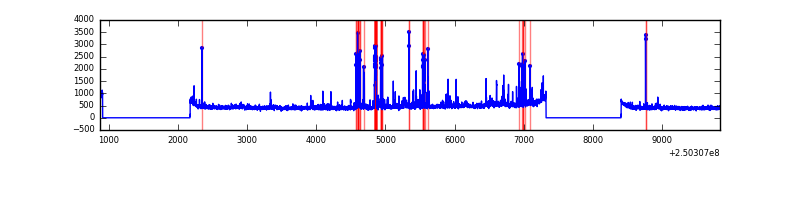

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8964 | 6616 | 5 | 5 | 0.06% | 0.08% |  |
| B | 8964 | 6616 | 39 | 39 | 0.44% | 0.59% |  |
| C | 8964 | 6616 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8964 | 6616 | 59 | 59 | 0.66% | 0.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 118151 | 730.43 | 794 | 777 | 160.7 |
| A | 1 | 178 | 57499 | 352.99 | 794 | 777 | 160.7 |
| A | 1 | 161 | 51051 | 312.86 | 794 | 777 | 160.7 |
| B | 4 | 239 | 403113 | 2670.75 | 786 | 766 | 150.6 |
| B | 15 | 204 | 93964 | 618.64 | 786 | 766 | 150.6 |
| B | 4 | 173 | 81109 | 533.31 | 786 | 766 | 150.6 |
| C | 13 | 61 | 5611 | 27.7 | 760 | 764 | 175.0 |
| C | 14 | 128 | 4597 | 21.91 | 760 | 764 | 175.0 |
| C | 3 | 202 | 1863 | 6.28 | 760 | 764 | 175.0 |
| D | 1 | 52 | 184957 | 1025.55 | 752 | 729 | 179.6 |
| D | 13 | 104 | 166240 | 921.36 | 752 | 729 | 179.6 |
| D | 7 | 71 | 43152 | 236.16 | 752 | 729 | 179.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

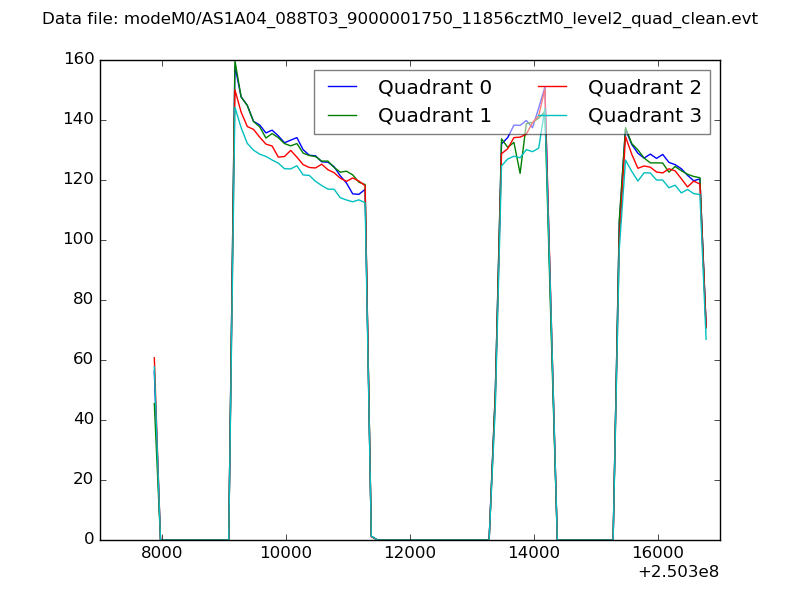

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

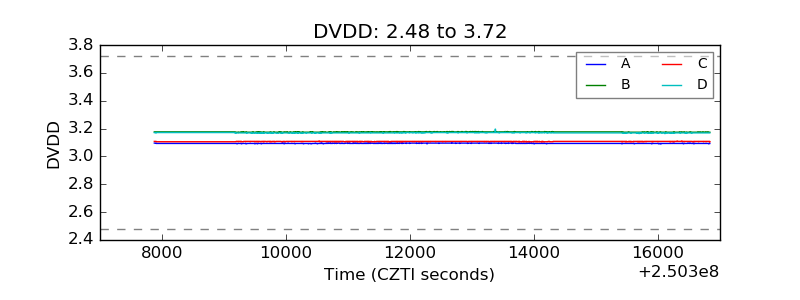

| CZT HV Monitor |  |
| D_VDD |  |

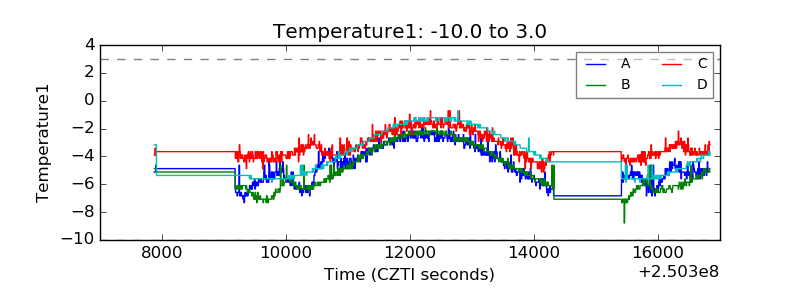

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

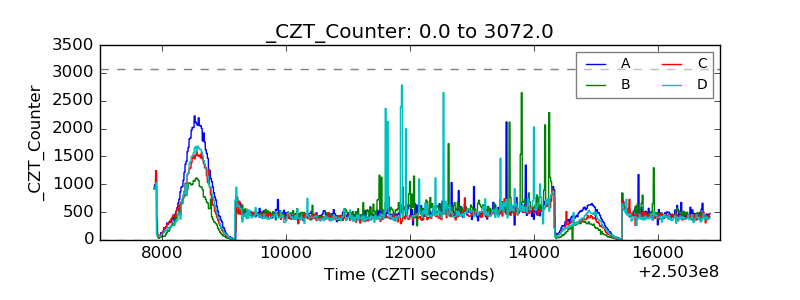

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

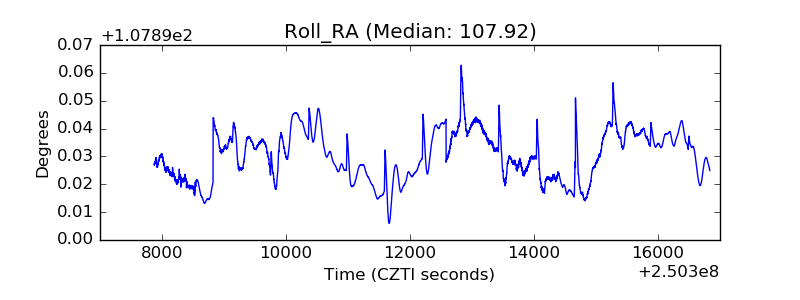

| _Roll_RA |  |
| Veto Counter |  |
