| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_088T03_9000001750_11857cztM0_level2.evt | modeM0/AS1A04_088T03_9000001750_11857cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,648,640 | 97,306,560 |
| Size | 463.2 MB | 92.8 MB |
| Events in quadrant A | 3,511,658 | 626,218 |
| Events in quadrant B | 4,082,307 | 624,899 |
| Events in quadrant C | 3,105,068 | 614,120 |
| Events in quadrant D | 3,530,796 | 591,667 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14954 | 3 |
| B | 0 | 16707 | 2 |
| C | 0 | 14322 | 2 |
| D | 0 | 15596 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7029 | 124 | 1.764120% |
| B | 7029 | 297 | 4.225352% |
| C | 7029 | 55 | 0.782473% |
| D | 7029 | 137 | 1.949068% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7695 | 7031 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7695 | 7031 | 125 | 125 | 1.62% | 1.78% |  |
| C | 7695 | 7031 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7695 | 7031 | 43 | 43 | 0.56% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 118317 | 694.82 | 827 | 809 | 169.1 |
| A | 1 | 178 | 61590 | 359.39 | 827 | 809 | 169.1 |
| A | 1 | 161 | 53938 | 314.15 | 827 | 809 | 169.1 |
| B | 4 | 239 | 623100 | 4010.23 | 813 | 796 | 155.2 |
| B | 15 | 204 | 77342 | 493.27 | 813 | 796 | 155.2 |
| B | 4 | 173 | 40613 | 256.59 | 813 | 796 | 155.2 |
| C | 13 | 61 | 5862 | 27.88 | 793 | 797 | 181.7 |
| C | 14 | 234 | 5769 | 27.37 | 793 | 797 | 181.7 |
| C | 8 | 128 | 4697 | 21.47 | 793 | 797 | 181.7 |
| D | 1 | 52 | 320091 | 1685.26 | 788 | 764 | 189.5 |
| D | 13 | 104 | 167168 | 878.2 | 788 | 764 | 189.5 |
| D | 7 | 71 | 31593 | 162.7 | 788 | 764 | 189.5 |

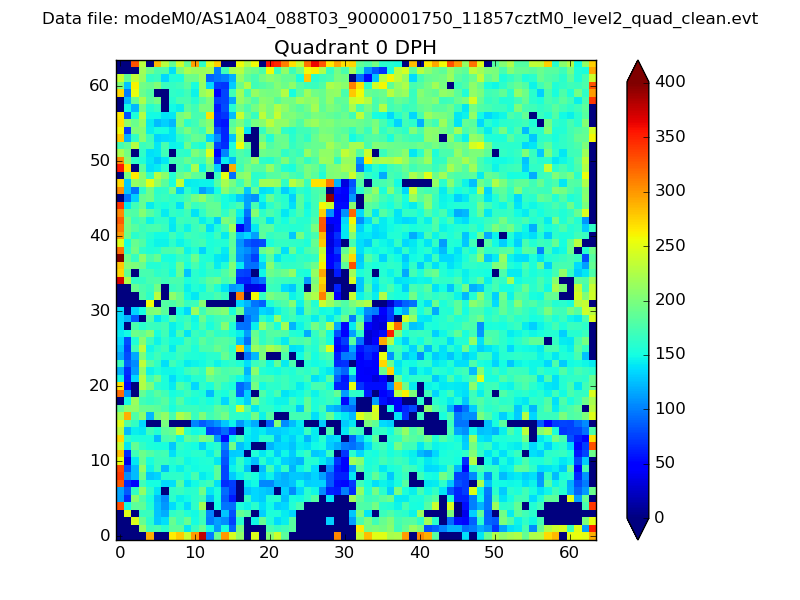

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

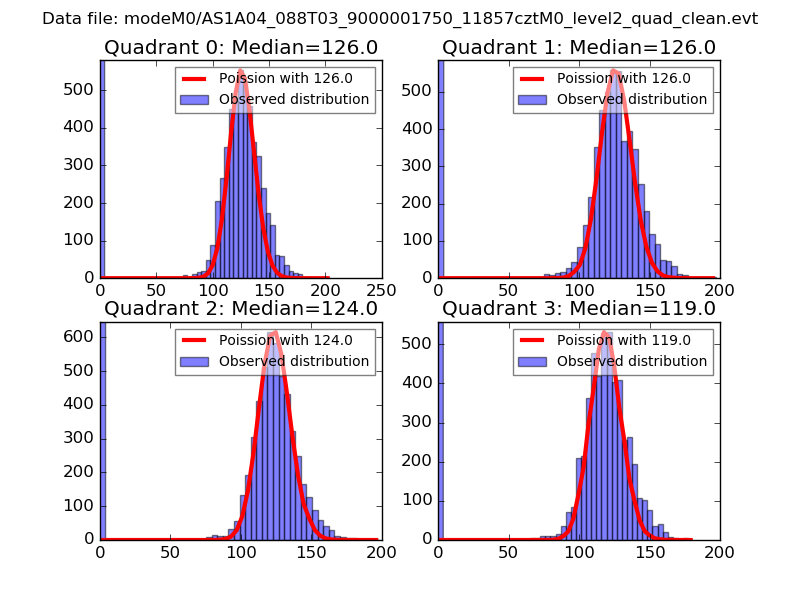

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

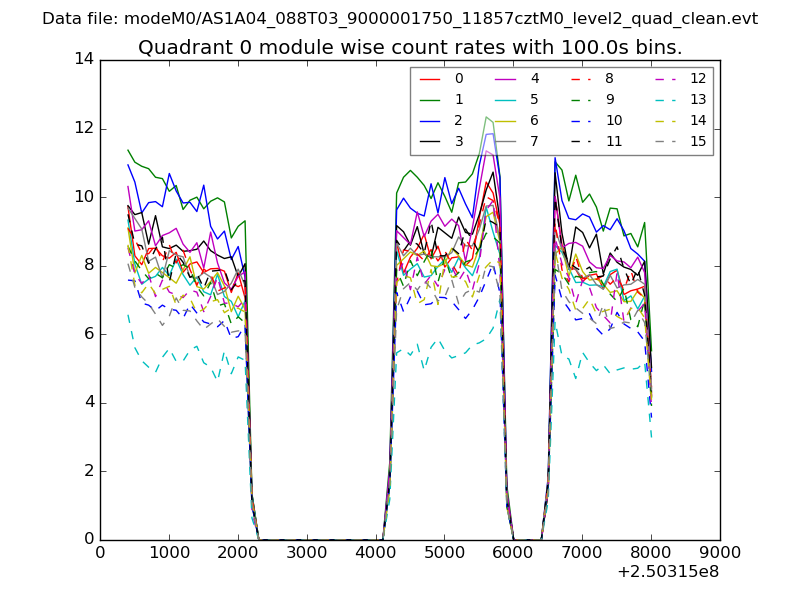

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

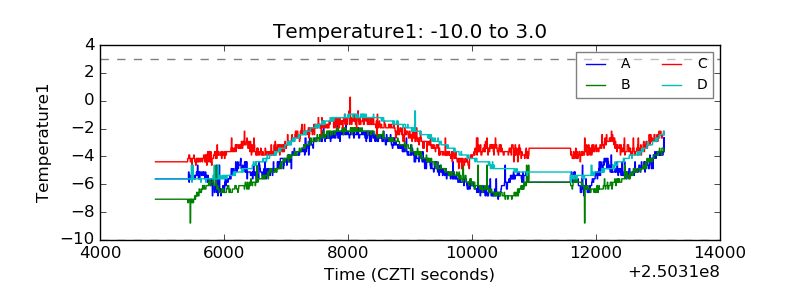

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

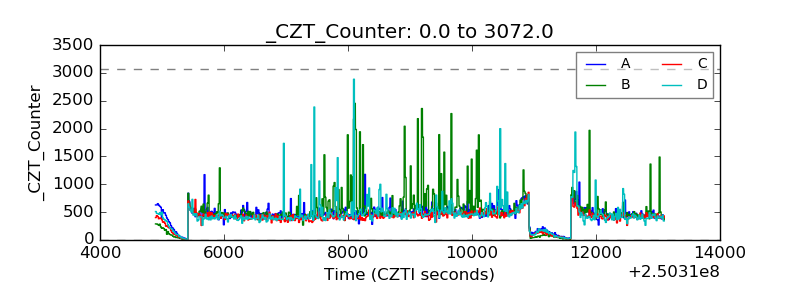

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

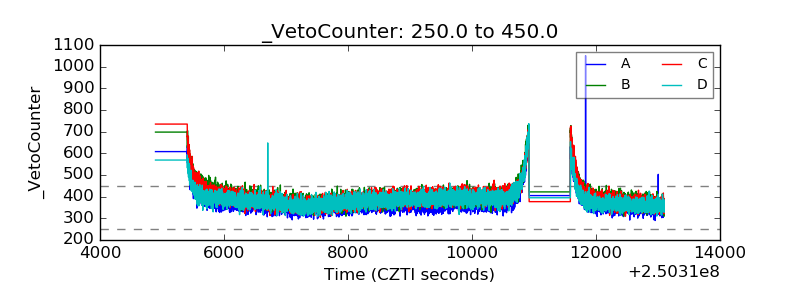

| Veto Counter |  |
